G4VGraphicsScene Class Referenceabstract

#include <G4VGraphicsScene.hh>

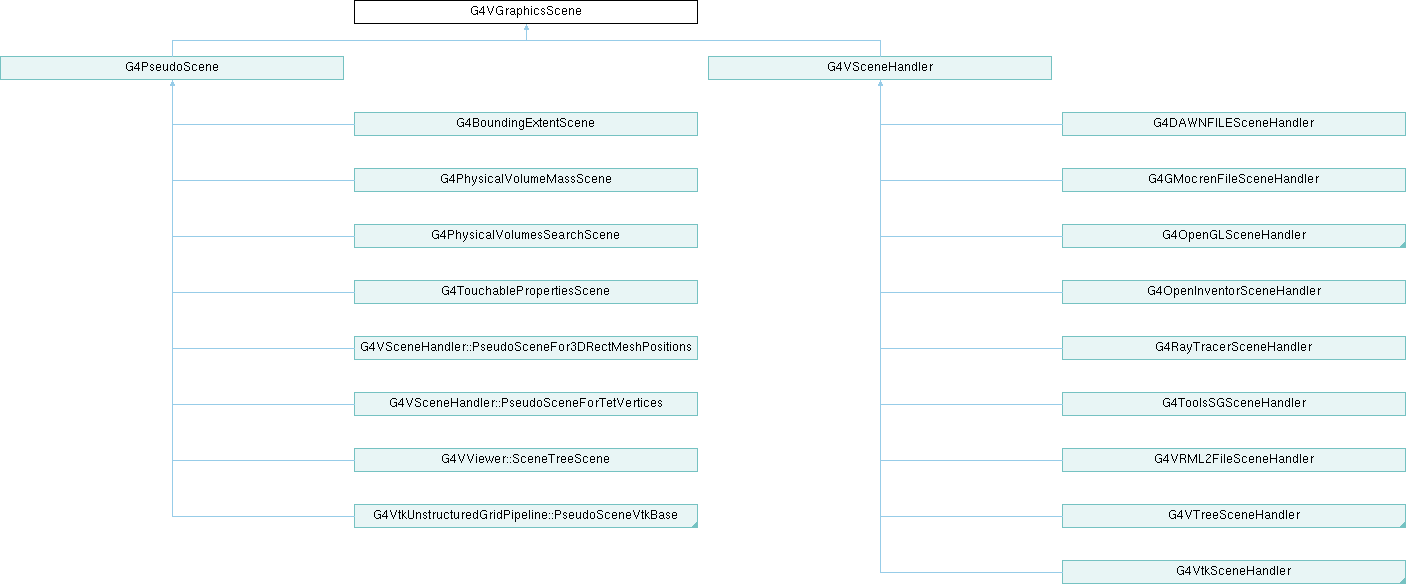

Inheritance diagram for G4VGraphicsScene:

Public Member Functions

 G4VGraphicsScene ()
virtual ~G4VGraphicsScene ()
virtual void PreAddSolid (const G4Transform3D &objectTransformation, const G4VisAttributes &visAttribs)=0
virtual void PostAddSolid ()=0
virtual void AddSolid (const G4Box &)=0
virtual void AddSolid (const G4Cons &)=0
virtual void AddSolid (const G4Orb &)=0
virtual void AddSolid (const G4Para &)=0
virtual void AddSolid (const G4Sphere &)=0
virtual void AddSolid (const G4Torus &)=0
virtual void AddSolid (const G4Trap &)=0
virtual void AddSolid (const G4Trd &)=0
virtual void AddSolid (const G4Tubs &)=0
virtual void AddSolid (const G4Ellipsoid &)=0
virtual void AddSolid (const G4Polycone &)=0
virtual void AddSolid (const G4Polyhedra &)=0
virtual void AddSolid (const G4TessellatedSolid &)=0
virtual void AddSolid (const G4VSolid &)=0
virtual void AddCompound (const G4VTrajectory &)=0
virtual void AddCompound (const G4VHit &)=0
virtual void AddCompound (const G4VDigi &)=0
virtual void AddCompound (const G4THitsMap< G4double > &)=0
virtual void AddCompound (const G4THitsMap< G4StatDouble > &)=0
virtual void AddCompound (const G4Mesh &)=0
virtual void BeginPrimitives (const G4Transform3D &objectTransformation=G4Transform3D())=0
virtual void EndPrimitives ()=0
virtual void BeginPrimitives2D (const G4Transform3D &objectTransformation=G4Transform3D())=0
virtual void EndPrimitives2D ()=0
virtual void AddPrimitive (const G4Polyline &)=0
virtual void AddPrimitive (const G4Text &)=0
virtual void AddPrimitive (const G4Circle &)=0
virtual void AddPrimitive (const G4Square &)=0
virtual void AddPrimitive (const G4Polymarker &)=0
virtual void AddPrimitive (const G4Polyhedron &)=0
virtual void AddPrimitive (const G4Plotter &)=0
virtual const G4VisExtent & GetExtent () const
G4int GetMaxGeometryDepth () const
void SetMaxGeometryDepth (G4int maxDepth)

Protected Attributes

G4int fMaxGeometryDepth = 0

Detailed Description

Definition at line 74 of file G4VGraphicsScene.hh.

Constructor & Destructor Documentation

◆ G4VGraphicsScene()

G4VGraphicsScene::G4VGraphicsScene ( )
default

◆ ~G4VGraphicsScene()

G4VGraphicsScene::~G4VGraphicsScene ( )
virtualdefault

Member Function Documentation

◆ AddCompound() [1/6]

virtual void G4VGraphicsScene::AddCompound ( const G4Mesh & )
pure virtual

Implemented in G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, and G4VtkSceneHandler.

◆ AddCompound() [2/6]

virtual void G4VGraphicsScene::AddCompound ( const G4THitsMap< G4double > & )
pure virtual

Implemented in G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, and G4VtkSceneHandler.

◆ AddCompound() [3/6]

virtual void G4VGraphicsScene::AddCompound ( const G4THitsMap< G4StatDouble > & )
pure virtual

Implemented in G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, and G4VtkSceneHandler.

◆ AddCompound() [4/6]

virtual void G4VGraphicsScene::AddCompound ( const G4VDigi & )
pure virtual

Implemented in G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, and G4VtkSceneHandler.

◆ AddCompound() [5/6]

virtual void G4VGraphicsScene::AddCompound ( const G4VHit & )
pure virtual

Implemented in G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, and G4VtkSceneHandler.

◆ AddCompound() [6/6]

virtual void G4VGraphicsScene::AddCompound ( const G4VTrajectory & )
pure virtual

Implemented in G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, and G4VtkSceneHandler.

Referenced by G4PhysicalVolumeModel::DescribeAndDescend(), G4DigiModel::DescribeYourselfTo(), G4HitsModel::DescribeYourselfTo(), G4PSHitsModel::DescribeYourselfTo(), and G4TrajectoriesModel::DescribeYourselfTo().

◆ AddPrimitive() [1/7]

virtual void G4VGraphicsScene::AddPrimitive ( const G4Circle & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4RayTracerSceneHandler, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkQtSceneHandler, G4VtkSceneHandler, and G4VTreeSceneHandler.

◆ AddPrimitive() [2/7]

virtual void G4VGraphicsScene::AddPrimitive ( const G4Plotter & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4RayTracerSceneHandler, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VTreeSceneHandler.

◆ AddPrimitive() [3/7]

virtual void G4VGraphicsScene::AddPrimitive ( const G4Polyhedron & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4RayTracerSceneHandler, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkQtSceneHandler, G4VtkSceneHandler, and G4VTreeSceneHandler.

◆ AddPrimitive() [4/7]

virtual void G4VGraphicsScene::AddPrimitive ( const G4Polyline & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4RayTracerSceneHandler, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkQtSceneHandler, G4VtkSceneHandler, and G4VTreeSceneHandler.

Referenced by G4ArrowModel::DescribeYourselfTo(), G4GPSModel::DescribeYourselfTo(), G4LogicalVolumeModel::DescribeYourselfTo(), G4PlotterModel::DescribeYourselfTo(), G4TextModel::DescribeYourselfTo(), and G4VFieldModel::DescribeYourselfTo().

◆ AddPrimitive() [5/7]

virtual void G4VGraphicsScene::AddPrimitive ( const G4Polymarker & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4RayTracerSceneHandler, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkQtSceneHandler, G4VtkSceneHandler, and G4VTreeSceneHandler.

◆ AddPrimitive() [6/7]

virtual void G4VGraphicsScene::AddPrimitive ( const G4Square & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4RayTracerSceneHandler, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkQtSceneHandler, G4VtkSceneHandler, and G4VTreeSceneHandler.

◆ AddPrimitive() [7/7]

virtual void G4VGraphicsScene::AddPrimitive ( const G4Text & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4RayTracerSceneHandler, G4ToolsSGSceneHandler, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkQtSceneHandler, G4VtkSceneHandler, and G4VTreeSceneHandler.

◆ AddSolid() [1/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Box & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

Referenced by G4Box::DescribeYourselfTo(), G4Cons::DescribeYourselfTo(), G4CutTubs::DescribeYourselfTo(), G4DisplacedSolid::DescribeYourselfTo(), G4Ellipsoid::DescribeYourselfTo(), G4EllipticalCone::DescribeYourselfTo(), G4EllipticalTube::DescribeYourselfTo(), G4GenericTrap::DescribeYourselfTo(), G4GPSModel::DescribeYourselfTo(), G4Hype::DescribeYourselfTo(), G4IntersectionSolid::DescribeYourselfTo(), G4MultiUnion::DescribeYourselfTo(), G4Orb::DescribeYourselfTo(), G4Para::DescribeYourselfTo(), G4Paraboloid::DescribeYourselfTo(), G4ReflectedSolid::DescribeYourselfTo(), G4ScaledSolid::DescribeYourselfTo(), G4Sphere::DescribeYourselfTo(), G4SubtractionSolid::DescribeYourselfTo(), G4TessellatedSolid::DescribeYourselfTo(), G4Tet::DescribeYourselfTo(), G4Torus::DescribeYourselfTo(), G4Trap::DescribeYourselfTo(), G4Trd::DescribeYourselfTo(), G4Tubs::DescribeYourselfTo(), G4TwistedTubs::DescribeYourselfTo(), G4UnionSolid::DescribeYourselfTo(), G4VCSGfaceted::DescribeYourselfTo(), and G4VTwistedFaceted::DescribeYourselfTo().

◆ AddSolid() [2/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Cons & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [3/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Ellipsoid & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [4/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Orb & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [5/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Para & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [6/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Polycone & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [7/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Polyhedra & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [8/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Sphere & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [9/14]

virtual void G4VGraphicsScene::AddSolid ( const G4TessellatedSolid & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [10/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Torus & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [11/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Trap & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [12/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Trd & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [13/14]

virtual void G4VGraphicsScene::AddSolid ( const G4Tubs & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ AddSolid() [14/14]

virtual void G4VGraphicsScene::AddSolid ( const G4VSolid & )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, G4VSceneHandler, G4VtkSceneHandler, and G4VtkUnstructuredGridPipeline::PseudoSceneVtkBase.

◆ BeginPrimitives()

virtual void G4VGraphicsScene::BeginPrimitives ( const G4Transform3D & objectTransformation = G4Transform3D())
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, and G4VSceneHandler.

Referenced by G4ArrowModel::DescribeYourselfTo(), G4GPSModel::DescribeYourselfTo(), G4LogicalVolumeModel::DescribeYourselfTo(), G4PlotterModel::DescribeYourselfTo(), G4TextModel::DescribeYourselfTo(), and G4VFieldModel::DescribeYourselfTo().

◆ BeginPrimitives2D()

virtual void G4VGraphicsScene::BeginPrimitives2D ( const G4Transform3D & objectTransformation = G4Transform3D())
pure virtual

Implemented in G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4PseudoScene, and G4VSceneHandler.

◆ EndPrimitives()

virtual void G4VGraphicsScene::EndPrimitives ( )
pure virtual

Implemented in G4DAWNFILESceneHandler, G4GMocrenFileSceneHandler, G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4PseudoScene, G4VRML2FileSceneHandler, and G4VSceneHandler.

Referenced by G4ArrowModel::DescribeYourselfTo(), G4GPSModel::DescribeYourselfTo(), G4LogicalVolumeModel::DescribeYourselfTo(), G4PlotterModel::DescribeYourselfTo(), G4TextModel::DescribeYourselfTo(), and G4VFieldModel::DescribeYourselfTo().

◆ EndPrimitives2D()

virtual void G4VGraphicsScene::EndPrimitives2D ( )
pure virtual

Implemented in G4OpenGLImmediateSceneHandler, G4OpenGLSceneHandler, G4OpenGLStoredSceneHandler, G4PseudoScene, and G4VSceneHandler.

◆ GetExtent()

const G4VisExtent & G4VGraphicsScene::GetExtent ( ) const
virtual

Reimplemented in G4BoundingExtentScene, and G4VSceneHandler.

Definition at line 37 of file G4VGraphicsScene.cc.

38{
39 static const G4VisExtent defaultExtent = G4VisExtent();
40 return defaultExtent;
41}

Referenced by G4VFieldModel::DescribeYourselfTo().

◆ GetMaxGeometryDepth()

G4int G4VGraphicsScene::GetMaxGeometryDepth ( ) const
inline

Definition at line 170 of file G4VGraphicsScene.hh.

170{return fMaxGeometryDepth;}

Referenced by G4PhysicalVolumeModel::DescribeAndDescend().

◆ PostAddSolid()

virtual void G4VGraphicsScene::PostAddSolid ( )
pure virtual

Implemented in G4PseudoScene, G4VSceneHandler, and G4VTreeSceneHandler.

Referenced by G4LogicalVolumeModel::DescribeSolid(), G4PhysicalVolumeModel::DescribeSolid(), and G4GPSModel::DescribeYourselfTo().

◆ PreAddSolid()

virtual void G4VGraphicsScene::PreAddSolid ( const G4Transform3D & objectTransformation,
const G4VisAttributes & visAttribs )
pure virtual

Implemented in G4OpenGLSceneHandler, G4OpenInventorSceneHandler, G4PseudoScene, G4VSceneHandler, and G4VTreeSceneHandler.

Referenced by G4LogicalVolumeModel::DescribeSolid(), G4PhysicalVolumeModel::DescribeSolid(), and G4GPSModel::DescribeYourselfTo().

◆ SetMaxGeometryDepth()

void G4VGraphicsScene::SetMaxGeometryDepth ( G4int maxDepth)
inline

Definition at line 171 of file G4VGraphicsScene.hh.

171{fMaxGeometryDepth = maxDepth;}

Member Data Documentation

◆ fMaxGeometryDepth

G4int G4VGraphicsScene::fMaxGeometryDepth = 0
protected

Definition at line 174 of file G4VGraphicsScene.hh.

Referenced by GetMaxGeometryDepth(), G4VSceneHandler::ProcessScene(), and SetMaxGeometryDepth().
