G4Polyline Class Reference

#include <G4Polyline.hh>

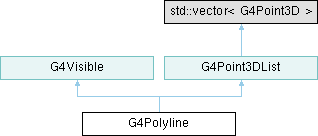

Inheritance diagram for G4Polyline:

Public Types
using	iterator = G4Point3DList::iterator
Public Types inherited from G4Point3DList
using	iterator = std::vector<G4Point3D>::iterator

Public Member Functions
	G4Polyline ()
	~G4Polyline () override
G4Polyline &	transform (const G4Transform3D &)
Public Member Functions inherited from G4Visible
	G4Visible ()
	G4Visible (const G4Visible &)
	G4Visible (G4Visible &&)
	G4Visible (const G4VisAttributes *)
virtual	~G4Visible ()
G4Visible &	operator= (const G4Visible &)
G4Visible &	operator= (G4Visible &&)
G4bool	operator!= (const G4Visible &right) const
const G4VisAttributes *	GetVisAttributes () const
void	SetVisAttributes (const G4VisAttributes *)
void	SetVisAttributes (const G4VisAttributes &)
virtual const G4String &	GetInfo () const
virtual void	SetInfo (const G4String &info)
Public Member Functions inherited from G4Point3DList
virtual	~G4Point3DList ()

Friends
std::ostream &	operator<< (std::ostream &os, const G4Polyline &line)

Additional Inherited Members
Protected Attributes inherited from G4Visible
G4String	fInfo
const G4VisAttributes *	fpVisAttributes
G4bool	fAllocatedVisAttributes

Detailed Description

Definition at line 46 of file G4Polyline.hh.

Member Typedef Documentation

iterator

using G4Polyline::iterator = G4Point3DList::iterator

Definition at line 52 of file G4Polyline.hh.

Constructor & Destructor Documentation

G4Polyline()

G4Polyline::G4Polyline ( )

default

Referenced by operator<<, transform(), and ~G4Polyline().

~G4Polyline()

G4Polyline::~G4Polyline ( )

overridedefault

Member Function Documentation

transform()

G4Polyline & G4Polyline::transform

(

const G4Transform3D &

transformation

)

Definition at line 37 of file G4Polyline.cc.

                                                                      {
  for (auto & i : *this) i.transform(transformation);
  return *this;
}

Referenced by transform().

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream & os, const G4Polyline & line )

friend

Definition at line 42 of file G4Polyline.cc.

                                                                 {
  os << "G4Polyline: ";
  os << '\n' << (const G4Visible&) line;
  os << '\n' << (const G4Point3DList&) line;
  return os;
}

---

The documentation for this class was generated from the following files:

• G4Polyline.hh
• G4Polyline.cc
