G4Polymarker Class Reference

#include <G4Polymarker.hh>

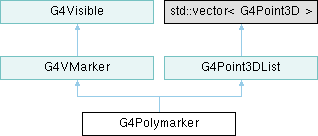

Inheritance diagram for G4Polymarker:

Public Types
enum	MarkerType { dots , circles , squares }
Public Types inherited from G4VMarker
enum	FillStyle { noFill , hashed , filled }
enum	SizeType { none , world , screen }
Public Types inherited from G4Point3DList
using	iterator = std::vector<G4Point3D>::iterator

Public Member Functions
	G4Polymarker ()
	G4Polymarker (const G4VMarker &)
	~G4Polymarker () override
MarkerType	GetMarkerType () const
void	SetMarkerType (MarkerType)
Public Member Functions inherited from G4VMarker
	G4VMarker ()
	G4VMarker (const G4VMarker &)=default
	G4VMarker (G4VMarker &&)=default
	G4VMarker (const G4Point3D &position)
	~G4VMarker () override
G4VMarker &	operator= (const G4VMarker &)=default
G4VMarker &	operator= (G4VMarker &&)=default
G4bool	operator!= (const G4VMarker &) const
G4bool	operator== (const G4VMarker &) const
G4Point3D	GetPosition () const
SizeType	GetSizeType () const
G4double	GetWorldSize () const
G4double	GetWorldDiameter () const
G4double	GetWorldRadius () const
G4double	GetScreenSize () const
G4double	GetScreenDiameter () const
G4double	GetScreenRadius () const
FillStyle	GetFillStyle () const
void	SetPosition (const G4Point3D &)
void	SetSize (SizeType, G4double)
void	SetDiameter (SizeType, G4double)
void	SetRadius (SizeType, G4double)
void	SetWorldSize (G4double)
void	SetWorldDiameter (G4double)
void	SetWorldRadius (G4double)
void	SetScreenSize (G4double)
void	SetScreenDiameter (G4double)
void	SetScreenRadius (G4double)
void	SetFillStyle (FillStyle)
Public Member Functions inherited from G4Visible
	G4Visible ()
	G4Visible (const G4Visible &)
	G4Visible (G4Visible &&)
	G4Visible (const G4VisAttributes *)
virtual	~G4Visible ()
G4Visible &	operator= (const G4Visible &)
G4Visible &	operator= (G4Visible &&)
G4bool	operator!= (const G4Visible &right) const
const G4VisAttributes *	GetVisAttributes () const
void	SetVisAttributes (const G4VisAttributes *)
void	SetVisAttributes (const G4VisAttributes &)
virtual const G4String &	GetInfo () const
virtual void	SetInfo (const G4String &info)
Public Member Functions inherited from G4Point3DList
virtual	~G4Point3DList ()

Friends
std::ostream &	operator<< (std::ostream &os, const G4Polymarker &marker)

Additional Inherited Members
Protected Attributes inherited from G4Visible
G4String	fInfo
const G4VisAttributes *	fpVisAttributes
G4bool	fAllocatedVisAttributes

Detailed Description

Definition at line 42 of file G4Polymarker.hh.

Member Enumeration Documentation

MarkerType

enum G4Polymarker::MarkerType

Enumerator
dots
circles
squares

Definition at line 47 of file G4Polymarker.hh.

{dots, circles, squares};

Constructor & Destructor Documentation

G4Polymarker() [1/2]

G4Polymarker::G4Polymarker

(

)

Definition at line 33 of file G4Polymarker.cc.

                           :
fMarkerType (G4Polymarker::dots)
{}

Referenced by G4Polymarker(), G4Polymarker(), and operator<<.

G4Polymarker() [2/2]

G4Polymarker::G4Polymarker

(

const G4VMarker &

marker

)

Definition at line 37 of file G4Polymarker.cc.

                                                  :
  G4VMarker (marker),
  fMarkerType (G4Polymarker::dots)
{}

~G4Polymarker()

G4Polymarker::~G4Polymarker ( )

overridedefault

Member Function Documentation

GetMarkerType()

MarkerType G4Polymarker::GetMarkerType

(

)

const

Referenced by G4OpenGLSceneHandler::AddPrimitive(), G4OpenInventorSceneHandler::AddPrimitive(), G4ToolsSGSceneHandler::AddPrimitive(), and G4VSceneHandler::AddPrimitive().

SetMarkerType()

void G4Polymarker::SetMarkerType

(

MarkerType

)

Referenced by G4OpenGLSceneHandler::AddPrimitive(), G4OpenGLSceneHandler::AddPrimitive(), G4ToolsSGSceneHandler::AddPrimitive(), G4ToolsSGSceneHandler::AddPrimitive(), G4VSceneHandler::Draw3DRectMeshAsDots(), G4VSceneHandler::DrawTetMeshAsDots(), and G4VSceneHandler::RequestPrimitives().

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream & os, const G4Polymarker & marker )

friend

Definition at line 44 of file G4Polymarker.cc.

                                                                     {
  os << "G4Polymarker: type: ";
  switch (marker.fMarkerType) {
  case G4Polymarker::dots:
    os << "dots"; break;
  case G4Polymarker::circles:
    os << "circles"; break;
  case G4Polymarker::squares:
    os << "squares"; break;
  default:
    os << "unrecognised"; break;
  }
  os << "\n  " << (G4VMarker) marker;
  os << "\n  " << (G4Point3DList) marker;
  return os;
}

---

The documentation for this class was generated from the following files:

• G4Polymarker.hh
• G4Polymarker.cc
