G4VMarker Class Reference

#include <G4VMarker.hh>

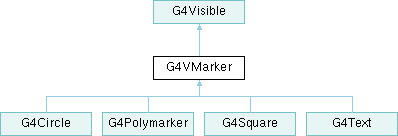

Inheritance diagram for G4VMarker:

Public Types

enum  FillStyle { noFill , hashed , filled }
enum  SizeType { none , world , screen }

Public Member Functions

 G4VMarker ()
 G4VMarker (const G4VMarker &)=default
 G4VMarker (G4VMarker &&)=default
 G4VMarker (const G4Point3D &position)
 ~G4VMarker () override
G4VMarker & operator= (const G4VMarker &)=default
G4VMarker & operator= (G4VMarker &&)=default
G4bool operator!= (const G4VMarker &) const
G4bool operator== (const G4VMarker &) const
G4Point3D GetPosition () const
SizeType GetSizeType () const
G4double GetWorldSize () const
G4double GetWorldDiameter () const
G4double GetWorldRadius () const
G4double GetScreenSize () const
G4double GetScreenDiameter () const
G4double GetScreenRadius () const
FillStyle GetFillStyle () const
void SetPosition (const G4Point3D &)
void SetSize (SizeType, G4double)
void SetDiameter (SizeType, G4double)
void SetRadius (SizeType, G4double)
void SetWorldSize (G4double)
void SetWorldDiameter (G4double)
void SetWorldRadius (G4double)
void SetScreenSize (G4double)
void SetScreenDiameter (G4double)
void SetScreenRadius (G4double)
void SetFillStyle (FillStyle)
Public Member Functions inherited from G4Visible
 G4Visible ()
 G4Visible (const G4Visible &)
 G4Visible (G4Visible &&)
 G4Visible (const G4VisAttributes *)
virtual ~G4Visible ()
G4Visible & operator= (const G4Visible &)
G4Visible & operator= (G4Visible &&)
G4bool operator!= (const G4Visible &right) const
const G4VisAttributes * GetVisAttributes () const
void SetVisAttributes (const G4VisAttributes *)
void SetVisAttributes (const G4VisAttributes &)
virtual const G4String & GetInfo () const
virtual void SetInfo (const G4String &info)

Friends

std::ostream & operator<< (std::ostream &os, const G4VMarker &marker)

Additional Inherited Members

Protected Attributes inherited from G4Visible
G4String fInfo
const G4VisAttributes * fpVisAttributes
G4bool fAllocatedVisAttributes

Detailed Description

Definition at line 90 of file G4VMarker.hh.

Member Enumeration Documentation

◆ FillStyle

enum G4VMarker::FillStyle
Enumerator
noFill
hashed
filled

Definition at line 96 of file G4VMarker.hh.

96{noFill, hashed, filled};

◆ SizeType

enum G4VMarker::SizeType
Enumerator
none
world
screen

Definition at line 97 of file G4VMarker.hh.

97{none, world, screen};

Constructor & Destructor Documentation

◆ G4VMarker() [1/4]

G4VMarker::G4VMarker ( )

Definition at line 34 of file G4VMarker.cc.

34 :
35 fWorldSize (0.),
36 fScreenSize (0.),
37 fFillStyle (noFill)
38{}

Referenced by G4Circle::G4Circle(), G4Circle::G4Circle(), G4Circle::G4Circle(), G4Polymarker::G4Polymarker(), G4Square::G4Square(), G4Text::G4Text(), G4Text::G4Text(), G4VMarker(), G4VMarker(), operator!=(), G4Polymarker::operator<<, operator<<, operator=(), operator=(), and operator==().

◆ G4VMarker() [2/4]

G4VMarker::G4VMarker ( const G4VMarker & )
default

◆ G4VMarker() [3/4]

G4VMarker::G4VMarker ( G4VMarker && )
default

◆ G4VMarker() [4/4]

G4VMarker::G4VMarker ( const G4Point3D & position)

Definition at line 40 of file G4VMarker.cc.

40 :
41 fPosition (pos),
42 fWorldSize (0.),
43 fScreenSize (0.),
44 fFillStyle (noFill)
45{}

◆ ~G4VMarker()

G4VMarker::~G4VMarker ( )
overridedefault

Member Function Documentation

◆ GetFillStyle()

FillStyle G4VMarker::GetFillStyle ( ) const

Referenced by G4OpenGLSceneHandler::AddPrimitive(), and G4OpenInventorSceneHandler::AddPrimitive().

◆ GetPosition()

G4Point3D G4VMarker::GetPosition ( ) const

Referenced by G4OpenGLSceneHandler::AddPrimitive(), G4OpenGLSceneHandler::AddPrimitive(), G4OpenInventorSceneHandler::AddPrimitive(), G4ToolsSGSceneHandler::AddPrimitive(), G4ToolsSGSceneHandler::AddPrimitive(), G4ToolsSGSceneHandler::AddPrimitive(), G4VtkStore::AddPrimitive(), G4VtkStore::AddPrimitive(), G4OpenGLQtViewer::DrawText(), G4OpenGLViewer::DrawText(), G4OpenGLXViewer::DrawText(), G4TextModel::G4TextModel(), G4VtkText2DPipeline::G4VtkText2DPipeline(), G4VtkTextPipeline::G4VtkTextPipeline(), G4VtkText2DPipeline::MakeHash(), G4VtkTextPipeline::MakeHash(), and G4VisCommandSceneAddText2D::SetNewValue().

◆ GetScreenDiameter()

G4double G4VMarker::GetScreenDiameter ( ) const

◆ GetScreenRadius()

G4double G4VMarker::GetScreenRadius ( ) const

◆ GetScreenSize()

G4double G4VMarker::GetScreenSize ( ) const

Referenced by G4TextModel::G4TextModel(), G4VtkText2DPipeline::G4VtkText2DPipeline(), G4VtkTextPipeline::G4VtkTextPipeline(), G4VSceneHandler::GetMarkerSize(), and G4VisCommandSceneAddText2D::SetNewValue().

◆ GetSizeType()

G4VMarker::SizeType G4VMarker::GetSizeType ( ) const

Definition at line 79 of file G4VMarker.cc.

79 {
80 SizeType type = none;
81 if (fWorldSize != 0.0) type = world;
82 else if (fScreenSize != 0.0) type = screen;
83 return type;
84}

◆ GetWorldDiameter()

G4double G4VMarker::GetWorldDiameter ( ) const

◆ GetWorldRadius()

G4double G4VMarker::GetWorldRadius ( ) const

◆ GetWorldSize()

G4double G4VMarker::GetWorldSize ( ) const

Referenced by G4VSceneHandler::GetMarkerSize().

◆ operator!=()

G4bool G4VMarker::operator!= ( const G4VMarker & mk) const

Definition at line 49 of file G4VMarker.cc.

49 {
50 return ( (G4Visible::operator != (mk)) ||
51 (fWorldSize != mk.fWorldSize) ||
52 (fScreenSize != mk.fScreenSize) ||
53 (fFillStyle != mk.fFillStyle) ||
54 !(fPosition == mk.fPosition) );
55}

◆ operator=() [1/2]

G4VMarker & G4VMarker::operator= ( const G4VMarker & )
default

◆ operator=() [2/2]

G4VMarker & G4VMarker::operator= ( G4VMarker && )
default

◆ operator==()

G4bool G4VMarker::operator== ( const G4VMarker & ) const

◆ SetDiameter()

void G4VMarker::SetDiameter ( SizeType ,
G4double  )

◆ SetFillStyle()

void G4VMarker::SetFillStyle ( FillStyle )

◆ SetPosition()

void G4VMarker::SetPosition ( const G4Point3D & )

Referenced by G4VSceneHandler::AddPrimitive(), G4GPSModel::DescribeYourselfTo(), and G4TrajectoriesModel::DescribeYourselfTo().

◆ SetRadius()

void G4VMarker::SetRadius ( SizeType ,
G4double  )

◆ SetScreenDiameter()

void G4VMarker::SetScreenDiameter ( G4double )

Referenced by G4GPSModel::DescribeYourselfTo().

◆ SetScreenRadius()

void G4VMarker::SetScreenRadius ( G4double )

◆ SetScreenSize()

void G4VMarker::SetScreenSize ( G4double )

Referenced by G4VSceneHandler::AddPrimitive(), G4AxesModel::Construct(), G4TrajectoriesModel::DescribeYourselfTo(), G4ScoreLogColorMap::DrawColorChartText(), G4VScoreColorMap::DrawColorChartText(), G4OpenGLStoredViewer::DrawDisplayLists(), G4VisCommandSceneAddText2D::SetNewValue(), and G4VisCommandSceneAddText::SetNewValue().

◆ SetSize()

void G4VMarker::SetSize ( SizeType sizeType,
G4double size )

Definition at line 86 of file G4VMarker.cc.

86 {
87 fWorldSize = fScreenSize = 0.;
88 if (sizeType == world) fWorldSize = size;
89 else if (sizeType == screen) fScreenSize = size;
90}

◆ SetWorldDiameter()

void G4VMarker::SetWorldDiameter ( G4double )

◆ SetWorldRadius()

void G4VMarker::SetWorldRadius ( G4double )

Referenced by G4OpenGLStoredViewer::DrawDisplayLists().

◆ SetWorldSize()

void G4VMarker::SetWorldSize ( G4double )

Referenced by G4VSceneHandler::AddPrimitive().

◆ operator<<

std::ostream & operator<< ( std::ostream & os,
const G4VMarker & marker )
friend

Definition at line 57 of file G4VMarker.cc.

57 {
58 os << "G4VMarker: position: " << marker.fPosition
59 << ", world size: " << marker.fWorldSize
60 << ", screen size: " << marker.fScreenSize
61 << ", fill style: ";
62 switch (marker.fFillStyle) {
63 case G4VMarker::noFill:
64 os << "no fill";
65 break;
66 case G4VMarker::hashed:
67 os << "hashed";
68 break;
69 case G4VMarker::filled:
70 os << "filled";
71 break;
72 default:
73 os << "unrecognised"; break;
74 }
75 os << "\n " << (const G4Visible&) marker;
76 return os;
77}
The documentation for this class was generated from the following files:
