G4VSceneHandler::PseudoSceneFor3DRectMeshPositions Class Reference
#include <G4VSceneHandler.hh>

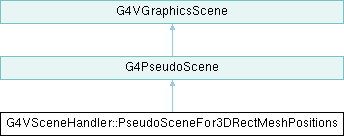

Inheritance diagram for G4VSceneHandler::PseudoSceneFor3DRectMeshPositions:
Public Member Functions | |
| PseudoSceneFor3DRectMeshPositions (G4PhysicalVolumeModel *pvModel, const G4Mesh *pMesh, std::multimap< const G4Material *, const G4ThreeVector > &positionByMaterial, std::map< const G4Material *, NameAndVisAtts > &nameAndVisAttsByMaterial) | |
| Public Member Functions inherited from G4PseudoScene | |
| G4PseudoScene ()=default | |
| virtual | ~G4PseudoScene ()=default |
| void | PreAddSolid (const G4Transform3D &objectTransformation, const G4VisAttributes &visAttributes) |
| void | PostAddSolid () |
| void | AddCompound (const G4VTrajectory &) |
| void | AddCompound (const G4VHit &) |
| void | AddCompound (const G4VDigi &) |
| void | AddCompound (const G4THitsMap< G4double > &) |
| void | AddCompound (const G4THitsMap< G4StatDouble > &) |
| void | AddCompound (const G4Mesh &) |
| void | BeginPrimitives (const G4Transform3D &) |
| void | EndPrimitives () |
| void | BeginPrimitives2D (const G4Transform3D &) |
| void | EndPrimitives2D () |
| void | AddPrimitive (const G4Polyline &) |
| void | AddPrimitive (const G4Text &) |
| void | AddPrimitive (const G4Circle &) |
| void | AddPrimitive (const G4Square &) |
| void | AddPrimitive (const G4Polymarker &) |
| void | AddPrimitive (const G4Polyhedron &) |
| void | AddPrimitive (const G4Plotter &) |
| Public Member Functions inherited from G4VGraphicsScene | |
| G4VGraphicsScene () | |
| virtual | ~G4VGraphicsScene () |
| virtual const G4VisExtent & | GetExtent () const |
| G4int | GetMaxGeometryDepth () const |
| void | SetMaxGeometryDepth (G4int maxDepth) |
Additional Inherited Members | |
| Protected Attributes inherited from G4PseudoScene | |
| const G4Transform3D * | fpCurrentObjectTransformation = nullptr |
| const G4VisAttributes * | fpVisAttributes = nullptr |
| Protected Attributes inherited from G4VGraphicsScene | |
| G4int | fMaxGeometryDepth = 0 |
Detailed Description
Definition at line 361 of file G4VSceneHandler.hh.
Constructor & Destructor Documentation
◆ PseudoSceneFor3DRectMeshPositions()
|
inline |
Definition at line 363 of file G4VSceneHandler.hh.
368 : fpPVModel(pvModel)
369 , fpMesh(pMesh)
370 , fPositionByMaterial(positionByMaterial)
371 , fNameAndVisAttsByMaterial(nameAndVisAttsByMaterial)
372 {}
The documentation for this class was generated from the following files:
