#include <G4GDMLWriteSetup.hh>

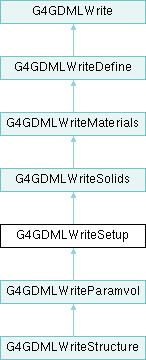

Inheritance diagram for G4GDMLWriteSetup:

Public Member Functions
virtual void	SetupWrite (xercesc::DOMElement , const G4LogicalVolume const)
Public Member Functions inherited from G4GDMLWriteSolids
virtual void	AddSolid (const G4VSolid *const)
virtual void	SolidsWrite (xercesc::DOMElement *)
Public Member Functions inherited from G4GDMLWriteMaterials
void	AddIsotope (const G4Isotope *const)
void	AddElement (const G4Element *const)
void	AddMaterial (const G4Material *const)
virtual void	MaterialsWrite (xercesc::DOMElement *)
Public Member Functions inherited from G4GDMLWriteDefine
G4ThreeVector	GetAngles (const G4RotationMatrix &)
void	ScaleWrite (xercesc::DOMElement *element, const G4String &name, const G4ThreeVector &scl)
void	RotationWrite (xercesc::DOMElement *element, const G4String &name, const G4ThreeVector &rot)
void	PositionWrite (xercesc::DOMElement *element, const G4String &name, const G4ThreeVector &pos)
void	FirstrotationWrite (xercesc::DOMElement *element, const G4String &name, const G4ThreeVector &rot)
void	FirstpositionWrite (xercesc::DOMElement *element, const G4String &name, const G4ThreeVector &pos)
void	AddPosition (const G4String &name, const G4ThreeVector &pos)
virtual void	DefineWrite (xercesc::DOMElement *)
Public Member Functions inherited from G4GDMLWrite
G4Transform3D	Write (const G4String &filename, const G4LogicalVolume *const topLog, const G4String &schemaPath, const G4int depth, G4bool storeReferences=true)
void	AddModule (const G4VPhysicalVolume *const topVol)
void	AddModule (const G4int depth)
void	AddAuxiliary (G4GDMLAuxStructType myaux)
void	SetOutputFileOverwrite (G4bool flag)
virtual void	StructureWrite (xercesc::DOMElement *)=0
virtual G4Transform3D	TraverseVolumeTree (const G4LogicalVolume *const, const G4int)=0
virtual void	SurfacesWrite ()=0
virtual void	ExtensionWrite (xercesc::DOMElement *)
virtual void	UserinfoWrite (xercesc::DOMElement *)
virtual void	AddExtension (xercesc::DOMElement , const G4LogicalVolume const)
G4String	GenerateName (const G4String &, const void *const)

Protected Member Functions
	G4GDMLWriteSetup ()
virtual	~G4GDMLWriteSetup ()
Protected Member Functions inherited from G4GDMLWriteSolids
	G4GDMLWriteSolids ()
virtual	~G4GDMLWriteSolids ()
void	MultiUnionWrite (xercesc::DOMElement solElement, const G4MultiUnion const)
void	BooleanWrite (xercesc::DOMElement , const G4BooleanSolid const)
void	ScaledWrite (xercesc::DOMElement , const G4ScaledSolid const)
void	BoxWrite (xercesc::DOMElement , const G4Box const)
void	ConeWrite (xercesc::DOMElement , const G4Cons const)
void	ElconeWrite (xercesc::DOMElement , const G4EllipticalCone const)
void	EllipsoidWrite (xercesc::DOMElement , const G4Ellipsoid const)
void	EltubeWrite (xercesc::DOMElement , const G4EllipticalTube const)
void	XtruWrite (xercesc::DOMElement , const G4ExtrudedSolid const)
void	HypeWrite (xercesc::DOMElement , const G4Hype const)
void	OrbWrite (xercesc::DOMElement , const G4Orb const)
void	ParaWrite (xercesc::DOMElement , const G4Para const)
void	ParaboloidWrite (xercesc::DOMElement , const G4Paraboloid const)
void	PolyconeWrite (xercesc::DOMElement , const G4Polycone const)
void	GenericPolyconeWrite (xercesc::DOMElement , const G4GenericPolycone const)
void	PolyhedraWrite (xercesc::DOMElement , const G4Polyhedra const)
void	SphereWrite (xercesc::DOMElement , const G4Sphere const)
void	TessellatedWrite (xercesc::DOMElement , const G4TessellatedSolid const)
void	TetWrite (xercesc::DOMElement , const G4Tet const)
void	TorusWrite (xercesc::DOMElement , const G4Torus const)
void	GenTrapWrite (xercesc::DOMElement , const G4GenericTrap const)
void	TrapWrite (xercesc::DOMElement , const G4Trap const)
void	TrdWrite (xercesc::DOMElement , const G4Trd const)
void	TubeWrite (xercesc::DOMElement , const G4Tubs const)
void	CutTubeWrite (xercesc::DOMElement , const G4CutTubs const)
void	TwistedboxWrite (xercesc::DOMElement , const G4TwistedBox const)
void	TwistedtrapWrite (xercesc::DOMElement , const G4TwistedTrap const)
void	TwistedtrdWrite (xercesc::DOMElement , const G4TwistedTrd const)
void	TwistedtubsWrite (xercesc::DOMElement , const G4TwistedTubs const)
void	ZplaneWrite (xercesc::DOMElement *, const G4double &, const G4double &, const G4double &)
void	RZPointWrite (xercesc::DOMElement *, const G4double &, const G4double &)
void	OpticalSurfaceWrite (xercesc::DOMElement , const G4OpticalSurface const)
void	PropertyWrite (xercesc::DOMElement , const G4OpticalSurface const)
Protected Member Functions inherited from G4GDMLWriteMaterials
	G4GDMLWriteMaterials ()
virtual	~G4GDMLWriteMaterials ()
void	AtomWrite (xercesc::DOMElement *, const G4double &)
void	DWrite (xercesc::DOMElement *, const G4double &)
void	PWrite (xercesc::DOMElement *, const G4double &)
void	TWrite (xercesc::DOMElement *, const G4double &)
void	MEEWrite (xercesc::DOMElement *, const G4double &)
void	IsotopeWrite (const G4Isotope *const)
void	ElementWrite (const G4Element *const)
void	MaterialWrite (const G4Material *const)
void	PropertyWrite (xercesc::DOMElement , const G4Material const)
void	PropertyVectorWrite (const G4String &, const G4PhysicsFreeVector *const)
void	PropertyConstWrite (const G4String &, const G4double, const G4MaterialPropertiesTable *)
Protected Member Functions inherited from G4GDMLWriteDefine
	G4GDMLWriteDefine ()
virtual	~G4GDMLWriteDefine ()
void	Scale_vectorWrite (xercesc::DOMElement *, const G4String &, const G4String &, const G4ThreeVector &)
void	Rotation_vectorWrite (xercesc::DOMElement *, const G4String &, const G4String &, const G4ThreeVector &)
void	Position_vectorWrite (xercesc::DOMElement *, const G4String &, const G4String &, const G4ThreeVector &)
Protected Member Functions inherited from G4GDMLWrite
	G4GDMLWrite ()
virtual	~G4GDMLWrite ()
VolumeMapType &	VolumeMap ()
xercesc::DOMAttr *	NewAttribute (const G4String &, const G4String &)
xercesc::DOMAttr *	NewAttribute (const G4String &, const G4double &)
xercesc::DOMElement *	NewElement (const G4String &)
G4String	Modularize (const G4VPhysicalVolume *const topvol, const G4int depth)
void	AddAuxInfo (G4GDMLAuxListType auxInfoList, xercesc::DOMElement element)
G4bool	FileExists (const G4String &) const
PhysVolumeMapType &	PvolumeMap ()
DepthMapType &	DepthMap ()

Additional Inherited Members
Static Public Member Functions inherited from G4GDMLWrite
static void	SetAddPointerToName (G4bool)
Protected Attributes inherited from G4GDMLWriteSolids
std::vector< const G4VSolid * >	solidList
xercesc::DOMElement *	solidsElement = nullptr
Protected Attributes inherited from G4GDMLWriteMaterials
std::vector< const G4Isotope * >	isotopeList
std::vector< const G4Element * >	elementList
std::vector< const G4Material * >	materialList
std::vector< const G4PhysicsFreeVector * >	propertyList
xercesc::DOMElement *	materialsElement = nullptr
Protected Attributes inherited from G4GDMLWriteDefine
xercesc::DOMElement *	defineElement = nullptr
Protected Attributes inherited from G4GDMLWrite
G4String	SchemaLocation
xercesc::DOMDocument *	doc = nullptr
xercesc::DOMElement *	extElement = nullptr
xercesc::DOMElement *	userinfoElement = nullptr
G4GDMLAuxListType	auxList
G4bool	overwriteOutputFile = false
Static Protected Attributes inherited from G4GDMLWriteSolids
static const G4int	maxTransforms = 8
Static Protected Attributes inherited from G4GDMLWriteDefine
static const G4double	kRelativePrecision = DBL_EPSILON
static const G4double	kAngularPrecision = DBL_EPSILON
static const G4double	kLinearPrecision = DBL_EPSILON
Static Protected Attributes inherited from G4GDMLWrite
static G4bool	addPointerToName = true

Detailed Description

Definition at line 39 of file G4GDMLWriteSetup.hh.

Constructor & Destructor Documentation

◆ G4GDMLWriteSetup()

G4GDMLWriteSetup::G4GDMLWriteSetup ( )

protected

Definition at line 36 of file G4GDMLWriteSetup.cc.

  : G4GDMLWriteSolids()
{
}

Referenced by G4GDMLWriteParamvol::G4GDMLWriteParamvol().

◆ ~G4GDMLWriteSetup()

G4GDMLWriteSetup::~G4GDMLWriteSetup ( )

protectedvirtual

Definition at line 42 of file G4GDMLWriteSetup.cc.

43{

44}

Member Function Documentation

◆ SetupWrite()

void G4GDMLWriteSetup::SetupWrite	(	xercesc::DOMElement *	gdmlElement,
		const G4LogicalVolume * const	logvol )

virtual

Implements G4GDMLWrite.

Definition at line 47 of file G4GDMLWriteSetup.cc.

{
#ifdef G4VERBOSE
  G4cout << "G4GDML: Writing setup..." << G4endl;
#endif
  const G4String worldref = GenerateName(logvol->GetName(), logvol);

  xercesc::DOMElement* setupElement = NewElement("setup");
  setupElement->setAttributeNode(NewAttribute("version", "1.0"));
  setupElement->setAttributeNode(NewAttribute("name", "Default"));
  xercesc::DOMElement* worldElement = NewElement("world");
  worldElement->setAttributeNode(NewAttribute("ref", worldref));
  setupElement->appendChild(worldElement);
  gdmlElement->appendChild(setupElement);
}

The documentation for this class was generated from the following files:
