G4GDMLWrite Class Reference

#include <G4GDMLWrite.hh>

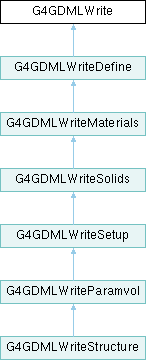

Inheritance diagram for G4GDMLWrite:

Public Member Functions
G4Transform3D	Write (const G4String &filename, const G4LogicalVolume *const topLog, const G4String &schemaPath, const G4int depth, G4bool storeReferences=true)
void	AddModule (const G4VPhysicalVolume *const topVol)
void	AddModule (const G4int depth)
void	AddAuxiliary (G4GDMLAuxStructType myaux)
void	SetOutputFileOverwrite (G4bool flag)
virtual void	DefineWrite (xercesc::DOMElement *)=0
virtual void	MaterialsWrite (xercesc::DOMElement *)=0
virtual void	SolidsWrite (xercesc::DOMElement *)=0
virtual void	StructureWrite (xercesc::DOMElement *)=0
virtual G4Transform3D	TraverseVolumeTree (const G4LogicalVolume *const, const G4int)=0
virtual void	SurfacesWrite ()=0
virtual void	SetupWrite (xercesc::DOMElement *, const G4LogicalVolume *const)=0
virtual void	ExtensionWrite (xercesc::DOMElement *)
virtual void	UserinfoWrite (xercesc::DOMElement *)
virtual void	AddExtension (xercesc::DOMElement *, const G4LogicalVolume *const)
G4String	GenerateName (const G4String &, const void *const)

Static Public Member Functions
static void	SetAddPointerToName (G4bool)

Protected Member Functions
	G4GDMLWrite ()
virtual	~G4GDMLWrite ()
VolumeMapType &	VolumeMap ()
xercesc::DOMAttr *	NewAttribute (const G4String &, const G4String &)
xercesc::DOMAttr *	NewAttribute (const G4String &, const G4double &)
xercesc::DOMElement *	NewElement (const G4String &)
G4String	Modularize (const G4VPhysicalVolume *const topvol, const G4int depth)
void	AddAuxInfo (G4GDMLAuxListType *auxInfoList, xercesc::DOMElement *element)
G4bool	FileExists (const G4String &) const
PhysVolumeMapType &	PvolumeMap ()
DepthMapType &	DepthMap ()

Protected Attributes
G4String	SchemaLocation
xercesc::DOMDocument *	doc = nullptr
xercesc::DOMElement *	extElement = nullptr
xercesc::DOMElement *	userinfoElement = nullptr
G4GDMLAuxListType	auxList
G4bool	overwriteOutputFile = false

Static Protected Attributes
static G4bool	addPointerToName = true

Detailed Description

Definition at line 51 of file G4GDMLWrite.hh.

Constructor & Destructor Documentation

G4GDMLWrite()

G4GDMLWrite::G4GDMLWrite ( )

protected

Definition at line 43 of file G4GDMLWrite.cc.

{
}

Referenced by G4GDMLWriteDefine::G4GDMLWriteDefine().

~G4GDMLWrite()

G4GDMLWrite::~G4GDMLWrite ( )

protectedvirtual

Definition at line 48 of file G4GDMLWrite.cc.

{
}

Member Function Documentation

AddAuxiliary()

void G4GDMLWrite::AddAuxiliary

(

G4GDMLAuxStructType

myaux

)

Definition at line 401 of file G4GDMLWrite.cc.

{
  auxList.push_back(myaux);
}

AddAuxInfo()

void G4GDMLWrite::AddAuxInfo ( G4GDMLAuxListType * auxInfoList, xercesc::DOMElement * element )

protected

Definition at line 94 of file G4GDMLWrite.cc.

{
  for(auto iaux = auxInfoList->cbegin(); iaux != auxInfoList->cend(); ++iaux)
  {
    xercesc::DOMElement* auxiliaryElement = NewElement("auxiliary");
    element->appendChild(auxiliaryElement);

    auxiliaryElement->setAttributeNode(NewAttribute("auxtype", (*iaux).type));
    auxiliaryElement->setAttributeNode(NewAttribute("auxvalue", (*iaux).value));
    if(((*iaux).unit) != "")
    {
      auxiliaryElement->setAttributeNode(NewAttribute("auxunit", (*iaux).unit));
    }

    if(iaux->auxList)
    {
      AddAuxInfo(iaux->auxList, auxiliaryElement);
    }
  }
  return;
}

Referenced by AddAuxInfo(), G4GDMLWriteStructure::TraverseVolumeTree(), and UserinfoWrite().

AddExtension()

void G4GDMLWrite::AddExtension ( xercesc::DOMElement * , const G4LogicalVolume * const  )

virtual

Definition at line 80 of file G4GDMLWrite.cc.

{
  // Empty implementation. To be overwritten by user for specific extensions
  // related to attributes associated to volumes
}

Referenced by G4GDMLWriteStructure::TraverseVolumeTree().

AddModule() [1/2]

void G4GDMLWrite::AddModule

(

const G4int

depth

)

Definition at line 364 of file G4GDMLWrite.cc.

{
  if(depth < 0)
  {
    G4Exception("G4GDMLWrite::AddModule()", "InvalidSetup", FatalException,
                "Depth must be a positive number!");
  }
  if(DepthMap().find(depth) != DepthMap().end())
  {
    G4Exception("G4GDMLWrite::AddModule()", "InvalidSetup", FatalException,
                "Adding module(s) at this depth is already requested!");
  }
  DepthMap()[depth] = 0;
}

AddModule() [2/2]

void G4GDMLWrite::AddModule

(

const G4VPhysicalVolume *const

topVol

)

Definition at line 330 of file G4GDMLWrite.cc.

{
  G4String fname = GenerateName(physvol->GetName(), physvol);
  G4cout << "G4GDML: Adding module '" << fname << "'..." << G4endl;

  if(physvol == nullptr)
  {
    G4Exception("G4GDMLWrite::AddModule()", "InvalidSetup", FatalException,
                "Invalid NULL pointer is specified for modularization!");
    return;
  }
  if(dynamic_cast<const G4PVDivision*>(physvol))
  {
    G4Exception("G4GDMLWrite::AddModule()", "InvalidSetup", FatalException,
                "It is not possible to modularize by divisionvol!");
    return;
  }
  if(physvol->IsParameterised())
  {
    G4Exception("G4GDMLWrite::AddModule()", "InvalidSetup", FatalException,
                "It is not possible to modularize by parameterised volume!");
    return;
  }
  if(physvol->IsReplicated())
  {
    G4Exception("G4GDMLWrite::AddModule()", "InvalidSetup", FatalException,
                "It is not possible to modularize by replicated volume!");
    return;
  }

  PvolumeMap()[physvol] = fname;
}

DefineWrite()

virtual void G4GDMLWrite::DefineWrite ( xercesc::DOMElement * )

pure virtual

Implemented in G4GDMLWriteDefine.

Referenced by Write().

DepthMap()

G4GDMLWrite::DepthMapType & G4GDMLWrite::DepthMap ( )

protected

Definition at line 73 of file G4GDMLWrite.cc.

{
  static DepthMapType instance;
  return instance;
}

Referenced by AddModule(), and Modularize().

ExtensionWrite()

void G4GDMLWrite::ExtensionWrite ( xercesc::DOMElement * )

virtual

Definition at line 88 of file G4GDMLWrite.cc.

{
  // Empty implementation. To be overwritten by user for specific extensions
}

Referenced by Write().

FileExists()

G4bool G4GDMLWrite::FileExists ( const G4String & fname ) const

protected

Definition at line 53 of file G4GDMLWrite.cc.

{
  struct stat FileInfo;
  return (stat(fname.c_str(), &FileInfo) == 0);
}

Referenced by Write().

GenerateName()

G4String G4GDMLWrite::GenerateName	(	const G4String &	name,
		const void * const	ptr )

Definition at line 132 of file G4GDMLWrite.cc.

{
  G4String nameOut;
  std::stringstream stream;
  stream << name;
  if(addPointerToName)
  {
#ifdef WIN32
    stream << "0x";
#endif
    stream << ptr;
  };

  nameOut = G4String(stream.str());
  std::vector<char> toremove = { ' ', '/', ':', '#', '+' };
  for(auto c : toremove)
  {
    if(G4StrUtil::contains(nameOut, c))
    {
      std::replace(nameOut.begin(), nameOut.end(), c, '_');
    }
  }
  return nameOut;
}

Referenced by AddModule(), G4GDMLWriteStructure::AssemblyWrite(), G4GDMLWriteSolids::BooleanWrite(), G4GDMLWriteStructure::BorderSurfaceCache(), G4GDMLWriteSolids::BoxWrite(), G4GDMLWriteSolids::ConeWrite(), G4GDMLWriteSolids::CutTubeWrite(), G4GDMLWriteStructure::DivisionvolWrite(), G4GDMLWriteSolids::ElconeWrite(), G4GDMLWriteMaterials::ElementWrite(), G4GDMLWriteSolids::EllipsoidWrite(), G4GDMLWriteSolids::EltubeWrite(), G4GDMLWriteSolids::GenericPolyconeWrite(), G4GDMLWriteSolids::GenTrapWrite(), G4GDMLWriteSolids::HypeWrite(), G4GDMLWriteMaterials::IsotopeWrite(), G4GDMLWriteMaterials::MaterialWrite(), G4GDMLWriteSolids::MultiUnionWrite(), G4GDMLWriteSolids::OpticalSurfaceWrite(), G4GDMLWriteSolids::OrbWrite(), G4GDMLWriteSolids::ParaboloidWrite(), G4GDMLWriteParamvol::ParametersWrite(), G4GDMLWriteParamvol::ParamvolAlgorithmWrite(), G4GDMLWriteParamvol::ParamvolWrite(), G4GDMLWriteSolids::ParaWrite(), G4GDMLWriteStructure::PhysvolWrite(), G4GDMLWriteSolids::PolyconeWrite(), G4GDMLWriteSolids::PolyhedraWrite(), G4GDMLWriteMaterials::PropertyConstWrite(), G4GDMLWriteMaterials::PropertyVectorWrite(), G4GDMLWriteMaterials::PropertyWrite(), G4GDMLWriteSolids::PropertyWrite(), G4GDMLWriteStructure::ReplicavolWrite(), G4GDMLWriteSolids::ScaledWrite(), G4GDMLWriteSetup::SetupWrite(), G4GDMLWriteStructure::SkinSurfaceCache(), G4GDMLWriteSolids::SphereWrite(), G4GDMLWriteSolids::TessellatedWrite(), G4GDMLWriteSolids::TetWrite(), G4GDMLWriteSolids::TorusWrite(), G4GDMLWriteSolids::TrapWrite(), G4GDMLWriteStructure::TraverseVolumeTree(), G4GDMLWriteSolids::TrdWrite(), G4GDMLWriteSolids::TubeWrite(), G4GDMLWriteSolids::TwistedboxWrite(), G4GDMLWriteSolids::TwistedtrapWrite(), G4GDMLWriteSolids::TwistedtrdWrite(), G4GDMLWriteSolids::TwistedtubsWrite(), and G4GDMLWriteSolids::XtruWrite().

MaterialsWrite()

virtual void G4GDMLWrite::MaterialsWrite ( xercesc::DOMElement * )

pure virtual

Implemented in G4GDMLWriteMaterials.

Referenced by Write().

Modularize()

G4String G4GDMLWrite::Modularize ( const G4VPhysicalVolume *const topvol, const G4int depth )

protected

Definition at line 380 of file G4GDMLWrite.cc.

{
  if(PvolumeMap().find(physvol) != PvolumeMap().cend())
  {
    return PvolumeMap()[physvol];  // Modularize via physvol
  }

  if(DepthMap().find(depth) != DepthMap().cend())  // Modularize via depth
  {
    std::stringstream stream;
    stream << "depth" << depth << "_module" << DepthMap()[depth] << ".gdml";
    DepthMap()[depth]++;  // There can be more modules at this depth!
    return G4String(stream.str());
  }

  return G4String("");  // Empty string for module name = no modularization
                        // was requested at that level/physvol!
}

Referenced by G4GDMLWriteStructure::TraverseVolumeTree().

NewAttribute() [1/2]

xercesc::DOMAttr * G4GDMLWrite::NewAttribute ( const G4String & name, const G4double & value )

protected

Definition at line 174 of file G4GDMLWrite.cc.

{
  XMLCh* tempStr = NULL;
  tempStr = xercesc::XMLString::transcode(name);
  xercesc::DOMAttr* att = doc->createAttribute(tempStr);
  xercesc::XMLString::release(&tempStr);

  std::ostringstream ostream;
  ostream.precision(15);
  ostream << value;
  G4String str = ostream.str();

  tempStr = xercesc::XMLString::transcode(str);
  att->setValue(tempStr);
  xercesc::XMLString::release(&tempStr);

  return att;
}

NewAttribute() [2/2]

xercesc::DOMAttr * G4GDMLWrite::NewAttribute ( const G4String & name, const G4String & value )

protected

Definition at line 158 of file G4GDMLWrite.cc.

{
  XMLCh* tempStr = NULL;
  tempStr = xercesc::XMLString::transcode(name);
  xercesc::DOMAttr* att = doc->createAttribute(tempStr);
  xercesc::XMLString::release(&tempStr);

  tempStr = xercesc::XMLString::transcode(value);
  att->setValue(tempStr);
  xercesc::XMLString::release(&tempStr);

  return att;
}

Referenced by AddAuxInfo(), G4GDMLWriteStructure::AssemblyWrite(), G4GDMLWriteMaterials::AtomWrite(), G4GDMLWriteSolids::BooleanWrite(), G4GDMLWriteStructure::BorderSurfaceCache(), G4GDMLWriteParamvol::Box_dimensionsWrite(), G4GDMLWriteSolids::BoxWrite(), G4GDMLWriteParamvol::Cone_dimensionsWrite(), G4GDMLWriteSolids::ConeWrite(), G4GDMLWriteSolids::CutTubeWrite(), G4GDMLWriteStructure::DivisionvolWrite(), G4GDMLWriteMaterials::DWrite(), G4GDMLWriteSolids::ElconeWrite(), G4GDMLWriteMaterials::ElementWrite(), G4GDMLWriteParamvol::Ellipsoid_dimensionsWrite(), G4GDMLWriteSolids::EllipsoidWrite(), G4GDMLWriteSolids::EltubeWrite(), G4GDMLWriteSolids::GenericPolyconeWrite(), G4GDMLWriteSolids::GenTrapWrite(), G4GDMLWriteParamvol::Hype_dimensionsWrite(), G4GDMLWriteSolids::HypeWrite(), G4GDMLWriteMaterials::IsotopeWrite(), G4GDMLWriteMaterials::MaterialWrite(), G4GDMLWriteMaterials::MEEWrite(), G4GDMLWriteSolids::MultiUnionWrite(), G4GDMLWriteSolids::OpticalSurfaceWrite(), G4GDMLWriteParamvol::Orb_dimensionsWrite(), G4GDMLWriteSolids::OrbWrite(), G4GDMLWriteParamvol::Para_dimensionsWrite(), G4GDMLWriteSolids::ParaboloidWrite(), G4GDMLWriteParamvol::ParametersWrite(), G4GDMLWriteParamvol::ParamvolWrite(), G4GDMLWriteSolids::ParaWrite(), G4GDMLWriteStructure::PhysvolWrite(), G4GDMLWriteParamvol::Polycone_dimensionsWrite(), G4GDMLWriteSolids::PolyconeWrite(), G4GDMLWriteParamvol::Polyhedra_dimensionsWrite(), G4GDMLWriteSolids::PolyhedraWrite(), G4GDMLWriteDefine::Position_vectorWrite(), G4GDMLWriteMaterials::PropertyConstWrite(), G4GDMLWriteMaterials::PropertyVectorWrite(), G4GDMLWriteMaterials::PropertyWrite(), G4GDMLWriteSolids::PropertyWrite(), G4GDMLWriteMaterials::PWrite(), G4GDMLWriteStructure::ReplicavolWrite(), G4GDMLWriteDefine::Rotation_vectorWrite(), G4GDMLWriteSolids::RZPointWrite(), G4GDMLWriteDefine::Scale_vectorWrite(), G4GDMLWriteSolids::ScaledWrite(), G4GDMLWriteSetup::SetupWrite(), G4GDMLWriteStructure::SkinSurfaceCache(), G4GDMLWriteParamvol::Sphere_dimensionsWrite(), G4GDMLWriteSolids::SphereWrite(), G4GDMLWriteSolids::TessellatedWrite(), G4GDMLWriteSolids::TetWrite(), G4GDMLWriteParamvol::Torus_dimensionsWrite(), G4GDMLWriteSolids::TorusWrite(), G4GDMLWriteParamvol::Trap_dimensionsWrite(), G4GDMLWriteSolids::TrapWrite(), G4GDMLWriteStructure::TraverseVolumeTree(), G4GDMLWriteParamvol::Trd_dimensionsWrite(), G4GDMLWriteSolids::TrdWrite(), G4GDMLWriteParamvol::Tube_dimensionsWrite(), G4GDMLWriteSolids::TubeWrite(), G4GDMLWriteSolids::TwistedboxWrite(), G4GDMLWriteSolids::TwistedtrapWrite(), G4GDMLWriteSolids::TwistedtrdWrite(), G4GDMLWriteSolids::TwistedtubsWrite(), G4GDMLWriteMaterials::TWrite(), Write(), G4GDMLWriteSolids::XtruWrite(), and G4GDMLWriteSolids::ZplaneWrite().

NewElement()

xercesc::DOMElement * G4GDMLWrite::NewElement ( const G4String & name )

protected

Definition at line 195 of file G4GDMLWrite.cc.

{
  XMLCh* tempStr = NULL;
  tempStr = xercesc::XMLString::transcode(name);
  xercesc::DOMElement* elem = doc->createElement(tempStr);
  xercesc::XMLString::release(&tempStr);

  return elem;
}

Referenced by AddAuxInfo(), G4GDMLWriteStructure::AssemblyWrite(), G4GDMLWriteMaterials::AtomWrite(), G4GDMLWriteSolids::BooleanWrite(), G4GDMLWriteStructure::BorderSurfaceCache(), G4GDMLWriteParamvol::Box_dimensionsWrite(), G4GDMLWriteSolids::BoxWrite(), G4GDMLWriteParamvol::Cone_dimensionsWrite(), G4GDMLWriteSolids::ConeWrite(), G4GDMLWriteSolids::CutTubeWrite(), G4GDMLWriteDefine::DefineWrite(), G4GDMLWriteStructure::DivisionvolWrite(), G4GDMLWriteMaterials::DWrite(), G4GDMLWriteSolids::ElconeWrite(), G4GDMLWriteMaterials::ElementWrite(), G4GDMLWriteParamvol::Ellipsoid_dimensionsWrite(), G4GDMLWriteSolids::EllipsoidWrite(), G4GDMLWriteSolids::EltubeWrite(), G4GDMLWriteSolids::GenericPolyconeWrite(), G4GDMLWriteSolids::GenTrapWrite(), G4GDMLWriteParamvol::Hype_dimensionsWrite(), G4GDMLWriteSolids::HypeWrite(), G4GDMLWriteMaterials::IsotopeWrite(), G4GDMLWriteMaterials::MaterialsWrite(), G4GDMLWriteMaterials::MaterialWrite(), G4GDMLWriteMaterials::MEEWrite(), G4GDMLWriteSolids::MultiUnionWrite(), G4GDMLWriteSolids::OpticalSurfaceWrite(), G4GDMLWriteParamvol::Orb_dimensionsWrite(), G4GDMLWriteSolids::OrbWrite(), G4GDMLWriteParamvol::Para_dimensionsWrite(), G4GDMLWriteSolids::ParaboloidWrite(), G4GDMLWriteParamvol::ParametersWrite(), G4GDMLWriteParamvol::ParamvolWrite(), G4GDMLWriteSolids::ParaWrite(), G4GDMLWriteStructure::PhysvolWrite(), G4GDMLWriteParamvol::Polycone_dimensionsWrite(), G4GDMLWriteSolids::PolyconeWrite(), G4GDMLWriteParamvol::Polyhedra_dimensionsWrite(), G4GDMLWriteSolids::PolyhedraWrite(), G4GDMLWriteDefine::Position_vectorWrite(), G4GDMLWriteMaterials::PropertyConstWrite(), G4GDMLWriteMaterials::PropertyVectorWrite(), G4GDMLWriteMaterials::PropertyWrite(), G4GDMLWriteSolids::PropertyWrite(), G4GDMLWriteMaterials::PWrite(), G4GDMLWriteStructure::ReplicavolWrite(), G4GDMLWriteDefine::Rotation_vectorWrite(), G4GDMLWriteSolids::RZPointWrite(), G4GDMLWriteDefine::Scale_vectorWrite(), G4GDMLWriteSolids::ScaledWrite(), G4GDMLWriteSetup::SetupWrite(), G4GDMLWriteStructure::SkinSurfaceCache(), G4GDMLWriteSolids::SolidsWrite(), G4GDMLWriteParamvol::Sphere_dimensionsWrite(), G4GDMLWriteSolids::SphereWrite(), G4GDMLWriteStructure::StructureWrite(), G4GDMLWriteSolids::TessellatedWrite(), G4GDMLWriteSolids::TetWrite(), G4GDMLWriteParamvol::Torus_dimensionsWrite(), G4GDMLWriteSolids::TorusWrite(), G4GDMLWriteParamvol::Trap_dimensionsWrite(), G4GDMLWriteSolids::TrapWrite(), G4GDMLWriteStructure::TraverseVolumeTree(), G4GDMLWriteParamvol::Trd_dimensionsWrite(), G4GDMLWriteSolids::TrdWrite(), G4GDMLWriteParamvol::Tube_dimensionsWrite(), G4GDMLWriteSolids::TubeWrite(), G4GDMLWriteSolids::TwistedboxWrite(), G4GDMLWriteSolids::TwistedtrapWrite(), G4GDMLWriteSolids::TwistedtrdWrite(), G4GDMLWriteSolids::TwistedtubsWrite(), G4GDMLWriteMaterials::TWrite(), UserinfoWrite(), G4GDMLWriteSolids::XtruWrite(), and G4GDMLWriteSolids::ZplaneWrite().

PvolumeMap()

G4GDMLWrite::PhysVolumeMapType & G4GDMLWrite::PvolumeMap ( )

protected

Definition at line 66 of file G4GDMLWrite.cc.

{
  static PhysVolumeMapType instance;
  return instance;
}

Referenced by AddModule(), and Modularize().

SetAddPointerToName()

void G4GDMLWrite::SetAddPointerToName ( G4bool set )

static

Definition at line 413 of file G4GDMLWrite.cc.

{
  addPointerToName = set;
}

SetOutputFileOverwrite()

void G4GDMLWrite::SetOutputFileOverwrite

(

G4bool

flag

)

Definition at line 407 of file G4GDMLWrite.cc.

{
  overwriteOutputFile = flag;
}

SetupWrite()

virtual void G4GDMLWrite::SetupWrite ( xercesc::DOMElement * , const G4LogicalVolume * const  )

pure virtual

Implemented in G4GDMLWriteSetup.

Referenced by Write().

SolidsWrite()

virtual void G4GDMLWrite::SolidsWrite ( xercesc::DOMElement * )

pure virtual

Implemented in G4GDMLWriteSolids.

Referenced by Write().

StructureWrite()

virtual void G4GDMLWrite::StructureWrite ( xercesc::DOMElement * )

pure virtual

Implemented in G4GDMLWriteStructure.

Referenced by Write().

SurfacesWrite()

virtual void G4GDMLWrite::SurfacesWrite ( )

pure virtual

Implemented in G4GDMLWriteStructure.

Referenced by Write().

TraverseVolumeTree()

virtual G4Transform3D G4GDMLWrite::TraverseVolumeTree ( const G4LogicalVolume * const , const G4int  )

pure virtual

Implemented in G4GDMLWriteStructure.

Referenced by Write().

UserinfoWrite()

void G4GDMLWrite::UserinfoWrite ( xercesc::DOMElement * gdmlElement )

virtual

Definition at line 118 of file G4GDMLWrite.cc.

{
  if(auxList.size() > 0)
  {
#ifdef G4VERBOSE
    G4cout << "G4GDML: Writing userinfo..." << G4endl;
#endif
    userinfoElement = NewElement("userinfo");
    gdmlElement->appendChild(userinfoElement);
    AddAuxInfo(&auxList, userinfoElement);
  }
}

Referenced by Write().

VolumeMap()

G4GDMLWrite::VolumeMapType & G4GDMLWrite::VolumeMap ( )

protected

Definition at line 60 of file G4GDMLWrite.cc.

{
  static VolumeMapType instance;
  return instance;
}

Referenced by G4GDMLWriteStructure::TraverseVolumeTree(), and Write().

Write()

G4Transform3D G4GDMLWrite::Write	(	const G4String &	filename,
		const G4LogicalVolume *const	topLog,
		const G4String &	schemaPath,
		const G4int	depth,
		G4bool	storeReferences = true )

Definition at line 206 of file G4GDMLWrite.cc.

{
  SchemaLocation   = setSchemaLocation;
  addPointerToName = refs;
#ifdef G4VERBOSE
  if(depth == 0)
  {
    G4cout << "G4GDML: Writing '" << fname << "'..." << G4endl;
  }
  else
  {
    G4cout << "G4GDML: Writing module '" << fname << "'..." << G4endl;
  }
#endif
  if(!overwriteOutputFile && FileExists(fname))
  {
    G4String ErrorMessage = "File '" + fname + "' already exists!";
    G4Exception("G4GDMLWrite::Write()", "InvalidSetup", FatalException,
                ErrorMessage);
  }

  VolumeMap().clear();  // The module map is global for all modules,
                        // so clear it only at once!

  XMLCh* tempStr = NULL;
  tempStr = xercesc::XMLString::transcode("LS");
  xercesc::DOMImplementationRegistry::getDOMImplementation(tempStr);
  xercesc::XMLString::release(&tempStr);
  tempStr = xercesc::XMLString::transcode("Range");
  xercesc::DOMImplementation* impl =
    xercesc::DOMImplementationRegistry::getDOMImplementation(tempStr);
  xercesc::XMLString::release(&tempStr);
  tempStr = xercesc::XMLString::transcode("gdml");
  doc                       = impl->createDocument(0, tempStr, 0);
  xercesc::XMLString::release(&tempStr);
  xercesc::DOMElement* gdml = doc->getDocumentElement();

#if XERCES_VERSION_MAJOR >= 3
  // DOM L3 as per Xerces 3.0 API
  xercesc::DOMLSSerializer* writer =
    ((xercesc::DOMImplementationLS*) impl)->createLSSerializer();

  xercesc::DOMConfiguration* dc = writer->getDomConfig();
  dc->setParameter(xercesc::XMLUni::fgDOMWRTFormatPrettyPrint, true);

#else

  xercesc::DOMWriter* writer =
    ((xercesc::DOMImplementationLS*) impl)->createDOMWriter();

  if(writer->canSetFeature(xercesc::XMLUni::fgDOMWRTFormatPrettyPrint, true))
    writer->setFeature(xercesc::XMLUni::fgDOMWRTFormatPrettyPrint, true);

#endif

  gdml->setAttributeNode(
    NewAttribute("xmlns:xsi", "http://www.w3.org/2001/XMLSchema-instance"));
  gdml->setAttributeNode(
    NewAttribute("xsi:noNamespaceSchemaLocation", SchemaLocation));

  ExtensionWrite(gdml);
  DefineWrite(gdml);
  MaterialsWrite(gdml);
  SolidsWrite(gdml);
  StructureWrite(gdml);
  UserinfoWrite(gdml);
  SetupWrite(gdml, logvol);

  G4Transform3D R = TraverseVolumeTree(logvol, depth);

  SurfacesWrite();
  xercesc::XMLFormatTarget* myFormTarget =
    new xercesc::LocalFileFormatTarget(fname.c_str());

  try
  {
#if XERCES_VERSION_MAJOR >= 3
    // DOM L3 as per Xerces 3.0 API
    xercesc::DOMLSOutput* theOutput =
      ((xercesc::DOMImplementationLS*) impl)->createLSOutput();
    theOutput->setByteStream(myFormTarget);
    writer->write(doc, theOutput);
#else
    writer->writeNode(myFormTarget, *doc);
#endif
  } catch(const xercesc::XMLException& toCatch)
  {
    char* message = xercesc::XMLString::transcode(toCatch.getMessage());
    G4cout << "G4GDML: Exception message is: " << message << G4endl;
    xercesc::XMLString::release(&message);
    return G4Transform3D::Identity;
  } catch(const xercesc::DOMException& toCatch)
  {
    char* message = xercesc::XMLString::transcode(toCatch.msg);
    G4cout << "G4GDML: Exception message is: " << message << G4endl;
    xercesc::XMLString::release(&message);
    return G4Transform3D::Identity;
  } catch(...)
  {
    G4cout << "G4GDML: Unexpected Exception!" << G4endl;
    return G4Transform3D::Identity;
  }

  delete myFormTarget;
  writer->release();

  if(depth == 0)
  {
    G4cout << "G4GDML: Writing '" << fname << "' done !" << G4endl;
  }
  else
  {
#ifdef G4VERBOSE
    G4cout << "G4GDML: Writing module '" << fname << "' done !" << G4endl;
#endif
  }

  return R;
}

Member Data Documentation

addPointerToName

G4bool G4GDMLWrite::addPointerToName = true

staticprotected

Definition at line 131 of file G4GDMLWrite.hh.

Referenced by GenerateName(), SetAddPointerToName(), and Write().

auxList

G4GDMLAuxListType G4GDMLWrite::auxList

protected

Definition at line 136 of file G4GDMLWrite.hh.

Referenced by AddAuxiliary(), and UserinfoWrite().

doc

xercesc::DOMDocument* G4GDMLWrite::doc = nullptr

protected

Definition at line 132 of file G4GDMLWrite.hh.

Referenced by NewAttribute(), NewAttribute(), NewElement(), and Write().

extElement

xercesc::DOMElement* G4GDMLWrite::extElement = nullptr

protected

Definition at line 133 of file G4GDMLWrite.hh.

overwriteOutputFile

G4bool G4GDMLWrite::overwriteOutputFile = false

protected

Definition at line 137 of file G4GDMLWrite.hh.

Referenced by SetOutputFileOverwrite(), and Write().

SchemaLocation

G4String G4GDMLWrite::SchemaLocation

protected

Definition at line 130 of file G4GDMLWrite.hh.

Referenced by G4GDMLWriteStructure::TraverseVolumeTree(), and Write().

userinfoElement

xercesc::DOMElement* G4GDMLWrite::userinfoElement = nullptr

protected

Definition at line 134 of file G4GDMLWrite.hh.

Referenced by UserinfoWrite().

---

The documentation for this class was generated from the following files:

• G4GDMLWrite.hh
• G4GDMLWrite.cc
