G4Field Class Reference

G4Field is the abstract class for any kind of field. It allows any kind of field (vector, scalar, tensor and any set of them) to be defined by implementing the inquiry function interface. A field must co-work with a corresponding Equation of Motion, to enable the integration of a particle's position, momentum and, optionally, spin. For this a field and its equation of motion must follow the same convention for the order of field components. More...

#include <G4Field.hh>

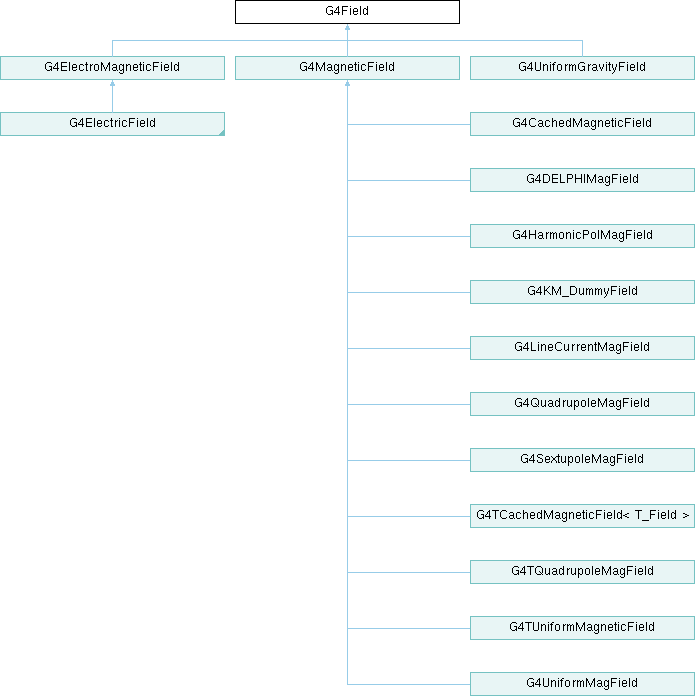

Inheritance diagram for G4Field:

Public Member Functions
	G4Field (G4bool gravityOn=false)
virtual	~G4Field ()=default
	G4Field (const G4Field &p)=default
G4Field &	operator= (const G4Field &p)
virtual void	GetFieldValue (const G4double Point[4], G4double *fieldArr) const =0
virtual G4bool	DoesFieldChangeEnergy () const =0
virtual G4FieldType	GetFieldType () const
G4bool	IsGravityActive () const
void	SetGravityActive (G4bool OnOffFlag)
virtual G4Field *	Clone () const

Static Public Attributes
static constexpr G4int	MAX_NUMBER_OF_COMPONENTS = 24

Detailed Description

G4Field is the abstract class for any kind of field. It allows any kind of field (vector, scalar, tensor and any set of them) to be defined by implementing the inquiry function interface. A field must co-work with a corresponding Equation of Motion, to enable the integration of a particle's position, momentum and, optionally, spin. For this a field and its equation of motion must follow the same convention for the order of field components.

Definition at line 66 of file G4Field.hh.

Constructor & Destructor Documentation

G4Field() [1/2]

G4Field::G4Field

(

G4bool

gravityOn = false

)

Constructor for G4Field.

Parameters

[in]

gravityOn

Flag to indicate if gravity is enabled or not.

Definition at line 33 of file G4Field.cc.

  : fGravityActive( gravityOn )
{
}

Referenced by G4CachedMagneticField::Clone(), G4DELPHIMagField::Clone(), Clone(), G4KM_DummyField::Clone(), G4LineCurrentMagField::Clone(), G4QuadrupoleMagField::Clone(), G4SextupoleMagField::Clone(), G4UniformElectricField::Clone(), G4UniformGravityField::Clone(), G4UniformMagField::Clone(), G4ElectroMagneticField::G4ElectroMagneticField(), G4Field(), G4MagneticField::G4MagneticField(), G4MagneticField::G4MagneticField(), G4UniformGravityField::G4UniformGravityField(), G4UniformGravityField::G4UniformGravityField(), G4UniformGravityField::G4UniformGravityField(), operator=(), G4DELPHIMagField::~G4DELPHIMagField(), G4LineCurrentMagField::~G4LineCurrentMagField(), G4QuadrupoleMagField::~G4QuadrupoleMagField(), G4SextupoleMagField::~G4SextupoleMagField(), G4UniformElectricField::~G4UniformElectricField(), and G4UniformMagField::~G4UniformMagField().

~G4Field()

virtual G4Field::~G4Field ( )

virtualdefault

Default virtual Destructor.

G4Field() [2/2]

G4Field::G4Field ( const G4Field & p )

default

Copy constructor and assignment operator.

Member Function Documentation

Clone()

G4Field * G4Field::Clone ( ) const

virtual

Interface method to implement cloning, needed by multi-threading. Here issuing a fatal exception, as expecting this to be implemented concretely in derived classes.

Reimplemented in G4CachedMagneticField, G4DELPHIMagField, G4HarmonicPolMagField, G4KM_DummyField, G4LineCurrentMagField, G4QuadrupoleMagField, G4SextupoleMagField, G4TCachedMagneticField< T_Field >, G4TQuadrupoleMagField, G4TUniformMagneticField, G4UniformElectricField, G4UniformGravityField, and G4UniformMagField.

Definition at line 45 of file G4Field.cc.

{
    G4ExceptionDescription msg;
    msg << "Derived class does not implement cloning,\n"
        << "but Clone method called.\n"
        << "Cannot continue;";
    G4Exception("G4Field::Clone", "GeomField004", FatalException, msg );
    return nullptr;
}

Referenced by G4FieldManager::Clone().

DoesFieldChangeEnergy()

virtual G4bool G4Field::DoesFieldChangeEnergy ( ) const

pure virtual

Each type/class of field should respond the field does change energy. For example:

• an electric field should return "true"
• a pure magnetic field should return "false"

Implemented in G4ElectricField, G4ElectroMagneticField, G4MagneticField, and G4UniformGravityField.

Referenced by G4FieldManager::G4FieldManager().

GetFieldType()

virtual G4FieldType G4Field::GetFieldType ( ) const

inlinevirtual

Returns the field type-ID, "kUserFieldType". This should be overriden in derived classes.

Reimplemented in G4ElectroMagneticField, G4MagneticField, and G4UniformGravityField.

Definition at line 115 of file G4Field.hh.

{ return kUserFieldType; }

GetFieldValue()

virtual void G4Field::GetFieldValue ( const G4double Point[4], G4double * fieldArr ) const

pure virtual

Given the position time vector 'Point', returns the value of the field in the array 'fieldArr'. Notes: 1) The 'Point' vector has the following structure: Point[0] is x ( position, in Geant4 units ) Point[1] is y Point[2] is z Point[3] is t ( time, in Geant4 units ) 2) The convention for the components of the field array 'fieldArr' are determined by the type of field.

Parameters

[in]	Point	The position time vector.
[out]	fieldArr	The field array in output.

Implemented in G4CachedMagneticField, G4ElectricField, G4ElectroMagneticField, G4MagneticField, G4TCachedMagneticField< T_Field >, G4TUniformMagneticField, G4UniformElectricField, G4UniformGravityField, and G4UniformMagField.

Referenced by G4ErrorSurfaceTrajState::BuildErrorMatrix(), G4ErrorFreeTrajState::G4ErrorFreeTrajState(), G4ElectricFieldModel::GetFieldAtLocation(), G4MagneticFieldModel::GetFieldAtLocation(), G4SynchrotronRadiation::GetMeanFreePath(), G4SynchrotronRadiationInMat::GetMeanFreePath(), G4SynchrotronRadiationInMat::GetPhotonEnergy(), G4SynchrotronRadiation::PostStepDoIt(), G4SynchrotronRadiationInMat::PostStepDoIt(), G4ErrorMagFieldLimitProcess::PostStepGetPhysicalInteractionLength(), and G4ErrorFreeTrajState::PropagateError().

IsGravityActive()

G4bool G4Field::IsGravityActive ( ) const

inline

Replies if the field includes gravity.

Returns

true if the field does include gravity.

Definition at line 121 of file G4Field.hh.

{ return fGravityActive; }

Referenced by G4CoupledTransportation::AlongStepGetPhysicalInteractionLength(), and G4RepleteEofM::G4RepleteEofM().

operator=()

G4Field & G4Field::operator=

(

const G4Field &

p

)

Definition at line 38 of file G4Field.cc.

{
   if (&p == this) { return *this; }
   fGravityActive= p.fGravityActive;
   return *this;
}

Referenced by G4ElectroMagneticField::operator=(), G4MagneticField::operator=(), and G4UniformGravityField::operator=().

SetGravityActive()

void G4Field::SetGravityActive ( G4bool OnOffFlag )

inline

Sets the gravity flag.

Definition at line 127 of file G4Field.hh.

{ fGravityActive = OnOffFlag; }

Member Data Documentation

MAX_NUMBER_OF_COMPONENTS

G4int G4Field::MAX_NUMBER_OF_COMPONENTS = 24

staticconstexpr

Definition at line 138 of file G4Field.hh.

---

The documentation for this class was generated from the following files:

• G4Field.hh
• G4Field.cc
