G4MagneticField Class Reference

#include <G4MagneticField.hh>

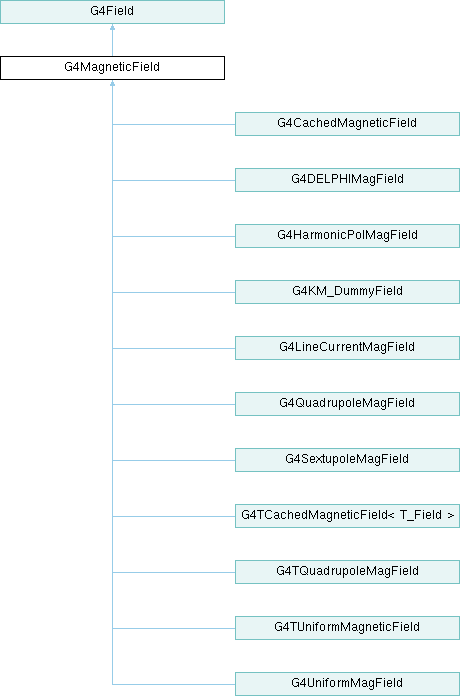

Inheritance diagram for G4MagneticField:

Public Member Functions
	G4MagneticField ()
	~G4MagneticField () override=default
	G4MagneticField (const G4MagneticField &r)
G4MagneticField &	operator= (const G4MagneticField &p)
G4bool	DoesFieldChangeEnergy () const override
void	GetFieldValue (const G4double Point[4], G4double *Bfield) const override=0
G4FieldType	GetFieldType () const override
Public Member Functions inherited from G4Field
	G4Field (G4bool gravityOn=false)
virtual	~G4Field ()=default
	G4Field (const G4Field &p)=default
G4Field &	operator= (const G4Field &p)
G4bool	IsGravityActive () const
void	SetGravityActive (G4bool OnOffFlag)
virtual G4Field *	Clone () const

Additional Inherited Members
Static Public Attributes inherited from G4Field
static constexpr G4int	MAX_NUMBER_OF_COMPONENTS = 24

Detailed Description

Definition at line 40 of file G4MagneticField.hh.

Constructor & Destructor Documentation

G4MagneticField() [1/2]

G4MagneticField::G4MagneticField

(

)

Default Constructor and Destructor.

Definition at line 33 of file G4MagneticField.cc.

  : G4Field( false ) // No gravitational field (default)
{
}

Referenced by G4CachedMagneticField::Clone(), G4CachedMagneticField::G4CachedMagneticField(), G4CachedMagneticField::G4CachedMagneticField(), G4MagneticField(), G4TCachedMagneticField< T_Field >::G4TCachedMagneticField(), G4TUniformMagneticField::G4TUniformMagneticField(), G4UniformMagField::G4UniformMagField(), operator=(), and ~G4MagneticField().

~G4MagneticField()

G4MagneticField::~G4MagneticField ( )

overridedefault

G4MagneticField() [2/2]

G4MagneticField::G4MagneticField

(

const G4MagneticField &

r

)

Copy constructor and assignment operator.

Definition at line 38 of file G4MagneticField.cc.

  : G4Field( false )
{
}

Member Function Documentation

DoesFieldChangeEnergy()

G4bool G4MagneticField::DoesFieldChangeEnergy ( ) const

inlineoverridevirtual

Since a pure magnetic field does not change track energy, returns false.

Implements G4Field.

Definition at line 59 of file G4MagneticField.hh.

{ return false; }

GetFieldType()

G4FieldType G4MagneticField::GetFieldType ( ) const

inlineoverridevirtual

Returns the field type-ID, "kMagnetic". This should be overriden in derived classes.

Reimplemented from G4Field.

Definition at line 74 of file G4MagneticField.hh.

{ return kMagnetic; }

GetFieldValue()

void G4MagneticField::GetFieldValue ( const G4double Point[4], G4double * Bfield ) const

overridepure virtual

Given the position time vector 'Point', returns the value of the field in the array 'Bfield'.

Parameters

[in]	Point	The position time vector.
[out]	Bfield	The field array in output.

Implements G4Field.

Implemented in G4CachedMagneticField, G4TCachedMagneticField< T_Field >, G4TUniformMagneticField, and G4UniformMagField.

operator=()

G4MagneticField & G4MagneticField::operator=

(

const G4MagneticField &

p

)

Definition at line 43 of file G4MagneticField.cc.

{
  if (&p == this) { return *this; }
  G4Field::operator=(p);
  return *this;
}

Referenced by G4CachedMagneticField::operator=(), and G4UniformMagField::operator=().

---

The documentation for this class was generated from the following files:

• G4MagneticField.hh
• G4MagneticField.cc
