G4VParameterisationTubs is the base class for the parameterised positioning equivalent to dividing a G4Tubs along one of each axis Rho, Phi, Z. More...

#include <G4ParameterisationTubs.hh>

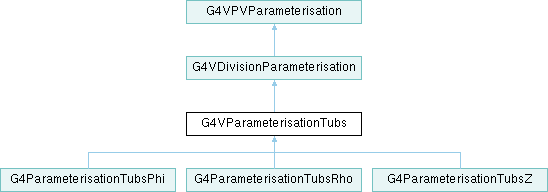

Inheritance diagram for G4VParameterisationTubs:

Public Member Functions
	G4VParameterisationTubs (EAxis axis, G4int nCopies, G4double offset, G4double step, G4VSolid *pSolid, DivisionType divType)
	~G4VParameterisationTubs () override
Public Member Functions inherited from G4VDivisionParameterisation
	G4VDivisionParameterisation (EAxis axis, G4int nDiv, G4double width, G4double offset, DivisionType divType, G4VSolid *motherSolid=nullptr)
	~G4VDivisionParameterisation () override
G4VSolid *	ComputeSolid (const G4int, G4VPhysicalVolume *pv) override
void	ComputeTransformation (const G4int copyNo, G4VPhysicalVolume *physVol) const override=0
const G4String &	GetType () const
EAxis	GetAxis () const
G4int	GetNoDiv () const
G4double	GetWidth () const
G4double	GetOffset () const
G4VSolid *	GetMotherSolid () const
void	SetType (const G4String &type)
void	SetHalfGap (G4double hg)
G4double	GetHalfGap () const
Public Member Functions inherited from G4VPVParameterisation
	G4VPVParameterisation ()=default
virtual	~G4VPVParameterisation ()=default
virtual G4Material *	ComputeMaterial (const G4int repNo, G4VPhysicalVolume currentVol, const G4VTouchable parentTouch=nullptr)
virtual G4bool	IsNested () const
virtual G4VVolumeMaterialScanner *	GetMaterialScanner ()
virtual void	ComputeDimensions (G4Box &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Tubs &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Trd &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Trap &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Cons &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Sphere &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Orb &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Ellipsoid &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Torus &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Para &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Polycone &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Polyhedra &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Hype &, const G4int, const G4VPhysicalVolume *) const

Additional Inherited Members
Protected Member Functions inherited from G4VDivisionParameterisation
void	ChangeRotMatrix (G4VPhysicalVolume *physVol, G4double rotZ=0.0) const
G4int	CalculateNDiv (G4double motherDim, G4double width, G4double offset) const
G4double	CalculateWidth (G4double motherDim, G4int nDiv, G4double offset) const
virtual void	CheckParametersValidity ()
void	CheckOffset (G4double maxPar)
void	CheckNDivAndWidth (G4double maxPar)
virtual G4double	GetMaxParameter () const =0
G4double	OffsetZ () const
Protected Attributes inherited from G4VDivisionParameterisation
G4String	ftype
EAxis	faxis
G4int	fnDiv = 0
G4double	fwidth = 0.0
G4double	foffset = 0.0
DivisionType	fDivisionType
G4VSolid *	fmotherSolid = nullptr
G4bool	fReflectedSolid = false
G4bool	fDeleteSolid = false
G4double	kCarTolerance
G4double	fhgap = 0.0
Static Protected Attributes inherited from G4VDivisionParameterisation
static G4ThreadLocal G4RotationMatrix *	fRot = nullptr
static const G4int	verbose = 5

Detailed Description

G4VParameterisationTubs is the base class for the parameterised positioning equivalent to dividing a G4Tubs along one of each axis Rho, Phi, Z.

Definition at line 63 of file G4ParameterisationTubs.hh.

Constructor & Destructor Documentation

◆ G4VParameterisationTubs()

G4VParameterisationTubs::G4VParameterisationTubs	(	EAxis	axis,
		G4int	nCopies,
		G4double	offset,
		G4double	step,
		G4VSolid *	pSolid,
		DivisionType	divType )

Initialises a parameterised tubs, given the axis of parameterisation 'axis' and the number of divided slices 'nCopies'.

Parameters

[in]	axis	The axis along which apply the parameterisation.
[in]	nCopies	The total number of divided slices.
[in]	offset	Potential initial offset along the axis.
[in]	step	The width of the divided slice.
[in]	pSolid	Pointer to the original shape to parameterise.
[in]	divType	String identifier for the kind of division.

Definition at line 44 of file G4ParameterisationTubs.cc.

  : G4VDivisionParameterisation( axis, nDiv, width, offset, divType, msolid )
{
  auto msol = (G4Tubs*)(msolid);
  if (msolid->GetEntityType() == "G4ReflectedSolid")
  {
    //----- get constituent solid
    G4VSolid* mConstituentSolid
       = ((G4ReflectedSolid*)msolid)->GetConstituentMovedSolid();
    msol = (G4Tubs*)(mConstituentSolid);
    fmotherSolid = msol;
    fReflectedSolid = true;
  }
}

Referenced by G4ParameterisationTubsPhi::G4ParameterisationTubsPhi(), G4ParameterisationTubsRho::G4ParameterisationTubsRho(), and G4ParameterisationTubsZ::G4ParameterisationTubsZ().

◆ ~G4VParameterisationTubs()

G4VParameterisationTubs::~G4VParameterisationTubs ( )

overridedefault

Default Destructor.
