G4VPVParameterisation ia an abstract base class for Parameterisation, able to compute the transformation and (indirectly) the dimensions of parameterised volumes, given a replication number. More...

#include <G4VPVParameterisation.hh>

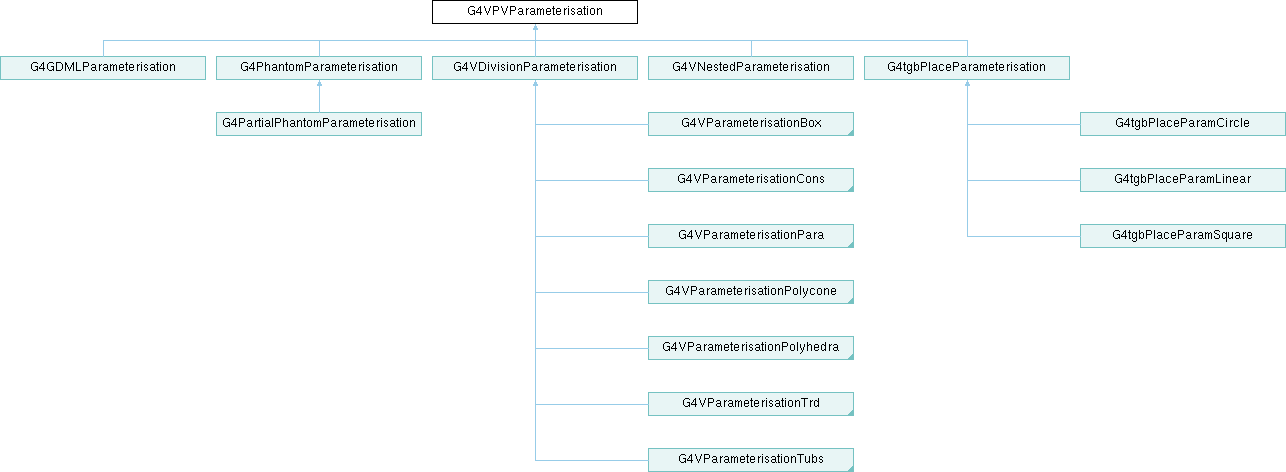

Inheritance diagram for G4VPVParameterisation:

Public Member Functions
	G4VPVParameterisation ()=default
virtual	~G4VPVParameterisation ()=default
virtual void	ComputeTransformation (const G4int no, G4VPhysicalVolume *pv) const =0
virtual G4VSolid *	ComputeSolid (const G4int no, G4VPhysicalVolume *pv)
virtual G4Material *	ComputeMaterial (const G4int repNo, G4VPhysicalVolume currentVol, const G4VTouchable parentTouch=nullptr)
virtual G4bool	IsNested () const
virtual G4VVolumeMaterialScanner *	GetMaterialScanner ()
virtual void	ComputeDimensions (G4Box &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Tubs &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Trd &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Trap &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Cons &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Sphere &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Orb &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Ellipsoid &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Torus &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Para &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Polycone &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Polyhedra &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Hype &, const G4int, const G4VPhysicalVolume *) const

Detailed Description

G4VPVParameterisation ia an abstract base class for Parameterisation, able to compute the transformation and (indirectly) the dimensions of parameterised volumes, given a replication number.

Definition at line 71 of file G4VPVParameterisation.hh.

Constructor & Destructor Documentation

◆ G4VPVParameterisation()

G4VPVParameterisation::G4VPVParameterisation ( )

default

Default Constructor & Destructor.

◆ ~G4VPVParameterisation()

virtual G4VPVParameterisation::~G4VPVParameterisation ( )

virtualdefault

Member Function Documentation

◆ ComputeDimensions() [1/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Box &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Dispatch methods for the specific solids where parameterisation is allowed.

Reimplemented in G4ParameterisationBoxX, G4ParameterisationBoxY, G4ParameterisationBoxZ, G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 123 of file G4VPVParameterisation.hh.

125 {}

Referenced by G4Box::ComputeDimensions(), G4Cons::ComputeDimensions(), G4Ellipsoid::ComputeDimensions(), G4Hype::ComputeDimensions(), G4Orb::ComputeDimensions(), G4Para::ComputeDimensions(), G4Polycone::ComputeDimensions(), G4Polyhedra::ComputeDimensions(), G4Sphere::ComputeDimensions(), G4Torus::ComputeDimensions(), G4Trap::ComputeDimensions(), G4Trd::ComputeDimensions(), G4Tubs::ComputeDimensions(), G4tgbGeometryDumper::DumpPVParameterised(), and G4GDMLWriteParamvol::ParametersWrite().

◆ ComputeDimensions() [2/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Cons &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4ParameterisationConsPhi, G4ParameterisationConsRho, G4ParameterisationConsZ, G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 135 of file G4VPVParameterisation.hh.

137 {}

◆ ComputeDimensions() [3/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Ellipsoid &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 144 of file G4VPVParameterisation.hh.

146 {}

◆ ComputeDimensions() [4/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Hype &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 159 of file G4VPVParameterisation.hh.

161 {}

◆ ComputeDimensions() [5/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Orb &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 141 of file G4VPVParameterisation.hh.

143 {}

◆ ComputeDimensions() [6/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Para &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4ParameterisationParaX, G4ParameterisationParaY, G4ParameterisationParaZ, G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 150 of file G4VPVParameterisation.hh.

152 {}

◆ ComputeDimensions() [7/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Polycone &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4ParameterisationPolyconePhi, G4ParameterisationPolyconeRho, G4ParameterisationPolyconeZ, G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 153 of file G4VPVParameterisation.hh.

155 {}

◆ ComputeDimensions() [8/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Polyhedra &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4ParameterisationPolyhedraPhi, G4ParameterisationPolyhedraRho, G4ParameterisationPolyhedraZ, G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 156 of file G4VPVParameterisation.hh.

158 {}

◆ ComputeDimensions() [9/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Sphere &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 138 of file G4VPVParameterisation.hh.

140 {}

◆ ComputeDimensions() [10/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Torus &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 147 of file G4VPVParameterisation.hh.

149 {}

◆ ComputeDimensions() [11/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Trap &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4ParameterisationTrdX, G4ParameterisationTrdY, G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 132 of file G4VPVParameterisation.hh.

134 {}

◆ ComputeDimensions() [12/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Trd &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4ParameterisationTrdX, G4ParameterisationTrdY, G4ParameterisationTrdZ, G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 129 of file G4VPVParameterisation.hh.

131 {}

◆ ComputeDimensions() [13/13]

virtual void G4VPVParameterisation::ComputeDimensions	(	G4Tubs &	,
		const G4int	,
		const G4VPhysicalVolume *	) const

inlinevirtual

Reimplemented in G4ParameterisationTubsPhi, G4ParameterisationTubsRho, G4ParameterisationTubsZ, G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 126 of file G4VPVParameterisation.hh.

128 {}

◆ ComputeMaterial()

G4Material * G4VPVParameterisation::ComputeMaterial	(	const G4int	repNo,
		G4VPhysicalVolume *	currentVol,
		const G4VTouchable *	parentTouch = nullptr )

virtual

Computes the material for the 'currentVol' and replica number 'repNo'. Must cope with 'parentTouch' for navigator's SetupHierarchy() when used for nested parameterisations.

Parameters

[in]	currentVol	Pointer to the current physical volume.
[in]	repNo	The copy number index.
[in]	parentTouch	Pointer to the touchable of the parent volume.

Returns: A pointer to the associated material.

Reimplemented in G4PartialPhantomParameterisation, G4PhantomParameterisation, and G4VNestedParameterisation.

Definition at line 47 of file G4VPVParameterisation.cc.

{
  return pPhysicalVol->GetLogicalVolume()->GetMaterial();
}

Referenced by G4tgbGeometryDumper::DumpPVParameterised(), G4LogicalVolume::GetMass(), G4ParameterisedNavigation::LevelLocate(), and G4Region::ScanVolumeTree().

◆ ComputeSolid()

G4VSolid * G4VPVParameterisation::ComputeSolid	(	const G4int	no,
		G4VPhysicalVolume *	pv )

virtual

Computes the solid for the 'pv' volume and replica number 'no'. To be optionally defined in derived classes, for parameterisation of the solid type.

Parameters

[in]	no	The copy number index.
[in]	pv	Pointer to the current physical volume.

Reimplemented in G4PhantomParameterisation, G4VDivisionParameterisation, and G4VNestedParameterisation.

Definition at line 39 of file G4VPVParameterisation.cc.

{
  return pPhysicalVol->GetLogicalVolume()->GetSolid();
}

Referenced by G4VDivisionParameterisation::ComputeSolid(), G4VPrimitiveScorer::ComputeSolid(), G4tgbGeometryDumper::DumpPVParameterised(), G4LogicalVolume::GetMass(), G4ITNavigator1::GetMotherToDaughterTransform(), G4ITNavigator2::GetMotherToDaughterTransform(), G4Navigator::GetMotherToDaughterTransform(), G4ITNavigator1::LocateGlobalPointAndSetup(), G4ITNavigator2::LocateGlobalPointAndSetup(), G4Navigator::LocateGlobalPointAndSetup(), G4PSFlatSurfaceCurrent::ProcessHits(), G4PSFlatSurfaceFlux::ProcessHits(), G4PSSphereSurfaceFlux::ProcessHits(), G4PSVolumeFlux::ProcessHits(), G4ITNavigator1::SetupHierarchy(), G4ITNavigator2::SetupHierarchy(), and G4Navigator::SetupHierarchy().

◆ ComputeTransformation()

virtual void G4VPVParameterisation::ComputeTransformation	(	const G4int	no,
		G4VPhysicalVolume *	pv ) const

pure virtual

Computes the transformation for the 'pv' volume and replica number 'no'. It is a required method, as it is the reason for this class.

Parameters

[in]	pv	Pointer to the current physical volume.
[in]	no	The copy number index.

Referenced by G4tgbGeometryDumper::DumpPVParameterised(), G4ITNavigator1::GetMotherToDaughterTransform(), G4ITNavigator2::GetMotherToDaughterTransform(), G4Navigator::GetMotherToDaughterTransform(), G4ITNavigator1::LocateGlobalPointAndSetup(), G4ITNavigator2::LocateGlobalPointAndSetup(), G4Navigator::LocateGlobalPointAndSetup(), G4GDMLWriteParamvol::ParametersWrite(), G4ITNavigator1::SetupHierarchy(), G4ITNavigator2::SetupHierarchy(), and G4Navigator::SetupHierarchy().

◆ GetMaterialScanner()

G4VVolumeMaterialScanner * G4VPVParameterisation::GetMaterialScanner ( )

virtual

Reimplemented in G4VNestedParameterisation.

Definition at line 62 of file G4VPVParameterisation.cc.

{
  return nullptr;
}

Referenced by G4Region::ScanVolumeTree().

◆ IsNested()

G4bool G4VPVParameterisation::IsNested ( ) const

virtual

Methods to identify nested parameterisations. Required in order to enable material scan for nested parameterisations.

Reimplemented in G4VNestedParameterisation.

Definition at line 55 of file G4VPVParameterisation.cc.

{
  return false;
}

Referenced by G4GMocrenFileSceneHandler::AddSolid(), G4ITNavigator2::SetupHierarchy(), and G4Navigator::SetupHierarchy().
