G4VParameterisationTrd is the base class for the parameterised positioning equivalent to dividing a trapezoid along one of each axis X, Y, Z. More...

#include <G4ParameterisationTrd.hh>

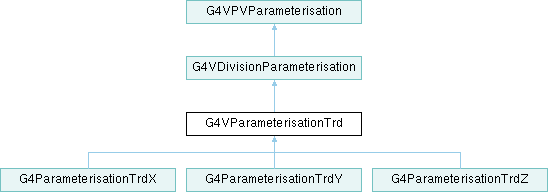

Inheritance diagram for G4VParameterisationTrd:

Public Member Functions
	G4VParameterisationTrd (EAxis axis, G4int nCopies, G4double offset, G4double step, G4VSolid *pSolid, DivisionType divType)
	~G4VParameterisationTrd () override
Public Member Functions inherited from G4VDivisionParameterisation
	G4VDivisionParameterisation (EAxis axis, G4int nDiv, G4double width, G4double offset, DivisionType divType, G4VSolid *motherSolid=nullptr)
	~G4VDivisionParameterisation () override
G4VSolid *	ComputeSolid (const G4int, G4VPhysicalVolume *pv) override
void	ComputeTransformation (const G4int copyNo, G4VPhysicalVolume *physVol) const override=0
const G4String &	GetType () const
EAxis	GetAxis () const
G4int	GetNoDiv () const
G4double	GetWidth () const
G4double	GetOffset () const
G4VSolid *	GetMotherSolid () const
void	SetType (const G4String &type)
void	SetHalfGap (G4double hg)
G4double	GetHalfGap () const
Public Member Functions inherited from G4VPVParameterisation
	G4VPVParameterisation ()=default
virtual	~G4VPVParameterisation ()=default
virtual G4Material *	ComputeMaterial (const G4int repNo, G4VPhysicalVolume currentVol, const G4VTouchable parentTouch=nullptr)
virtual G4bool	IsNested () const
virtual G4VVolumeMaterialScanner *	GetMaterialScanner ()
virtual void	ComputeDimensions (G4Box &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Tubs &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Trd &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Trap &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Cons &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Sphere &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Orb &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Ellipsoid &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Torus &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Para &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Polycone &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Polyhedra &, const G4int, const G4VPhysicalVolume *) const
virtual void	ComputeDimensions (G4Hype &, const G4int, const G4VPhysicalVolume *) const

Protected Attributes
G4bool	bDivInTrap = false
Protected Attributes inherited from G4VDivisionParameterisation
G4String	ftype
EAxis	faxis
G4int	fnDiv = 0
G4double	fwidth = 0.0
G4double	foffset = 0.0
DivisionType	fDivisionType
G4VSolid *	fmotherSolid = nullptr
G4bool	fReflectedSolid = false
G4bool	fDeleteSolid = false
G4double	kCarTolerance
G4double	fhgap = 0.0

Additional Inherited Members
Protected Member Functions inherited from G4VDivisionParameterisation
void	ChangeRotMatrix (G4VPhysicalVolume *physVol, G4double rotZ=0.0) const
G4int	CalculateNDiv (G4double motherDim, G4double width, G4double offset) const
G4double	CalculateWidth (G4double motherDim, G4int nDiv, G4double offset) const
virtual void	CheckParametersValidity ()
void	CheckOffset (G4double maxPar)
void	CheckNDivAndWidth (G4double maxPar)
virtual G4double	GetMaxParameter () const =0
G4double	OffsetZ () const
Static Protected Attributes inherited from G4VDivisionParameterisation
static G4ThreadLocal G4RotationMatrix *	fRot = nullptr
static const G4int	verbose = 5

Detailed Description

G4VParameterisationTrd is the base class for the parameterised positioning equivalent to dividing a trapezoid along one of each axis X, Y, Z.

Definition at line 65 of file G4ParameterisationTrd.hh.

Constructor & Destructor Documentation

◆ G4VParameterisationTrd()

G4VParameterisationTrd::G4VParameterisationTrd	(	EAxis	axis,
		G4int	nCopies,
		G4double	offset,
		G4double	step,
		G4VSolid *	pSolid,
		DivisionType	divType )

Initialises a parameterised Trd, given the axis of parameterisation 'axis' and the number of divided copies 'nCopies'.

Parameters

[in]	axis	The axis along which apply the parameterisation.
[in]	nCopies	The total number of divided copies.
[in]	offset	Potential initial offset along the axis.
[in]	step	The width of the divided entity.
[in]	pSolid	Pointer to the original shape to parameterise.
[in]	divType	String identifier for the kind of division.

Definition at line 45 of file G4ParameterisationTrd.cc.

  :  G4VDivisionParameterisation( axis, nDiv, width, offset, divType, msolid )
{
  auto msol = (G4Trd*)(msolid);
  if (msolid->GetEntityType() == "G4ReflectedSolid")
  {
    // Get constituent solid
    G4VSolid* mConstituentSolid
       = ((G4ReflectedSolid*)msolid)->GetConstituentMovedSolid();
    msol = (G4Trd*)(mConstituentSolid);

    // Create a new solid with inversed parameters
    auto newSolid
      = new G4Trd(msol->GetName(),
                  msol->GetXHalfLength2(), msol->GetXHalfLength1(),
                  msol->GetYHalfLength2(), msol->GetYHalfLength1(),
                  msol->GetZHalfLength());
    msol = newSolid;
    fmotherSolid = newSolid;
    fReflectedSolid = true;
    fDeleteSolid = true;
  }
}

Referenced by G4ParameterisationTrdX::G4ParameterisationTrdX(), G4ParameterisationTrdY::G4ParameterisationTrdY(), and G4ParameterisationTrdZ::G4ParameterisationTrdZ().

◆ ~G4VParameterisationTrd()

G4VParameterisationTrd::~G4VParameterisationTrd ( )

overridedefault

Default Destructor.

Member Data Documentation

◆ bDivInTrap

G4bool G4VParameterisationTrd::bDivInTrap = false

protected

Definition at line 90 of file G4ParameterisationTrd.hh.

Referenced by G4ParameterisationTrdX::G4ParameterisationTrdX().

The documentation for this class was generated from the following files:
