G4ErrorTanPlaneTarget Class Referenceabstract

G4ErrorTanPlaneTarget is a base class for G4ErrorTarget classes for which a tangent plane is defined. More...

#include <G4ErrorTanPlaneTarget.hh>

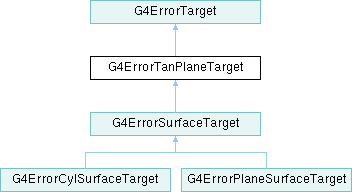

Inheritance diagram for G4ErrorTanPlaneTarget:

Public Member Functions

 G4ErrorTanPlaneTarget ()=default
 ~G4ErrorTanPlaneTarget () override=default
virtual G4Plane3D GetTangentPlane (const G4ThreeVector &point) const =0
void Dump (const G4String &msg) const override=0
Public Member Functions inherited from G4ErrorTarget
 G4ErrorTarget ()=default
virtual ~G4ErrorTarget ()=default
virtual G4double GetDistanceFromPoint (const G4ThreeVector &, const G4ThreeVector &) const
virtual G4double GetDistanceFromPoint (const G4ThreeVector &) const
virtual G4bool TargetReached (const G4Step *)
G4ErrorTargetType GetType () const

Additional Inherited Members

Protected Attributes inherited from G4ErrorTarget
G4ErrorTargetType theType {G4ErrorTarget_GeomVolume}

Detailed Description

G4ErrorTanPlaneTarget is a base class for G4ErrorTarget classes for which a tangent plane is defined.

Definition at line 47 of file G4ErrorTanPlaneTarget.hh.

Constructor & Destructor Documentation

◆ G4ErrorTanPlaneTarget()

G4ErrorTanPlaneTarget::G4ErrorTanPlaneTarget ( )
default

Default Constructor and Destructor.

◆ ~G4ErrorTanPlaneTarget()

G4ErrorTanPlaneTarget::~G4ErrorTanPlaneTarget ( )
overridedefault

Member Function Documentation

◆ Dump()

void G4ErrorTanPlaneTarget::Dump ( const G4String & msg) const
overridepure virtual

Dumps to standard output the surface parameters.

Implements G4ErrorTarget.

Implemented in G4ErrorCylSurfaceTarget, G4ErrorPlaneSurfaceTarget, and G4ErrorSurfaceTarget.

◆ GetTangentPlane()

virtual G4Plane3D G4ErrorTanPlaneTarget::GetTangentPlane ( const G4ThreeVector & point) const
pure virtual

Computes the plane tangent to surface at a given point.

Parameters
[in]pointThe point of reference.
Returns
The tangent plane.

Implemented in G4ErrorCylSurfaceTarget, G4ErrorPlaneSurfaceTarget, and G4ErrorSurfaceTarget.

Referenced by G4ErrorPropagator::GetFinalTrajState().

The documentation for this class was generated from the following file:
