G4ErrorTarget Class Reference

G4ErrorTarget is base class for all error propagation targets. More...

#include <G4ErrorTarget.hh>

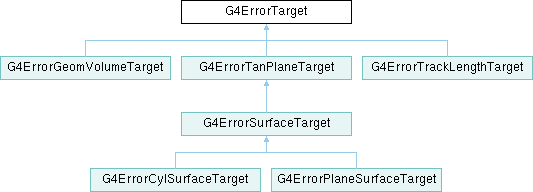

Inheritance diagram for G4ErrorTarget:

Public Member Functions
	G4ErrorTarget ()=default
virtual	~G4ErrorTarget ()=default
virtual G4double	GetDistanceFromPoint (const G4ThreeVector &, const G4ThreeVector &) const
virtual G4double	GetDistanceFromPoint (const G4ThreeVector &) const
virtual G4bool	TargetReached (const G4Step *)
virtual void	Dump (const G4String &msg) const =0
G4ErrorTargetType	GetType () const

Protected Attributes
G4ErrorTargetType	theType {G4ErrorTarget_GeomVolume}

Detailed Description

G4ErrorTarget is base class for all error propagation targets.

Definition at line 50 of file G4ErrorTarget.hh.

Constructor & Destructor Documentation

G4ErrorTarget()

G4ErrorTarget::G4ErrorTarget ( )

default

Default Constructor and Destructor.

~G4ErrorTarget()

virtual G4ErrorTarget::~G4ErrorTarget ( )

virtualdefault

Member Function Documentation

Dump()

virtual void G4ErrorTarget::Dump ( const G4String & msg ) const

pure virtual

Dumps parameters to standard output.

Implemented in G4ErrorCylSurfaceTarget, G4ErrorGeomVolumeTarget, G4ErrorPlaneSurfaceTarget, G4ErrorSurfaceTarget, G4ErrorTanPlaneTarget, and G4ErrorTrackLengthTarget.

Referenced by G4ErrorPropagationNavigator::ComputeStep(), and G4ErrorPropagator::Propagate().

GetDistanceFromPoint() [1/2]

G4double G4ErrorTarget::GetDistanceFromPoint ( const G4ThreeVector & ) const

virtual

Reimplemented in G4ErrorCylSurfaceTarget, G4ErrorPlaneSurfaceTarget, G4ErrorSurfaceTarget, and G4ErrorTrackLengthTarget.

Definition at line 39 of file G4ErrorTarget.cc.

{
  return DBL_MAX;
}

GetDistanceFromPoint() [2/2]

G4double G4ErrorTarget::GetDistanceFromPoint ( const G4ThreeVector & , const G4ThreeVector &  ) const

virtual

Methods to compute the distance from the target volume.

Reimplemented in G4ErrorCylSurfaceTarget, G4ErrorPlaneSurfaceTarget, G4ErrorSurfaceTarget, and G4ErrorTrackLengthTarget.

Definition at line 33 of file G4ErrorTarget.cc.

{
  return DBL_MAX;
}

Referenced by G4ErrorPropagationNavigator::ComputeStep(), G4ErrorPropagationNavigator::GetGlobalExitNormal(), and G4ErrorPropagationNavigator::TargetSafetyFromPoint().

GetType()

G4ErrorTargetType G4ErrorTarget::GetType ( ) const

inline

Returns the type ID of the target.

Definition at line 81 of file G4ErrorTarget.hh.

{ return theType; }

Referenced by G4ErrorPropagator::GetFinalTrajState(), G4ErrorPropagationNavigator::GetGlobalExitNormal(), and G4ErrorPropagator::MakeOneStep().

TargetReached()

G4bool G4ErrorTarget::TargetReached ( const G4Step * )

virtual

Returns true if the target surface / target track length is reached.

Reimplemented in G4ErrorGeomVolumeTarget.

Definition at line 44 of file G4ErrorTarget.cc.

{
  return false;
}

Member Data Documentation

theType

G4ErrorTargetType G4ErrorTarget::theType {G4ErrorTarget_GeomVolume}

protected

Definition at line 85 of file G4ErrorTarget.hh.

{G4ErrorTarget_GeomVolume};

Referenced by G4ErrorCylSurfaceTarget::G4ErrorCylSurfaceTarget(), G4ErrorCylSurfaceTarget::G4ErrorCylSurfaceTarget(), G4ErrorGeomVolumeTarget::G4ErrorGeomVolumeTarget(), G4ErrorPlaneSurfaceTarget::G4ErrorPlaneSurfaceTarget(), G4ErrorPlaneSurfaceTarget::G4ErrorPlaneSurfaceTarget(), G4ErrorPlaneSurfaceTarget::G4ErrorPlaneSurfaceTarget(), G4ErrorTrackLengthTarget::G4ErrorTrackLengthTarget(), and GetType().

---

The documentation for this class was generated from the following files:

• G4ErrorTarget.hh
• G4ErrorTarget.cc
