MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel Class Reference

#include <MCGIDI_functions.hpp>

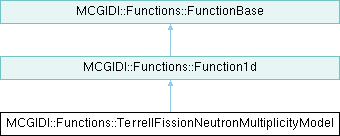

Inheritance diagram for MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel:

Public Member Functions
LUPI_HOST_DEVICE	TerrellFissionNeutronMultiplicityModel ()
LUPI_HOST	TerrellFissionNeutronMultiplicityModel (double a_width, Function1d_d1 *a_multiplicity)
LUPI_HOST_DEVICE	~TerrellFissionNeutronMultiplicityModel ()
template<typename RNG>
LUPI_HOST_DEVICE int	sampleBoundingInteger (double a_energy, RNG &&a_rng) const
LUPI_HOST_DEVICE double	evaluate (double a_energy) const
LUPI_HOST_DEVICE void	serialize (LUPI::DataBuffer &a_buffer, LUPI::DataBuffer::Mode a_mode)
Public Member Functions inherited from MCGIDI::Functions::Function1d
LUPI_HOST_DEVICE	Function1d ()
LUPI_HOST_DEVICE	Function1d (double a_domainMin, double a_domainMax, Interpolation a_interpolation, double a_outerDomainValue=0)
LUPI_HOST_DEVICE	~Function1d ()
LUPI_HOST_DEVICE Function1dType	type () const
LUPI_HOST_DEVICE String	typeString () const
template<typename RNG>
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION int	sampleBoundingInteger (double a_x1, RNG &&a_rng) const
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION double	evaluate (double a_x1) const MCGIDI_TRUE_VIRTUAL
LUPI_HOST_DEVICE void	serialize (LUPI::DataBuffer &a_buffer, LUPI::DataBuffer::Mode a_mode)
template<typename RNG>
LUPI_HOST_DEVICE int	sampleBoundingInteger (double a_x1, RNG &&a_rng) const
Public Member Functions inherited from MCGIDI::Functions::FunctionBase
LUPI_HOST_DEVICE	FunctionBase ()
LUPI_HOST	FunctionBase (GIDI::Functions::FunctionForm const &a_function)
LUPI_HOST_DEVICE	FunctionBase (int a_dimension, double a_domainMin, double a_domainMax, Interpolation a_interpolation, double a_outerDomainValue=0)
virtual LUPI_HOST_DEVICE	~FunctionBase ()=0
LUPI_HOST_DEVICE Interpolation	interpolation () const
LUPI_HOST_DEVICE double	domainMin () const
LUPI_HOST_DEVICE double	domainMax () const
LUPI_HOST_DEVICE double	outerDomainValue () const
LUPI_HOST_DEVICE void	serialize (LUPI::DataBuffer &a_buffer, LUPI::DataBuffer::Mode a_mode)

Additional Inherited Members
Protected Attributes inherited from MCGIDI::Functions::Function1d
Function1dType	m_type

Detailed Description

Definition at line 243 of file MCGIDI_functions.hpp.

Constructor & Destructor Documentation

TerrellFissionNeutronMultiplicityModel() [1/2]

LUPI_HOST_DEVICE MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel::TerrellFissionNeutronMultiplicityModel

(

)

Definition at line 818 of file MCGIDI_functions.cc.

                                                                                                 :
        m_width( 1.079 ),
        m_multiplicity( nullptr ) {

    m_type = Function1dType::TerrellFissionNeutronMultiplicityModel;
}

TerrellFissionNeutronMultiplicityModel() [2/2]

LUPI_HOST MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel::TerrellFissionNeutronMultiplicityModel	(	double	a_width,
		Function1d_d1 *	a_multiplicity )

Definition at line 828 of file MCGIDI_functions.cc.

                                                                                                                                        :
        Function1d( a_multiplicity->domainMin( ), a_multiplicity->domainMax( ), a_multiplicity->interpolation( ), a_multiplicity->outerDomainValue( ) ),
        m_width( a_width ),
        m_multiplicity( a_multiplicity ) {

    m_type = Function1dType::TerrellFissionNeutronMultiplicityModel;
    if( a_width < 0.0 ) m_width = 1.079;
}

~TerrellFissionNeutronMultiplicityModel()

LUPI_HOST_DEVICE MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel::~TerrellFissionNeutronMultiplicityModel

(

)

Definition at line 840 of file MCGIDI_functions.cc.

                                                                                                  {

    delete m_multiplicity;
}

Member Function Documentation

evaluate()

LUPI_HOST_DEVICE double MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel::evaluate

(

double

a_energy

)

const

Evaluated the m_multiplicity function at energy a_energy.

Parameters

a_energy

[in] The energy of the projectile.

Returns

The number of emitted, prompt neutrons.

Definition at line 853 of file MCGIDI_functions.cc.

                                                                                                {

    return( m_multiplicity->evaluate( a_energy ) );
}

sampleBoundingInteger()

template<typename RNG>

LUPI_HOST_DEVICE int MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel::sampleBoundingInteger	(	double	a_energy,
		RNG &&	a_rng ) const

Sample the number of fission prompt neutrons using Terrell's modified Gaussian distribution. Method uses Red Cullen's algoritm (see UCRL-TR-222526).

Parameters

a_energy	[in] The energy of the projectile.
a_rng	[in] The random number generator function the uses a_rngState to generator a double in the range [0, 1.0).
a_rngState	[in/out] The random number generator state.

Returns

The sampled number of emitted, prompt neutrons for fission.

Definition at line 1617 of file MCGIDI_headerSource.hpp.

                                                                                                                                       {

    const double Terrell_BSHIFT = -0.43287;
    double width = M_SQRT2 * m_width;
    double temp1 = m_multiplicity->evaluate( a_energy ) + 0.5;
    double temp2 = temp1 / width;
    double expo = exp( -temp2 * temp2 );
    double cshift = temp1 + Terrell_BSHIFT * m_width * expo / ( 1.0 - expo );

    double multiplicity = 1.0;
    do {
      double rw = sqrt( -log( a_rng( ) ) );
      double theta = ( 2.0 * M_PI ) * a_rng();

      multiplicity = width * rw * cos( theta ) + cshift;
    } while ( multiplicity < 0.0 );

    return( static_cast<int>( floor( multiplicity ) ) );
}

serialize()

LUPI_HOST_DEVICE void MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel::serialize	(	LUPI::DataBuffer &	a_buffer,
		LUPI::DataBuffer::Mode	a_mode )

This method serializes this for broadcasting as needed for MPI and GPUs. The method can count the number of required bytes, pack this or unpack this depending on a_mode.

Parameters

a_buffer	[in] The buffer to read or write data to depending on a_mode.
a_mode	[in] Specifies the action of this method.

Definition at line 866 of file MCGIDI_functions.cc.

                                                                                                                             {

    Function1d::serialize( a_buffer, a_mode );
    DATA_MEMBER_DOUBLE( m_width, a_buffer, a_mode );

    m_multiplicity = serializeFunction1d_d1( a_buffer, a_mode, m_multiplicity );
}

---

The documentation for this class was generated from the following files:

• MCGIDI_functions.hpp
• MCGIDI_headerSource.hpp
• MCGIDI_functions.cc
