MCGIDI::Functions::Function1d Class Reference

#include <MCGIDI_functions.hpp>

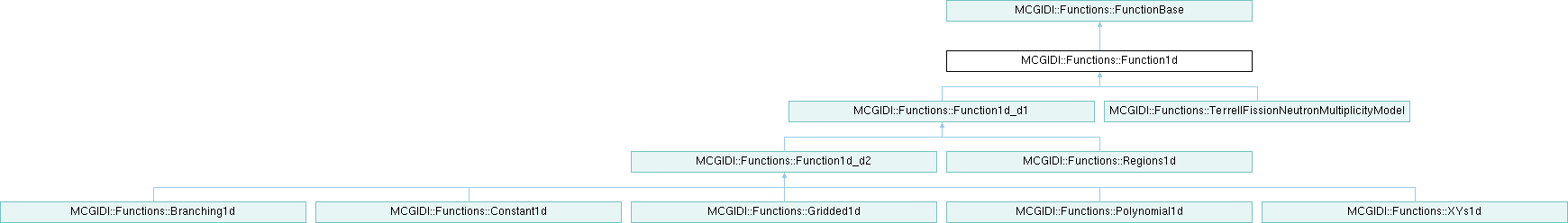

Inheritance diagram for MCGIDI::Functions::Function1d:

Public Member Functions

LUPI_HOST_DEVICE Function1d ()
LUPI_HOST_DEVICE Function1d (double a_domainMin, double a_domainMax, Interpolation a_interpolation, double a_outerDomainValue=0)
LUPI_HOST_DEVICE ~Function1d ()
LUPI_HOST_DEVICE Function1dType type () const
LUPI_HOST_DEVICE String typeString () const
template<typename RNG>
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION int sampleBoundingInteger (double a_x1, RNG &&a_rng) const
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION double evaluate (double a_x1) const MCGIDI_TRUE_VIRTUAL
LUPI_HOST_DEVICE void serialize (LUPI::DataBuffer &a_buffer, LUPI::DataBuffer::Mode a_mode)
template<typename RNG>
LUPI_HOST_DEVICE int sampleBoundingInteger (double a_x1, RNG &&a_rng) const
Public Member Functions inherited from MCGIDI::Functions::FunctionBase
LUPI_HOST_DEVICE FunctionBase ()
LUPI_HOST FunctionBase (GIDI::Functions::FunctionForm const &a_function)
LUPI_HOST_DEVICE FunctionBase (int a_dimension, double a_domainMin, double a_domainMax, Interpolation a_interpolation, double a_outerDomainValue=0)
virtual LUPI_HOST_DEVICE ~FunctionBase ()=0
LUPI_HOST_DEVICE Interpolation interpolation () const
LUPI_HOST_DEVICE double domainMin () const
LUPI_HOST_DEVICE double domainMax () const
LUPI_HOST_DEVICE double outerDomainValue () const
LUPI_HOST_DEVICE void serialize (LUPI::DataBuffer &a_buffer, LUPI::DataBuffer::Mode a_mode)

Protected Attributes

Function1dType m_type

Detailed Description

Definition at line 62 of file MCGIDI_functions.hpp.

Constructor & Destructor Documentation

◆ Function1d() [1/2]

LUPI_HOST_DEVICE MCGIDI::Functions::Function1d::Function1d ( )

Definition at line 129 of file MCGIDI_functions.cc.

129 :
130 m_type( Function1dType::none ) {
131
132}

Referenced by MCGIDI::Functions::Function1d_d1::Function1d_d1(), MCGIDI::Functions::Function1d_d1::Function1d_d1(), and MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel::TerrellFissionNeutronMultiplicityModel().

◆ Function1d() [2/2]

LUPI_HOST_DEVICE MCGIDI::Functions::Function1d::Function1d ( double a_domainMin,
double a_domainMax,
Interpolation a_interpolation,
double a_outerDomainValue = 0 )

Definition at line 136 of file MCGIDI_functions.cc.

136 :
137 FunctionBase( 1, a_domainMin, a_domainMax, a_interpolation, a_outerDomainValue ),
138 m_type( Function1dType::none ) {
139
140}

◆ ~Function1d()

LUPI_HOST_DEVICE MCGIDI::Functions::Function1d::~Function1d ( )

Definition at line 145 of file MCGIDI_functions.cc.

145 {
146
147}

Member Function Documentation

◆ evaluate()

LUPI_HOST_DEVICE double MCGIDI::Functions::Function1d::evaluate ( double a_x1) const

Returns the value of the function at a_x1.

Parameters
a_x1[in] The x-value to evaluate the function at.
Returns
The value of the function at a_x1.

Definition at line 197 of file MCGIDI_functions.cc.

197 {
198
199 double value = 0.0;
200
201 switch( type( ) ) {
202 case Function1dType::none:
203 break;
204 case Function1dType::constant:
205 value = static_cast<Constant1d const *>( this )->evaluate( a_x1 );
206 break;
207 case Function1dType::XYs:
208 value = static_cast<XYs1d const *>( this )->evaluate( a_x1 );
209 break;
210 case Function1dType::polyomial:
211 value = static_cast<Polynomial1d const *>( this )->evaluate( a_x1 );
212 break;
213 case Function1dType::gridded:
214 value = static_cast<Gridded1d const *>( this )->evaluate( a_x1 );
215 break;
216 case Function1dType::regions:
217 value = static_cast<Regions1d const *>( this )->evaluate( a_x1 );
218 break;
219 case Function1dType::branching:
220 value = static_cast<Branching1d const *>( this )->evaluate( a_x1 );
221 break;
222 case Function1dType::TerrellFissionNeutronMultiplicityModel:
223 value = static_cast<TerrellFissionNeutronMultiplicityModel const *>( this )->evaluate( a_x1 );
224 break;
225 }
226
227 return( value );
228}
MCGIDI::Functions::Function1d::type
LUPI_HOST_DEVICE Function1dType type() const
Definition MCGIDI_functions.hpp:72
MCGIDI::Functions::Function1d::evaluate
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION double evaluate(double a_x1) const MCGIDI_TRUE_VIRTUAL
Definition MCGIDI_functions.cc:197

Referenced by evaluate(), and sampleBoundingInteger().

◆ sampleBoundingInteger() [1/2]

template<typename RNG>
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION int MCGIDI::Functions::Function1d::sampleBoundingInteger ( double a_x1,
RNG && a_rng ) const

Referenced by sampleBoundingInteger().

◆ sampleBoundingInteger() [2/2]

template<typename RNG>
LUPI_HOST_DEVICE int MCGIDI::Functions::Function1d::sampleBoundingInteger ( double a_x1,
RNG && a_rng ) const

Definition at line 1593 of file MCGIDI_headerSource.hpp.

1593 {
1594
1595 if( type( ) == Function1dType::TerrellFissionNeutronMultiplicityModel )
1596 return( static_cast<TerrellFissionNeutronMultiplicityModel const *>( this )->sampleBoundingInteger( a_x1, a_rng ) );
1597
1598 double d_value = evaluate( a_x1 );
1599 int iValue = (int) d_value;
1600 if( iValue == d_value ) return( iValue );
1601 if( d_value - iValue > a_rng( ) ) ++iValue;
1602
1603 return( iValue );
1604}
MCGIDI::Functions::Function1d::sampleBoundingInteger
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION int sampleBoundingInteger(double a_x1, RNG &&a_rng) const

◆ serialize()

LUPI_HOST_DEVICE void MCGIDI::Functions::Function1d::serialize ( LUPI::DataBuffer & a_buffer,
LUPI::DataBuffer::Mode a_mode )

This method serializes this for broadcasting as needed for MPI and GPUs. The method can count the number of required bytes, pack this or unpack this depending on a_mode.

Parameters
a_buffer[in] The buffer to read or write data to depending on a_mode.
a_mode[in] Specifies the action of this method.

Definition at line 238 of file MCGIDI_functions.cc.

238 {
239
240 FunctionBase::serialize( a_buffer, a_mode );
241
242 int type = 0;
243 if( a_mode != LUPI::DataBuffer::Mode::Unpack ) {
244 switch( m_type ) {
245 case Function1dType::none :
246 break;
247 case Function1dType::constant :
248 type = 1;
249 break;
250 case Function1dType::XYs :
251 type = 2;
252 break;
253 case Function1dType::polyomial :
254 type = 3;
255 break;
256 case Function1dType::gridded :
257 type = 4;
258 break;
259 case Function1dType::regions :
260 type = 5;
261 break;
262 case Function1dType::branching :
263 type = 6;
264 break;
265 case Function1dType::TerrellFissionNeutronMultiplicityModel :
266 type = 7;
267 break;
268 }
269 }
270 DATA_MEMBER_INT( type, a_buffer, a_mode );
271 if( a_mode == LUPI::DataBuffer::Mode::Unpack ) {
272 switch( type ) {
273 case 0 :
274 m_type = Function1dType::none;
275 break;
276 case 1 :
277 m_type = Function1dType::constant;
278 break;
279 case 2 :
280 m_type = Function1dType::XYs;
281 break;
282 case 3 :
283 m_type = Function1dType::polyomial;
284 break;
285 case 4 :
286 m_type = Function1dType::gridded;
287 break;
288 case 5 :
289 m_type = Function1dType::regions;
290 break;
291 case 6 :
292 m_type = Function1dType::branching;
293 break;
294 case 7 :
295 m_type = Function1dType::TerrellFissionNeutronMultiplicityModel;
296 break;
297 }
298 }
299}
DATA_MEMBER_INT
#define DATA_MEMBER_INT( member, buf, mode)
Definition LUPI_dataBuffer.hpp:290
MCGIDI::Functions::FunctionBase::serialize
LUPI_HOST_DEVICE void serialize(LUPI::DataBuffer &a_buffer, LUPI::DataBuffer::Mode a_mode)
Definition MCGIDI_functions.cc:69

Referenced by MCGIDI::Functions::Branching1d::serialize(), MCGIDI::Functions::Constant1d::serialize(), MCGIDI::Functions::Gridded1d::serialize(), MCGIDI::Functions::Polynomial1d::serialize(), MCGIDI::Functions::Regions1d::serialize(), MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel::serialize(), and MCGIDI::Functions::XYs1d::serialize().

◆ type()

LUPI_HOST_DEVICE Function1dType MCGIDI::Functions::Function1d::type ( ) const
inline

Definition at line 72 of file MCGIDI_functions.hpp.

72{ return( m_type ); }

Referenced by evaluate(), MCGIDI::Functions::Function1d_d1::evaluate(), MCGIDI::Functions::Function1d_d2::evaluate(), MCGIDI::Function1dClass(), sampleBoundingInteger(), and serialize().

◆ typeString()

LUPI_HOST_DEVICE String MCGIDI::Functions::Function1d::typeString ( ) const

Returns a String representation of the Function1d type of this.

Returns
A String instance.

Definition at line 155 of file MCGIDI_functions.cc.

155 {
156
157 String typeStr( "Function1d::" );
158
159 switch( m_type ) {
160 case Function1dType::none :
161 typeStr += "none";
162 break;
163 case Function1dType::constant :
164 typeStr += "constant";
165 break;
166 case Function1dType::XYs :
167 typeStr += "XYs";
168 break;
169 case Function1dType::polyomial :
170 typeStr += "polyomial";
171 break;
172 case Function1dType::gridded :
173 typeStr += "gridded";
174 break;
175 case Function1dType::regions :
176 typeStr += "regions";
177 break;
178 case Function1dType::branching :
179 typeStr += "branching";
180 break;
181 case Function1dType::TerrellFissionNeutronMultiplicityModel :
182 typeStr += "TerrellFissionNeutronMultiplicityModel";
183 break;
184 }
185
186 return( typeStr );
187}

Referenced by MCGIDI::Functions::Function1d_d1::evaluate(), MCGIDI::Functions::Function1d_d2::evaluate(), MCGIDI::serializeFunction1d(), MCGIDI::serializeFunction1d_d1(), and MCGIDI::serializeFunction1d_d2().

Member Data Documentation

◆ m_type

Function1dType MCGIDI::Functions::Function1d::m_type
protected

Definition at line 65 of file MCGIDI_functions.hpp.

Referenced by MCGIDI::Functions::Branching1d::Branching1d(), MCGIDI::Functions::Constant1d::Constant1d(), MCGIDI::Functions::Constant1d::Constant1d(), MCGIDI::Functions::Constant1d::Constant1d(), Function1d(), Function1d(), MCGIDI::Functions::Gridded1d::Gridded1d(), MCGIDI::Functions::Gridded1d::Gridded1d(), MCGIDI::Functions::Polynomial1d::Polynomial1d(), MCGIDI::Functions::Polynomial1d::Polynomial1d(), MCGIDI::Functions::Polynomial1d::Polynomial1d(), MCGIDI::Functions::Regions1d::Regions1d(), MCGIDI::Functions::Regions1d::Regions1d(), serialize(), MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel::TerrellFissionNeutronMultiplicityModel(), MCGIDI::Functions::TerrellFissionNeutronMultiplicityModel::TerrellFissionNeutronMultiplicityModel(), type(), typeString(), MCGIDI::Functions::XYs1d::XYs1d(), MCGIDI::Functions::XYs1d::XYs1d(), and MCGIDI::Functions::XYs1d::XYs1d().

The documentation for this class was generated from the following files:
