G4MoleculeCounter Class Reference

#include <G4MoleculeCounter.hh>

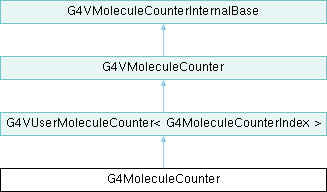

Inheritance diagram for G4MoleculeCounter:

Public Member Functions
	G4MoleculeCounter ()
	G4MoleculeCounter (G4String)
	~G4MoleculeCounter () override=default
void	InitializeUser () override
std::unique_ptr< G4VMoleculeCounterIndex >	BuildIndex (const G4Track *) const override
std::unique_ptr< G4VMoleculeCounterIndex >	BuildIndex (const G4Track *, const G4StepPoint *) const override
std::unique_ptr< G4VMoleculeCounterIndex >	BuildSimpleIndex (const G4MolecularConfiguration *) const override
Public Member Functions inherited from G4VUserMoleculeCounter< G4MoleculeCounterIndex >
	G4VUserMoleculeCounter ()
	~G4VUserMoleculeCounter () override=default
void	Initialize () final
void	ResetCounter () override
void	Dump () const override
void	DumpCounterMapIndices () const override
void	AbsorbCounter (const G4VMoleculeCounterInternalBase *) override
void	AddMolecule (std::unique_ptr< G4VMoleculeCounter::G4VMoleculeCounterIndex >, G4double, G4int=1) override
void	RemoveMolecule (std::unique_ptr< G4VMoleculeCounter::G4VMoleculeCounterIndex >, G4double, G4int=1) override
std::set< const G4MolecularConfiguration * >	GetRecordedMolecules () const override
std::set< G4double >	GetRecordedTimes () const override
void	SchedulerFinalizedTracking () override
const std::map< G4MoleculeCounterIndex, InnerCounterMapType > &	GetCounterMap () const
std::vector< G4MoleculeCounterIndex >	GetMapIndices () const
virtual G4int	GetNbMoleculesAtTime (const G4MoleculeCounterIndex &, G4double) const
virtual std::vector< G4int >	GetNbMoleculesAtTimes (const G4MoleculeCounterIndex &, const std::vector< G4double > &) const
Public Member Functions inherited from G4VMoleculeCounter
	~G4VMoleculeCounter () override=default
virtual void	AddMolecule (std::unique_ptr< G4VMoleculeCounterIndex >, G4double, G4int=1)=0
virtual void	RemoveMolecule (std::unique_ptr< G4VMoleculeCounterIndex >, G4double, G4int=1)=0
MoleculeCounterType	GetType () const
G4bool	GetSensitiveToStepping () const
void	SetSensitiveToStepping (G4bool=true)
G4bool	GetNegativeCountsAreFatal () const
void	IgnoreMolecule (const G4MoleculeDefinition *)
void	IgnoreReactant (const G4MolecularConfiguration *)
void	RegisterAll ()
G4bool	IsReactantIgnored (const G4MoleculeDefinition *) const
G4bool	IsReactantIgnored (const G4MolecularConfiguration *) const
Public Member Functions inherited from G4VMoleculeCounterInternalBase
virtual	~G4VMoleculeCounterInternalBase ()=default
G4int	GetId () const
void	SetManagedId (G4int)
G4int	GetManagedId () const
const G4String &	GetName () const
G4int	GetVerbose () const
void	SetVerbose (G4int)
G4double	GetActiveLowerBound () const
void	SetActiveLowerBound (G4double, G4bool=true)
G4double	GetActiveUpperBound () const
void	SetActiveUpperBound (G4double, G4bool=true)
G4bool	GetActiveLowerBoundInclusive () const
G4bool	GetActiveUpperBoundInclusive () const
G4bool	IsTimeBelowLowerBound (G4double) const
G4bool	IsTimeAboveUpperBound (G4double) const
G4bool	IsActiveAtGlobalTime (G4double) const
G4bool	GetCheckTimeConsistencyWithScheduler () const
void	SetCheckTimeConsistencyWithScheduler (G4bool=true)
G4bool	GetCheckRecordedTimeConsistency () const
void	SetCheckRecordedTimeConsistency (G4bool=true)
const G4MoleculeCounterTimeComparer &	GetTimeComparer () const
void	SetTimeComparer (const G4MoleculeCounterTimeComparer &)

Additional Inherited Members
Public Types inherited from G4VMoleculeCounter
enum	MoleculeCounterType { Other , Basic , Mesoscopic }
Static Public Member Functions inherited from G4VMoleculeCounterInternalBase
static void	SetFixedTimePrecision (G4double)
Protected Member Functions inherited from G4VUserMoleculeCounter< G4MoleculeCounterIndex >
G4bool	SearchIndexUpdated (Search &, const G4MoleculeCounterIndex &) const
G4int	SearchUpperBoundTime (Search &, G4double, G4bool) const
Protected Member Functions inherited from G4VMoleculeCounter
void	SetNegativeCountsAreFatal (G4bool)
Protected Attributes inherited from G4VUserMoleculeCounter< G4MoleculeCounterIndex >
std::map< G4MoleculeCounterIndex, InnerCounterMapType >	fCounterMap
std::map< G4MoleculeCounterIndex, G4int >	fShadowCounterMap
Protected Attributes inherited from G4VMoleculeCounter
MoleculeCounterType	fType {MoleculeCounterType::Other}
G4bool	fSensitiveToStepping {false}
G4bool	fNegativeCountsAreFatal {true}
std::set< const G4MoleculeDefinition * >	fIgnoredMolecules {}
std::set< const G4MolecularConfiguration * >	fIgnoredReactants {}
Protected Attributes inherited from G4VMoleculeCounterInternalBase
G4bool	fIsInitialized {false}
G4int	fId
G4int	fManagedId {-1}
G4String	fName {}
G4int	fVerbose {0}
G4double	fActiveLowerBound {0}
G4double	fActiveUpperBound {std::numeric_limits<G4double>::max()}
G4bool	fActiveLowerBoundInclusive {true}
G4bool	fActiveUpperBoundInclusive {true}
G4bool	fCheckTimeIsConsistentWithScheduler {true}
G4bool	fCheckRecordedTimesAreConsistent {true}
G4MoleculeCounterTimeComparer	fTimeComparer {}

Detailed Description

Definition at line 86 of file G4MoleculeCounter.hh.

Constructor & Destructor Documentation

G4MoleculeCounter() [1/2]

G4MoleculeCounter::G4MoleculeCounter

(

)

Definition at line 40 of file G4MoleculeCounter.cc.

: G4VUserMoleculeCounter() {}

G4MoleculeCounter() [2/2]

G4MoleculeCounter::G4MoleculeCounter

(

G4String

name

)

Definition at line 42 of file G4MoleculeCounter.cc.

  : G4VUserMoleculeCounter(name, MoleculeCounterType::Basic)
{}

~G4MoleculeCounter()

G4MoleculeCounter::~G4MoleculeCounter ( )

overridedefault

Member Function Documentation

BuildIndex() [1/2]

std::unique_ptr< G4VMoleculeCounter::G4VMoleculeCounterIndex > G4MoleculeCounter::BuildIndex ( const G4Track * aTrack ) const

overridevirtual

Implements G4VUserMoleculeCounter< G4MoleculeCounterIndex >.

Definition at line 53 of file G4MoleculeCounter.cc.

{
  return std::make_unique<G4MoleculeCounterIndex>(GetMolecule(aTrack)->GetMolecularConfiguration());
}

Referenced by BuildIndex().

BuildIndex() [2/2]

std::unique_ptr< G4VMoleculeCounter::G4VMoleculeCounterIndex > G4MoleculeCounter::BuildIndex ( const G4Track * aTrack, const G4StepPoint *  ) const

overridevirtual

Implements G4VMoleculeCounter.

Definition at line 61 of file G4MoleculeCounter.cc.

{
  return BuildIndex(aTrack);
}

BuildSimpleIndex()

std::unique_ptr< G4VMoleculeCounter::G4VMoleculeCounterIndex > G4MoleculeCounter::BuildSimpleIndex ( const G4MolecularConfiguration * configuration ) const

overridevirtual

Implements G4VUserMoleculeCounter< G4MoleculeCounterIndex >.

Definition at line 69 of file G4MoleculeCounter.cc.

{
  return std::make_unique<G4MoleculeCounterIndex>(configuration);
}

InitializeUser()

void G4MoleculeCounter::InitializeUser ( )

overridevirtual

Implements G4VUserMoleculeCounter< G4MoleculeCounterIndex >.

Definition at line 48 of file G4MoleculeCounter.cc.

{}

---

The documentation for this class was generated from the following files:

• G4MoleculeCounter.hh
• G4MoleculeCounter.cc
