G4VMoleculeCounter Class Reference

#include <G4VMoleculeCounter.hh>

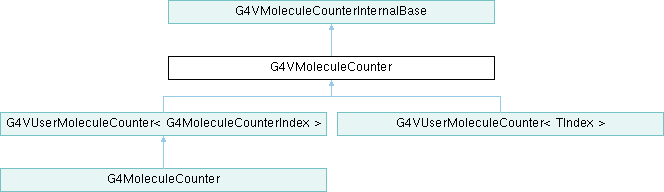

Inheritance diagram for G4VMoleculeCounter:

Classes
struct	G4VMoleculeCounterIndex

Public Types
enum	MoleculeCounterType { Other , Basic , Mesoscopic }

Public Member Functions
	~G4VMoleculeCounter () override=default
virtual std::unique_ptr< G4VMoleculeCounterIndex >	BuildIndex (const G4Track *) const =0
virtual std::unique_ptr< G4VMoleculeCounterIndex >	BuildIndex (const G4Track *, const G4StepPoint *) const =0
virtual std::unique_ptr< G4VMoleculeCounterIndex >	BuildSimpleIndex (const G4MolecularConfiguration *) const =0
virtual void	AddMolecule (std::unique_ptr< G4VMoleculeCounterIndex >, G4double, G4int=1)=0
virtual void	RemoveMolecule (std::unique_ptr< G4VMoleculeCounterIndex >, G4double, G4int=1)=0
virtual std::set< const G4MolecularConfiguration * >	GetRecordedMolecules () const =0
std::set< G4double >	GetRecordedTimes () const override=0
virtual void	SchedulerFinalizedTracking ()=0
MoleculeCounterType	GetType () const
G4bool	GetSensitiveToStepping () const
void	SetSensitiveToStepping (G4bool=true)
G4bool	GetNegativeCountsAreFatal () const
void	IgnoreMolecule (const G4MoleculeDefinition *)
void	IgnoreReactant (const G4MolecularConfiguration *)
void	RegisterAll ()
G4bool	IsReactantIgnored (const G4MoleculeDefinition *) const
G4bool	IsReactantIgnored (const G4MolecularConfiguration *) const
Public Member Functions inherited from G4VMoleculeCounterInternalBase
virtual	~G4VMoleculeCounterInternalBase ()=default
virtual void	Initialize ()=0
virtual void	InitializeUser ()=0
virtual void	ResetCounter ()=0
virtual void	Dump () const =0
virtual void	DumpCounterMapIndices () const =0
virtual void	AbsorbCounter (const G4VMoleculeCounterInternalBase *)=0
G4int	GetId () const
void	SetManagedId (G4int)
G4int	GetManagedId () const
const G4String &	GetName () const
G4int	GetVerbose () const
void	SetVerbose (G4int)
G4double	GetActiveLowerBound () const
void	SetActiveLowerBound (G4double, G4bool=true)
G4double	GetActiveUpperBound () const
void	SetActiveUpperBound (G4double, G4bool=true)
G4bool	GetActiveLowerBoundInclusive () const
G4bool	GetActiveUpperBoundInclusive () const
G4bool	IsTimeBelowLowerBound (G4double) const
G4bool	IsTimeAboveUpperBound (G4double) const
G4bool	IsActiveAtGlobalTime (G4double) const
G4bool	GetCheckTimeConsistencyWithScheduler () const
void	SetCheckTimeConsistencyWithScheduler (G4bool=true)
G4bool	GetCheckRecordedTimeConsistency () const
void	SetCheckRecordedTimeConsistency (G4bool=true)
const G4MoleculeCounterTimeComparer &	GetTimeComparer () const
void	SetTimeComparer (const G4MoleculeCounterTimeComparer &)

Protected Member Functions
void	SetNegativeCountsAreFatal (G4bool)

Protected Attributes
MoleculeCounterType	fType {MoleculeCounterType::Other}
G4bool	fSensitiveToStepping {false}
G4bool	fNegativeCountsAreFatal {true}
std::set< const G4MoleculeDefinition * >	fIgnoredMolecules {}
std::set< const G4MolecularConfiguration * >	fIgnoredReactants {}
Protected Attributes inherited from G4VMoleculeCounterInternalBase
G4bool	fIsInitialized {false}
G4int	fId
G4int	fManagedId {-1}
G4String	fName {}
G4int	fVerbose {0}
G4double	fActiveLowerBound {0}
G4double	fActiveUpperBound {std::numeric_limits<G4double>::max()}
G4bool	fActiveLowerBoundInclusive {true}
G4bool	fActiveUpperBoundInclusive {true}
G4bool	fCheckTimeIsConsistentWithScheduler {true}
G4bool	fCheckRecordedTimesAreConsistent {true}
G4MoleculeCounterTimeComparer	fTimeComparer {}

Friends
template<typename>
class	G4VUserMoleculeCounter

Additional Inherited Members
Static Public Member Functions inherited from G4VMoleculeCounterInternalBase
static void	SetFixedTimePrecision (G4double)

Detailed Description

Definition at line 49 of file G4VMoleculeCounter.hh.

Member Enumeration Documentation

MoleculeCounterType

enum G4VMoleculeCounter::MoleculeCounterType

Enumerator
Other
Basic
Mesoscopic

Definition at line 55 of file G4VMoleculeCounter.hh.

    {
      Other,
      Basic,
      Mesoscopic,
    };

Constructor & Destructor Documentation

~G4VMoleculeCounter()

G4VMoleculeCounter::~G4VMoleculeCounter ( )

overridedefault

Member Function Documentation

AddMolecule()

virtual void G4VMoleculeCounter::AddMolecule ( std::unique_ptr< G4VMoleculeCounterIndex > , G4double , G4int = 1 )

pure virtual

BuildIndex() [1/2]

virtual std::unique_ptr< G4VMoleculeCounterIndex > G4VMoleculeCounter::BuildIndex ( const G4Track * ) const

pure virtual

Implemented in G4MoleculeCounter, G4VUserMoleculeCounter< TIndex >, and G4VUserMoleculeCounter< G4MoleculeCounterIndex >.

BuildIndex() [2/2]

virtual std::unique_ptr< G4VMoleculeCounterIndex > G4VMoleculeCounter::BuildIndex ( const G4Track * , const G4StepPoint *  ) const

pure virtual

Implemented in G4MoleculeCounter, and G4VUserMoleculeCounter< TIndex >.

BuildSimpleIndex()

virtual std::unique_ptr< G4VMoleculeCounterIndex > G4VMoleculeCounter::BuildSimpleIndex ( const G4MolecularConfiguration * ) const

pure virtual

Implemented in G4MoleculeCounter, G4VUserMoleculeCounter< TIndex >, and G4VUserMoleculeCounter< G4MoleculeCounterIndex >.

GetNegativeCountsAreFatal()

G4bool G4VMoleculeCounter::GetNegativeCountsAreFatal ( ) const

inline

Definition at line 134 of file G4VMoleculeCounter.hh.

{
  return fNegativeCountsAreFatal;
}

GetRecordedMolecules()

virtual std::set< const G4MolecularConfiguration * > G4VMoleculeCounter::GetRecordedMolecules ( ) const

pure virtual

Implemented in G4VUserMoleculeCounter< TIndex >, and G4VUserMoleculeCounter< G4MoleculeCounterIndex >.

GetRecordedTimes()

std::set< G4double > G4VMoleculeCounter::GetRecordedTimes ( ) const

overridepure virtual

Implements G4VMoleculeCounterInternalBase.

Implemented in G4VUserMoleculeCounter< TIndex >, and G4VUserMoleculeCounter< G4MoleculeCounterIndex >.

GetSensitiveToStepping()

G4bool G4VMoleculeCounter::GetSensitiveToStepping ( ) const

inline

Definition at line 129 of file G4VMoleculeCounter.hh.

{
  return fSensitiveToStepping;
}

GetType()

G4VMoleculeCounter::MoleculeCounterType G4VMoleculeCounter::GetType ( ) const

inline

Definition at line 124 of file G4VMoleculeCounter.hh.

{
  return fType;
}

Referenced by G4VUserMoleculeCounter< TIndex >::AbsorbCounter().

IgnoreMolecule()

void G4VMoleculeCounter::IgnoreMolecule ( const G4MoleculeDefinition * molecule )

inline

Definition at line 143 of file G4VMoleculeCounter.hh.

{
  fIgnoredMolecules.insert(molecule);
}

IgnoreReactant()

void G4VMoleculeCounter::IgnoreReactant ( const G4MolecularConfiguration * reactant )

inline

Definition at line 148 of file G4VMoleculeCounter.hh.

{
  fIgnoredReactants.insert(reactant);
}

IsReactantIgnored() [1/2]

G4bool G4VMoleculeCounter::IsReactantIgnored

(

const G4MolecularConfiguration *

reactant

)

const

Definition at line 69 of file G4VMoleculeCounter.cc.

{
  return G4::MoleculeCounter::Contains(fIgnoredReactants, reactant);
}

IsReactantIgnored() [2/2]

G4bool G4VMoleculeCounter::IsReactantIgnored

(

const G4MoleculeDefinition *

molecule

)

const

Definition at line 62 of file G4VMoleculeCounter.cc.

{
  return G4::MoleculeCounter::Contains(fIgnoredMolecules, molecule);
}

RegisterAll()

void G4VMoleculeCounter::RegisterAll ( )

inline

Definition at line 153 of file G4VMoleculeCounter.hh.

{
  fIgnoredMolecules.clear();
  fIgnoredReactants.clear();
}

RemoveMolecule()

virtual void G4VMoleculeCounter::RemoveMolecule ( std::unique_ptr< G4VMoleculeCounterIndex > , G4double , G4int = 1 )

pure virtual

SchedulerFinalizedTracking()

virtual void G4VMoleculeCounter::SchedulerFinalizedTracking ( )

pure virtual

Implemented in G4VUserMoleculeCounter< TIndex >, and G4VUserMoleculeCounter< G4MoleculeCounterIndex >.

SetNegativeCountsAreFatal()

void G4VMoleculeCounter::SetNegativeCountsAreFatal ( G4bool flag )

inlineprotected

Definition at line 138 of file G4VMoleculeCounter.hh.

{
  fNegativeCountsAreFatal = flag;
}

SetSensitiveToStepping()

void G4VMoleculeCounter::SetSensitiveToStepping

(

G4bool

flag = true

)

Definition at line 49 of file G4VMoleculeCounter.cc.

{
  if (fType == MoleculeCounterType::Basic && flag) {
    G4ExceptionDescription errMsg;
    errMsg << "Cannot set a molecule counter of type 'Basic' to be sensitive to stepping!"
           << G4endl;
    G4Exception("G4VMoleculeCounter::SetSensitiveToStepping", "NOT_ALLOWED", FatalException, errMsg);
  }
  fSensitiveToStepping = flag;
}

Friends And Related Symbol Documentation

G4VUserMoleculeCounter

template<typename>

friend class G4VUserMoleculeCounter

friend

Definition at line 52 of file G4VMoleculeCounter.hh.

Referenced by G4VUserMoleculeCounter.

Member Data Documentation

fIgnoredMolecules

std::set<const G4MoleculeDefinition*> G4VMoleculeCounter::fIgnoredMolecules {}

protected

Definition at line 99 of file G4VMoleculeCounter.hh.

{};

Referenced by G4VUserMoleculeCounter< TIndex >::AddMolecule(), IgnoreMolecule(), IsReactantIgnored(), RegisterAll(), and G4VUserMoleculeCounter< TIndex >::RemoveMolecule().

fIgnoredReactants

std::set<const G4MolecularConfiguration*> G4VMoleculeCounter::fIgnoredReactants {}

protected

Definition at line 100 of file G4VMoleculeCounter.hh.

{};

Referenced by G4VUserMoleculeCounter< TIndex >::AddMolecule(), IgnoreReactant(), IsReactantIgnored(), RegisterAll(), and G4VUserMoleculeCounter< TIndex >::RemoveMolecule().

fNegativeCountsAreFatal

G4bool G4VMoleculeCounter::fNegativeCountsAreFatal {true}

protected

Definition at line 97 of file G4VMoleculeCounter.hh.

{true};

Referenced by GetNegativeCountsAreFatal(), G4VUserMoleculeCounter< TIndex >::RemoveMolecule(), and SetNegativeCountsAreFatal().

fSensitiveToStepping

G4bool G4VMoleculeCounter::fSensitiveToStepping {false}

protected

Definition at line 96 of file G4VMoleculeCounter.hh.

{false};

Referenced by GetSensitiveToStepping(), and SetSensitiveToStepping().

fType

MoleculeCounterType G4VMoleculeCounter::fType {MoleculeCounterType::Other}

protected

Definition at line 94 of file G4VMoleculeCounter.hh.

{MoleculeCounterType::Other};

Referenced by GetType(), and SetSensitiveToStepping().

---

The documentation for this class was generated from the following files:

• G4VMoleculeCounter.hh
• G4VMoleculeCounter.cc
