G4InterpolationDriver is a templated driver class which uses Runge-Kutta stepper with interpolation property to integrate track with error control. More...

#include <G4InterpolationDriver.hh>

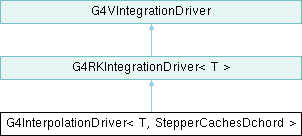

Inheritance diagram for G4InterpolationDriver< T, StepperCachesDchord >:

Classes
struct	InterpStepper

Public Member Functions
	G4InterpolationDriver (G4double hminimum, T *stepper, G4int numberOfComponents=6, G4int statisticsVerbosity=0)
	~G4InterpolationDriver () override
	G4InterpolationDriver (const G4InterpolationDriver &)=delete
const G4InterpolationDriver &	operator= (const G4InterpolationDriver &)=delete
G4double	AdvanceChordLimited (G4FieldTrack &track, G4double hstep, G4double eps, G4double chordDistance) override
void	OnStartTracking () override
void	OnComputeStep (const G4FieldTrack *=nullptr) override
G4bool	DoesReIntegrate () const override
G4bool	AccurateAdvance (G4FieldTrack &track, G4double hstep, G4double eps, G4double hinitial=0) override
void	SetVerboseLevel (G4int level) override
G4int	GetVerboseLevel () const override
void	StreamInfo (std::ostream &os) const override
Public Member Functions inherited from G4RKIntegrationDriver< T >
	G4RKIntegrationDriver (T *stepper)
	G4RKIntegrationDriver (const G4RKIntegrationDriver &)=delete
G4RKIntegrationDriver &	operator= (const G4RKIntegrationDriver &)=delete
void	GetDerivatives (const G4FieldTrack &track, G4double dydx[]) const override
void	GetDerivatives (const G4FieldTrack &track, G4double dydx[], G4double field[]) const override
G4double	ComputeNewStepSize (G4double errMaxNorm, G4double hstepCurrent) final
G4EquationOfMotion *	GetEquationOfMotion () override
void	SetEquationOfMotion (G4EquationOfMotion *equation) override
const T *	GetStepper () const override
T *	GetStepper () override
void	StreamInfo (std::ostream &os) const override
G4double	GetSafety () const
G4double	GetPshrnk () const
G4double	GetPgrow () const
void	RenewStepperAndAdjust (G4MagIntegratorStepper *stepper) override
void	ReSetParameters (G4double safety=0.9)
void	SetSafety (G4double valS)
G4int	GetMaxNoSteps () const
void	SetMaxNoSteps (G4int val)
G4double	GetSmallestFraction () const
void	SetSmallestFraction (G4double val)
Public Member Functions inherited from G4VIntegrationDriver
virtual	~G4VIntegrationDriver ()=default
virtual G4bool	QuickAdvance (G4FieldTrack &, const G4double[], G4double, G4double &, G4double &)

Protected Types
using	StepperIterator = typename std::vector<InterpStepper>::iterator
using	ConstStepperIterator = typename std::vector<InterpStepper>::const_iterator
using	Base = G4RKIntegrationDriver<T>

Protected Member Functions
virtual G4double	OneGoodStep (StepperIterator it, field_utils::State &y, field_utils::State &dydx, G4double &hstep, G4double eps, G4double curveLength, G4FieldTrack *track=nullptr)
void	Interpolate (G4double curveLength, field_utils::State &y) const
void	InterpolateImpl (G4double curveLength, ConstStepperIterator it, field_utils::State &y) const
G4double	DistChord (const field_utils::State &yBegin, G4double curveLengthBegin, const field_utils::State &yEnd, G4double curveLengthEnd) const
G4double	FindNextChord (const field_utils::State &yBegin, G4double curveLengthBegin, field_utils::State &yEnd, G4double curveLengthEnd, G4double dChord, G4double maxChordDistance)
G4double	CalcChordStep (G4double stepTrialOld, G4double dChordStep, G4double fDeltaChord)
void	PrintState () const
void	CheckState () const
void	AccumulateStatistics (G4int noTrials)
Protected Member Functions inherited from G4RKIntegrationDriver< T >
G4double	ShrinkStepSize (G4double h, G4double error) const
G4double	GrowStepSize (G4double h, G4double error) const
G4double	ShrinkStepSize2 (G4double h, G4double error2) const
G4double	GrowStepSize2 (G4double h, G4double error2) const
void	UpdateErrorConstraints ()

Protected Attributes
std::vector< InterpStepper >	fSteppers
StepperIterator	fLastStepper
G4bool	fKeepLastStepper = false
G4double	fhnext = DBL_MAX
G4double	fMinimumStep
G4double	fChordStepEstimate = DBL_MAX
const G4double	fFractionNextEstimate = 0.98
const G4double	fSmallestCurveFraction = 0.01
G4int	fVerboseLevel
field_utils::State	fdydx
G4bool	fFirstStep = true
G4int	fMaxTrials = 100
G4int	fTotalStepsForTrack = 0
G4int	fTotalNoTrials = 0
G4int	fNoCalls = 0
G4int	fmaxTrials = 0

Additional Inherited Members
Static Protected Attributes inherited from G4VIntegrationDriver
static constexpr G4double	max_stepping_increase = 5
static constexpr G4double	max_stepping_decrease = 0.1

Detailed Description

template<class T, G4bool StepperCachesDchord = true>
class G4InterpolationDriver< T, StepperCachesDchord >

G4InterpolationDriver is a templated driver class which uses Runge-Kutta stepper with interpolation property to integrate track with error control.

Definition at line 52 of file G4InterpolationDriver.hh.

Member Typedef Documentation

◆ Base

template<class T, G4bool StepperCachesDchord = true>

using G4InterpolationDriver< T, StepperCachesDchord >::Base = G4RKIntegrationDriver<T>

protected

Definition at line 238 of file G4InterpolationDriver.hh.

◆ ConstStepperIterator

template<class T, G4bool StepperCachesDchord = true>

using G4InterpolationDriver< T, StepperCachesDchord >::ConstStepperIterator = typename std::vector<InterpStepper>::const_iterator

protected

Definition at line 144 of file G4InterpolationDriver.hh.

◆ StepperIterator

template<class T, G4bool StepperCachesDchord = true>

using G4InterpolationDriver< T, StepperCachesDchord >::StepperIterator = typename std::vector<InterpStepper>::iterator

protected

Definition at line 143 of file G4InterpolationDriver.hh.

Constructor & Destructor Documentation

◆ G4InterpolationDriver() [1/2]

template<class T, G4bool StepperCachesDchord = true>

G4InterpolationDriver< T, StepperCachesDchord >::G4InterpolationDriver	(	G4double	hminimum,
		T *	stepper,
		G4int	numberOfComponents = 6,
		G4int	statisticsVerbosity = 0 )

Constructor for G4IntegrationDriver.

Parameters

[in]	hminimum	Minimum allowed step.
[in]	stepper	Pointer to the stepper algorithm.
[in]	numberOfComponents	The number of integration variables, if not matching stepper's number of variables, issue exception.
[in]	statisticsVerbosity	Verbosity level.

◆ ~G4InterpolationDriver()

template<class T, G4bool StepperCachesDchord = true>

G4InterpolationDriver< T, StepperCachesDchord >::~G4InterpolationDriver ( )

override

Destructor. Provides statistics if verbosity level is greater than zero.

◆ G4InterpolationDriver() [2/2]

template<class T, G4bool StepperCachesDchord = true>

G4InterpolationDriver< T, StepperCachesDchord >::G4InterpolationDriver ( const G4InterpolationDriver< T, StepperCachesDchord > & )

delete

Copy constructor and assignment operator not allowed.

Member Function Documentation

◆ AccumulateStatistics()

template<class T, G4bool StepperCachesDchord = true>

void G4InterpolationDriver< T, StepperCachesDchord >::AccumulateStatistics ( G4int noTrials )

protected

Increments number of trials and calls.

◆ AccurateAdvance()

template<class T, G4bool StepperCachesDchord = true>

G4bool G4InterpolationDriver< T, StepperCachesDchord >::AccurateAdvance	(	G4FieldTrack &	track,
		G4double	hstep,
		G4double	eps,
		G4double	hinitial = 0 )

overridevirtual

Advances integration accurately by relative accuracy better than 'eps'. On output the track is replaced by the value at the end of interval.

Parameters

[in,out]	track	The current track in field.
[in]	hstep	Proposed step length.
[in]	eps	Requested accuracy, y_err/hstep.
[in]	hinitial	Initial minimum integration step.

Returns: true if integration succeeds.

Implements G4VIntegrationDriver.

◆ AdvanceChordLimited()

template<class T, G4bool StepperCachesDchord = true>

G4double G4InterpolationDriver< T, StepperCachesDchord >::AdvanceChordLimited	(	G4FieldTrack &	track,
		G4double	hstep,
		G4double	eps,
		G4double	chordDistance )

overridevirtual

Computes the step to take, based on chord limits.

Parameters

[in,out]	track	The current track in field.
[in]	hstep	Proposed step length.
[in]	eps	Requested accuracy, y_err/hstep.
[in]	chordDistance	Maximum sagitta distance.

Returns: The length of step taken.

Implements G4VIntegrationDriver.

Reimplemented in G4QSSDriver< T >.

◆ CalcChordStep()

template<class T, G4bool StepperCachesDchord = true>

G4double G4InterpolationDriver< T, StepperCachesDchord >::CalcChordStep	(	G4double	stepTrialOld,
		G4double	dChordStep,
		G4double	fDeltaChord )

protected

◆ CheckState()

template<class T, G4bool StepperCachesDchord = true>

void G4InterpolationDriver< T, StepperCachesDchord >::CheckState ( ) const

protected

◆ DistChord()

template<class T, G4bool StepperCachesDchord = true>

G4double G4InterpolationDriver< T, StepperCachesDchord >::DistChord	(	const field_utils::State &	yBegin,
		G4double	curveLengthBegin,
		const field_utils::State &	yEnd,
		G4double	curveLengthEnd ) const

protected

Methods for calculation of chord step and distance.

◆ DoesReIntegrate()

template<class T, G4bool StepperCachesDchord = true>

G4bool G4InterpolationDriver< T, StepperCachesDchord >::DoesReIntegrate ( ) const

inlineoverridevirtual

The driver does not implement re-integration. Returns false.

Implements G4VIntegrationDriver.

Definition at line 106 of file G4InterpolationDriver.hh.

106{ return false; }

◆ FindNextChord()

template<class T, G4bool StepperCachesDchord = true>

G4double G4InterpolationDriver< T, StepperCachesDchord >::FindNextChord	(	const field_utils::State &	yBegin,
		G4double	curveLengthBegin,
		field_utils::State &	yEnd,
		G4double	curveLengthEnd,
		G4double	dChord,
		G4double	maxChordDistance )

protected

◆ GetVerboseLevel()

template<class T, G4bool StepperCachesDchord = true>

G4int G4InterpolationDriver< T, StepperCachesDchord >::GetVerboseLevel ( ) const

overridevirtual

Implements G4VIntegrationDriver.

◆ Interpolate()

template<class T, G4bool StepperCachesDchord = true>

void G4InterpolationDriver< T, StepperCachesDchord >::Interpolate	(	G4double	curveLength,
		field_utils::State &	y ) const

protected

Track interpolation.

Parameters

[in]	curveLength	Step start, x.
[in,out]	y	The current track state, y.

◆ InterpolateImpl()

template<class T, G4bool StepperCachesDchord = true>

void G4InterpolationDriver< T, StepperCachesDchord >::InterpolateImpl	(	G4double	curveLength,
		ConstStepperIterator	it,
		field_utils::State &	y ) const

protected

Wrapper method for interpolation.

◆ OnComputeStep()

template<class T, G4bool StepperCachesDchord = true>

void G4InterpolationDriver< T, StepperCachesDchord >::OnComputeStep ( const G4FieldTrack * = nullptr )

overridevirtual

Dispatch interface method for computing step. Does nothing here.

Implements G4VIntegrationDriver.

Reimplemented in G4QSSDriver< T >.

◆ OneGoodStep()

template<class T, G4bool StepperCachesDchord = true>

virtual G4double G4InterpolationDriver< T, StepperCachesDchord >::OneGoodStep	(	StepperIterator	it,
		field_utils::State &	y,
		field_utils::State &	dydx,
		G4double &	hstep,
		G4double	eps,
		G4double	curveLength,
		G4FieldTrack *	track = nullptr )

protectedvirtual

Takes one Step that is as large as possible while satisfying the accuracy criterion.

Parameters

[in]	it	Stepper iterator.
[in,out]	y	The current track state, y.
[in]	dydx	dydx array.
[in,out]	hstep	Step to attempt.
[in]	eps	The relative accuracy.
[in]	curveLength	Step start, x.
[in,out]	track	Pointer to the Field track. Not used.

Returns: The step achieved.

◆ OnStartTracking()

template<class T, G4bool StepperCachesDchord = true>

void G4InterpolationDriver< T, StepperCachesDchord >::OnStartTracking ( )

overridevirtual

Dispatch interface method for initialisation/reset of driver.

Implements G4VIntegrationDriver.

Reimplemented in G4QSSDriver< T >.

◆ operator=()

template<class T, G4bool StepperCachesDchord = true>

const G4InterpolationDriver & G4InterpolationDriver< T, StepperCachesDchord >::operator= ( const G4InterpolationDriver< T, StepperCachesDchord > & )

delete

◆ PrintState()

template<class T, G4bool StepperCachesDchord = true>

void G4InterpolationDriver< T, StepperCachesDchord >::PrintState ( ) const

protected

Internal methods for printing/checking the state.

◆ SetVerboseLevel()

template<class T, G4bool StepperCachesDchord = true>

void G4InterpolationDriver< T, StepperCachesDchord >::SetVerboseLevel ( G4int level )

overridevirtual

Setter and getter for verbosity.

Implements G4VIntegrationDriver.

◆ StreamInfo()

template<class T, G4bool StepperCachesDchord = true>

void G4InterpolationDriver< T, StepperCachesDchord >::StreamInfo ( std::ostream & os ) const

overridevirtual

Writes out to stream the parameters/state of the driver.

Implements G4VIntegrationDriver.

Member Data Documentation

◆ fChordStepEstimate

template<class T, G4bool StepperCachesDchord = true>

G4double G4InterpolationDriver< T, StepperCachesDchord >::fChordStepEstimate = DBL_MAX

protected

Definition at line 221 of file G4InterpolationDriver.hh.

◆ fdydx

template<class T, G4bool StepperCachesDchord = true>

field_utils::State G4InterpolationDriver< T, StepperCachesDchord >::fdydx

protected

Definition at line 227 of file G4InterpolationDriver.hh.

◆ fFirstStep

template<class T, G4bool StepperCachesDchord = true>

G4bool G4InterpolationDriver< T, StepperCachesDchord >::fFirstStep = true

protected

Definition at line 228 of file G4InterpolationDriver.hh.

◆ fFractionNextEstimate

template<class T, G4bool StepperCachesDchord = true>

const G4double G4InterpolationDriver< T, StepperCachesDchord >::fFractionNextEstimate = 0.98

protected

Definition at line 222 of file G4InterpolationDriver.hh.

◆ fhnext

template<class T, G4bool StepperCachesDchord = true>

G4double G4InterpolationDriver< T, StepperCachesDchord >::fhnext = DBL_MAX

protected

Memory of last good step size for integration.

Definition at line 216 of file G4InterpolationDriver.hh.

◆ fKeepLastStepper

template<class T, G4bool StepperCachesDchord = true>

G4bool G4InterpolationDriver< T, StepperCachesDchord >::fKeepLastStepper = false

protected

Definition at line 213 of file G4InterpolationDriver.hh.

◆ fLastStepper

template<class T, G4bool StepperCachesDchord = true>

StepperIterator G4InterpolationDriver< T, StepperCachesDchord >::fLastStepper

protected

Definition at line 212 of file G4InterpolationDriver.hh.

◆ fMaxTrials

template<class T, G4bool StepperCachesDchord = true>

G4int G4InterpolationDriver< T, StepperCachesDchord >::fMaxTrials = 100

protected

Definition at line 230 of file G4InterpolationDriver.hh.

◆ fmaxTrials

template<class T, G4bool StepperCachesDchord = true>

G4int G4InterpolationDriver< T, StepperCachesDchord >::fmaxTrials = 0

protected

Definition at line 236 of file G4InterpolationDriver.hh.

◆ fMinimumStep

template<class T, G4bool StepperCachesDchord = true>

G4double G4InterpolationDriver< T, StepperCachesDchord >::fMinimumStep

protected

Minimum Step allowed (in units of length).

Definition at line 219 of file G4InterpolationDriver.hh.

◆ fNoCalls

template<class T, G4bool StepperCachesDchord = true>

G4int G4InterpolationDriver< T, StepperCachesDchord >::fNoCalls = 0

protected

Definition at line 235 of file G4InterpolationDriver.hh.

◆ fSmallestCurveFraction

template<class T, G4bool StepperCachesDchord = true>

const G4double G4InterpolationDriver< T, StepperCachesDchord >::fSmallestCurveFraction = 0.01

protected

Definition at line 223 of file G4InterpolationDriver.hh.

◆ fSteppers

template<class T, G4bool StepperCachesDchord = true>

std::vector<InterpStepper> G4InterpolationDriver< T, StepperCachesDchord >::fSteppers

protected

Definition at line 211 of file G4InterpolationDriver.hh.

◆ fTotalNoTrials

template<class T, G4bool StepperCachesDchord = true>

G4int G4InterpolationDriver< T, StepperCachesDchord >::fTotalNoTrials = 0

protected

Statistics.

Definition at line 234 of file G4InterpolationDriver.hh.

◆ fTotalStepsForTrack

template<class T, G4bool StepperCachesDchord = true>

G4int G4InterpolationDriver< T, StepperCachesDchord >::fTotalStepsForTrack = 0

protected

Definition at line 231 of file G4InterpolationDriver.hh.

◆ fVerboseLevel

template<class T, G4bool StepperCachesDchord = true>

G4int G4InterpolationDriver< T, StepperCachesDchord >::fVerboseLevel

protected

Definition at line 225 of file G4InterpolationDriver.hh.

The documentation for this class was generated from the following file:

G4InterpolationDriver.hh

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Base

◆ ConstStepperIterator

◆ StepperIterator

Constructor & Destructor Documentation

◆ G4InterpolationDriver() [1/2]

◆ ~G4InterpolationDriver()

◆ G4InterpolationDriver() [2/2]

Member Function Documentation

◆ AccumulateStatistics()

◆ AccurateAdvance()

◆ AdvanceChordLimited()

◆ CalcChordStep()

◆ CheckState()

◆ DistChord()

◆ DoesReIntegrate()

◆ FindNextChord()

◆ GetVerboseLevel()

◆ Interpolate()

◆ InterpolateImpl()

◆ OnComputeStep()

◆ OneGoodStep()

◆ OnStartTracking()

◆ operator=()

◆ PrintState()

◆ SetVerboseLevel()

◆ StreamInfo()

Member Data Documentation

◆ fChordStepEstimate

◆ fdydx

◆ fFirstStep

◆ fFractionNextEstimate

◆ fhnext

◆ fKeepLastStepper

◆ fLastStepper

◆ fMaxTrials

◆ fmaxTrials

◆ fMinimumStep

◆ fNoCalls

◆ fSmallestCurveFraction

◆ fSteppers

◆ fTotalNoTrials

◆ fTotalStepsForTrack

◆ fVerboseLevel
