G4EquationOfMotion Class Reference

G4EquationOfMotion is the abstract base class for the right hand size of the equation of motion of a particle in a field. More...

#include <G4EquationOfMotion.hh>

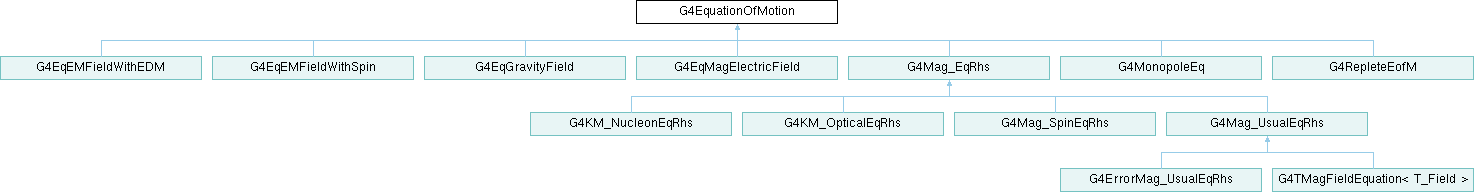

Inheritance diagram for G4EquationOfMotion:

Public Member Functions
	G4EquationOfMotion (G4Field *Field)
virtual	~G4EquationOfMotion ()=default
virtual void	EvaluateRhsGivenB (const G4double y[], const G4double B[3], G4double dydx[]) const =0
virtual void	SetChargeMomentumMass (G4ChargeState particleCharge, G4double MomentumXc, G4double MassXc2)=0
virtual G4EquationType	GetEquationType () const
void	RightHandSide (const G4double y[], G4double dydx[]) const
void	EvaluateRhsReturnB (const G4double y[], G4double dydx[], G4double Field[]) const
void	GetFieldValue (const G4double Point[4], G4double Field[]) const
const G4Field *	GetFieldObj () const
G4Field *	GetFieldObj ()
void	SetFieldObj (G4Field *pField)

Detailed Description

G4EquationOfMotion is the abstract base class for the right hand size of the equation of motion of a particle in a field.

Definition at line 49 of file G4EquationOfMotion.hh.

Constructor & Destructor Documentation

G4EquationOfMotion()

G4EquationOfMotion::G4EquationOfMotion

(

G4Field *

Field

)

Constructor for G4EquationOfMotion.

Parameters

[in]

Field

Pointer to the field.

Definition at line 33 of file G4EquationOfMotion.cc.

  : itsField(pField)
{
}

Referenced by G4EqEMFieldWithEDM::G4EqEMFieldWithEDM(), G4EqEMFieldWithSpin::G4EqEMFieldWithSpin(), G4EqGravityField::G4EqGravityField(), G4EqMagElectricField::G4EqMagElectricField(), G4Mag_EqRhs::G4Mag_EqRhs(), G4MonopoleEq::G4MonopoleEq(), and G4RepleteEofM::G4RepleteEofM().

~G4EquationOfMotion()

virtual G4EquationOfMotion::~G4EquationOfMotion ( )

virtualdefault

Default virtual Destructor.

Member Function Documentation

EvaluateRhsGivenB()

virtual void G4EquationOfMotion::EvaluateRhsGivenB ( const G4double y[], const G4double B[3], G4double dydx[] ) const

pure virtual

Calculates the value of the derivative, given the value of the field.

Parameters

[in]	y	Coefficients array.
[in]	Field	Field value.
[out]	dydx	Derivatives array.

Implemented in G4ErrorMag_UsualEqRhs, G4KM_NucleonEqRhs, G4KM_OpticalEqRhs, G4Mag_EqRhs, G4Mag_SpinEqRhs, and G4Mag_UsualEqRhs.

Referenced by G4RKG3_Stepper::StepNoErr(), and G4RKG3_Stepper::Stepper().

EvaluateRhsReturnB()

void G4EquationOfMotion::EvaluateRhsReturnB ( const G4double y[], G4double dydx[], G4double Field[] ) const

inline

Calculates the value of the derivative 'dydx' at 'y' as above, but also returns the value of B.

Parameters

[in]	y	Coefficients array.
[out]	dydx	Derivatives array.
[out]	Field	Field value.

Referenced by G4BorisDriver::GetDerivatives(), and G4RKG3_Stepper::StepNoErr().

GetEquationType()

virtual G4EquationType G4EquationOfMotion::GetEquationType ( ) const

inlinevirtual

Returns the equation type-ID, "kUserEquation".

Reimplemented in G4EqEMFieldWithEDM, G4EqEMFieldWithSpin, G4EqGravityField, G4EqMagElectricField, G4Mag_SpinEqRhs, G4Mag_UsualEqRhs, and G4MonopoleEq.

Definition at line 88 of file G4EquationOfMotion.hh.

{ return kUserEquation; }

GetFieldObj() [1/2]

G4Field * G4EquationOfMotion::GetFieldObj ( )

inline

GetFieldObj() [2/2]

const G4Field * G4EquationOfMotion::GetFieldObj ( ) const

inline

Accessors and modifier for the field.

GetFieldValue()

void G4EquationOfMotion::GetFieldValue ( const G4double Point[4], G4double Field[] ) const

inline

Returns the 'Field' value at the given time 'Point'.

Parameters

[in]	Point	The time point (x,y,z,t).
[out]	Field	The returned field value.

RightHandSide()

void G4EquationOfMotion::RightHandSide ( const G4double y[], G4double dydx[] ) const

inline

Calculates the value of the derivative 'dydx' at 'y'. Calls the virtual function above.

Parameters

[in]	y	Coefficients array.
[out]	dydx	Derivatives array.

SetChargeMomentumMass()

virtual void G4EquationOfMotion::SetChargeMomentumMass ( G4ChargeState particleCharge, G4double MomentumXc, G4double MassXc2 )

pure virtual

Sets the charge, momentum and mass of the current particle. Used to set the equation's coefficients.

Parameters

[in]	particleCharge	Magnetic charge and moments in e+ units.
[in]	MomentumXc	Particle momentum.
[in]	mass	Particle mass.

Implemented in G4EqEMFieldWithEDM, G4EqEMFieldWithSpin, G4EqGravityField, G4EqMagElectricField, G4KM_NucleonEqRhs, G4KM_OpticalEqRhs, G4Mag_EqRhs, G4Mag_SpinEqRhs, G4Mag_UsualEqRhs, G4MonopoleEq, and G4RepleteEofM.

SetFieldObj()

void G4EquationOfMotion::SetFieldObj ( G4Field * pField )

inline

Referenced by G4FieldManager::SetDetectorField(), and G4NystromRK4::SetDistanceForConstantField().

---

The documentation for this class was generated from the following files:

• G4EquationOfMotion.hh
• G4EquationOfMotion.cc
