G4IntegrationDriver<G4BulirschStoer> is a concrete driver class using the Bulirsch-Stoer method to integrate the equation of motion. More...

#include <G4BulirschStoerDriver.hh>

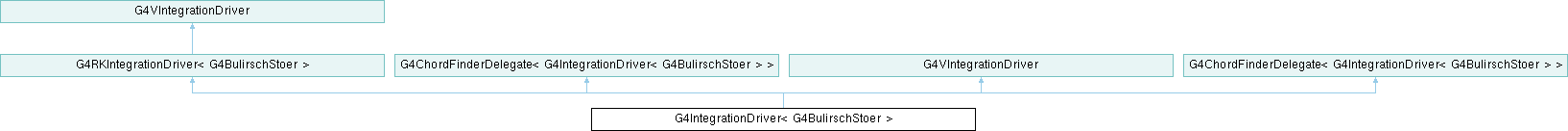

Inheritance diagram for G4IntegrationDriver< G4BulirschStoer >:

Public Member Functions
	G4IntegrationDriver (G4double hminimum, G4BulirschStoer *stepper, G4int numberOfComponents=6, G4int statisticsVerbosity=1)
	~G4IntegrationDriver ()=default
	G4IntegrationDriver (const G4IntegrationDriver &)=delete
G4IntegrationDriver &	operator= (const G4IntegrationDriver &)=delete
G4double	AdvanceChordLimited (G4FieldTrack &track, G4double hstep, G4double eps, G4double chordDistance) override
void	OnStartTracking () override
void	OnComputeStep (const G4FieldTrack *track=nullptr) override
G4bool	DoesReIntegrate () const override
G4bool	AccurateAdvance (G4FieldTrack &track, G4double stepLen, G4double eps, G4double beginStep=0) override
G4bool	QuickAdvance (G4FieldTrack &y_val, const G4double dydx[], G4double hstep, G4double &missDist, G4double &dyerr) override
void	OneGoodStep (G4double y[], const G4double dydx[], G4double &curveLength, G4double htry, G4double eps, G4double &hdid, G4double &hnext)
void	GetDerivatives (const G4FieldTrack &track, G4double dydx[]) const override
void	GetDerivatives (const G4FieldTrack &track, G4double dydx[], G4double field[]) const override
void	SetVerboseLevel (G4int level) override
G4int	GetVerboseLevel () const override
G4double	ComputeNewStepSize (G4double errMaxNorm, G4double hstepCurrent) override
G4EquationOfMotion *	GetEquationOfMotion () override
const G4EquationOfMotion *	GetEquationOfMotion () const
void	SetEquationOfMotion (G4EquationOfMotion *equation) override
const G4MagIntegratorStepper *	GetStepper () const override
G4MagIntegratorStepper *	GetStepper () override
void	StreamInfo (std::ostream &os) const override
G4double	GetMinimumStep () const
void	SetMinimumStep (G4double newval)
G4double	GetSmallestFraction () const
void	SetSmallestFraction (G4double val)
Public Member Functions inherited from G4RKIntegrationDriver< T >
	G4RKIntegrationDriver (T *stepper)
	G4RKIntegrationDriver (const G4RKIntegrationDriver &)=delete
G4RKIntegrationDriver &	operator= (const G4RKIntegrationDriver &)=delete
void	GetDerivatives (const G4FieldTrack &track, G4double dydx[]) const override
void	GetDerivatives (const G4FieldTrack &track, G4double dydx[], G4double field[]) const override
G4double	ComputeNewStepSize (G4double errMaxNorm, G4double hstepCurrent) final
G4EquationOfMotion *	GetEquationOfMotion () override
void	SetEquationOfMotion (G4EquationOfMotion *equation) override
const T *	GetStepper () const override
T *	GetStepper () override
void	StreamInfo (std::ostream &os) const override
G4double	GetSafety () const
G4double	GetPshrnk () const
G4double	GetPgrow () const
void	RenewStepperAndAdjust (G4MagIntegratorStepper *stepper) override
void	ReSetParameters (G4double safety=0.9)
void	SetSafety (G4double valS)
G4int	GetMaxNoSteps () const
void	SetMaxNoSteps (G4int val)
G4double	GetSmallestFraction () const
void	SetSmallestFraction (G4double val)
Public Member Functions inherited from G4VIntegrationDriver
virtual	~G4VIntegrationDriver ()=default
Public Member Functions inherited from G4ChordFinderDelegate< G4IntegrationDriver< G4BulirschStoer > >
virtual	~G4ChordFinderDelegate ()
G4double	AdvanceChordLimitedImpl (G4FieldTrack &track, G4double hstep, G4double eps, G4double chordDistance)
void	ResetStepEstimate ()
G4double	GetLastStepEstimateUnc ()
void	SetLastStepEstimateUnc (G4double stepEst)
G4int	GetNoCalls ()
G4int	GetNoTrials ()
G4int	GetNoMaxTrials ()
void	SetFractions_Last_Next (G4double fractLast=0.90, G4double fractNext=0.95)
void	SetFirstFraction (G4double fractFirst)
G4double	GetFirstFraction ()
G4double	GetFractionLast ()
G4double	GetFractionNextEstimate ()
void	StreamDelegateInfo (std::ostream &os) const
void	TestChordPrint (G4int noTrials, G4int lastStepTrial, G4double dChordStep, G4double fDeltaChord, G4double nextStepTrial)

Protected Member Functions
void	IncrementQuickAdvanceCalls ()
Protected Member Functions inherited from G4RKIntegrationDriver< T >
G4double	ShrinkStepSize (G4double h, G4double error) const
G4double	GrowStepSize (G4double h, G4double error) const
G4double	ShrinkStepSize2 (G4double h, G4double error2) const
G4double	GrowStepSize2 (G4double h, G4double error2) const
void	UpdateErrorConstraints ()

Additional Inherited Members
Static Protected Attributes inherited from G4VIntegrationDriver
static constexpr G4double	max_stepping_increase = 5
static constexpr G4double	max_stepping_decrease = 0.1

Detailed Description

G4IntegrationDriver<G4BulirschStoer> is a concrete driver class using the Bulirsch-Stoer method to integrate the equation of motion.

Definition at line 48 of file G4BulirschStoerDriver.hh.

Constructor & Destructor Documentation

◆ G4IntegrationDriver() [1/2]

G4IntegrationDriver< G4BulirschStoer >::G4IntegrationDriver	(	G4double	hminimum,
		G4BulirschStoer *	stepper,
		G4int	numberOfComponents = 6,
		G4int	statisticsVerbosity = 1 )

Constructor for the concrete G4IntegrationDriver.

Parameters

[in]	hminimum	The minumum allowed step..
[in]	Boris	Pointer to the Bulirsch-Stoer motion algorithm.
[in]	numberOfComponents	The number of integration variables.
[in]	verbosity	Flag for verbosity.

Referenced by G4IntegrationDriver(), and operator=().

◆ ~G4IntegrationDriver()

G4IntegrationDriver< G4BulirschStoer >::~G4IntegrationDriver ( )

default

Default Destructor.

◆ G4IntegrationDriver() [2/2]

G4IntegrationDriver< G4BulirschStoer >::G4IntegrationDriver ( const G4IntegrationDriver< G4BulirschStoer > & )

delete

Copy constructor and assignment operator not allowed.

Member Function Documentation

◆ AccurateAdvance()

G4bool G4IntegrationDriver< G4BulirschStoer >::AccurateAdvance	(	G4FieldTrack &	track,
		G4double	stepLen,
		G4double	eps,
		G4double	beginStep = 0 )

overridevirtual

Advances integration accurately by relative accuracy better than 'eps'.

Parameters

[in,out]	track	The current track in field.
[in]	stepLen	Proposed step length.
[in]	eps	Requested accuracy, y_err/hstep.
[in]	beginStep	Initial minimum integration step.

Returns: true if integration succeeds.

Implements G4VIntegrationDriver.

◆ AdvanceChordLimited()

G4double G4IntegrationDriver< G4BulirschStoer >::AdvanceChordLimited	(	G4FieldTrack &	track,
		G4double	hstep,
		G4double	eps,
		G4double	chordDistance )

overridevirtual

Computes the step to take, based on chord limits.

Parameters

[in,out]	track	The current track in field.
[in]	hstep	Proposed step length.
[in]	eps	Requested accuracy, y_err/hstep.
[in]	chordDistance	Maximum sagitta distance.

Returns: The length of step taken.

Implements G4VIntegrationDriver.

◆ ComputeNewStepSize()

G4double G4IntegrationDriver< G4BulirschStoer >::ComputeNewStepSize	(	G4double	errMaxNorm,
		G4double	hstepCurrent )

overridevirtual

Computes the new step size .

Parameters

[in]	errMaxNorm	The normalised error.
[in]	hstepCurrent	The current step size.

Returns: The new step size.

Implements G4VIntegrationDriver.

◆ DoesReIntegrate()

G4bool G4IntegrationDriver< G4BulirschStoer >::DoesReIntegrate ( ) const

overridevirtual

The driver does not implement re-integration. Returns false.

Implements G4VIntegrationDriver.

◆ GetDerivatives() [1/2]

void G4IntegrationDriver< G4BulirschStoer >::GetDerivatives	(	const G4FieldTrack &	track,
		G4double	dydx[] ) const

overridevirtual

Getters for derivatives.

Implements G4VIntegrationDriver.

◆ GetDerivatives() [2/2]

void G4IntegrationDriver< G4BulirschStoer >::GetDerivatives	(	const G4FieldTrack &	track,
		G4double	dydx[],
		G4double	field[] ) const

overridevirtual

Implements G4VIntegrationDriver.

◆ GetEquationOfMotion() [1/2]

const G4EquationOfMotion * G4IntegrationDriver< G4BulirschStoer >::GetEquationOfMotion ( ) const

◆ GetEquationOfMotion() [2/2]

G4EquationOfMotion * G4IntegrationDriver< G4BulirschStoer >::GetEquationOfMotion ( )

overridevirtual

Getters and setter for the equation of motion.

Implements G4VIntegrationDriver.

◆ GetMinimumStep()

G4double G4IntegrationDriver< G4BulirschStoer >::GetMinimumStep ( ) const

inline

Getter and Setter for minimum allowed step.

◆ GetSmallestFraction()

G4double G4IntegrationDriver< G4BulirschStoer >::GetSmallestFraction ( ) const

inline

Getter and Setter for smallest fraction.

◆ GetStepper() [1/2]

const G4MagIntegratorStepper * G4IntegrationDriver< G4BulirschStoer >::GetStepper ( ) const

overridevirtual

Getters for the stepper.

Implements G4VIntegrationDriver.

◆ GetStepper() [2/2]

G4MagIntegratorStepper * G4IntegrationDriver< G4BulirschStoer >::GetStepper ( )

overridevirtual

Implements G4VIntegrationDriver.

◆ GetVerboseLevel()

G4int G4IntegrationDriver< G4BulirschStoer >::GetVerboseLevel ( ) const

overridevirtual

Implements G4VIntegrationDriver.

◆ IncrementQuickAdvanceCalls()

void G4IntegrationDriver< G4BulirschStoer >::IncrementQuickAdvanceCalls ( )

inlineprotected

Increments the counter for the number of calls to QuickAdvance().

◆ OnComputeStep()

void G4IntegrationDriver< G4BulirschStoer >::OnComputeStep ( const G4FieldTrack * track = nullptr )

overridevirtual

Dispatch interface method for computing step. Does nothing here.

Implements G4VIntegrationDriver.

◆ OneGoodStep()

void G4IntegrationDriver< G4BulirschStoer >::OneGoodStep	(	G4double	y[],
		const G4double	dydx[],
		G4double &	curveLength,
		G4double	htry,
		G4double	eps,
		G4double &	hdid,
		G4double &	hnext )

Takes one Step that is as large as possible while satisfying the accuracy criterion.

Parameters

[in,out]	y	The current track state, y.
[in]	dydx	dydx array.
[in,out]	curveLength	Step start, x.
[in]	htry	Step to attempt.
[in]	eps	The relative accuracy.
[out]	hdid	Step achieved.
[out]	hnext	Proposed next step.

◆ OnStartTracking()

void G4IntegrationDriver< G4BulirschStoer >::OnStartTracking ( )

overridevirtual

Dispatch interface method for initialisation/reset of driver.

Implements G4VIntegrationDriver.

◆ operator=()

G4IntegrationDriver & G4IntegrationDriver< G4BulirschStoer >::operator= ( const G4IntegrationDriver< G4BulirschStoer > & )

delete

◆ QuickAdvance()

G4bool G4IntegrationDriver< G4BulirschStoer >::QuickAdvance	(	G4FieldTrack &	y_val,
		const G4double	dydx[],
		G4double	hstep,
		G4double &	missDist,
		G4double &	dyerr )

overridevirtual

Attempts one integration step, and returns estimated error 'dyerr'. It does not ensure accuracy.

Parameters

[in,out]	y_val	The current track in field.
[in]	dydx	dydx array.
[in]	hstep	Proposed step length.
[out]	missDist	Estimated sagitta distance.
[out]	dyerr	Estimated error.

Returns: true if integration succeeds.

Reimplemented from G4VIntegrationDriver.

◆ SetEquationOfMotion()

void G4IntegrationDriver< G4BulirschStoer >::SetEquationOfMotion ( G4EquationOfMotion * equation )

overridevirtual

Setter and getter for the equation of motion.

Implements G4VIntegrationDriver.

◆ SetMinimumStep()

void G4IntegrationDriver< G4BulirschStoer >::SetMinimumStep ( G4double newval )

inline

◆ SetSmallestFraction()

void G4IntegrationDriver< G4BulirschStoer >::SetSmallestFraction ( G4double val )

inline

◆ SetVerboseLevel()

void G4IntegrationDriver< G4BulirschStoer >::SetVerboseLevel ( G4int level )

overridevirtual

Setter and getter for verbosity.

Implements G4VIntegrationDriver.

◆ StreamInfo()

void G4IntegrationDriver< G4BulirschStoer >::StreamInfo ( std::ostream & os ) const

overridevirtual

Writes out to stream the parameters/state of the driver.

Implements G4VIntegrationDriver.

The documentation for this class was generated from the following file:

G4BulirschStoerDriver.hh

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ G4IntegrationDriver() [1/2]

◆ ~G4IntegrationDriver()

◆ G4IntegrationDriver() [2/2]

Member Function Documentation

◆ AccurateAdvance()

◆ AdvanceChordLimited()

◆ ComputeNewStepSize()

◆ DoesReIntegrate()

◆ GetDerivatives() [1/2]

◆ GetDerivatives() [2/2]

◆ GetEquationOfMotion() [1/2]

◆ GetEquationOfMotion() [2/2]

◆ GetMinimumStep()

◆ GetSmallestFraction()

◆ GetStepper() [1/2]

◆ GetStepper() [2/2]

◆ GetVerboseLevel()

◆ IncrementQuickAdvanceCalls()

◆ OnComputeStep()

◆ OneGoodStep()

◆ OnStartTracking()

◆ operator=()

◆ QuickAdvance()

◆ SetEquationOfMotion()

◆ SetMinimumStep()

◆ SetSmallestFraction()

◆ SetVerboseLevel()

◆ StreamInfo()
