G4VisCommandGeometrySetForceLineSegmentsPerCircle Class Reference

#include <G4VisCommandsGeometrySet.hh>

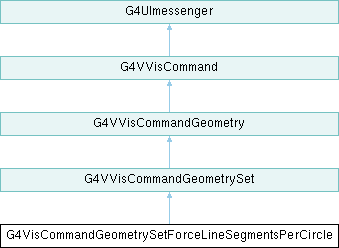

Inheritance diagram for G4VisCommandGeometrySetForceLineSegmentsPerCircle:

Public Member Functions
	G4VisCommandGeometrySetForceLineSegmentsPerCircle ()
virtual	~G4VisCommandGeometrySetForceLineSegmentsPerCircle ()
G4String	GetCurrentValue (G4UIcommand *command)
void	SetNewValue (G4UIcommand *command, G4String newValue)
Public Member Functions inherited from G4VVisCommandGeometry
virtual	~G4VVisCommandGeometry ()
Public Member Functions inherited from G4VVisCommand
	G4VVisCommand ()
virtual	~G4VVisCommand ()
Public Member Functions inherited from G4UImessenger
	G4UImessenger ()=default
	G4UImessenger (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
virtual	~G4UImessenger ()
G4bool	CommandsShouldBeInMaster () const

Additional Inherited Members
Static Public Member Functions inherited from G4VVisCommand
static G4VisManager *	GetVisManager ()
static void	SetVisManager (G4VisManager *pVisManager)
static const G4Colour &	GetCurrentTextColour ()
Protected Types inherited from G4VVisCommandGeometry
typedef std::map< G4LogicalVolume *, constG4VisAttributes * >::const_iterator	VisAttsMapIterator
Protected Member Functions inherited from G4VVisCommandGeometrySet
void	Set (const G4String &logVolName, const G4VVisCommandGeometrySetFunction &, G4int requestedDepth)
void	SetLVVisAtts (G4LogicalVolume *, const G4VVisCommandGeometrySetFunction &, G4int depth, G4int requestedDepth)
Protected Member Functions inherited from G4VVisCommand
void	SetViewParameters (G4VViewer *viewer, const G4ViewParameters &viewParams)
void	RefreshIfRequired (G4VViewer *viewer)
void	InterpolateViews (G4VViewer *currentViewer, const std::vector< G4ViewParameters > &viewVector, const G4int nInterpolationPoints=50, const G4int waitTimePerPointmilliseconds=20, const G4String &exportString="")
void	InterpolateToNewView (G4VViewer *currentViewer, const G4ViewParameters &oldVP, const G4ViewParameters &newVP, const G4int nInterpolationPoints=50, const G4int waitTimePerPointmilliseconds=20, const G4String &exportString="")
void	Twinkle (G4VViewer *currentViewer, const G4ViewParameters &baseVP, const std::vector< std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > > &paths)
const G4String &	ConvertToColourGuidance ()
void	ConvertToColour (G4Colour &colour, const G4String &redOrString, G4double green, G4double blue, G4double opacity)
G4bool	ProvideValueOfUnit (const G4String &where, const G4String &unit, const G4String &category, G4double &value)
void	CopyCameraParameters (G4ViewParameters &target, const G4ViewParameters &from)
void	CheckSceneAndNotifyHandlers (G4Scene *=nullptr)
G4bool	CheckView ()
void	G4VisCommandsSceneAddUnsuccessful (G4VisManager::Verbosity verbosity)
void	CopyGuidanceFrom (const G4UIcommand *fromCmd, G4UIcommand *toCmd, G4int startLine=0)
void	CopyParametersFrom (const G4UIcommand *fromCmd, G4UIcommand *toCmd)
void	DrawExtent (const G4VisExtent &)
Protected Member Functions inherited from G4UImessenger
G4String	ItoS (G4int i)
G4String	LtoS (G4long l)
G4String	DtoS (G4double a)
G4String	BtoS (G4bool b)
G4int	StoI (const G4String &s)
G4long	StoL (const G4String &s)
G4double	StoD (const G4String &s)
G4bool	StoB (const G4String &s)
void	AddUIcommand (G4UIcommand *newCommand)
void	CreateDirectory (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
template<typename T>
T *	CreateCommand (const G4String &cname, const G4String &dsc)
Static Protected Member Functions inherited from G4VVisCommand
static G4String	ConvertToString (G4double x, G4double y, const char *unitName)
static G4bool	ConvertToDoublePair (const G4String &paramString, G4double &xval, G4double &yval)
Protected Attributes inherited from G4UImessenger
G4UIdirectory *	baseDir = nullptr
G4String	baseDirName = ""
G4bool	commandsShouldBeInMaster = false
Static Protected Attributes inherited from G4VVisCommandGeometry
static std::map< G4LogicalVolume *, const G4VisAttributes * >	fVisAttsMap
Static Protected Attributes inherited from G4VVisCommand
static G4VisManager *	fpVisManager = nullptr
static G4int	fCurrentArrow3DLineSegmentsPerCircle = 6
static G4Colour	fCurrentColour = G4Colour::White()
static G4double	fCurrentLineWidth = 1.
static G4Colour	fCurrentTextColour = G4Colour::Blue()
static G4Text::Layout	fCurrentTextLayout = G4Text::left
static G4double	fCurrentTextSize = 12.
static G4PhysicalVolumeModel::TouchableProperties	fCurrentTouchableProperties
static G4VisExtent	fCurrentExtentForField
static std::vector< G4PhysicalVolumesSearchScene::Findings >	fCurrrentPVFindingsForField
static G4bool	fThereWasAViewer = false
static G4ViewParameters	fExistingVP
static G4SceneTreeItem	fExistingSceneTree

Detailed Description

Definition at line 267 of file G4VisCommandsGeometrySet.hh.

Constructor & Destructor Documentation

G4VisCommandGeometrySetForceLineSegmentsPerCircle()

G4VisCommandGeometrySetForceLineSegmentsPerCircle::G4VisCommandGeometrySetForceLineSegmentsPerCircle

(

)

Definition at line 354 of file G4VisCommandsGeometrySet.cc.

{
  G4bool omitable;
  fpCommand = new G4UIcommand("/vis/geometry/set/forceLineSegmentsPerCircle", this);
  fpCommand->SetGuidance
    ("Forces number of line segments per circle, the precision with which a"
     "\ncurved line or surface is represented by a polygon or polyhedron,"
     "\nregardless of the view parameters.");
  fpCommand->SetGuidance("\"all\" sets all logical volumes.");
  fpCommand->SetGuidance
    ("Optionally propagates down hierarchy to given depth.");
  G4UIparameter* parameter;
  parameter = new G4UIparameter ("logical-volume-name", 's', omitable = true);
  parameter->SetDefaultValue("all");
  fpCommand->SetParameter(parameter);
  parameter = new G4UIparameter("depth", 'd', omitable = true);
  parameter->SetDefaultValue(0);
  parameter->SetGuidance
    ("Depth of propagation (-1 means unlimited depth).");
  fpCommand->SetParameter(parameter);
  parameter = new G4UIparameter("lineSegmentsPerCircle", 'd', omitable = true);
  parameter->SetGuidance
    ("<= 0 means not forced, i.e., under control of viewer.");
  parameter->SetDefaultValue(0);
  fpCommand->SetParameter(parameter);
}

~G4VisCommandGeometrySetForceLineSegmentsPerCircle()

G4VisCommandGeometrySetForceLineSegmentsPerCircle::~G4VisCommandGeometrySetForceLineSegmentsPerCircle ( )

virtual

Definition at line 381 of file G4VisCommandsGeometrySet.cc.

{
  delete fpCommand;
}

Member Function Documentation

GetCurrentValue()

G4String G4VisCommandGeometrySetForceLineSegmentsPerCircle::GetCurrentValue ( G4UIcommand * command )

virtual

Reimplemented from G4UImessenger.

Definition at line 387 of file G4VisCommandsGeometrySet.cc.

{
  return "";
}

SetNewValue()

void G4VisCommandGeometrySetForceLineSegmentsPerCircle::SetNewValue ( G4UIcommand * command, G4String newValue )

virtual

Reimplemented from G4UImessenger.

Definition at line 392 of file G4VisCommandsGeometrySet.cc.

{
  G4String name;
  G4int requestedDepth;
  G4int lineSegmentsPerCircle;
  std::istringstream iss(newValue);
  iss >> name >> requestedDepth >> lineSegmentsPerCircle;

  G4VisCommandGeometrySetForceLineSegmentsPerCircleFunction
  setForceLineSegmentsPerCircle(lineSegmentsPerCircle);
  Set(name, setForceLineSegmentsPerCircle, requestedDepth);
}

---

The documentation for this class was generated from the following files:

• G4VisCommandsGeometrySet.hh
• G4VisCommandsGeometrySet.cc
