#include <G4VisCommandsGeometrySet.hh>

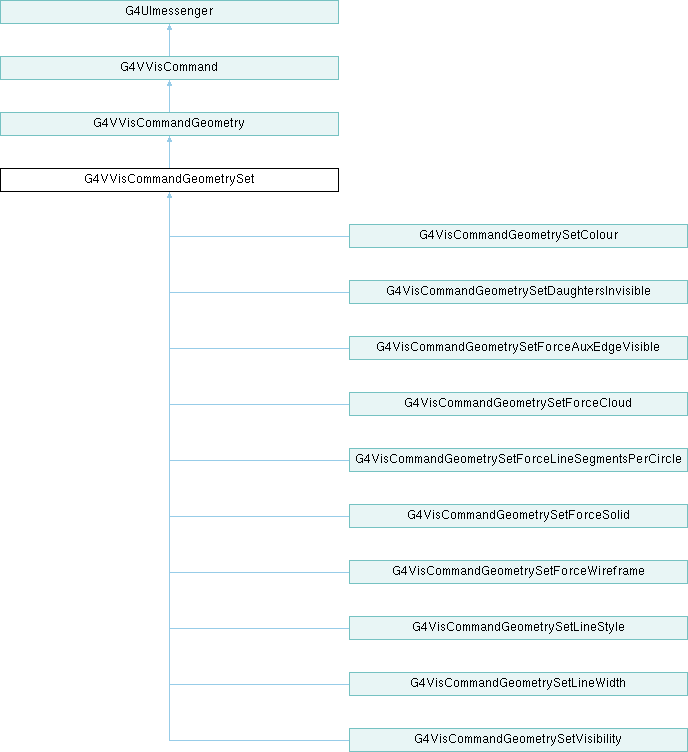

Inheritance diagram for G4VVisCommandGeometrySet:

Protected Member Functions
void	Set (const G4String &logVolName, const G4VVisCommandGeometrySetFunction &, G4int requestedDepth)
void	SetLVVisAtts (G4LogicalVolume *, const G4VVisCommandGeometrySetFunction &, G4int depth, G4int requestedDepth)
Protected Member Functions inherited from G4VVisCommand
void	SetViewParameters (G4VViewer *viewer, const G4ViewParameters &viewParams)
void	RefreshIfRequired (G4VViewer *viewer)
void	InterpolateViews (G4VViewer *currentViewer, const std::vector< G4ViewParameters > &viewVector, const G4int nInterpolationPoints=50, const G4int waitTimePerPointmilliseconds=20, const G4String &exportString="")
void	InterpolateToNewView (G4VViewer *currentViewer, const G4ViewParameters &oldVP, const G4ViewParameters &newVP, const G4int nInterpolationPoints=50, const G4int waitTimePerPointmilliseconds=20, const G4String &exportString="")
void	Twinkle (G4VViewer *currentViewer, const G4ViewParameters &baseVP, const std::vector< std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > > &paths)
const G4String &	ConvertToColourGuidance ()
void	ConvertToColour (G4Colour &colour, const G4String &redOrString, G4double green, G4double blue, G4double opacity)
G4bool	ProvideValueOfUnit (const G4String &where, const G4String &unit, const G4String &category, G4double &value)
void	CopyCameraParameters (G4ViewParameters &target, const G4ViewParameters &from)
void	CheckSceneAndNotifyHandlers (G4Scene *=nullptr)
G4bool	CheckView ()
void	G4VisCommandsSceneAddUnsuccessful (G4VisManager::Verbosity verbosity)
void	CopyGuidanceFrom (const G4UIcommand fromCmd, G4UIcommand toCmd, G4int startLine=0)
void	CopyParametersFrom (const G4UIcommand fromCmd, G4UIcommand toCmd)
void	DrawExtent (const G4VisExtent &)
Protected Member Functions inherited from G4UImessenger
G4String	ItoS (G4int i)
G4String	LtoS (G4long l)
G4String	DtoS (G4double a)
G4String	BtoS (G4bool b)
G4int	StoI (const G4String &s)
G4long	StoL (const G4String &s)
G4double	StoD (const G4String &s)
G4bool	StoB (const G4String &s)
void	AddUIcommand (G4UIcommand *newCommand)
void	CreateDirectory (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
template<typename T>
T *	CreateCommand (const G4String &cname, const G4String &dsc)

Additional Inherited Members
Public Member Functions inherited from G4VVisCommandGeometry
virtual	~G4VVisCommandGeometry ()
Public Member Functions inherited from G4VVisCommand
	G4VVisCommand ()
virtual	~G4VVisCommand ()
Public Member Functions inherited from G4UImessenger
	G4UImessenger ()=default
	G4UImessenger (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
virtual	~G4UImessenger ()
virtual G4String	GetCurrentValue (G4UIcommand *command)
virtual void	SetNewValue (G4UIcommand *command, G4String newValue)
G4bool	CommandsShouldBeInMaster () const
Static Public Member Functions inherited from G4VVisCommand
static G4VisManager *	GetVisManager ()
static void	SetVisManager (G4VisManager *pVisManager)
static const G4Colour &	GetCurrentTextColour ()
Protected Types inherited from G4VVisCommandGeometry
typedef std::map< G4LogicalVolume , constG4VisAttributes >::const_iterator	VisAttsMapIterator
Static Protected Member Functions inherited from G4VVisCommand
static G4String	ConvertToString (G4double x, G4double y, const char *unitName)
static G4bool	ConvertToDoublePair (const G4String &paramString, G4double &xval, G4double &yval)
Protected Attributes inherited from G4UImessenger
G4UIdirectory *	baseDir = nullptr
G4String	baseDirName = ""
G4bool	commandsShouldBeInMaster = false
Static Protected Attributes inherited from G4VVisCommandGeometry
static std::map< G4LogicalVolume , const G4VisAttributes >	fVisAttsMap
Static Protected Attributes inherited from G4VVisCommand
static G4VisManager *	fpVisManager = nullptr
static G4int	fCurrentArrow3DLineSegmentsPerCircle = 6
static G4Colour	fCurrentColour = G4Colour::White()
static G4double	fCurrentLineWidth = 1.
static G4Colour	fCurrentTextColour = G4Colour::Blue()
static G4Text::Layout	fCurrentTextLayout = G4Text::left
static G4double	fCurrentTextSize = 12.
static G4PhysicalVolumeModel::TouchableProperties	fCurrentTouchableProperties
static G4VisExtent	fCurrentExtentForField
static std::vector< G4PhysicalVolumesSearchScene::Findings >	fCurrrentPVFindingsForField
static G4bool	fThereWasAViewer = false
static G4ViewParameters	fExistingVP
static G4SceneTreeItem	fExistingSceneTree

Detailed Description

Definition at line 187 of file G4VisCommandsGeometrySet.hh.

Member Function Documentation

◆ Set()

void G4VVisCommandGeometrySet::Set	(	const G4String &	logVolName,
		const G4VVisCommandGeometrySetFunction &	setFunction,
		G4int	requestedDepth )

protected

Definition at line 41 of file G4VisCommandsGeometrySet.cc.

{
  G4VisManager::Verbosity verbosity = fpVisManager->GetVerbosity();
  G4LogicalVolumeStore* pLVStore = G4LogicalVolumeStore::GetInstance();
  G4bool found = false;
  for (auto* pLV : *pLVStore) {
    const G4String& logVolName = pLV->GetName();
    if (logVolName == requestedName) found = true;
    if (requestedName == "all" || logVolName == requestedName) {
      SetLVVisAtts(pLV, setFunction, 0, requestedDepth);
    }
  }
  if (requestedName != "all" && !found) {
    if (verbosity >= G4VisManager::errors) {
      G4warn << "ERROR: Logical volume \"" << requestedName
         << "\" not found in logical volume store." << G4endl;
    }
    return;
  }
  // Recalculate extent of any physical volume model in run duration lists
  for (const auto& scene : fpVisManager->GetSceneList()) {
    const auto& runDurationModelList = scene->GetRunDurationModelList();
    for (const auto& sceneModel : runDurationModelList) {
      auto model = sceneModel.fpModel;
      auto pvModel = dynamic_cast<G4PhysicalVolumeModel*>(model);
      if (pvModel) pvModel->CalculateExtent();
    }
    // And re-calculate the scene's extent
    scene->CalculateExtent();
  }
  if (fpVisManager->GetCurrentViewer()) {
    G4UImanager::GetUIpointer()->ApplyCommand("/vis/scene/notifyHandlers");
  }
}

◆ SetLVVisAtts()

void G4VVisCommandGeometrySet::SetLVVisAtts	(	G4LogicalVolume *	pLV,
		const G4VVisCommandGeometrySetFunction &	setFunction,
		G4int	depth,
		G4int	requestedDepth )

protected

Definition at line 79 of file G4VisCommandsGeometrySet.cc.

{
  G4VisManager::Verbosity verbosity = fpVisManager->GetVerbosity();
  const G4VisAttributes* oldVisAtts = pLV->GetVisAttributes();
  fVisAttsMap.insert(std::make_pair(pLV,oldVisAtts));  // Store old vis atts.
  G4VisAttributes* newVisAtts = new G4VisAttributes;   // Memory leak!
  if (oldVisAtts) {
    *newVisAtts = *oldVisAtts;
  }
  setFunction(newVisAtts);  // Sets whatever attribute determined by
                // function object.
  pLV->SetVisAttributes(newVisAtts);
  if (verbosity >= G4VisManager::confirmations) {
    G4cout << "\nLogical Volume \"" << pLV->GetName()
       << "\": setting vis attributes:";
    if (oldVisAtts) {
      G4cout << "\nwas: " << *oldVisAtts;
    } else {
      G4cout << "\n(no old attributes)";
    }
    G4cout << "\nnow: " << *newVisAtts
       << G4endl;
  }
  if (requestedDepth < 0 || depth < requestedDepth) {
    G4int nDaughters = (G4int)pLV->GetNoDaughters();
    for (G4int i = 0; i < nDaughters; ++i) {
      SetLVVisAtts(pLV->GetDaughter(i)->GetLogicalVolume(),
           setFunction, ++depth, requestedDepth);
    }
  }
}

Referenced by Set(), SetLVVisAtts(), and G4VisCommandGeometrySetVisibility::SetNewValueOnLV().

The documentation for this class was generated from the following files:
