G4FSALIntegrationDriver is a templated driver class which controls the integration error of a Runge-Kutta stepper. More...

#include <G4FSALIntegrationDriver.hh>

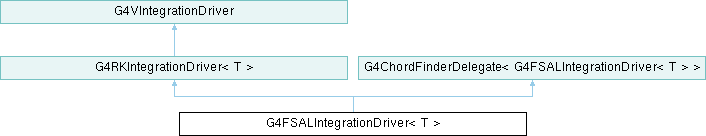

Inheritance diagram for G4FSALIntegrationDriver< T >:

Public Member Functions
	G4FSALIntegrationDriver (G4double hminimum, T *stepper, G4int numberOfComponents=6, G4int statisticsVerbosity=1)
	~G4FSALIntegrationDriver () override
	G4FSALIntegrationDriver (const G4FSALIntegrationDriver &)=delete
G4FSALIntegrationDriver &	operator= (const G4FSALIntegrationDriver &)=delete
G4double	AdvanceChordLimited (G4FieldTrack &track, G4double hstep, G4double eps, G4double chordDistance) override
void	OnStartTracking () override
void	OnComputeStep (const G4FieldTrack *=nullptr) override
G4bool	DoesReIntegrate () const override
G4bool	AccurateAdvance (G4FieldTrack &track, G4double hstep, G4double eps, G4double hinitial=0.0) override
G4bool	QuickAdvance (G4FieldTrack &fieldTrack, const G4double dydx[], G4double hstep, G4double &dchord_step, G4double &dyerr) override
void	OneGoodStep (G4double y[], G4double dydx[], G4double &curveLength, G4double htry, G4double eps, G4double &hdid, G4double &hnext)
void	SetVerboseLevel (G4int newLevel) override
G4int	GetVerboseLevel () const override
void	StreamInfo (std::ostream &os) const override
G4double	GetMinimumStep () const
void	SetMinimumStep (G4double newval)
G4double	GetSmallestFraction () const
void	SetSmallestFraction (G4double val)
Public Member Functions inherited from G4RKIntegrationDriver< T >
	G4RKIntegrationDriver (T *stepper)
	G4RKIntegrationDriver (const G4RKIntegrationDriver &)=delete
G4RKIntegrationDriver &	operator= (const G4RKIntegrationDriver &)=delete
void	GetDerivatives (const G4FieldTrack &track, G4double dydx[]) const override
void	GetDerivatives (const G4FieldTrack &track, G4double dydx[], G4double field[]) const override
G4double	ComputeNewStepSize (G4double errMaxNorm, G4double hstepCurrent) final
G4EquationOfMotion *	GetEquationOfMotion () override
void	SetEquationOfMotion (G4EquationOfMotion *equation) override
const T *	GetStepper () const override
T *	GetStepper () override
void	StreamInfo (std::ostream &os) const override
G4double	GetSafety () const
G4double	GetPshrnk () const
G4double	GetPgrow () const
void	RenewStepperAndAdjust (G4MagIntegratorStepper *stepper) override
void	ReSetParameters (G4double safety=0.9)
void	SetSafety (G4double valS)
G4int	GetMaxNoSteps () const
void	SetMaxNoSteps (G4int val)
G4double	GetSmallestFraction () const
void	SetSmallestFraction (G4double val)
Public Member Functions inherited from G4VIntegrationDriver
virtual	~G4VIntegrationDriver ()=default
Public Member Functions inherited from G4ChordFinderDelegate< G4FSALIntegrationDriver< T > >
virtual	~G4ChordFinderDelegate ()
G4double	AdvanceChordLimitedImpl (G4FieldTrack &track, G4double hstep, G4double eps, G4double chordDistance)
void	ResetStepEstimate ()
G4double	GetLastStepEstimateUnc ()
void	SetLastStepEstimateUnc (G4double stepEst)
G4int	GetNoCalls ()
G4int	GetNoTrials ()
G4int	GetNoMaxTrials ()
void	SetFractions_Last_Next (G4double fractLast=0.90, G4double fractNext=0.95)
void	SetFirstFraction (G4double fractFirst)
G4double	GetFirstFraction ()
G4double	GetFractionLast ()
G4double	GetFractionNextEstimate ()
void	StreamDelegateInfo (std::ostream &os) const
void	TestChordPrint (G4int noTrials, G4int lastStepTrial, G4double dChordStep, G4double fDeltaChord, G4double nextStepTrial)

Protected Member Functions
void	IncrementQuickAdvanceCalls ()
Protected Member Functions inherited from G4RKIntegrationDriver< T >
G4double	ShrinkStepSize (G4double h, G4double error) const
G4double	GrowStepSize (G4double h, G4double error) const
G4double	ShrinkStepSize2 (G4double h, G4double error2) const
G4double	GrowStepSize2 (G4double h, G4double error2) const
void	UpdateErrorConstraints ()

Additional Inherited Members
Static Protected Attributes inherited from G4VIntegrationDriver
static constexpr G4double	max_stepping_increase = 5
static constexpr G4double	max_stepping_decrease = 0.1

Detailed Description

template<class T>
class G4FSALIntegrationDriver< T >

G4FSALIntegrationDriver is a templated driver class which controls the integration error of a Runge-Kutta stepper.

Definition at line 46 of file G4FSALIntegrationDriver.hh.

Constructor & Destructor Documentation

◆ G4FSALIntegrationDriver() [1/2]

template<class T>

G4FSALIntegrationDriver< T >::G4FSALIntegrationDriver	(	G4double	hminimum,
		T *	stepper,
		G4int	numberOfComponents = 6,
		G4int	statisticsVerbosity = 1 )

inline

Constructor for G4FSALIntegrationDriver.

Parameters

[in]	hminimum	Minimum allowed step.
[in]	stepper	Pointer to the stepper algorithm.
[in]	numberOfComponents	The number of integration variables, if not matching stepper's number of variables, issue exception.
[in]	statisticsVerbosity	Verbosity level.

Referenced by G4FSALIntegrationDriver(), and operator=().

◆ ~G4FSALIntegrationDriver()

template<class T>

G4FSALIntegrationDriver< T >::~G4FSALIntegrationDriver ( )

inlineoverride

Destructor. Provides statistics if verbosity level is greater than zero.

◆ G4FSALIntegrationDriver() [2/2]

template<class T>

G4FSALIntegrationDriver< T >::G4FSALIntegrationDriver ( const G4FSALIntegrationDriver< T > & )

delete

Copy constructor and assignment operator not allowed.

Member Function Documentation

◆ AccurateAdvance()

template<class T>

G4bool G4FSALIntegrationDriver< T >::AccurateAdvance	(	G4FieldTrack &	track,
		G4double	hstep,
		G4double	eps,
		G4double	hinitial = 0.0 )

inlineoverridevirtual

Advances integration accurately by relative accuracy better than 'eps'. On output the track is replaced by the value at the end of interval.

Parameters

[in,out]	track	The current track in field.
[in]	hstep	Proposed step length.
[in]	eps	Requested accuracy, y_err/hstep.
[in]	hinitial	Initial minimum integration step.

Returns: true if integration succeeds.

Implements G4VIntegrationDriver.

◆ AdvanceChordLimited()

template<class T>

G4double G4FSALIntegrationDriver< T >::AdvanceChordLimited	(	G4FieldTrack &	track,
		G4double	hstep,
		G4double	eps,
		G4double	chordDistance )

inlineoverridevirtual

Computes the step to take, based on chord limits.

Parameters

[in,out]	track	The current track in field.
[in]	hstep	Proposed step length.
[in]	eps	Requested accuracy, y_err/hstep.
[in]	chordDistance	Maximum sagitta distance.

Returns: The length of step taken.

Implements G4VIntegrationDriver.

◆ DoesReIntegrate()

template<class T>

G4bool G4FSALIntegrationDriver< T >::DoesReIntegrate ( ) const

inlineoverridevirtual

The driver does implement re-integration. Returns true.

Implements G4VIntegrationDriver.

◆ GetMinimumStep()

template<class T>

G4double G4FSALIntegrationDriver< T >::GetMinimumStep ( ) const

inline

Getter and Setter for minimum allowed step.

◆ GetSmallestFraction()

template<class T>

G4double G4FSALIntegrationDriver< T >::GetSmallestFraction ( ) const

inline

Getter and Setter for smallest fraction.

◆ GetVerboseLevel()

template<class T>

G4int G4FSALIntegrationDriver< T >::GetVerboseLevel ( ) const

inlineoverridevirtual

Implements G4VIntegrationDriver.

◆ IncrementQuickAdvanceCalls()

template<class T>

void G4FSALIntegrationDriver< T >::IncrementQuickAdvanceCalls ( )

inlineprotected

Increments the counter for the number of calls to QuickAdvance().

◆ OnComputeStep()

template<class T>

void G4FSALIntegrationDriver< T >::OnComputeStep ( const G4FieldTrack * = nullptr )

inlineoverridevirtual

Dispatch interface method for computing step. Does nothing here.

Implements G4VIntegrationDriver.

◆ OneGoodStep()

template<class T>

void G4FSALIntegrationDriver< T >::OneGoodStep	(	G4double	y[],
		G4double	dydx[],
		G4double &	curveLength,
		G4double	htry,
		G4double	eps,
		G4double &	hdid,
		G4double &	hnext )

inline

Takes one Step that is as large as possible while satisfying the accuracy criterion.

Parameters

[in,out]	y	The current track state, y.
[in]	dydx	dydx array.
[in,out]	curveLength	Step start, x.
[in]	htry	Step to attempt.
[in]	eps	The relative accuracy.
[out]	hdid	Step achieved.
[out]	hnext	Proposed next step.

◆ OnStartTracking()

template<class T>

void G4FSALIntegrationDriver< T >::OnStartTracking ( )

inlineoverridevirtual

Dispatch interface method for initialisation/reset of driver.

Implements G4VIntegrationDriver.

◆ operator=()

template<class T>

G4FSALIntegrationDriver & G4FSALIntegrationDriver< T >::operator= ( const G4FSALIntegrationDriver< T > & )

delete

◆ QuickAdvance()

template<class T>

G4bool G4FSALIntegrationDriver< T >::QuickAdvance	(	G4FieldTrack &	fieldTrack,
		const G4double	dydx[],
		G4double	hstep,
		G4double &	dchord_step,
		G4double &	dyerr )

inlineoverridevirtual

Attempts one integration step, and returns estimated error 'dyerr'. It does not ensure accuracy.

Parameters

[in,out]	fieldTrack	The current track in field.
[in]	dydx	dydx array.
[in]	hstep	Proposed step length.
[out]	dchord_step	Estimated sagitta distance.
[out]	dyerr	Estimated error.

Returns: true if integration succeeds.

Reimplemented from G4VIntegrationDriver.

◆ SetMinimumStep()

template<class T>

void G4FSALIntegrationDriver< T >::SetMinimumStep ( G4double newval )

inline

◆ SetSmallestFraction()

template<class T>

void G4FSALIntegrationDriver< T >::SetSmallestFraction ( G4double val )

inline

◆ SetVerboseLevel()

template<class T>

void G4FSALIntegrationDriver< T >::SetVerboseLevel ( G4int newLevel )

inlineoverridevirtual

Setter and getter for verbosity.

Implements G4VIntegrationDriver.

◆ StreamInfo()

template<class T>

void G4FSALIntegrationDriver< T >::StreamInfo ( std::ostream & os ) const

inlineoverridevirtual

Writes out to stream the parameters/state of the driver.

Implements G4VIntegrationDriver.

The documentation for this class was generated from the following file:

G4FSALIntegrationDriver.hh
