#include <G4VEmModel.hh>

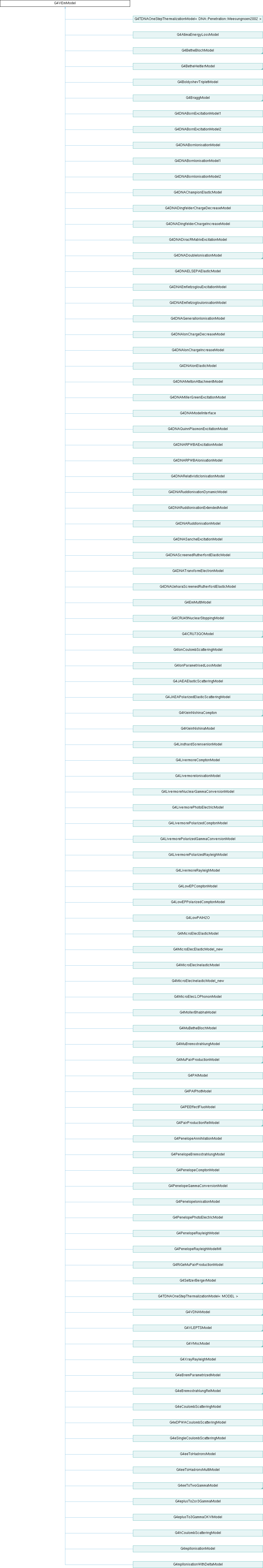

Inheritance diagram for G4VEmModel:

Public Member Functions
	G4VEmModel (const G4String &nam)
virtual	~G4VEmModel ()
virtual void	Initialise (const G4ParticleDefinition *, const G4DataVector &)=0
virtual void	SampleSecondaries (std::vector< G4DynamicParticle * > , const G4MaterialCutsCouple , const G4DynamicParticle *, G4double tmin=0.0, G4double tmax=DBL_MAX)=0
virtual void	InitialiseLocal (const G4ParticleDefinition , G4VEmModel masterModel)
virtual void	InitialiseForMaterial (const G4ParticleDefinition , const G4Material )
virtual void	InitialiseForElement (const G4ParticleDefinition *, G4int Z)
virtual G4double	ComputeDEDXPerVolume (const G4Material , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=DBL_MAX)
virtual G4double	CrossSectionPerVolume (const G4Material , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)
virtual G4double	GetPartialCrossSection (const G4Material , G4int level, const G4ParticleDefinition , G4double kineticEnergy)
virtual G4double	ComputeCrossSectionPerAtom (const G4ParticleDefinition *, G4double kinEnergy, G4double Z, G4double A=0., G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)
virtual G4double	ComputeCrossSectionPerShell (const G4ParticleDefinition *, G4int Z, G4int shellIdx, G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)
virtual G4double	ChargeSquareRatio (const G4Track &)
virtual G4double	GetChargeSquareRatio (const G4ParticleDefinition , const G4Material , G4double kineticEnergy)
virtual G4double	GetParticleCharge (const G4ParticleDefinition , const G4Material , G4double kineticEnergy)
virtual void	StartTracking (G4Track *)
virtual void	CorrectionsAlongStep (const G4Material , const G4ParticleDefinition , const G4double kinEnergy, const G4double cutEnergy, const G4double &length, G4double &eloss)
virtual G4double	Value (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy)
virtual G4double	MinPrimaryEnergy (const G4Material , const G4ParticleDefinition , G4double cut=0.0)
virtual G4double	MinEnergyCut (const G4ParticleDefinition , const G4MaterialCutsCouple )
virtual void	SetupForMaterial (const G4ParticleDefinition , const G4Material , G4double kineticEnergy)
virtual void	DefineForRegion (const G4Region *)
virtual void	FillNumberOfSecondaries (G4int &numberOfTriplets, G4int &numberOfRecoil)
virtual void	ModelDescription (std::ostream &outFile) const
void	InitialiseElementSelectors (const G4ParticleDefinition *, const G4DataVector &)
std::vector< G4EmElementSelector * > *	GetElementSelectors ()
void	SetElementSelectors (std::vector< G4EmElementSelector * > *)
G4double	ComputeDEDX (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=DBL_MAX)
G4double	CrossSection (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)
G4double	ComputeMeanFreePath (const G4ParticleDefinition , G4double kineticEnergy, const G4Material , G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)
G4double	ComputeCrossSectionPerAtom (const G4ParticleDefinition , const G4Element , G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)
const G4Element *	SelectRandomAtom (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)
const G4Element *	SelectTargetAtom (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double logKineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)
const G4Element *	SelectRandomAtom (const G4Material , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)
const G4Element *	GetCurrentElement (const G4Material *mat=nullptr) const
G4int	SelectRandomAtomNumber (const G4Material *) const
const G4Isotope *	GetCurrentIsotope (const G4Element *elm=nullptr) const
G4int	SelectIsotopeNumber (const G4Element *) const
void	SetParticleChange (G4VParticleChange , G4VEmFluctuationModel f=nullptr)
void	SetCrossSectionTable (G4PhysicsTable *, G4bool isLocal)
G4ElementData *	GetElementData ()
G4PhysicsTable *	GetCrossSectionTable ()
G4VEmFluctuationModel *	GetModelOfFluctuations ()
G4VEmAngularDistribution *	GetAngularDistribution ()
G4VEmModel *	GetTripletModel ()
void	SetTripletModel (G4VEmModel *)
void	SetAngularDistribution (G4VEmAngularDistribution *)
G4double	HighEnergyLimit () const
G4double	LowEnergyLimit () const
G4double	HighEnergyActivationLimit () const
G4double	LowEnergyActivationLimit () const
G4double	PolarAngleLimit () const
G4double	SecondaryThreshold () const
G4bool	DeexcitationFlag () const
G4bool	ForceBuildTableFlag () const
G4bool	UseAngularGeneratorFlag () const
void	SetAngularGeneratorFlag (G4bool)
void	SetHighEnergyLimit (G4double)
void	SetLowEnergyLimit (G4double)
void	SetActivationHighEnergyLimit (G4double)
void	SetActivationLowEnergyLimit (G4double)
G4bool	IsActive (G4double kinEnergy) const
void	SetPolarAngleLimit (G4double)
void	SetSecondaryThreshold (G4double)
void	SetDeexcitationFlag (G4bool val)
void	SetForceBuildTable (G4bool val)
void	SetFluctuationFlag (G4bool val)
G4bool	IsMaster () const
void	SetUseBaseMaterials (G4bool val)
G4bool	UseBaseMaterials () const
G4double	MaxSecondaryKinEnergy (const G4DynamicParticle *dynParticle)
const G4String &	GetName () const
void	SetCurrentCouple (const G4MaterialCutsCouple *)
G4bool	IsLocked () const
void	SetLocked (G4bool)
void	SetLPMFlag (G4bool)
void	SetMasterThread (G4bool)
G4VEmModel &	operator= (const G4VEmModel &right)=delete
	G4VEmModel (const G4VEmModel &)=delete

Protected Member Functions
G4ParticleChangeForLoss *	GetParticleChangeForLoss ()
G4ParticleChangeForGamma *	GetParticleChangeForGamma ()
virtual G4double	MaxSecondaryEnergy (const G4ParticleDefinition *, G4double kineticEnergy)
const G4MaterialCutsCouple *	CurrentCouple () const
void	SetCurrentElement (const G4Element *)

Protected Attributes
G4ElementData *	fElementData = nullptr
G4VParticleChange *	pParticleChange = nullptr
G4PhysicsTable *	xSectionTable = nullptr
const G4Material *	pBaseMaterial = nullptr
const std::vector< G4double > *	theDensityFactor = nullptr
const std::vector< G4int > *	theDensityIdx = nullptr
G4double	inveplus
G4double	pFactor = 1.0
std::size_t	currentCoupleIndex = 0
std::size_t	basedCoupleIndex = 0
G4bool	lossFlucFlag = true

Detailed Description

Definition at line 102 of file G4VEmModel.hh.

Constructor & Destructor Documentation

◆ G4VEmModel() [1/2]

G4VEmModel::G4VEmModel ( const G4String & nam )

explicit

Definition at line 67 of file G4VEmModel.cc.

                                         :
  inveplus(1.0/CLHEP::eplus),
  lowLimit(0.1*CLHEP::keV),
  highLimit(100.0*CLHEP::TeV),
  polarAngleLimit(CLHEP::pi),
  name(nam)
{
  xsec.resize(nsec);
  fEmManager = G4LossTableManager::Instance();
  fEmManager->Register(this);
  isMaster = fEmManager->IsMaster();

  G4LossTableBuilder* bld = fEmManager->GetTableBuilder();
  theDensityFactor = bld->GetDensityFactors();
  theDensityIdx = bld->GetCoupleIndexes();
}

◆ ~G4VEmModel()

G4VEmModel::~G4VEmModel ( )

virtual

Definition at line 86 of file G4VEmModel.cc.

{
  if(localElmSelectors) {
    for(G4int i=0; i<nSelectors; ++i) {
      delete (*elmSelectors)[i];
    }
    delete elmSelectors;
  }
  delete anglModel;

  if(localTable && xSectionTable != nullptr) {
    xSectionTable->clearAndDestroy();
    delete xSectionTable;
    xSectionTable = nullptr;
  }
  fEmManager->DeRegister(this);
  if (localChange) { delete pParticleChange; }
}

◆ G4VEmModel() [2/2]

G4VEmModel::G4VEmModel ( const G4VEmModel & )

delete

Member Function Documentation

◆ ChargeSquareRatio()

G4double G4VEmModel::ChargeSquareRatio ( const G4Track & track )

virtual

Reimplemented in G4BetheBlochIonGasModel, and G4BraggIonGasModel.

Definition at line 314 of file G4VEmModel.cc.

{
  return GetChargeSquareRatio(track.GetParticleDefinition(),
                              track.GetMaterial(), track.GetKineticEnergy());
}

◆ ComputeCrossSectionPerAtom() [1/2]

G4double G4VEmModel::ComputeCrossSectionPerAtom	(	const G4ParticleDefinition *	part,
		const G4Element *	elm,
		G4double	kinEnergy,
		G4double	cutEnergy = 0.0,
		G4double	maxEnergy = DBL_MAX )

inline

Definition at line 549 of file G4VEmModel.hh.

{
  fCurrentElement = elm;
  return ComputeCrossSectionPerAtom(part,kinEnergy,elm->GetZ(),elm->GetN(),
                                    cutEnergy,maxEnergy);
}

◆ ComputeCrossSectionPerAtom() [2/2]

G4double G4VEmModel::ComputeCrossSectionPerAtom	(	const G4ParticleDefinition *	,
		G4double	kinEnergy,
		G4double	Z,
		G4double	A = 0.,
		G4double	cutEnergy = 0.0,
		G4double	maxEnergy = DBL_MAX )

virtual

Reimplemented in G4AtimaEnergyLossModel, G4BetheBlochModel, G4BetheHeitlerModel, G4BoldyshevTripletModel, G4BraggIonModel, G4BraggModel, G4eBremParametrizedModel, G4eBremsstrahlungRelModel, G4eCoulombScatteringModel, G4eDPWACoulombScatteringModel, G4eeToHadronsModel, G4eeToHadronsMultiModel, G4eeToTwoGammaModel, G4EmMultiModel, G4eplusTo2or3GammaModel, G4eplusTo3GammaOKVIModel, G4eSingleCoulombScatteringModel, G4hCoulombScatteringModel, G4ICRU73QOModel, G4IonCoulombScatteringModel, G4IonParametrisedLossModel, G4JAEAElasticScatteringModel, G4JAEAPolarizedElasticScatteringModel, G4KleinNishinaCompton, G4KleinNishinaModel, G4LindhardSorensenIonModel, G4LivermoreComptonModel, G4LivermoreGammaConversion5DModel, G4LivermoreGammaConversionModel, G4LivermoreIonisationModel, G4LivermoreNuclearGammaConversionModel, G4LivermorePhotoElectricModel, G4LivermorePolarizedComptonModel, G4LivermorePolarizedGammaConversionModel, G4LivermorePolarizedRayleighModel, G4LivermoreRayleighModel, G4LowEPComptonModel, G4LowEPPolarizedComptonModel, G4MollerBhabhaModel, G4mplIonisationWithDeltaModel, G4MuBetheBlochModel, G4MuBremsstrahlungModel, G4MuPairProductionModel, G4PairProductionRelModel, G4PEEffectFluoModel, G4PenelopeAnnihilationModel, G4PenelopeBremsstrahlungModel, G4PenelopeComptonModel, G4PenelopeGammaConversionModel, G4PenelopeIonisationModel, G4PenelopePhotoElectricModel, G4PenelopeRayleighModel, G4PenelopeRayleighModelMI, G4PolarizedComptonModel, G4RiGeMuPairProductionModel, G4SeltzerBergerModel, G4UrbanAdjointMscModel, G4UrbanMscModel, G4WentzelVIModel, G4WentzelVIRelModel, and G4XrayRayleighModel.

Definition at line 281 of file G4VEmModel.cc.

{
  return 0.0;
}

Referenced by ComputeCrossSectionPerAtom(), and CrossSectionPerVolume().

◆ ComputeCrossSectionPerShell()

G4double G4VEmModel::ComputeCrossSectionPerShell	(	const G4ParticleDefinition *	,
		G4int	Z,
		G4int	shellIdx,
		G4double	kinEnergy,
		G4double	cutEnergy = 0.0,
		G4double	maxEnergy = DBL_MAX )

virtual

Definition at line 291 of file G4VEmModel.cc.

{
  return 0.0;
}

◆ ComputeDEDX()

G4double G4VEmModel::ComputeDEDX	(	const G4MaterialCutsCouple *	couple,
		const G4ParticleDefinition *	part,
		G4double	kineticEnergy,
		G4double	cutEnergy = DBL_MAX )

inline

Definition at line 511 of file G4VEmModel.hh.

{
  SetCurrentCouple(couple);
  return pFactor*ComputeDEDXPerVolume(pBaseMaterial,part,kinEnergy,cutEnergy);
}

◆ ComputeDEDXPerVolume()

G4double G4VEmModel::ComputeDEDXPerVolume	(	const G4Material *	,
		const G4ParticleDefinition *	,
		G4double	kineticEnergy,
		G4double	cutEnergy = DBL_MAX )

virtual

◆ ComputeMeanFreePath()

G4double G4VEmModel::ComputeMeanFreePath	(	const G4ParticleDefinition *	part,
		G4double	kineticEnergy,
		const G4Material *	material,
		G4double	cutEnergy = 0.0,
		G4double	maxEnergy = DBL_MAX )

inline

Definition at line 536 of file G4VEmModel.hh.

{
  G4double cross = CrossSectionPerVolume(material,part,ekin,emin,emax);
  return (cross > 0.0) ? 1./cross : DBL_MAX;
}

◆ CorrectionsAlongStep()

void G4VEmModel::CorrectionsAlongStep	(	const G4Material *	,
		const G4ParticleDefinition *	,
		const G4double	kinEnergy,
		const G4double	cutEnergy,
		const G4double &	length,
		G4double &	eloss )

virtual

Reimplemented in G4AtimaEnergyLossModel, G4BetheBlochModel, G4BraggIonModel, G4IonParametrisedLossModel, G4LindhardSorensenIonModel, and G4LowPAIH2O.

Definition at line 339 of file G4VEmModel.cc.

342{}

◆ CrossSection()

G4double G4VEmModel::CrossSection	(	const G4MaterialCutsCouple *	couple,
		const G4ParticleDefinition *	part,
		G4double	kineticEnergy,
		G4double	cutEnergy = 0.0,
		G4double	maxEnergy = DBL_MAX )

inline

Definition at line 522 of file G4VEmModel.hh.

{
  SetCurrentCouple(couple);
  return pFactor*CrossSectionPerVolume(pBaseMaterial,part,kinEnergy,
                                       cutEnergy,maxEnergy);
}

Referenced by G4EmModelManager::FillLambdaVector(), and G4EmMultiModel::SampleSecondaries().

◆ CrossSectionPerVolume()

G4double G4VEmModel::CrossSectionPerVolume	(	const G4Material *	mat,
		const G4ParticleDefinition *	p,
		G4double	kineticEnergy,
		G4double	cutEnergy = 0.0,
		G4double	maxEnergy = DBL_MAX )

virtual

Definition at line 178 of file G4VEmModel.cc.

{
  SetupForMaterial(p, mat, ekin);
  const G4double* theAtomNumDensityVector = mat->GetVecNbOfAtomsPerVolume();
  G4int nelm = (G4int)mat->GetNumberOfElements();
  if(nelm > nsec) {
    xsec.resize(nelm);
    nsec = nelm;
  }
  G4double cross = 0.0;
  for (G4int i=0; i<nelm; ++i) {
    cross += theAtomNumDensityVector[i]*
      ComputeCrossSectionPerAtom(p,mat->GetElement(i),ekin,emin,emax);
    xsec[i] = cross;
  }
  return cross;
}

Referenced by ComputeMeanFreePath(), CrossSection(), G4LivermorePhotoElectricModel::CrossSectionPerVolume(), G4PenelopeRayleighModelMI::CrossSectionPerVolume(), G4VMscModel::GetTransportMeanFreePath(), G4VMscModel::GetTransportMeanFreePath(), SelectRandomAtom(), and Value().

◆ CurrentCouple()

const G4MaterialCutsCouple * G4VEmModel::CurrentCouple ( ) const

inlineprotected

Definition at line 488 of file G4VEmModel.hh.

{
  return fCurrentCouple;
}

◆ DeexcitationFlag()

G4bool G4VEmModel::DeexcitationFlag ( ) const

inline

Definition at line 678 of file G4VEmModel.hh.

{
  return flagDeexcitation;
}

Referenced by G4EmModelManager::DumpModelList().

◆ DefineForRegion()

void G4VEmModel::DefineForRegion ( const G4Region * )

virtual

Reimplemented in G4PAIModel, and G4PAIPhotModel.

Definition at line 300 of file G4VEmModel.cc.

301{}

Referenced by G4EmModelManager::AddEmModel().

◆ FillNumberOfSecondaries()

void G4VEmModel::FillNumberOfSecondaries	(	G4int &	numberOfTriplets,
		G4int &	numberOfRecoil )

virtual

Definition at line 305 of file G4VEmModel.cc.

{
  numberOfTriplets = 0;
  numberOfRecoil = 0;
}

◆ ForceBuildTableFlag()

G4bool G4VEmModel::ForceBuildTableFlag ( ) const

inline

Definition at line 685 of file G4VEmModel.hh.

{
  return flagForceBuildTable;
}

Referenced by G4EmTableUtil::BuildMscProcess().

◆ GetAngularDistribution()

G4VEmAngularDistribution * G4VEmModel::GetAngularDistribution ( )

inline

Definition at line 602 of file G4VEmModel.hh.

{
  return anglModel;
}

◆ GetChargeSquareRatio()

G4double G4VEmModel::GetChargeSquareRatio	(	const G4ParticleDefinition *	p,
		const G4Material *	,
		G4double	kineticEnergy )

virtual

Reimplemented in G4AtimaEnergyLossModel, G4BetheBlochIonGasModel, G4BetheBlochModel, G4BraggIonGasModel, G4BraggIonModel, G4BraggModel, G4IonParametrisedLossModel, and G4LindhardSorensenIonModel.

Definition at line 322 of file G4VEmModel.cc.

{
  const G4double q = p->GetPDGCharge()*inveplus;
  return q*q;
}

Referenced by G4AdjointCSManager::BuildTotalSigmaTables(), ChargeSquareRatio(), and SetupForMaterial().

◆ GetCrossSectionTable()

G4PhysicsTable * G4VEmModel::GetCrossSectionTable ( )

inline

Definition at line 830 of file G4VEmModel.hh.

{
  return xSectionTable;
}

Referenced by G4EmTableUtil::BuildMscProcess(), G4EmModelManager::DumpModelList(), G4WentzelVIModel::Initialise(), and G4EmTableUtil::StoreMscTable().

◆ GetCurrentElement()

const G4Element * G4VEmModel::GetCurrentElement ( const G4Material * mat = nullptr ) const

Definition at line 239 of file G4VEmModel.cc.

{
  const G4Element* elm = fCurrentElement;
  if(nullptr == elm && nullptr != mat) {
    elm = G4EmUtility::SampleRandomElement(mat);
  }
  return elm;
}

Referenced by GetCurrentIsotope(), G4PolarizedBremsstrahlungModel::SampleSecondaries(), G4PolarizedGammaConversionModel::SampleSecondaries(), G4PolarizedPhotoElectricModel::SampleSecondaries(), G4PolarizedBremsstrahlungModel::SelectedAtom(), G4PolarizedGammaConversionModel::SelectedAtom(), and SelectRandomAtomNumber().

◆ GetCurrentIsotope()

const G4Isotope * G4VEmModel::GetCurrentIsotope ( const G4Element * elm = nullptr ) const

Definition at line 258 of file G4VEmModel.cc.

{
  const G4Isotope* iso = nullptr;
  const G4Element* el = elm;
  if(nullptr == el && nullptr != fCurrentCouple) {
    el = GetCurrentElement(fCurrentCouple->GetMaterial());
  }
  if(nullptr != el) {
    iso = G4EmUtility::SampleRandomIsotope(el);
  }
  return iso;
}

Referenced by SelectIsotopeNumber().

◆ GetElementData()

G4ElementData * G4VEmModel::GetElementData ( )

inline

Definition at line 823 of file G4VEmModel.hh.

{
  return fElementData;
}

Referenced by G4ePairProduction::StreamProcessInfo().

◆ GetElementSelectors()

std::vector< G4EmElementSelector * > * G4VEmModel::GetElementSelectors ( )

inline

Definition at line 804 of file G4VEmModel.hh.

{
  return elmSelectors;
}

◆ GetModelOfFluctuations()

G4VEmFluctuationModel * G4VEmModel::GetModelOfFluctuations ( )

inline

Definition at line 595 of file G4VEmModel.hh.

{
  return flucModel;
}

Referenced by G4IonParametrisedLossModel::CorrectionsAlongStep(), and G4EmMultiModel::Initialise().

◆ GetName()

const G4String & G4VEmModel::GetName ( ) const

inline

Definition at line 797 of file G4VEmModel.hh.

{
  return name;
}

Referenced by G4VLEPTSModel::BuildMeanFreePathTable(), G4VLEPTSModel::BuildPhysicsTable(), G4MuonToMuonPairProductionModel::DataCorrupted(), G4MuPairProductionModel::DataCorrupted(), G4RiGeMuPairProductionModel::DataCorrupted(), G4EmModelManager::DumpModelList(), G4EmModelManager::Initialise(), G4EmMultiModel::Initialise(), G4IonParametrisedLossModel::Initialise(), G4MuPairProductionModel::Initialise(), G4RiGeMuPairProductionModel::Initialise(), G4IonParametrisedLossModel::PrintDEDXTable(), G4DNAAttachment::PrintInfo(), G4DNADissociation::PrintInfo(), G4DNADoubleIonisation::PrintInfo(), G4DNAElastic::PrintInfo(), G4DNAIonisation::PrintInfo(), G4DNAPlasmonExcitation::PrintInfo(), G4DNAPositronium::PrintInfo(), G4DNAQuadrupleIonisation::PrintInfo(), G4DNATripleIonisation::PrintInfo(), G4DNAChargeDecrease::ProcessDescription(), G4DNAChargeIncrease::ProcessDescription(), G4VLEPTSModel::ReadIXS(), G4LossTableManager::Register(), G4IonParametrisedLossModel::RemoveDEDXTable(), G4VLEPTSModel::SampleEnergyLoss(), G4EmConfigurator::SetExtraEmModel(), SetLPMFlag(), and G4DNAModelInterface::StreamInfo().

◆ GetPartialCrossSection()

G4double G4VEmModel::GetPartialCrossSection	(	const G4Material *	,
		G4int	level,
		const G4ParticleDefinition *	,
		G4double	kineticEnergy )

virtual

Reimplemented in G4DNABornExcitationModel1, G4DNABornExcitationModel2, G4DNABornIonisationModel1, G4DNABornIonisationModel2, G4DNAMillerGreenExcitationModel, G4DNARelativisticIonisationModel, G4DNARPWBAExcitationModel, and G4DNARPWBAIonisationModel.

Definition at line 202 of file G4VEmModel.cc.

{
  return 0.0;
}

◆ GetParticleChangeForGamma()

G4ParticleChangeForGamma * G4VEmModel::GetParticleChangeForGamma ( )

protected

Definition at line 121 of file G4VEmModel.cc.

{
  auto p = dynamic_cast<G4ParticleChangeForGamma*>(pParticleChange);
  if (p == nullptr) {
    p = new G4ParticleChangeForGamma();
    localChange = true;
  }
  pParticleChange = p;
  if(fTripletModel != nullptr) { fTripletModel->SetParticleChange(p); }
  return p;
}

◆ GetParticleChangeForLoss()

G4ParticleChangeForLoss * G4VEmModel::GetParticleChangeForLoss ( )

protected

Definition at line 107 of file G4VEmModel.cc.

{
  auto p = dynamic_cast<G4ParticleChangeForLoss*>(pParticleChange);
  if (p == nullptr) {
    p = new G4ParticleChangeForLoss();
    localChange = true;
  }
  pParticleChange = p;
  if(fTripletModel != nullptr) { fTripletModel->SetParticleChange(p); }
  return p;
}

◆ GetParticleCharge()

G4double G4VEmModel::GetParticleCharge	(	const G4ParticleDefinition *	p,
		const G4Material *	,
		G4double	kineticEnergy )

virtual

Reimplemented in G4AtimaEnergyLossModel, G4BetheBlochIonGasModel, G4BetheBlochModel, G4BraggIonGasModel, G4BraggModel, G4IonParametrisedLossModel, and G4LindhardSorensenIonModel.

Definition at line 331 of file G4VEmModel.cc.

{
  return p->GetPDGCharge();
}

◆ GetTripletModel()

G4VEmModel * G4VEmModel::GetTripletModel ( )

inline

Definition at line 619 of file G4VEmModel.hh.

{
  return fTripletModel;
}

Referenced by G4eBremsstrahlungRelModel::Initialise(), G4SeltzerBergerModel::Initialise(), and G4eBremsstrahlungRelModel::SampleSecondaries().

◆ HighEnergyActivationLimit()

G4double G4VEmModel::HighEnergyActivationLimit ( ) const

inline

Definition at line 650 of file G4VEmModel.hh.

{
  return eMaxActive;
}

Referenced by G4EmTableUtil::BuildMscProcess(), G4EmModelManager::DumpModelList(), G4EmModelManager::Initialise(), and G4WentzelVIModel::Initialise().

◆ HighEnergyLimit()

G4double G4VEmModel::HighEnergyLimit ( ) const

inline

Definition at line 636 of file G4VEmModel.hh.

{
  return highLimit;
}

◆ Initialise()

virtual void G4VEmModel::Initialise	(	const G4ParticleDefinition *	,
		const G4DataVector &	)

pure virtual

Referenced by G4eBremsstrahlungRelModel::Initialise().

◆ InitialiseElementSelectors()

void G4VEmModel::InitialiseElementSelectors	(	const G4ParticleDefinition *	part,
		const G4DataVector &	cuts )

Definition at line 135 of file G4VEmModel.cc.

{
  if(highLimit <= lowLimit) { return; }
  G4EmUtility::InitialiseElementSelectors(this,part,cuts,lowLimit,highLimit);
  localElmSelectors = true;
}

◆ InitialiseForElement()

void G4VEmModel::InitialiseForElement	(	const G4ParticleDefinition *	,
		G4int	Z )

virtual

Reimplemented in G4BoldyshevTripletModel, G4JAEAElasticScatteringModel, G4JAEAPolarizedElasticScatteringModel, G4LivermoreBremsstrahlungModel, G4LivermoreComptonModel, G4LivermoreGammaConversion5DModel, G4LivermoreGammaConversionModel, G4LivermoreNuclearGammaConversionModel, G4LivermorePolarizedComptonModel, G4LivermorePolarizedGammaConversionModel, G4LivermorePolarizedRayleighModel, G4LivermoreRayleighModel, G4LowEPComptonModel, and G4LowEPPolarizedComptonModel.

Definition at line 164 of file G4VEmModel.cc.

165{}

Referenced by InitialiseForMaterial().

◆ InitialiseForMaterial()

void G4VEmModel::InitialiseForMaterial	(	const G4ParticleDefinition *	part,
		const G4Material *	material )

virtual

Definition at line 150 of file G4VEmModel.cc.

{
  if(material != nullptr) {
    G4int n = (G4int)material->GetNumberOfElements();
    for(G4int i=0; i<n; ++i) {
      G4int Z = material->GetElement(i)->GetZasInt();
      InitialiseForElement(part, Z);
    }
  }
}

◆ InitialiseLocal()

void G4VEmModel::InitialiseLocal	(	const G4ParticleDefinition *	,
		G4VEmModel *	masterModel )

virtual

Reimplemented in G4BetheHeitlerModel, G4eBremParametrizedModel, G4eBremsstrahlungRelModel, G4eCoulombScatteringModel, G4eDPWACoulombScatteringModel, G4eSingleCoulombScatteringModel, G4GoudsmitSaundersonMscModel, G4hCoulombScatteringModel, G4JAEAElasticScatteringModel, G4JAEAPolarizedElasticScatteringModel, G4KleinNishinaCompton, G4KleinNishinaModel, G4LivermoreComptonModel, G4LivermoreNuclearGammaConversionModel, G4LivermorePolarizedComptonModel, G4LivermorePolarizedGammaConversionModel, G4LivermorePolarizedRayleighModel, G4LivermoreRayleighModel, G4LowEPComptonModel, G4LowEPPolarizedComptonModel, G4LowPAIH2O, G4MuBremsstrahlungModel, G4MuPairProductionModel, G4PAIModel, G4PAIPhotModel, G4PairProductionRelModel, G4PenelopeAnnihilationModel, G4PenelopeBremsstrahlungModel, G4PenelopeComptonModel, G4PenelopeGammaConversionModel, G4PenelopeIonisationModel, G4PenelopePhotoElectricModel, G4PenelopeRayleighModel, G4PenelopeRayleighModelMI, G4RiGeMuPairProductionModel, G4SeltzerBergerModel, and G4WentzelVIModel.

Definition at line 145 of file G4VEmModel.cc.

146{}

Referenced by G4EmTableUtil::BuildEmProcess(), G4EmTableUtil::BuildLocalElossProcess(), and G4EmTableUtil::BuildMscProcess().

◆ IsActive()

G4bool G4VEmModel::IsActive ( G4double kinEnergy ) const

inline

Definition at line 762 of file G4VEmModel.hh.

{
  return (kinEnergy >= eMinActive && kinEnergy <= eMaxActive);
}

Referenced by G4NuclearStopping::AlongStepDoIt(), and G4TransportationWithMsc::AlongStepGetPhysicalInteractionLength().

◆ IsLocked()

G4bool G4VEmModel::IsLocked ( ) const

inline

Definition at line 837 of file G4VEmModel.hh.

{
  return isLocked;
}

Referenced by G4DNACPA100ElasticModel::Initialise(), G4DNACPA100ExcitationModel::Initialise(), G4DNACPA100IonisationModel::Initialise(), G4DNAPTBElasticModel::Initialise(), G4DNAPTBExcitationModel::Initialise(), G4DNAPTBIonisationModel::Initialise(), G4UrbanMscModel::Initialise(), G4VMscModel::InitialiseParameters(), G4VMscModel::SetGeomFactor(), G4VMscModel::SetLambdaLimit(), G4VMscModel::SetLateralDisplasmentFlag(), G4VMscModel::SetRangeFactor(), G4VMscModel::SetSafetyFactor(), G4VMscModel::SetSampleZ(), G4VMscModel::SetSkin(), and G4VMscModel::SetStepLimitType().

◆ IsMaster()

G4bool G4VEmModel::IsMaster ( ) const

inline

Definition at line 713 of file G4VEmModel.hh.

{
  return isMaster;
}

◆ LowEnergyActivationLimit()

G4double G4VEmModel::LowEnergyActivationLimit ( ) const

inline

Definition at line 657 of file G4VEmModel.hh.

{
  return eMinActive;
}

Referenced by G4EmTableUtil::BuildMscProcess(), G4EmModelManager::DumpModelList(), G4EmModelManager::Initialise(), and G4WentzelVIModel::Initialise().

◆ LowEnergyLimit()

G4double G4VEmModel::LowEnergyLimit ( ) const

inline

Definition at line 643 of file G4VEmModel.hh.

{
  return lowLimit;
}

◆ MaxSecondaryEnergy()

G4double G4VEmModel::MaxSecondaryEnergy	(	const G4ParticleDefinition *	,
		G4double	kineticEnergy )

protectedvirtual

Reimplemented in G4AtimaEnergyLossModel, G4BetheBlochModel, G4BraggModel, G4ICRU73QOModel, G4IonParametrisedLossModel, G4LindhardSorensenIonModel, G4MollerBhabhaModel, G4mplIonisationWithDeltaModel, G4MuBetheBlochModel, G4PAIModel, and G4PAIPhotModel.

Definition at line 372 of file G4VEmModel.cc.

{
  return kineticEnergy;
}

Referenced by MaxSecondaryKinEnergy().

◆ MaxSecondaryKinEnergy()

G4double G4VEmModel::MaxSecondaryKinEnergy ( const G4DynamicParticle * dynParticle )

inline

Definition at line 503 of file G4VEmModel.hh.

{
  return MaxSecondaryEnergy(dynPart->GetParticleDefinition(),
                            dynPart->GetKineticEnergy());
}

Referenced by G4BraggModel::SampleSecondaries(), G4ICRU73QOModel::SampleSecondaries(), G4IonParametrisedLossModel::SampleSecondaries(), and G4PolarizedIonisationModel::SampleSecondaries().

◆ MinEnergyCut()

G4double G4VEmModel::MinEnergyCut	(	const G4ParticleDefinition *	,
		const G4MaterialCutsCouple *	)

virtual

Reimplemented in G4AtimaEnergyLossModel, G4BetheBlochModel, G4BraggModel, G4eBremParametrizedModel, G4IonParametrisedLossModel, G4LindhardSorensenIonModel, G4mplIonisationWithDeltaModel, G4MuBetheBlochModel, G4MuBremsstrahlungModel, G4PAIModel, G4PAIPhotModel, G4PenelopeBremsstrahlungModel, and G4PenelopeIonisationModel.

Definition at line 364 of file G4VEmModel.cc.

{
  return 0.0;
}

◆ MinPrimaryEnergy()

G4double G4VEmModel::MinPrimaryEnergy	(	const G4Material *	,
		const G4ParticleDefinition *	,
		G4double	cut = 0.0 )

virtual

Reimplemented in G4BoldyshevTripletModel, G4eBremsstrahlungRelModel, G4eCoulombScatteringModel, G4eDPWACoulombScatteringModel, G4hCoulombScatteringModel, G4LivermoreNuclearGammaConversionModel, G4LivermorePolarizedGammaConversionModel, G4MuBremsstrahlungModel, G4MuPairProductionModel, G4RiGeMuPairProductionModel, and G4SeltzerBergerModel.

Definition at line 355 of file G4VEmModel.cc.

{
  return 0.0;
}

Referenced by G4LossTableBuilder::BuildTableForModel(), and G4EmUtility::InitialiseElementSelectors().

◆ ModelDescription()

void G4VEmModel::ModelDescription ( std::ostream & outFile ) const

virtual

Reimplemented in G4eeToHadronsMultiModel.

Definition at line 423 of file G4VEmModel.cc.

{
  outFile << "The description for this model has not been written yet.\n";
}

◆ operator=()

G4VEmModel & G4VEmModel::operator= ( const G4VEmModel & right )

delete

◆ PolarAngleLimit()

G4double G4VEmModel::PolarAngleLimit ( ) const

inline

Definition at line 664 of file G4VEmModel.hh.

{
  return polarAngleLimit;
}

Referenced by G4eCoulombScatteringModel::Initialise(), G4eDPWACoulombScatteringModel::Initialise(), G4hCoulombScatteringModel::Initialise(), and G4WentzelVIModel::Initialise().

◆ SampleSecondaries()

virtual void G4VEmModel::SampleSecondaries	(	std::vector< G4DynamicParticle * > *	,
		const G4MaterialCutsCouple *	,
		const G4DynamicParticle *	,
		G4double	tmin = 0.0,
		G4double	tmax = DBL_MAX )

pure virtual

Referenced by G4TransportationWithMsc::AlongStepGetPhysicalInteractionLength(), and G4eBremsstrahlungRelModel::SampleSecondaries().

◆ SecondaryThreshold()

G4double G4VEmModel::SecondaryThreshold ( ) const

inline

Definition at line 671 of file G4VEmModel.hh.

{
  return secondaryThreshold;
}

Referenced by G4eBremParametrizedModel::SampleSecondaries(), G4eBremsstrahlungRelModel::SampleSecondaries(), G4LivermoreBremsstrahlungModel::SampleSecondaries(), G4MuBremsstrahlungModel::SampleSecondaries(), G4MuonToMuonPairProductionModel::SampleSecondaries(), G4MuPairProductionModel::SampleSecondaries(), G4RiGeMuPairProductionModel::SampleSecondaries(), and G4SeltzerBergerModel::SampleSecondaries().

◆ SelectIsotopeNumber()

G4int G4VEmModel::SelectIsotopeNumber ( const G4Element * elm ) const

Definition at line 273 of file G4VEmModel.cc.

{
  auto iso = GetCurrentIsotope(elm);
  return (nullptr != iso) ? iso->GetN() : 0;
}

Referenced by G4BetheHeitler5DModel::SampleSecondaries(), G4eCoulombScatteringModel::SampleSecondaries(), G4eSingleCoulombScatteringModel::SampleSecondaries(), G4hCoulombScatteringModel::SampleSecondaries(), and G4IonCoulombScatteringModel::SampleSecondaries().

◆ SelectRandomAtom() [1/2]

const G4Element * G4VEmModel::SelectRandomAtom	(	const G4Material *	mat,
		const G4ParticleDefinition *	pd,
		G4double	kineticEnergy,
		G4double	cutEnergy = 0.0,
		G4double	maxEnergy = DBL_MAX )

Definition at line 216 of file G4VEmModel.cc.

{
  G4int n = (G4int)mat->GetNumberOfElements();
  fCurrentElement = mat->GetElement(0);
  if (n > 1) {
    const G4double x = G4UniformRand()*
      G4VEmModel::CrossSectionPerVolume(mat,pd,kinEnergy,tcut,tmax);
    for(G4int i=0; i<n; ++i) {
      if (x <= xsec[i]) {
        fCurrentElement = mat->GetElement(i);
        break;
      }
    }
  }
  return fCurrentElement;
}

◆ SelectRandomAtom() [2/2]

const G4Element * G4VEmModel::SelectRandomAtom	(	const G4MaterialCutsCouple *	couple,
		const G4ParticleDefinition *	part,
		G4double	kineticEnergy,
		G4double	cutEnergy = 0.0,
		G4double	maxEnergy = DBL_MAX )

inline

Definition at line 563 of file G4VEmModel.hh.

{
  SetCurrentCouple(couple);
  fCurrentElement = (nSelectors > 0) ?
    ((*elmSelectors)[couple->GetIndex()])->SelectRandomAtom(kinEnergy) :
    SelectRandomAtom(pBaseMaterial,part,kinEnergy,cutEnergy,maxEnergy);
  return fCurrentElement;
}

◆ SelectRandomAtomNumber()

G4int G4VEmModel::SelectRandomAtomNumber ( const G4Material * mat ) const

Definition at line 250 of file G4VEmModel.cc.

{
  const G4Element* elm = GetCurrentElement(mat);
  return (nullptr == elm) ? 0 : elm->GetZasInt();
}

Referenced by G4AtimaEnergyLossModel::SampleSecondaries(), G4BetheBlochModel::SampleSecondaries(), G4BraggModel::SampleSecondaries(), G4ICRU73QOModel::SampleSecondaries(), G4IonParametrisedLossModel::SampleSecondaries(), G4LindhardSorensenIonModel::SampleSecondaries(), G4MollerBhabhaModel::SampleSecondaries(), and G4MuBetheBlochModel::SampleSecondaries().

◆ SelectTargetAtom()

const G4Element * G4VEmModel::SelectTargetAtom	(	const G4MaterialCutsCouple *	couple,
		const G4ParticleDefinition *	part,
		G4double	kineticEnergy,
		G4double	logKineticEnergy,
		G4double	cutEnergy = 0.0,
		G4double	maxEnergy = DBL_MAX )

inline

Definition at line 579 of file G4VEmModel.hh.

{
  SetCurrentCouple(couple);
  fCurrentElement = (nSelectors > 0)
   ? ((*elmSelectors)[couple->GetIndex()])->SelectRandomAtom(kinEnergy,logKinE)
   : SelectRandomAtom(pBaseMaterial,part,kinEnergy,cutEnergy,maxEnergy);
  return fCurrentElement;
}

◆ SetActivationHighEnergyLimit()

void G4VEmModel::SetActivationHighEnergyLimit ( G4double val )

inline

Definition at line 748 of file G4VEmModel.hh.

{
  eMaxActive = val;
}

Referenced by G4NuclearStopping::InitialiseProcess(), and G4EmConfigurator::SetExtraEmModel().

◆ SetActivationLowEnergyLimit()

void G4VEmModel::SetActivationLowEnergyLimit ( G4double val )

inline

Definition at line 755 of file G4VEmModel.hh.

{
  eMinActive = val;
}

Referenced by G4EmLivermorePhysics::ConstructProcess(), G4EmLowEPPhysics::ConstructProcess(), G4EmPenelopePhysics::ConstructProcess(), G4EmStandardPhysics::ConstructProcess(), G4EmStandardPhysics_option1::ConstructProcess(), G4EmStandardPhysics_option2::ConstructProcess(), G4EmStandardPhysics_option4::ConstructProcess(), G4EmStandardPhysicsGS::ConstructProcess(), G4EmStandardPhysicsWVI::ConstructProcess(), and G4EmDNABuilder::ConstructStandardEmPhysics().

◆ SetAngularDistribution()

void G4VEmModel::SetAngularDistribution ( G4VEmAngularDistribution * p )

inline

Definition at line 609 of file G4VEmModel.hh.

{
  if(p != anglModel) {
    delete anglModel;
    anglModel = p;
  }
}

Referenced by G4EmLivermorePhysics::ConstructProcess(), G4EmLowEPPhysics::ConstructProcess(), G4EmStandardPhysics::ConstructProcess(), G4EmStandardPhysics_option3::ConstructProcess(), G4EmStandardPhysics_option4::ConstructProcess(), G4EmStandardPhysicsGS::ConstructProcess(), G4EmStandardPhysicsSS::ConstructProcess(), G4BetheHeitlerModel::G4BetheHeitlerModel(), G4DNABornIonisationModel::G4DNABornIonisationModel(), G4DNABornIonisationModel1::G4DNABornIonisationModel1(), G4DNABornIonisationModel2::G4DNABornIonisationModel2(), G4DNADoubleIonisationModel::G4DNADoubleIonisationModel(), G4DNAEmfietzoglouIonisationModel::G4DNAEmfietzoglouIonisationModel(), G4DNARPWBAIonisationModel::G4DNARPWBAIonisationModel(), G4DNARuddIonisationDynamicModel::G4DNARuddIonisationDynamicModel(), G4DNARuddIonisationExtendedModel::G4DNARuddIonisationExtendedModel(), G4DNARuddIonisationModel::G4DNARuddIonisationModel(), G4eBremParametrizedModel::G4eBremParametrizedModel(), G4eBremsstrahlungRelModel::G4eBremsstrahlungRelModel(), G4IonParametrisedLossModel::G4IonParametrisedLossModel(), G4LivermoreBremsstrahlungModel::G4LivermoreBremsstrahlungModel(), G4LivermoreIonisationModel::G4LivermoreIonisationModel(), G4LivermorePhotoElectricModel::G4LivermorePhotoElectricModel(), G4LivermoreRayleighModel::G4LivermoreRayleighModel(), G4MicroElecInelasticModel::G4MicroElecInelasticModel(), G4MicroElecInelasticModel_new::G4MicroElecInelasticModel_new(), G4MuBremsstrahlungModel::G4MuBremsstrahlungModel(), G4MuPairProductionModel::G4MuPairProductionModel(), G4PAIModel::G4PAIModel(), G4PAIPhotModel::G4PAIPhotModel(), G4PairProductionRelModel::G4PairProductionRelModel(), G4PEEffectFluoModel::G4PEEffectFluoModel(), G4RiGeMuPairProductionModel::G4RiGeMuPairProductionModel(), G4SeltzerBergerModel::G4SeltzerBergerModel(), G4AtimaEnergyLossModel::Initialise(), G4BetheBlochModel::Initialise(), G4BraggModel::Initialise(), G4ICRU73QOModel::Initialise(), G4LindhardSorensenIonModel::Initialise(), G4MollerBhabhaModel::Initialise(), and G4MuBetheBlochModel::Initialise().

◆ SetAngularGeneratorFlag()

void G4VEmModel::SetAngularGeneratorFlag ( G4bool val )

inline

Definition at line 699 of file G4VEmModel.hh.

{
  useAngularGenerator = val;
}

Referenced by G4EmTableUtil::UpdateModels().

◆ SetCrossSectionTable()

void G4VEmModel::SetCrossSectionTable	(	G4PhysicsTable *	p,
		G4bool	isLocal )

Definition at line 397 of file G4VEmModel.cc.

{
  xSectionTable = p;
  localTable = isLocal;
}

Referenced by G4EmTableUtil::BuildMscProcess(), and G4TransportationWithMsc::BuildPhysicsTable().

◆ SetCurrentCouple()

void G4VEmModel::SetCurrentCouple ( const G4MaterialCutsCouple * ptr )

inline

Definition at line 470 of file G4VEmModel.hh.

{
  if(fCurrentCouple != ptr) {
    fCurrentCouple = ptr;
    basedCoupleIndex = currentCoupleIndex = ptr->GetIndex();
    pBaseMaterial = ptr->GetMaterial();
    pFactor = 1.0;
    if(useBaseMaterials) {
      basedCoupleIndex = (*theDensityIdx)[currentCoupleIndex];
      if(nullptr != pBaseMaterial->GetBaseMaterial())
    pBaseMaterial = pBaseMaterial->GetBaseMaterial();
      pFactor = (*theDensityFactor)[currentCoupleIndex];
    }
  }
}

Referenced by G4TransportationWithMsc::AlongStepGetPhysicalInteractionLength(), G4EmMultiModel::ComputeCrossSectionPerAtom(), ComputeDEDX(), G4GoudsmitSaundersonMscModel::ComputeTruePathLengthLimit(), G4UrbanAdjointMscModel::ComputeTruePathLengthLimit(), G4UrbanMscModel::ComputeTruePathLengthLimit(), CrossSection(), G4WentzelVIModel::DefineMaterial(), G4WentzelVIRelModel::DefineMaterial(), G4EmCalculator::GetCrossSectionPerVolume(), G4EmUtility::InitialiseElementSelectors(), G4EmMultiModel::SampleSecondaries(), G4PEEffectFluoModel::SampleSecondaries(), G4VEmProcess::SelectModel(), SelectRandomAtom(), SelectTargetAtom(), and Value().

◆ SetCurrentElement()

void G4VEmModel::SetCurrentElement ( const G4Element * elm )

inlineprotected

Definition at line 495 of file G4VEmModel.hh.

{
  fCurrentElement = elm;
}

Referenced by G4eBremParametrizedModel::ComputeDEDXPerVolume(), G4eBremsstrahlungRelModel::ComputeDEDXPerVolume(), and G4SeltzerBergerModel::ComputeDEDXPerVolume().

◆ SetDeexcitationFlag()

void G4VEmModel::SetDeexcitationFlag ( G4bool val )

inline

Definition at line 783 of file G4VEmModel.hh.

{
  flagDeexcitation = val;
}

◆ SetElementSelectors()

void G4VEmModel::SetElementSelectors ( std::vector< G4EmElementSelector * > * p )

inline

Definition at line 812 of file G4VEmModel.hh.

{
  if(p != elmSelectors) {
    elmSelectors = p;
    nSelectors = (nullptr != elmSelectors) ? G4int(elmSelectors->size()) : 0;
    localElmSelectors = false;
  }
}

◆ SetFluctuationFlag()

void G4VEmModel::SetFluctuationFlag ( G4bool val )

inline

Definition at line 706 of file G4VEmModel.hh.

{
  lossFlucFlag = val;
}

Referenced by G4EmCalculator::ComputeNuclearDEDX().

◆ SetForceBuildTable()

void G4VEmModel::SetForceBuildTable ( G4bool val )

inline

Definition at line 790 of file G4VEmModel.hh.

{
  flagForceBuildTable = val;
}

◆ SetHighEnergyLimit()

void G4VEmModel::SetHighEnergyLimit ( G4double val )

inline

Definition at line 734 of file G4VEmModel.hh.

{
  highLimit = val;
}

◆ SetLocked()

void G4VEmModel::SetLocked ( G4bool val )

inline

Definition at line 844 of file G4VEmModel.hh.

{
  isLocked = val;
}

◆ SetLowEnergyLimit()

void G4VEmModel::SetLowEnergyLimit ( G4double val )

inline

Definition at line 741 of file G4VEmModel.hh.

{
  lowLimit = val;
}

◆ SetLPMFlag()

void G4VEmModel::SetLPMFlag ( G4bool )

Definition at line 405 of file G4VEmModel.cc.

{
  if (G4EmParameters::Instance()->Verbose() > 0) {
    G4ExceptionDescription ed;
    ed << "The obsolete method SetLPMFlag(..) of the model class " << GetName()
       << " is called. Please, use G4EmParameters::Instance()->SetLPM(..)"
       << " instead";
    G4Exception("G4VEmModel::SetLPMFlag", "em0001", JustWarning, ed);
  }
}

◆ SetMasterThread()

void G4VEmModel::SetMasterThread ( G4bool )

Definition at line 418 of file G4VEmModel.cc.

419{}

◆ SetParticleChange()

void G4VEmModel::SetParticleChange	(	G4VParticleChange *	p,
		G4VEmFluctuationModel *	f = nullptr )

Definition at line 389 of file G4VEmModel.cc.

{
  if(p != nullptr && pParticleChange != p) { pParticleChange = p; }
  if(flucModel != f) { flucModel = f; }
}

Referenced by G4VEmProcess::AddEmModel(), G4VEnergyLossProcess::AddEmModel(), G4VMultipleScattering::AddEmModel(), G4TransportationWithMsc::AddMscModel(), G4TransportationWithMsc::AddSSModel(), G4EmMultiModel::Initialise(), and G4NuclearStopping::InitialiseProcess().

◆ SetPolarAngleLimit()

void G4VEmModel::SetPolarAngleLimit ( G4double val )

inline

Definition at line 769 of file G4VEmModel.hh.

{
  if(!isLocked) { polarAngleLimit = val; }
}

Referenced by G4TransportationWithMsc::AddSSModel(), G4CoulombScattering::InitialiseProcess(), G4EmTableUtil::PrepareEmProcess(), G4EmTableUtil::PrepareMscProcess(), and G4TransportationWithMsc::PreparePhysicsTable().

◆ SetSecondaryThreshold()

void G4VEmModel::SetSecondaryThreshold ( G4double val )

inline

Definition at line 776 of file G4VEmModel.hh.

{
  secondaryThreshold = val;
}

Referenced by G4eBremsstrahlung::InitialiseEnergyLossProcess(), G4MuBremsstrahlung::InitialiseEnergyLossProcess(), G4MuonToMuonPairProduction::InitialiseEnergyLossProcess(), and G4MuPairProduction::InitialiseEnergyLossProcess().

◆ SetTripletModel()

void G4VEmModel::SetTripletModel ( G4VEmModel * p )

inline

Definition at line 626 of file G4VEmModel.hh.

{
  if(p != fTripletModel) {
    delete fTripletModel;
    fTripletModel = p;
  }
}

Referenced by G4eplusTo2or3GammaModel::G4eplusTo2or3GammaModel().

◆ SetupForMaterial()

void G4VEmModel::SetupForMaterial	(	const G4ParticleDefinition *	p,
		const G4Material *	mat,
		G4double	kineticEnergy )

virtual

Reimplemented in G4eBremParametrizedModel, G4eBremsstrahlungRelModel, G4PairProductionRelModel, and G4SeltzerBergerModel.

Definition at line 380 of file G4VEmModel.cc.

{
  GetChargeSquareRatio(p, mat, ekin);
}

Referenced by G4PenelopeBremsstrahlungModel::CrossSectionPerVolume(), G4PenelopeComptonModel::CrossSectionPerVolume(), G4PenelopeIonisationModel::CrossSectionPerVolume(), and CrossSectionPerVolume().

◆ SetUseBaseMaterials()

void G4VEmModel::SetUseBaseMaterials ( G4bool val )

inline

Definition at line 720 of file G4VEmModel.hh.

{
  useBaseMaterials = val;
}

Referenced by G4EmTableUtil::BuildEmProcess(), G4EmTableUtil::BuildLocalElossProcess(), G4EmTableUtil::BuildMscProcess(), G4EmTableUtil::PrepareMscProcess(), and G4EmTableUtil::UpdateModels().

◆ StartTracking()

void G4VEmModel::StartTracking ( G4Track * )

virtual

Reimplemented in G4DNABornIonisationModel1, G4DNABornIonisationModel, G4DNAGeneralIonIonisationModel, G4DNAIonChargeDecreaseModel, G4DNAIonChargeIncreaseModel, G4DNARuddIonisationDynamicModel, G4GoudsmitSaundersonMscModel, G4UrbanAdjointMscModel, G4UrbanMscModel, and G4WentzelVIModel.

Definition at line 211 of file G4VEmModel.cc.

212{}

Referenced by G4TransportationWithMsc::StartTracking(), and G4VMultipleScattering::StartTracking().

◆ UseAngularGeneratorFlag()

G4bool G4VEmModel::UseAngularGeneratorFlag ( ) const

inline

Definition at line 692 of file G4VEmModel.hh.

{
  return useAngularGenerator;
}

Referenced by G4AtimaEnergyLossModel::Initialise(), G4BetheBlochModel::Initialise(), G4BraggModel::Initialise(), G4ICRU73QOModel::Initialise(), G4LindhardSorensenIonModel::Initialise(), G4MollerBhabhaModel::Initialise(), G4MuBetheBlochModel::Initialise(), G4AtimaEnergyLossModel::SampleSecondaries(), G4BetheBlochModel::SampleSecondaries(), G4BraggModel::SampleSecondaries(), G4ICRU73QOModel::SampleSecondaries(), G4LindhardSorensenIonModel::SampleSecondaries(), G4MollerBhabhaModel::SampleSecondaries(), and G4MuBetheBlochModel::SampleSecondaries().

◆ UseBaseMaterials()

G4bool G4VEmModel::UseBaseMaterials ( ) const

inline

Definition at line 727 of file G4VEmModel.hh.

{
  return useBaseMaterials;
}

◆ Value()

G4double G4VEmModel::Value	(	const G4MaterialCutsCouple *	couple,
		const G4ParticleDefinition *	p,
		G4double	kineticEnergy )

virtual

Definition at line 346 of file G4VEmModel.cc.

{
  SetCurrentCouple(couple);
  return pFactor*e*e*CrossSectionPerVolume(pBaseMaterial,p,e,0.0,DBL_MAX);
}

Referenced by G4LossTableBuilder::BuildTableForModel(), G4IonParametrisedLossModel::ComputeLossForStep(), G4DNABornExcitationModel2::GetPartialCrossSection(), G4DNABornExcitationModel2::Initialise(), and G4LivermoreBremsstrahlungModel::SampleSecondaries().

Member Data Documentation

◆ basedCoupleIndex

std::size_t G4VEmModel::basedCoupleIndex = 0

protected

Definition at line 447 of file G4VEmModel.hh.

Referenced by G4VMscModel::GetTransportMeanFreePath(), G4VMscModel::GetTransportMeanFreePath(), and SetCurrentCouple().

◆ currentCoupleIndex

std::size_t G4VEmModel::currentCoupleIndex = 0

protected

Definition at line 446 of file G4VEmModel.hh.

Referenced by SetCurrentCouple().

◆ fElementData

G4ElementData* G4VEmModel::fElementData = nullptr

protected

Definition at line 422 of file G4VEmModel.hh.

Referenced by G4MuPairProductionModel::FindScaledEnergy(), G4RiGeMuPairProductionModel::FindScaledEnergy(), GetElementData(), G4MuPairProductionModel::Initialise(), G4RiGeMuPairProductionModel::Initialise(), G4MuPairProductionModel::MakeSamplingTables(), G4RiGeMuPairProductionModel::MakeSamplingTables(), G4MuPairProductionModel::RetrieveTables(), G4RiGeMuPairProductionModel::RetrieveTables(), G4MuPairProductionModel::StoreTables(), and G4RiGeMuPairProductionModel::StoreTables().

◆ inveplus

G4double G4VEmModel::inveplus

protected

Definition at line 429 of file G4VEmModel.hh.

Referenced by G4VEmModel(), GetChargeSquareRatio(), G4VMscModel::GetDEDX(), G4VMscModel::GetDEDX(), G4VMscModel::GetEnergy(), G4VMscModel::GetRange(), and G4VMscModel::GetRange().

◆ lossFlucFlag

G4bool G4VEmModel::lossFlucFlag = true

protected

Definition at line 448 of file G4VEmModel.hh.

Referenced by SetFluctuationFlag().

◆ pBaseMaterial

const G4Material* G4VEmModel::pBaseMaterial = nullptr

protected

Definition at line 425 of file G4VEmModel.hh.

Referenced by ComputeDEDX(), CrossSection(), G4VMscModel::GetTransportMeanFreePath(), G4VMscModel::GetTransportMeanFreePath(), SelectRandomAtom(), SelectTargetAtom(), SetCurrentCouple(), and Value().

◆ pFactor

G4double G4VEmModel::pFactor = 1.0

protected

Definition at line 430 of file G4VEmModel.hh.

Referenced by ComputeDEDX(), CrossSection(), G4VMscModel::GetTransportMeanFreePath(), G4VMscModel::GetTransportMeanFreePath(), SetCurrentCouple(), and Value().

◆ pParticleChange

G4VParticleChange* G4VEmModel::pParticleChange = nullptr

protected

Definition at line 423 of file G4VEmModel.hh.

Referenced by GetParticleChangeForGamma(), GetParticleChangeForLoss(), G4VMscModel::GetParticleChangeForMSC(), G4EmMultiModel::Initialise(), SetParticleChange(), and ~G4VEmModel().

◆ theDensityFactor

const std::vector<G4double>* G4VEmModel::theDensityFactor = nullptr

protected

Definition at line 426 of file G4VEmModel.hh.

Referenced by G4VEmModel().

◆ theDensityIdx

const std::vector<G4int>* G4VEmModel::theDensityIdx = nullptr

protected

Definition at line 427 of file G4VEmModel.hh.

Referenced by G4VEmModel().

◆ xSectionTable

G4PhysicsTable* G4VEmModel::xSectionTable = nullptr

protected

Definition at line 424 of file G4VEmModel.hh.

Referenced by GetCrossSectionTable(), G4VMscModel::GetTransportMeanFreePath(), G4VMscModel::GetTransportMeanFreePath(), SetCrossSectionTable(), and ~G4VEmModel().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ G4VEmModel() [1/2]

◆ ~G4VEmModel()

◆ G4VEmModel() [2/2]

Member Function Documentation

◆ ChargeSquareRatio()

◆ ComputeCrossSectionPerAtom() [1/2]

◆ ComputeCrossSectionPerAtom() [2/2]

◆ ComputeCrossSectionPerShell()

◆ ComputeDEDX()

◆ ComputeDEDXPerVolume()

◆ ComputeMeanFreePath()

◆ CorrectionsAlongStep()

◆ CrossSection()

◆ CrossSectionPerVolume()

◆ CurrentCouple()

◆ DeexcitationFlag()

◆ DefineForRegion()

◆ FillNumberOfSecondaries()

◆ ForceBuildTableFlag()

◆ GetAngularDistribution()

◆ GetChargeSquareRatio()

◆ GetCrossSectionTable()

◆ GetCurrentElement()

◆ GetCurrentIsotope()

◆ GetElementData()

◆ GetElementSelectors()

◆ GetModelOfFluctuations()

◆ GetName()

◆ GetPartialCrossSection()

◆ GetParticleChangeForGamma()

◆ GetParticleChangeForLoss()

◆ GetParticleCharge()

◆ GetTripletModel()

◆ HighEnergyActivationLimit()

◆ HighEnergyLimit()

◆ Initialise()

◆ InitialiseElementSelectors()

◆ InitialiseForElement()

◆ InitialiseForMaterial()

◆ InitialiseLocal()

◆ IsActive()

◆ IsLocked()

◆ IsMaster()

◆ LowEnergyActivationLimit()

◆ LowEnergyLimit()

◆ MaxSecondaryEnergy()

◆ MaxSecondaryKinEnergy()

◆ MinEnergyCut()

◆ MinPrimaryEnergy()

◆ ModelDescription()

◆ operator=()

◆ PolarAngleLimit()

◆ SampleSecondaries()

◆ SecondaryThreshold()

◆ SelectIsotopeNumber()

◆ SelectRandomAtom() [1/2]

◆ SelectRandomAtom() [2/2]

◆ SelectRandomAtomNumber()

◆ SelectTargetAtom()

◆ SetActivationHighEnergyLimit()

◆ SetActivationLowEnergyLimit()

◆ SetAngularDistribution()

◆ SetAngularGeneratorFlag()

◆ SetCrossSectionTable()

◆ SetCurrentCouple()

◆ SetCurrentElement()

◆ SetDeexcitationFlag()

◆ SetElementSelectors()

◆ SetFluctuationFlag()

◆ SetForceBuildTable()

◆ SetHighEnergyLimit()

◆ SetLocked()

◆ SetLowEnergyLimit()

◆ SetLPMFlag()

◆ SetMasterThread()
