G4VEmFluctuationModel Class Reference

#include <G4VEmFluctuationModel.hh>

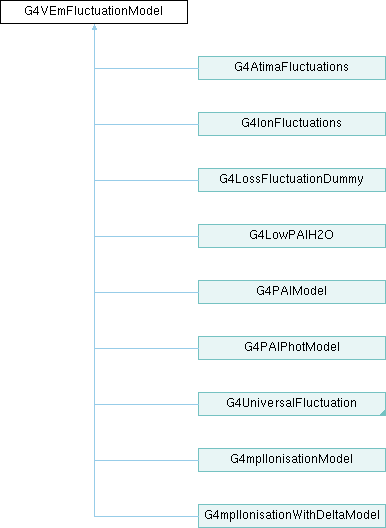

Inheritance diagram for G4VEmFluctuationModel:

Public Member Functions
	G4VEmFluctuationModel (const G4String &nam)
virtual	~G4VEmFluctuationModel ()
virtual G4double	SampleFluctuations (const G4MaterialCutsCouple *, const G4DynamicParticle *, const G4double tcut, const G4double tmax, const G4double length, const G4double meanLoss)=0
virtual G4double	Dispersion (const G4Material *, const G4DynamicParticle *, const G4double tcut, const G4double tmax, const G4double length)=0
virtual void	InitialiseMe (const G4ParticleDefinition *)
virtual void	SetParticleAndCharge (const G4ParticleDefinition *, G4double q2)
const G4String &	GetName () const
G4VEmFluctuationModel &	operator= (const G4VEmFluctuationModel &right)=delete
	G4VEmFluctuationModel (const G4VEmFluctuationModel &)=delete

Detailed Description

Definition at line 67 of file G4VEmFluctuationModel.hh.

Constructor & Destructor Documentation

G4VEmFluctuationModel() [1/2]

G4VEmFluctuationModel::G4VEmFluctuationModel ( const G4String & nam )

explicit

Definition at line 55 of file G4VEmFluctuationModel.cc.

  : name(nam)
{
  fManager = G4LossTableManager::Instance();
  fManager->Register(this);
}

Referenced by Dispersion(), G4AtimaFluctuations::G4AtimaFluctuations(), G4IonFluctuations::G4IonFluctuations(), G4LossFluctuationDummy::G4LossFluctuationDummy(), G4LowPAIH2O::G4LowPAIH2O(), G4mplIonisationModel::G4mplIonisationModel(), G4mplIonisationWithDeltaModel::G4mplIonisationWithDeltaModel(), G4PAIModel::G4PAIModel(), G4PAIPhotModel::G4PAIPhotModel(), G4UniversalFluctuation::G4UniversalFluctuation(), G4VEmFluctuationModel(), and operator=().

~G4VEmFluctuationModel()

G4VEmFluctuationModel::~G4VEmFluctuationModel ( )

virtual

Definition at line 62 of file G4VEmFluctuationModel.cc.

{
  fManager->DeRegister(this);
}

G4VEmFluctuationModel() [2/2]

G4VEmFluctuationModel::G4VEmFluctuationModel ( const G4VEmFluctuationModel & )

delete

Member Function Documentation

Dispersion()

virtual G4double G4VEmFluctuationModel::Dispersion ( const G4Material * , const G4DynamicParticle * , const G4double tcut, const G4double tmax, const G4double length )

pure virtual

Implemented in G4AtimaFluctuations, G4DynamicParticleFluctuation, G4IonFluctuations, G4LossFluctuationDummy, G4LowPAIH2O, G4mplIonisationModel, G4mplIonisationWithDeltaModel, G4PAIModel, G4PAIPhotModel, and G4UniversalFluctuation.

Referenced by G4VEnergyLossProcess::GetDEDXDispersion().

GetName()

const G4String & G4VEmFluctuationModel::GetName ( ) const

inline

Definition at line 121 of file G4VEmFluctuationModel.hh.

{
  return name;
}

Referenced by G4LossTableManager::Register().

InitialiseMe()

void G4VEmFluctuationModel::InitialiseMe ( const G4ParticleDefinition * )

virtual

Reimplemented in G4AtimaFluctuations, G4IonFluctuations, and G4UniversalFluctuation.

Definition at line 67 of file G4VEmFluctuationModel.cc.

{}

operator=()

G4VEmFluctuationModel & G4VEmFluctuationModel::operator= ( const G4VEmFluctuationModel & right )

delete

SampleFluctuations()

virtual G4double G4VEmFluctuationModel::SampleFluctuations ( const G4MaterialCutsCouple * , const G4DynamicParticle * , const G4double tcut, const G4double tmax, const G4double length, const G4double meanLoss )

pure virtual

Implemented in G4AtimaFluctuations, G4DynamicParticleFluctuation, G4IonFluctuations, G4LossFluctuationDummy, G4LowPAIH2O, G4mplIonisationModel, G4mplIonisationWithDeltaModel, G4PAIModel, G4PAIPhotModel, and G4UniversalFluctuation.

Referenced by G4VEnergyLossProcess::AlongStepDoIt().

SetParticleAndCharge()

void G4VEmFluctuationModel::SetParticleAndCharge ( const G4ParticleDefinition * , G4double q2 )

virtual

Reimplemented in G4AtimaFluctuations, G4IonFluctuations, G4LossFluctuationDummy, and G4UniversalFluctuation.

Definition at line 70 of file G4VEmFluctuationModel.cc.

{}

Referenced by G4IonParametrisedLossModel::CorrectionsAlongStep().

---

The documentation for this class was generated from the following files:

• G4VEmFluctuationModel.hh
• G4VEmFluctuationModel.cc
