G4VIntraNuclearTransportModel Class Reference

#include <G4VIntraNuclearTransportModel.hh>

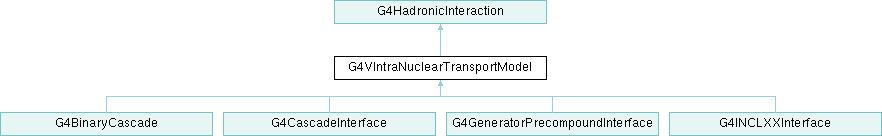

Inheritance diagram for G4VIntraNuclearTransportModel:

Public Member Functions
	G4VIntraNuclearTransportModel (const G4String &mName="CascadeModel", G4VPreCompoundModel *ptr=nullptr)
virtual	~G4VIntraNuclearTransportModel ()
virtual G4ReactionProductVector *	Propagate (G4KineticTrackVector *theSecondaries, G4V3DNucleus *theNucleus)=0
virtual G4ReactionProductVector *	PropagateNuclNucl (G4KineticTrackVector *theSecondaries, G4V3DNucleus *theNucleus, G4V3DNucleus *theProjectileNucleus)
void	SetDeExcitation (G4VPreCompoundModel *ptr)
void	Set3DNucleus (G4V3DNucleus *const value)
void	SetPrimaryProjectile (const G4HadProjectile &aPrimary)
const G4String &	GetModelName () const
virtual void	ModelDescription (std::ostream &outFile) const
virtual void	PropagateModelDescription (std::ostream &outFile) const
	G4VIntraNuclearTransportModel (const G4VIntraNuclearTransportModel &right)=delete
const G4VIntraNuclearTransportModel &	operator= (const G4VIntraNuclearTransportModel &right)=delete
G4bool	operator== (const G4VIntraNuclearTransportModel &right) const =delete
G4bool	operator!= (const G4VIntraNuclearTransportModel &right) const =delete
Public Member Functions inherited from G4HadronicInteraction
	G4HadronicInteraction (const G4String &modelName="HadronicModel")
virtual	~G4HadronicInteraction ()
virtual G4HadFinalState *	ApplyYourself (const G4HadProjectile &aTrack, G4Nucleus &targetNucleus)
virtual G4double	SampleInvariantT (const G4ParticleDefinition *p, G4double plab, G4int Z, G4int A)
virtual G4bool	IsApplicable (const G4HadProjectile &aTrack, G4Nucleus &targetNucleus)
G4double	GetMinEnergy () const
G4double	GetMinEnergy (const G4Material *aMaterial, const G4Element *anElement) const
void	SetMinEnergy (G4double anEnergy)
void	SetMinEnergy (G4double anEnergy, const G4Element *anElement)
void	SetMinEnergy (G4double anEnergy, const G4Material *aMaterial)
G4double	GetMaxEnergy () const
G4double	GetMaxEnergy (const G4Material *aMaterial, const G4Element *anElement) const
void	SetMaxEnergy (const G4double anEnergy)
void	SetMaxEnergy (G4double anEnergy, const G4Element *anElement)
void	SetMaxEnergy (G4double anEnergy, const G4Material *aMaterial)
G4int	GetVerboseLevel () const
void	SetVerboseLevel (G4int value)
const G4String &	GetModelName () const
void	DeActivateFor (const G4Material *aMaterial)
void	ActivateFor (const G4Material *aMaterial)
void	DeActivateFor (const G4Element *anElement)
void	ActivateFor (const G4Element *anElement)
G4bool	IsBlocked (const G4Material *aMaterial) const
G4bool	IsBlocked (const G4Element *anElement) const
void	SetRecoilEnergyThreshold (G4double val)
G4double	GetRecoilEnergyThreshold () const
virtual const std::pair< G4double, G4double >	GetFatalEnergyCheckLevels () const
virtual std::pair< G4double, G4double >	GetEnergyMomentumCheckLevels () const
void	SetEnergyMomentumCheckLevels (G4double relativeLevel, G4double absoluteLevel)
virtual void	BuildPhysicsTable (const G4ParticleDefinition &)
virtual void	InitialiseModel ()
	G4HadronicInteraction (const G4HadronicInteraction &right)=delete
const G4HadronicInteraction &	operator= (const G4HadronicInteraction &right)=delete
G4bool	operator== (const G4HadronicInteraction &right) const =delete
G4bool	operator!= (const G4HadronicInteraction &right) const =delete

Protected Member Functions
G4V3DNucleus *	Get3DNucleus () const
G4VPreCompoundModel *	GetDeExcitation () const
const G4HadProjectile *	GetPrimaryProjectile () const
Protected Member Functions inherited from G4HadronicInteraction
void	SetModelName (const G4String &nam)
G4bool	IsBlocked () const
void	Block ()

Protected Attributes
G4String	theTransportModelName
G4V3DNucleus *	the3DNucleus
G4VPreCompoundModel *	theDeExcitation
const G4HadProjectile *	thePrimaryProjectile
Protected Attributes inherited from G4HadronicInteraction
G4HadFinalState	theParticleChange
G4int	verboseLevel
G4double	theMinEnergy
G4double	theMaxEnergy
G4bool	isBlocked

Detailed Description

Definition at line 63 of file G4VIntraNuclearTransportModel.hh.

Constructor & Destructor Documentation

G4VIntraNuclearTransportModel() [1/2]

G4VIntraNuclearTransportModel::G4VIntraNuclearTransportModel ( const G4String & mName = "CascadeModel", G4VPreCompoundModel * ptr = nullptr )

explicit

Definition at line 41 of file G4VIntraNuclearTransportModel.cc.

  : G4HadronicInteraction(modName),theTransportModelName(modName),
    the3DNucleus(nullptr),theDeExcitation(ptr),thePrimaryProjectile(nullptr)
{}

Referenced by G4BinaryCascade::G4BinaryCascade(), G4CascadeInterface::G4CascadeInterface(), G4INCLXXInterface::G4INCLXXInterface(), G4VIntraNuclearTransportModel(), operator!=(), operator=(), and operator==().

~G4VIntraNuclearTransportModel()

G4VIntraNuclearTransportModel::~G4VIntraNuclearTransportModel ( )

virtual

Definition at line 47 of file G4VIntraNuclearTransportModel.cc.

{}

G4VIntraNuclearTransportModel() [2/2]

G4VIntraNuclearTransportModel::G4VIntraNuclearTransportModel ( const G4VIntraNuclearTransportModel & right )

delete

Member Function Documentation

Get3DNucleus()

G4V3DNucleus * G4VIntraNuclearTransportModel::Get3DNucleus ( ) const

inlineprotected

Definition at line 119 of file G4VIntraNuclearTransportModel.hh.

{
  return the3DNucleus;
}

GetDeExcitation()

G4VPreCompoundModel * G4VIntraNuclearTransportModel::GetDeExcitation ( ) const

inlineprotected

Definition at line 129 of file G4VIntraNuclearTransportModel.hh.

{
  return theDeExcitation;
}

Referenced by G4BinaryCascade::G4BinaryCascade().

GetModelName()

const G4String & G4VIntraNuclearTransportModel::GetModelName ( ) const

inline

Definition at line 114 of file G4VIntraNuclearTransportModel.hh.

{
  return theTransportModelName;
}

GetPrimaryProjectile()

const G4HadProjectile * G4VIntraNuclearTransportModel::GetPrimaryProjectile ( ) const

inlineprotected

Definition at line 142 of file G4VIntraNuclearTransportModel.hh.

{
  return thePrimaryProjectile;
}

Referenced by G4CascadeInterface::Propagate(), G4GeneratorPrecompoundInterface::Propagate(), and G4GeneratorPrecompoundInterface::PropagateNuclNucl().

ModelDescription()

void G4VIntraNuclearTransportModel::ModelDescription ( std::ostream & outFile ) const

virtual

Reimplemented from G4HadronicInteraction.

Reimplemented in G4BinaryCascade, G4CascadeInterface, and G4INCLXXInterface.

Definition at line 50 of file G4VIntraNuclearTransportModel.cc.

{
  outFile << "G4VIntraNuclearTransportModel is abstract class.\n";
  G4Exception("G4VIntraNuclearTransportModel::ModelDescription()","G4VINT01",
              FatalException,
              "G4VIntraNuclearTransportModel is abstract class, no description available");
}

operator!=()

G4bool G4VIntraNuclearTransportModel::operator!= ( const G4VIntraNuclearTransportModel & right ) const

delete

operator=()

const G4VIntraNuclearTransportModel & G4VIntraNuclearTransportModel::operator= ( const G4VIntraNuclearTransportModel & right )

delete

operator==()

G4bool G4VIntraNuclearTransportModel::operator== ( const G4VIntraNuclearTransportModel & right ) const

delete

Propagate()

virtual G4ReactionProductVector * G4VIntraNuclearTransportModel::Propagate ( G4KineticTrackVector * theSecondaries, G4V3DNucleus * theNucleus )

pure virtual

Implemented in G4BinaryCascade, G4CascadeInterface, G4GeneratorPrecompoundInterface, and G4INCLXXInterface.

PropagateModelDescription()

void G4VIntraNuclearTransportModel::PropagateModelDescription ( std::ostream & outFile ) const

virtual

Reimplemented in G4BinaryCascade, and G4GeneratorPrecompoundInterface.

Definition at line 58 of file G4VIntraNuclearTransportModel.cc.

{
  outFile << "G4VIntraNuclearTransportModel is abstract class, missing description.\n";
}

PropagateNuclNucl()

G4ReactionProductVector * G4VIntraNuclearTransportModel::PropagateNuclNucl ( G4KineticTrackVector * theSecondaries, G4V3DNucleus * theNucleus, G4V3DNucleus * theProjectileNucleus )

virtual

Reimplemented in G4GeneratorPrecompoundInterface.

Definition at line 64 of file G4VIntraNuclearTransportModel.cc.

{
  G4Exception("G4VIntraNuclearTransportModel::Propagate()","G4VINT02",
              FatalException,
              "Propagate method for nucleus-nucleus interactions not implemented");
  return nullptr;
}

Set3DNucleus()

void G4VIntraNuclearTransportModel::Set3DNucleus ( G4V3DNucleus *const value )

inline

Definition at line 124 of file G4VIntraNuclearTransportModel.hh.

{
  delete the3DNucleus;  the3DNucleus = value;
}

SetDeExcitation()

void G4VIntraNuclearTransportModel::SetDeExcitation ( G4VPreCompoundModel * ptr )

inline

Definition at line 135 of file G4VIntraNuclearTransportModel.hh.

{
  // previous pre-compound model will be deleted at the end of job
  theDeExcitation = value;
}

Referenced by G4BinaryCascade::G4BinaryCascade(), G4ElectroVDNuclearModel::G4ElectroVDNuclearModel(), G4GeneratorPrecompoundInterface::G4GeneratorPrecompoundInterface(), and G4MuonVDNuclearModel::G4MuonVDNuclearModel().

SetPrimaryProjectile()

void G4VIntraNuclearTransportModel::SetPrimaryProjectile ( const G4HadProjectile & aPrimary )

inline

Definition at line 148 of file G4VIntraNuclearTransportModel.hh.

{
  // NOTE:  Previous pointer is NOT deleted: passed by reference, no ownership
  thePrimaryProjectile = &aPrimary;
}

Member Data Documentation

the3DNucleus

G4V3DNucleus* G4VIntraNuclearTransportModel::the3DNucleus

protected

Definition at line 107 of file G4VIntraNuclearTransportModel.hh.

Referenced by G4BinaryCascade::ApplyYourself(), G4VIntraNuclearTransportModel(), Get3DNucleus(), G4BinaryCascade::Propagate(), and Set3DNucleus().

theDeExcitation

G4VPreCompoundModel* G4VIntraNuclearTransportModel::theDeExcitation

protected

Definition at line 109 of file G4VIntraNuclearTransportModel.hh.

Referenced by G4BinaryCascade::ApplyYourself(), G4INCLXXInterface::ApplyYourself(), G4INCLXXInterface::G4INCLXXInterface(), G4VIntraNuclearTransportModel(), GetDeExcitation(), G4INCLXXInterface::GetDeExcitationModelName(), G4BinaryCascade::ModelDescription(), G4GeneratorPrecompoundInterface::Propagate(), G4BinaryCascade::PropagateModelDescription(), G4GeneratorPrecompoundInterface::PropagateNuclNucl(), and SetDeExcitation().

thePrimaryProjectile

const G4HadProjectile* G4VIntraNuclearTransportModel::thePrimaryProjectile

protected

Definition at line 111 of file G4VIntraNuclearTransportModel.hh.

Referenced by G4VIntraNuclearTransportModel(), GetPrimaryProjectile(), and SetPrimaryProjectile().

theTransportModelName

G4String G4VIntraNuclearTransportModel::theTransportModelName

protected

Definition at line 105 of file G4VIntraNuclearTransportModel.hh.

Referenced by G4VIntraNuclearTransportModel(), and GetModelName().

---

The documentation for this class was generated from the following files:

• G4VIntraNuclearTransportModel.hh
• G4VIntraNuclearTransportModel.cc
