G4OpenGLStoredXmViewer Class Reference

#include <G4OpenGLStoredXmViewer.hh>

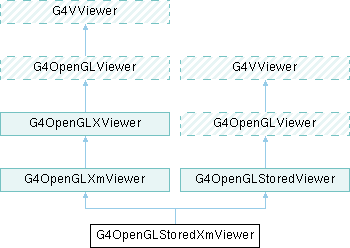

Inheritance diagram for G4OpenGLStoredXmViewer:

Public Member Functions

 G4OpenGLStoredXmViewer (G4OpenGLStoredSceneHandler &scene, const G4String &name="")
virtual ~G4OpenGLStoredXmViewer ()
void Initialise ()
void DrawView ()
void FinishView ()
Public Member Functions inherited from G4OpenGLXmViewer
 G4OpenGLXmViewer (G4OpenGLSceneHandler &scene)
virtual ~G4OpenGLXmViewer ()
Public Member Functions inherited from G4OpenGLXViewer
 G4OpenGLXViewer (G4OpenGLSceneHandler &scene)
virtual ~G4OpenGLXViewer ()
void SetView ()
void ShowView ()
void SwitchToVisSubThread ()
void SwitchToMasterThread ()
void DrawText (const G4Text &)
Public Member Functions inherited from G4OpenGLViewer
virtual void ClearView ()
void ClearViewWithoutFlush ()
virtual bool exportImage (std::string name="", int width=-1, int height=-1)
bool setExportImageFormat (std::string format, bool quiet=false)
Public Member Functions inherited from G4VViewer
 G4VViewer (G4VSceneHandler &, G4int id, const G4String &name="")
virtual ~G4VViewer ()
void RefreshView ()
virtual G4bool ReadyToDraw ()
std::vector< G4ThreeVector > ComputeFlyThrough (G4Vector3D *)
virtual void DoneWithMasterThread ()
virtual void MovingToVisSubThread ()
virtual void DoneWithVisSubThread ()
virtual void MovingToMasterThread ()
void InsertModelInSceneTree (G4VModel *)
const G4SceneTreeItem & GetSceneTree ()
G4SceneTreeItem & AccessSceneTree ()
void UpdateGUISceneTree ()
void UpdateGUIControlWidgets ()
void UpdateGUIDrawingStyle ()
void UpdateGUIProjectionStyle ()
void UpdateGUITransparencySlider ()
const G4String & GetName () const
const G4String & GetShortName () const
void SetName (const G4String &)
G4int GetViewId () const
G4VSceneHandler * GetSceneHandler () const
const G4ViewParameters & GetViewParameters () const
const G4ViewParameters & GetDefaultViewParameters () const
G4double GetKernelVisitElapsedTimeSeconds () const
virtual const std::vector< G4ModelingParameters::VisAttributesModifier > * GetPrivateVisAttributesModifiers () const
void SetViewParameters (const G4ViewParameters &vp)
void SetDefaultViewParameters (const G4ViewParameters &vp)
const G4VisAttributes * GetApplicableVisAttributes (const G4VisAttributes *) const
void SetNeedKernelVisit (G4bool need)
void NeedKernelVisit ()
void ProcessView ()
void ProcessTransients ()
void ZoomFromMouseWheel (G4double delta, G4bool shift=false, G4double xPos=0, G4double yPos=0)
virtual G4bool GetWindowSize (unsigned int &a_w, unsigned int &a_h)
Public Member Functions inherited from G4OpenGLStoredViewer
 G4OpenGLStoredViewer (G4OpenGLStoredSceneHandler &scene)
virtual ~G4OpenGLStoredViewer ()

Additional Inherited Members

Static Public Member Functions inherited from G4OpenGLXmViewer
static void expose_callback (Widget w, XtPointer clientData, XtPointer callData)
static void resize_callback (Widget w, XtPointer clientData, XtPointer callData)
static void actions_callback (Widget w, XtPointer clientData, XtPointer callData)
static void misc_callback (Widget w, XtPointer clientData, XtPointer callData)
static void Add_set_field (char *widget, char *widget_text, Widget *row_col_box, Widget *wid, G4double *val, G4OpenGLXmViewer *pView)
static void zoom_callback (Widget w, XtPointer clientData, XtPointer callData)
static void dolly_callback (Widget w, XtPointer clientData, XtPointer callData)
static void pan_left_right_callback (Widget w, XtPointer clientData, XtPointer callData)
static void left_right_pan_callback (XtPointer clientData, XtIntervalId *timer_id)
static void theta_rotation_callback (Widget w, XtPointer clientData, XtPointer callData)
static void phi_rotation_callback (Widget w, XtPointer clientData, XtPointer callData)
static void pan_up_down_callback (Widget w, XtPointer clientData, XtPointer callData)
static void up_down_pan_callback (XtPointer clientData, XtIntervalId *timer_id)
static void drawing_style_callback (Widget w, XtPointer clientData, XtPointer callData)
static void background_color_callback (Widget w, XtPointer clientData, XtPointer callData)
static void set_rot_subject_callback (Widget w, XtPointer clientData, XtPointer callData)
static void set_rot_sens_callback (Widget w, XtPointer clientData, XtPointer callData)
static void set_pan_sens_callback (Widget w, XtPointer clientData, XtPointer callData)
static void set_wob_sens_callback (Widget w, XtPointer clientData, XtPointer callData)
static void projection_callback (Widget w, XtPointer clientData, XtPointer callData)
static void wobble_callback (Widget w, XtPointer clientData, XtPointer callData)
static void reset_callback (Widget w, XtPointer clientData, XtPointer callData)
static void update_panels_callback (Widget w, XtPointer clientData, XtPointer callData)
static void wobble_timer_callback (XtPointer clientData, XtIntervalId *timerid)
static void Add_radio_box (char *label_string, Widget *parent_frame_widget, XtCallbackRec *radio_box_cb, G4int num_buttons, G4int default_button, char *radio_box_name, char **button_names, G4OpenGLXmViewer *pView)
static void Add_four_arrow_buttons (G4OpenGLXmViewer *pView, XtCallbackRec **arrow_callbacks, Widget *parent_widget)
static void Add_slider_box (char *label_string, G4int num_sliders, char **slider_name, G4OpenGLXmViewer *pView, G4double *min_array, G4double *max_array, G4double *value_array, G4bool *show, short *decimals, unsigned char *orientation, unsigned char *direction, XtCallbackRec **slider_box_cb, Widget *parent_frame_widget)
static void rotate_in_theta (XtPointer clientData, XtIntervalId *timer_id)
static void rotate_in_phi (XtPointer clientData, XtIntervalId *timer_id)
static void get_double_value_callback (Widget w, XtPointer clientData, XtPointer callData)
static void get_text_callback (Widget w, XtPointer clientData, XtPointer callData)
static void transparency_callback (Widget w, XtPointer clientData, XtPointer callData)
static void antialias_callback (Widget w, XtPointer clientData, XtPointer callData)
static void haloing_callback (Widget w, XtPointer clientData, XtPointer callData)
static void aux_edge_callback (Widget w, XtPointer clientData, XtPointer callData)
static void set_print_colour_callback (Widget w, XtPointer clientData, XtPointer callData)
static void set_print_style_callback (Widget w, XtPointer clientData, XtPointer callData)
static void print_callback (Widget w, XtPointer clientData, XtPointer callData)
static G4bool get_boolean_userData (Widget w)
static G4int get_int_userData (Widget w)
Public Attributes inherited from G4VViewer
const G4int fMaxAllTouchables = 10000
G4bool fCurtailDescent = false
Protected Member Functions inherited from G4OpenGLXmViewer
virtual void ShowView ()
void ResetView ()
void GetXmConnection ()
virtual void CreateMainWindow ()
Protected Member Functions inherited from G4OpenGLXViewer
void GetXConnection ()
void CreateGLXContext (XVisualInfo *vi)
virtual void CreateFontLists ()
Protected Member Functions inherited from G4OpenGLViewer
 G4OpenGLViewer (G4OpenGLSceneHandler &scene)
virtual ~G4OpenGLViewer ()
void ChangePointSize (G4double size)
void ChangeLineWidth (G4double width)
void HaloingFirstPass ()
void HaloingSecondPass ()
void HLRFirstPass ()
void HLRSecondPass ()
void HLRThirdPass ()
void InitializeGLView ()
void ResizeGLView ()
void ResizeWindow (unsigned int, unsigned int)
virtual G4String Pick (GLdouble x, GLdouble y)
const std::vector< G4OpenGLViewerPickMap * > & GetPickDetails (GLdouble x, GLdouble y)
void rotateScene (G4double dx, G4double dy)
void rotateSceneToggle (G4double dx, G4double dy)
void setExportSize (G4int, G4int)
bool setExportFilename (G4String name, G4bool inc=true)
std::string getRealPrintFilename ()
unsigned int getWinWidth () const
unsigned int getWinHeight () const
G4bool sizeHasChanged ()
G4double GetSceneNearWidth ()
GLdouble getSceneFarWidth ()
GLdouble getSceneDepth ()
void addExportImageFormat (std::string format)
G4bool isGl2psWriting ()
G4bool isFramebufferReady ()
void g4GluPickMatrix (GLdouble x, GLdouble y, GLdouble width, GLdouble height, GLint viewport[4])
void g4GluLookAt (GLdouble eyex, GLdouble eyey, GLdouble eyez, GLdouble centerx, GLdouble centery, GLdouble centerz, GLdouble upx, GLdouble upy, GLdouble upz)
void g4GlOrtho (GLdouble left, GLdouble right, GLdouble bottom, GLdouble top, GLdouble near, GLdouble far)
void g4GlFrustum (GLdouble left, GLdouble right, GLdouble bottom, GLdouble top, GLdouble near, GLdouble far)
bool IsGettingPickInfos () const
Protected Member Functions inherited from G4VViewer
void SetTouchable (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath)
void TouchableSetVisibility (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath, G4bool visibility)
void TouchableSetColour (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath, const G4Colour &)
Protected Member Functions inherited from G4OpenGLStoredViewer
void KernelVisitDecision ()
virtual G4bool CompareForKernelVisit (G4ViewParameters &)
void DrawDisplayLists ()
virtual void DisplayTimePOColourModification (G4Colour &, size_t)
void AddPrimitiveForASingleFrame (const G4Text &text)
void AddPrimitiveForASingleFrame (const G4Circle &circle)
virtual G4bool POSelected (size_t)
virtual G4bool TOSelected (size_t)
Protected Attributes inherited from G4OpenGLXmViewer
XtAppContext app
XtWorkProcId workId
Widget toplevel
Widget shell
Widget main_win
Widget menubar
Widget style_cascade
Widget actions_cascade
Widget misc_cascade
Widget spec_cascade
Widget drawing_style_pullright
Widget background_color_pullright
Widget transparency_pullright
Widget antialias_pullright
Widget haloing_pullright
Widget aux_edge_pullright
Widget frame
Widget glxarea
XmString style_str
XmString actions_str
XmString misc_str
XmString spec_str
XmString draw_str
XmString polyhedron_str
XmString wireframe_str
XmString hlr_str
XmString hsr_str
XmString hlhsr_str
XmString set_str
XmString rot_str
XmString pan_str
XmString exit_str
XmString quit_str
XmString print_str
XmString white_str
XmString black_str
XmString anti_str
XmString trans_str
XmString halo_str
XmString aux_edge_str
XmString bgnd_str
XmString off_str
XmString on_str
G4double zoom_high
G4double zoom_low
G4double pan_low
G4double pan_high
G4double dolly_low
G4double dolly_high
G4double fov
G4double rot_sens_limit
G4double pan_sens_limit
G4double wob_high
G4double wob_low
G4double wob_sens
Pixel bgnd
Pixel borcol
G4bool pan_right
G4bool rotate_right
G4bool pan_up
G4bool rotate_up
XtIntervalId rotation_timer
XtIntervalId pan_timer
XtIntervalId wobble_timer
G4Vector3D original_vp
G4int frameNo
G4String menu_str [37]
G4OpenGLXmTopLevelShell * fprotation_top
G4OpenGLXmBox * fprotation_button_box
G4OpenGLXmRadioButton * fprotation_button1
G4OpenGLXmRadioButton * fprotation_button2
G4OpenGLXmBox * fprotation_slider_box
G4OpenGLXmSliderBar * fprotation_slider
G4OpenGLXmBox * fprotation_arrow_box
G4OpenGLXmFourArrowButtons * fprotation_arrow
G4OpenGLXmTopLevelShell * fppanning_top
G4OpenGLXmFramedBox * fppanning_box
G4OpenGLXmFourArrowButtons * fppanning_arrows
G4OpenGLXmSliderBar * fppanning_slider
G4OpenGLXmFramedBox * fpzoom_box
G4OpenGLXmSliderBar * fpzoom_slider
G4OpenGLXmFramedBox * fpdolly_box
G4OpenGLXmSliderBar * fpdolly_slider
G4OpenGLXmTopLevelShell * fpsetting_top
G4OpenGLXmFramedBox * fpsetting_box
G4OpenGLXmTextField * fppan_set
G4OpenGLXmTextField * fprot_set
G4OpenGLXmTextField * fpzoom_upper
G4OpenGLXmTextField * fpzoom_lower
G4OpenGLXmTextField * fpdolly_upper
G4OpenGLXmTextField * fpdolly_lower
G4OpenGLXmPushButton * fpok_button
G4OpenGLXmTopLevelShell * fpmiscellany_top
G4OpenGLXmFramedBox * fpwobble_box
G4OpenGLXmPushButton * fpwobble_button
G4OpenGLXmSliderBar * fpwobble_slider
G4OpenGLXmFramedBox * fpreset_box
G4OpenGLXmPushButton * fpreset_button
G4OpenGLXmFramedBox * fpproj_style_box
G4OpenGLXmRadioButton * fporthogonal_button
G4OpenGLXmRadioButton * fpperspective_button
G4OpenGLXmTextField * fpfov_text
G4OpenGLXmTopLevelShell * fpprint_top
G4OpenGLXmFramedBox * fpprint_box
G4OpenGLXmFramedBox * fpprint_col_box
G4OpenGLXmFramedBox * fpprint_style_box
G4OpenGLXmTextField * fpprint_text
G4OpenGLXmPushButton * fpprint_button
G4OpenGLXmSeparator * fpprint_line
G4OpenGLXmRadioButton * fpprint_col_radio1
G4OpenGLXmRadioButton * fpprint_col_radio2
G4OpenGLXmRadioButton * fpprint_style_radio1
G4OpenGLXmRadioButton * fpprint_style_radio2
Protected Attributes inherited from G4OpenGLXViewer
XWindowAttributes xwa
Display * dpy
XVisualInfo * vi_immediate
XVisualInfo * vi_stored
XVisualInfo * vi
Colormap cmap
XSetWindowAttributes swa
GLXDrawable win
GLXContext cxMaster
GLXContext cxVisSubThread
XEvent event
G4int * attributeList
G4int errorBase
G4int eventBase
G4int major
G4int minor
XSizeHints * norm_hints
XWMHints * wm_hints
XClassHint * class_hints
Pixmap icon_pixmap
XSizeHints * size_hints
Atom Xatom
XTextProperty windowName
XTextProperty iconName
char charViewName [100]
Protected Attributes inherited from G4OpenGLViewer
G4bool fPrintColour
G4bool fVectoredPs
G4OpenGLSceneHandler & fOpenGLSceneHandler
G4Colour background
G4bool transparency_enabled
G4bool antialiasing_enabled
G4bool haloing_enabled
G4gl2ps * fGL2PSAction
G4double fRot_sens
G4double fPan_sens
unsigned int fWinSize_x
unsigned int fWinSize_y
std::vector< std::string > fExportImageFormatVector
std::string fDefaultExportImageFormat
std::string fExportImageFormat
int fExportFilenameIndex
G4int fPrintSizeX
G4int fPrintSizeY
Protected Attributes inherited from G4VViewer
G4VSceneHandler & fSceneHandler
G4int fViewId
G4String fName
G4String fShortName
G4ViewParameters fVP
G4ViewParameters fDefaultVP
G4double fKernelVisitElapsedTimeSeconds = 999.
G4SceneTreeItem fSceneTree
G4bool fNeedKernelVisit
G4bool fTransientsNeedRedrawing
Protected Attributes inherited from G4OpenGLStoredViewer
G4OpenGLStoredSceneHandler & fG4OpenGLStoredSceneHandler
G4ViewParameters fLastVP
G4bool fDepthTestEnable
G4Colour fOldDisplayListColor
Static Protected Attributes inherited from G4OpenGLXmViewer
static const G4String e_str = ""
Static Protected Attributes inherited from G4OpenGLXViewer
static int snglBuf_RGBA [12]
static int dblBuf_RGBA [13]
static XVisualInfo * vi_single_buffer = 0
static XVisualInfo * vi_double_buffer = 0

Detailed Description

Definition at line 41 of file G4OpenGLStoredXmViewer.hh.

Constructor & Destructor Documentation

◆ G4OpenGLStoredXmViewer()

G4OpenGLStoredXmViewer::G4OpenGLStoredXmViewer ( G4OpenGLStoredSceneHandler & scene,
const G4String & name = "" )

Definition at line 39 of file G4OpenGLStoredXmViewer.cc.

42 : G4VViewer (sceneHandler, sceneHandler.IncrementViewCount (), name),
43 G4OpenGLViewer (sceneHandler),
44 G4OpenGLXmViewer (sceneHandler),
45 G4OpenGLStoredViewer (sceneHandler)
46{
47
48 if (fViewId < 0) return; // In case error in base class instantiation.
49
50 if (!vi_stored) {
51 fViewId = -1; // This flags an error.
52 G4cerr << "G4OpenGLStoredXmViewer::G4OpenGLStoredXmViewer -"
53 " G4OpenGLXmViewer couldn't get a visual." << G4endl;
54 return;
55 }
56}
G4cerr
G4GLOB_DLL std::ostream G4cerr
G4endl
#define G4endl
Definition G4ios.hh:67
G4OpenGLStoredViewer::G4OpenGLStoredViewer
G4OpenGLStoredViewer(G4OpenGLStoredSceneHandler &scene)
Definition G4OpenGLStoredViewer.cc:45
G4OpenGLViewer::G4OpenGLViewer
G4OpenGLViewer(G4OpenGLSceneHandler &scene)
Definition G4OpenGLViewer.cc:58
G4OpenGLXViewer::G4OpenGLXmViewer
friend class G4OpenGLXmViewer
Definition G4OpenGLXViewer.hh:50
G4OpenGLXViewer::vi_stored
XVisualInfo * vi_stored
Definition G4OpenGLXViewer.hh:77
G4VViewer::fViewId
G4int fViewId
Definition G4VViewer.hh:269
G4VViewer::G4VViewer
G4VViewer(G4VSceneHandler &, G4int id, const G4String &name="")
Definition G4VViewer.cc:49

◆ ~G4OpenGLStoredXmViewer()

G4OpenGLStoredXmViewer::~G4OpenGLStoredXmViewer ( )
virtual

Definition at line 58 of file G4OpenGLStoredXmViewer.cc.

59{}

Member Function Documentation

◆ DrawView()

void G4OpenGLStoredXmViewer::DrawView ( )
virtual

Implements G4VViewer.

Definition at line 72 of file G4OpenGLStoredXmViewer.cc.

72 {
73#ifdef G4DEBUG_VIS_OGL
74 printf("G4OpenGLStoredXmViewer::DrawView \n");
75#endif
76
77 G4ViewParameters::DrawingStyle style = GetViewParameters().GetDrawingStyle();
78
79 //See if things have changed from last time and remake if necessary...
80 // /vis/viewer/rebuild, but if not, make decision and set flag only
81 // if necessary...
82 if (!fNeedKernelVisit) KernelVisitDecision ();
83 fLastVP = fVP;
84 G4bool kernelVisitWasNeeded = fNeedKernelVisit; // Keep (ProcessView resets).
85 ProcessView ();
86
87 if(style!=G4ViewParameters::hlr &&
88 haloing_enabled) {
89
90 HaloingFirstPass ();
91 DrawDisplayLists ();
92#ifdef G4DEBUG_VIS_OGL
93 printf("G4OpenGLStoredXmViewer::DrawView () flush\n");
94#endif
95 glFlush ();
96
97 HaloingSecondPass ();
98
99 DrawDisplayLists ();
100 FinishView ();
101
102 } else {
103
104#ifdef G4DEBUG_VIS_OGL
105 printf("G4OpenGLStoredXmViewer::DrawView not hlr \n");
106#endif
107 // If kernel visit was needed, drawing and FinishView will already
108 // have been done, so...
109 if (!kernelVisitWasNeeded) {
110#ifdef G4DEBUG_VIS_OGL
111 printf("G4OpenGLStoredXmViewer::ComputeView Don't need kernel Visit \n");
112#endif
113 DrawDisplayLists ();
114 FinishView ();
115 } else {
116#ifdef G4DEBUG_VIS_OGL
117 printf("G4OpenGLStoredXmViewer::ComputeView Need kernel Visit \n");
118#endif
119 // However, union cutaways are implemented in DrawDisplayLists, so make
120 // an extra pass...
121 if (fVP.IsCutaway() &&
122 fVP.GetCutawayMode() == G4ViewParameters::cutawayUnion) {
123 ClearView();
124 DrawDisplayLists ();
125 FinishView ();
126 } else { // ADD TO AVOID KernelVisit=1 and nothing to display
127 DrawDisplayLists ();
128 FinishView ();
129 }
130 }
131 }
132#ifdef G4DEBUG_VIS_OGL
133 printf("G4OpenGLStoredXmViewer::DrawView ^^^^^^^^^^^^^^^^^^^^^^^^^^^\n");
134#endif
135}
G4bool
bool G4bool
Definition G4Types.hh:86
G4OpenGLViewer::ClearView
virtual void ClearView()
Definition G4OpenGLViewer.cc:151
G4VViewer::fNeedKernelVisit
G4bool fNeedKernelVisit
Definition G4VViewer.hh:280
G4VViewer::GetViewParameters
const G4ViewParameters & GetViewParameters() const
G4VViewer::ProcessView
void ProcessView()
Definition G4VViewer.cc:112
G4VViewer::fVP
G4ViewParameters fVP
Definition G4VViewer.hh:272
G4ViewParameters::GetDrawingStyle
DrawingStyle GetDrawingStyle() const

◆ FinishView()

void G4OpenGLStoredXmViewer::FinishView ( void )
virtual

Reimplemented from G4VViewer.

Definition at line 137 of file G4OpenGLStoredXmViewer.cc.

137 {
138// glXWaitGL (); //Wait for effects of all previous OpenGL commands to
139 //be propogated before progressing.
140// JA: Commented out July 2021 - slows rendering down in some cases and I
141// don't see any adverse effects.
142
143#ifdef G4DEBUG_VIS_OGL
144 printf("G4OpenGLStoredXmViewer::FinishView () flush \n");
145#endif
146 glFlush (); //FIXME
147
148 GLint renderMode;
149 glGetIntegerv(GL_RENDER_MODE, &renderMode);
150 if (renderMode == GL_RENDER) glXSwapBuffers (dpy, win);
151}

Referenced by DrawView().

◆ Initialise()

void G4OpenGLStoredXmViewer::Initialise ( )
virtual

Reimplemented from G4VViewer.

Definition at line 61 of file G4OpenGLStoredXmViewer.cc.

61 {
62
63 CreateGLXContext (vi_stored);
64 CreateMainWindow ();
65 CreateFontLists ();
66
67 InitializeGLView ();
68
69 glDrawBuffer (GL_BACK);
70}
G4OpenGLViewer::CreateFontLists
virtual void CreateFontLists()
Definition G4OpenGLViewer.hh:135
G4OpenGLXViewer::CreateGLXContext
void CreateGLXContext(XVisualInfo *vi)
Definition G4OpenGLXViewer.cc:161
G4OpenGLXmViewer::CreateMainWindow
virtual void CreateMainWindow()
Definition G4OpenGLXmViewer.cc:173
The documentation for this class was generated from the following files:
