G4VHighEnergyGenerator Class Reference

#include <G4VHighEnergyGenerator.hh>

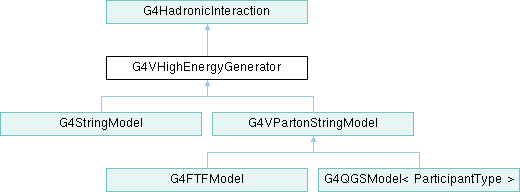

Inheritance diagram for G4VHighEnergyGenerator:

Public Member Functions
	G4VHighEnergyGenerator (const G4String &modelName="HighEnergyGenerator")
	~G4VHighEnergyGenerator () override
	G4VHighEnergyGenerator (const G4VHighEnergyGenerator &right)=delete
const G4VHighEnergyGenerator &	operator= (const G4VHighEnergyGenerator &right)=delete
G4bool	operator== (const G4VHighEnergyGenerator &right) const =delete
G4bool	operator!= (const G4VHighEnergyGenerator &right) const =delete
virtual G4V3DNucleus *	GetWoundedNucleus () const =0
virtual G4V3DNucleus *	GetProjectileNucleus () const
virtual G4KineticTrackVector *	Scatter (const G4Nucleus &theNucleus, const G4DynamicParticle &thePrimary)=0
void	ModelDescription (std::ostream &) const override
G4bool	IsQuasiElasticInteraction () const
G4bool	IsDiffractiveInteraction () const
Public Member Functions inherited from G4HadronicInteraction
	G4HadronicInteraction (const G4String &modelName="HadronicModel")
virtual	~G4HadronicInteraction ()
virtual G4HadFinalState *	ApplyYourself (const G4HadProjectile &aTrack, G4Nucleus &targetNucleus)
virtual G4double	SampleInvariantT (const G4ParticleDefinition *p, G4double plab, G4int Z, G4int A)
virtual G4bool	IsApplicable (const G4HadProjectile &aTrack, G4Nucleus &targetNucleus)
G4double	GetMinEnergy () const
G4double	GetMinEnergy (const G4Material *aMaterial, const G4Element *anElement) const
void	SetMinEnergy (G4double anEnergy)
void	SetMinEnergy (G4double anEnergy, const G4Element *anElement)
void	SetMinEnergy (G4double anEnergy, const G4Material *aMaterial)
G4double	GetMaxEnergy () const
G4double	GetMaxEnergy (const G4Material *aMaterial, const G4Element *anElement) const
void	SetMaxEnergy (const G4double anEnergy)
void	SetMaxEnergy (G4double anEnergy, const G4Element *anElement)
void	SetMaxEnergy (G4double anEnergy, const G4Material *aMaterial)
G4int	GetVerboseLevel () const
void	SetVerboseLevel (G4int value)
const G4String &	GetModelName () const
void	DeActivateFor (const G4Material *aMaterial)
void	ActivateFor (const G4Material *aMaterial)
void	DeActivateFor (const G4Element *anElement)
void	ActivateFor (const G4Element *anElement)
G4bool	IsBlocked (const G4Material *aMaterial) const
G4bool	IsBlocked (const G4Element *anElement) const
void	SetRecoilEnergyThreshold (G4double val)
G4double	GetRecoilEnergyThreshold () const
virtual const std::pair< G4double, G4double >	GetFatalEnergyCheckLevels () const
virtual std::pair< G4double, G4double >	GetEnergyMomentumCheckLevels () const
void	SetEnergyMomentumCheckLevels (G4double relativeLevel, G4double absoluteLevel)
virtual void	BuildPhysicsTable (const G4ParticleDefinition &)
virtual void	InitialiseModel ()
	G4HadronicInteraction (const G4HadronicInteraction &right)=delete
const G4HadronicInteraction &	operator= (const G4HadronicInteraction &right)=delete
G4bool	operator== (const G4HadronicInteraction &right) const =delete
G4bool	operator!= (const G4HadronicInteraction &right) const =delete

Protected Attributes
G4bool	fIsQuasiElasticInteraction = false
G4bool	fIsDiffractiveInteraction = false
Protected Attributes inherited from G4HadronicInteraction
G4HadFinalState	theParticleChange
G4int	verboseLevel
G4double	theMinEnergy
G4double	theMaxEnergy
G4bool	isBlocked

Additional Inherited Members
Protected Member Functions inherited from G4HadronicInteraction
void	SetModelName (const G4String &nam)
G4bool	IsBlocked () const
void	Block ()

Detailed Description

Definition at line 46 of file G4VHighEnergyGenerator.hh.

Constructor & Destructor Documentation

G4VHighEnergyGenerator() [1/2]

G4VHighEnergyGenerator::G4VHighEnergyGenerator

(

const G4String &

modelName = "HighEnergyGenerator"

)

Definition at line 29 of file G4VHighEnergyGenerator.cc.

  : G4HadronicInteraction( modelName ),
    fIsQuasiElasticInteraction( false ), fIsDiffractiveInteraction( false )
{}

Referenced by G4StringModel::G4StringModel(), G4VHighEnergyGenerator(), G4VPartonStringModel::G4VPartonStringModel(), operator!=(), operator=(), and operator==().

~G4VHighEnergyGenerator()

G4VHighEnergyGenerator::~G4VHighEnergyGenerator ( )

override

Definition at line 35 of file G4VHighEnergyGenerator.cc.

{}

G4VHighEnergyGenerator() [2/2]

G4VHighEnergyGenerator::G4VHighEnergyGenerator ( const G4VHighEnergyGenerator & right )

delete

Member Function Documentation

GetProjectileNucleus()

G4V3DNucleus * G4VHighEnergyGenerator::GetProjectileNucleus ( ) const

virtual

Reimplemented in G4FTFModel, G4QGSModel< ParticipantType >, and G4VPartonStringModel.

Definition at line 45 of file G4VHighEnergyGenerator.cc.

{
  G4ExceptionDescription ed;
  ed << "The used HighEnergyGenerator "<<GetModelName()
     <<" cannot manage with a residual projectile nucleus";
  G4Exception( "G4VHighEnergyGenerator::GetProjectileNucleus ", "G4had_mod_man",
           FatalException, ed );
  return 0;
}

GetWoundedNucleus()

virtual G4V3DNucleus * G4VHighEnergyGenerator::GetWoundedNucleus ( ) const

pure virtual

Implemented in G4FTFModel, and G4QGSModel< ParticipantType >.

Referenced by G4VPartonStringModel::Scatter().

IsDiffractiveInteraction()

G4bool G4VHighEnergyGenerator::IsDiffractiveInteraction ( ) const

inline

Definition at line 75 of file G4VHighEnergyGenerator.hh.

                                                                     {
  return fIsDiffractiveInteraction;
}

IsQuasiElasticInteraction()

G4bool G4VHighEnergyGenerator::IsQuasiElasticInteraction ( ) const

inline

Definition at line 71 of file G4VHighEnergyGenerator.hh.

                                                                      {
  return fIsQuasiElasticInteraction;
}

ModelDescription()

void G4VHighEnergyGenerator::ModelDescription ( std::ostream & outFile ) const

overridevirtual

Reimplemented from G4HadronicInteraction.

Reimplemented in G4VPartonStringModel.

Definition at line 39 of file G4VHighEnergyGenerator.cc.

{
  outFile << " Parton-string models description not written yet \n";
}

operator!=()

G4bool G4VHighEnergyGenerator::operator!= ( const G4VHighEnergyGenerator & right ) const

delete

operator=()

const G4VHighEnergyGenerator & G4VHighEnergyGenerator::operator= ( const G4VHighEnergyGenerator & right )

delete

operator==()

G4bool G4VHighEnergyGenerator::operator== ( const G4VHighEnergyGenerator & right ) const

delete

Scatter()

virtual G4KineticTrackVector * G4VHighEnergyGenerator::Scatter ( const G4Nucleus & theNucleus, const G4DynamicParticle & thePrimary )

pure virtual

Implemented in G4VPartonStringModel.

Member Data Documentation

fIsDiffractiveInteraction

G4bool G4VHighEnergyGenerator::fIsDiffractiveInteraction = false

protected

Definition at line 67 of file G4VHighEnergyGenerator.hh.

Referenced by G4VHighEnergyGenerator(), G4FTFModel::Init(), and IsDiffractiveInteraction().

fIsQuasiElasticInteraction

G4bool G4VHighEnergyGenerator::fIsQuasiElasticInteraction = false

protected

Definition at line 66 of file G4VHighEnergyGenerator.hh.

Referenced by G4VHighEnergyGenerator(), G4FTFModel::Init(), and IsQuasiElasticInteraction().

---

The documentation for this class was generated from the following files:

• G4VHighEnergyGenerator.hh
• G4VHighEnergyGenerator.cc
