MCGIDI::Distributions::Distribution Class Reference

#include <MCGIDI_distributions.hpp>

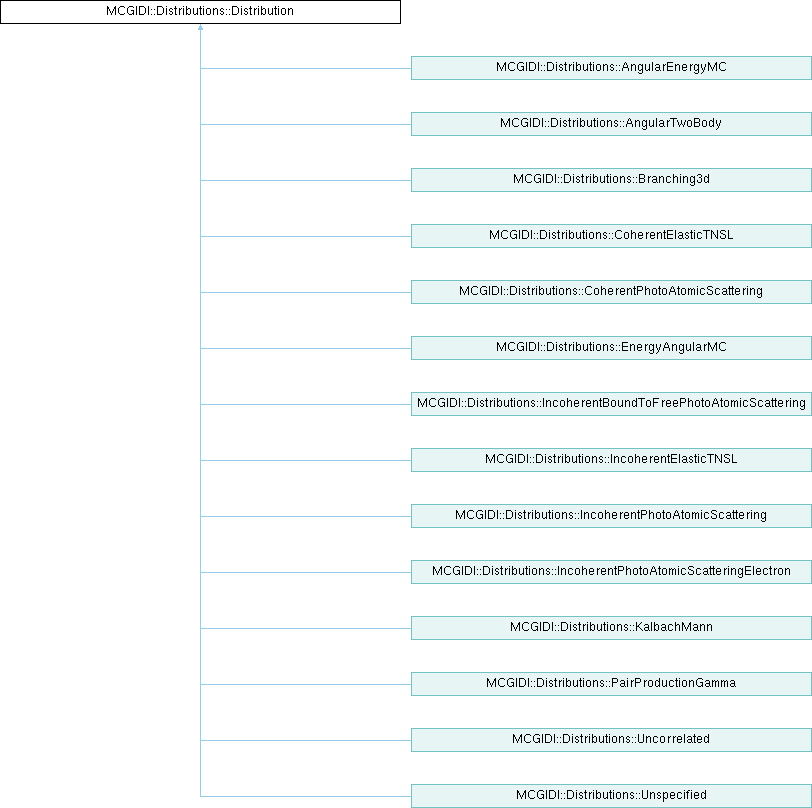

Inheritance diagram for MCGIDI::Distributions::Distribution:

Public Member Functions

LUPI_HOST_DEVICE Distribution ()
LUPI_HOST Distribution (Type a_type, GIDI::Distributions::Distribution const &a_distribution, SetupInfo &a_setupInfo)
LUPI_HOST Distribution (Type a_type, GIDI::Frame a_productFrame, SetupInfo &a_setupInfo)
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION ~Distribution () MCGIDI_TRUE_VIRTUAL
LUPI_HOST_DEVICE Type type () const
LUPI_HOST_DEVICE GIDI::Frame productFrame () const
LUPI_HOST_DEVICE double projectileMass () const
LUPI_HOST_DEVICE double targetMass () const
LUPI_HOST_DEVICE double productMass () const
LUPI_HOST void setModelDBRC_data (Sampling::Upscatter::ModelDBRC_data *a_modelDBRC_data)
template<typename RNG>
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION void sample (double a_X, Sampling::Input &a_input, RNG &&a_rng) const MCGIDI_TRUE_VIRTUAL
template<typename RNG>
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION double angleBiasing (Reaction const *a_reaction, double a_temperature, double a_energy_in, double a_mu_lab, RNG &&a_rng, double &a_energy_out) const MCGIDI_TRUE_VIRTUAL
LUPI_HOST_DEVICE void serialize (LUPI::DataBuffer &a_buffer, LUPI::DataBuffer::Mode a_mode)
template<typename RNG>
LUPI_HOST_DEVICE void sample (double a_X, MCGIDI::Sampling::Input &a_input, RNG &&a_rng) const
template<typename RNG>
LUPI_HOST_DEVICE double angleBiasing (Reaction const *a_reaction, double a_temperature, double a_energy_in, double a_mu_lab, RNG &&a_rng, double &a_energy_out) const

Detailed Description

This class is the base class for all distribution forms.

Definition at line 28 of file MCGIDI_distributions.hpp.

Constructor & Destructor Documentation

◆ Distribution() [1/3]

LUPI_HOST_DEVICE MCGIDI::Distributions::Distribution::Distribution ( )

Default constructor used when broadcasting a Protare as needed by MPI or GPUs.

Definition at line 28 of file MCGIDI_distributions.cc.

28 :
29 m_type( Type::none ),
30 m_productFrame( GIDI::Frame::lab ),
31 m_projectileMass( 0.0 ),
32 m_targetMass( 0.0 ),
33 m_productMass( 0.0 ) {
34
35}

Referenced by MCGIDI::Distributions::AngularEnergyMC::AngularEnergyMC(), MCGIDI::Distributions::AngularTwoBody::AngularTwoBody(), MCGIDI::Distributions::Branching3d::Branching3d(), MCGIDI::Distributions::CoherentElasticTNSL::CoherentElasticTNSL(), MCGIDI::Distributions::CoherentPhotoAtomicScattering::CoherentPhotoAtomicScattering(), MCGIDI::Distributions::EnergyAngularMC::EnergyAngularMC(), MCGIDI::Distributions::IncoherentBoundToFreePhotoAtomicScattering::IncoherentBoundToFreePhotoAtomicScattering(), MCGIDI::Distributions::IncoherentElasticTNSL::IncoherentElasticTNSL(), MCGIDI::Distributions::IncoherentPhotoAtomicScattering::IncoherentPhotoAtomicScattering(), MCGIDI::Distributions::IncoherentPhotoAtomicScatteringElectron::IncoherentPhotoAtomicScatteringElectron(), MCGIDI::Distributions::KalbachMann::KalbachMann(), MCGIDI::Distributions::PairProductionGamma::PairProductionGamma(), MCGIDI::Distributions::Uncorrelated::Uncorrelated(), and MCGIDI::Distributions::Unspecified::Unspecified().

◆ Distribution() [2/3]

LUPI_HOST MCGIDI::Distributions::Distribution::Distribution ( Type a_type,
GIDI::Distributions::Distribution const & a_distribution,
SetupInfo & a_setupInfo )
Parameters
a_type[in] The Type of the distribution.
a_distribution[in] The GIDI::Distributions::Distribution instance whose data is to be used to construct this.
a_setupInfo[in] Used internally when constructing a Protare to pass information to other constructors.

Definition at line 43 of file MCGIDI_distributions.cc.

43 :
44 m_type( a_type ),
45 m_productFrame( a_distribution.productFrame( ) ),
46 m_projectileMass( a_setupInfo.m_protare.projectileMass( ) ),
47 m_targetMass( a_setupInfo.m_protare.targetMass( ) ),
48 m_productMass( a_setupInfo.m_product1Mass ) { // Includes nuclear excitation energy.
49
50}

◆ Distribution() [3/3]

LUPI_HOST MCGIDI::Distributions::Distribution::Distribution ( Type a_type,
GIDI::Frame a_productFrame,
SetupInfo & a_setupInfo )
Parameters
a_type[in] The Type of the distribution.
a_productFrame[in] The frame of the product's data for distribution.
a_setupInfo[in] Used internally when constructing a Protare to pass information to other constructors.

Definition at line 58 of file MCGIDI_distributions.cc.

58 :
59 m_type( a_type ),
60 m_productFrame( a_productFrame ),
61 m_projectileMass( a_setupInfo.m_protare.projectileMass( ) ),
62 m_targetMass( a_setupInfo.m_protare.targetMass( ) ),
63 m_productMass( a_setupInfo.m_product1Mass ) { // Includes nuclear excitation energy.
64
65}

◆ ~Distribution()

LUPI_HOST_DEVICE MCGIDI::Distributions::Distribution::~Distribution ( )

Definition at line 70 of file MCGIDI_distributions.cc.

70 {
71
72}

Member Function Documentation

◆ angleBiasing() [1/2]

template<typename RNG>
LUPI_HOST_DEVICE double MCGIDI::Distributions::Distribution::angleBiasing ( Reaction const * a_reaction,
double a_temperature,
double a_energy_in,
double a_mu_lab,
RNG && a_rng,
double & a_energy_out ) const

Returns the probability for a projectile with energy a_energy_in to cause a particle to be emitted at angle a_mu_lab as seen in the lab frame. a_energy_out is the sampled outgoing energy.

Parameters
a_reaction[in] The reaction containing the particle which this distribution describes.
a_temperature[in] The temperature of the material.
a_energy_in[in] The energy of the incident particle.
a_mu_lab[in] The desired mu in the lab frame for the emitted particle.
a_rng[in] The random number generator function that returns a double in the range [0, 1.0).
a_energy_out[out] The energy of the emitted outgoing particle.
Returns
The probability of emitting outgoing particle into lab angle a_mu_lab.

Definition at line 202 of file MCGIDI_headerSource.hpp.

203 {
204
205 double probability = 0.0;
206 a_energy_out = 0.0;
207
208 switch( type( ) ) {
209 case Distributions::Type::none:
210 break;
211 case Distributions::Type::unspecified:
212 probability = static_cast<Distributions::Unspecified const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
213 a_rng, a_energy_out );
214 break;
215 case Distributions::Type::angularTwoBody:
216 probability = static_cast<Distributions::AngularTwoBody const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
217 a_rng, a_energy_out );
218 break;
219 case Distributions::Type::KalbachMann:
220 probability = static_cast<Distributions::KalbachMann const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
221 a_rng, a_energy_out );
222 break;
223 case Distributions::Type::uncorrelated:
224 probability = static_cast<Distributions::Uncorrelated const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
225 a_rng, a_energy_out );
226 break;
227 case Distributions::Type::branching3d:
228 probability = static_cast<Distributions::Branching3d const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
229 a_rng, a_energy_out );
230 break;
231 case Distributions::Type::energyAngularMC:
232 probability = static_cast<Distributions::EnergyAngularMC const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
233 a_rng, a_energy_out );
234 break;
235 case Distributions::Type::angularEnergyMC:
236 probability = static_cast<Distributions::AngularEnergyMC const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
237 a_rng, a_energy_out );
238 break;
239 case Distributions::Type::coherentPhotoAtomicScattering:
240 probability = static_cast<Distributions::CoherentPhotoAtomicScattering const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
241 a_rng, a_energy_out );
242 break;
243 case Distributions::Type::incoherentPhotoAtomicScattering:
244 probability = static_cast<Distributions::IncoherentPhotoAtomicScattering const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
245 a_rng, a_energy_out );
246 break;
247 case Distributions::Type::incoherentBoundToFreePhotoAtomicScattering:
248 probability = static_cast<Distributions::IncoherentBoundToFreePhotoAtomicScattering const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
249 a_rng, a_energy_out );
250 break;
251 case Distributions::Type::incoherentPhotoAtomicScatteringElectron:
252 probability = static_cast<Distributions::IncoherentPhotoAtomicScatteringElectron const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
253 a_rng, a_energy_out );
254 break;
255 case Distributions::Type::pairProductionGamma:
256 probability = static_cast<Distributions::PairProductionGamma const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
257 a_rng, a_energy_out );
258 break;
259 case Distributions::Type::coherentElasticTNSL:
260 probability = static_cast<Distributions::CoherentElasticTNSL const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
261 a_rng, a_energy_out );
262 break;
263 case Distributions::Type::incoherentElasticTNSL:
264 probability = static_cast<Distributions::IncoherentElasticTNSL const *>( this )->angleBiasing( a_reaction, a_temperature, a_energy_in, a_mu_lab,
265 a_rng, a_energy_out );
266 break;
267 }
268
269 return( probability );
270}
MCGIDI::Distributions::Distribution::angleBiasing
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION double angleBiasing(Reaction const *a_reaction, double a_temperature, double a_energy_in, double a_mu_lab, RNG &&a_rng, double &a_energy_out) const MCGIDI_TRUE_VIRTUAL

◆ angleBiasing() [2/2]

template<typename RNG>
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION double MCGIDI::Distributions::Distribution::angleBiasing ( Reaction const * a_reaction,
double a_temperature,
double a_energy_in,
double a_mu_lab,
RNG && a_rng,
double & a_energy_out ) const

Referenced by angleBiasing().

◆ productFrame()

LUPI_HOST_DEVICE GIDI::Frame MCGIDI::Distributions::Distribution::productFrame ( ) const
inline

Returns the value of the m_productFrame.

Definition at line 44 of file MCGIDI_distributions.hpp.

Referenced by MCGIDI::Distributions::AngularEnergyMC::angleBiasing(), MCGIDI::Distributions::EnergyAngularMC::angleBiasing(), MCGIDI::Distributions::Uncorrelated::angleBiasing(), Distribution(), MCGIDI::Distributions::AngularEnergyMC::sample(), MCGIDI::Distributions::CoherentPhotoAtomicScattering::sample(), MCGIDI::Distributions::EnergyAngularMC::sample(), MCGIDI::Distributions::IncoherentBoundToFreePhotoAtomicScattering::sample(), MCGIDI::Distributions::IncoherentPhotoAtomicScattering::sample(), MCGIDI::Distributions::IncoherentPhotoAtomicScatteringElectron::sample(), MCGIDI::Distributions::KalbachMann::sample(), MCGIDI::Distributions::PairProductionGamma::sample(), MCGIDI::Distributions::Uncorrelated::sample(), and MCGIDI::Distributions::Unspecified::sample().

◆ productMass()

LUPI_HOST_DEVICE double MCGIDI::Distributions::Distribution::productMass ( ) const
inline

Returns the value of the m_productMass.

Definition at line 48 of file MCGIDI_distributions.hpp.

Referenced by MCGIDI::Distributions::AngularTwoBody::angleBiasing(), MCGIDI::Distributions::EnergyAngularMC::angleBiasing(), MCGIDI::Distributions::KalbachMann::angleBiasing(), MCGIDI::Distributions::Uncorrelated::angleBiasing(), and MCGIDI::Distributions::AngularTwoBody::sample().

◆ projectileMass()

LUPI_HOST_DEVICE double MCGIDI::Distributions::Distribution::projectileMass ( ) const
inline

Returns the value of the m_projectileMass.

Definition at line 46 of file MCGIDI_distributions.hpp.

Referenced by MCGIDI::Distributions::AngularTwoBody::angleBiasing(), MCGIDI::Distributions::EnergyAngularMC::angleBiasing(), MCGIDI::Distributions::KalbachMann::angleBiasing(), MCGIDI::Distributions::Uncorrelated::angleBiasing(), Distribution(), Distribution(), and MCGIDI::Distributions::AngularTwoBody::sample().

◆ sample() [1/2]

template<typename RNG>
LUPI_HOST_DEVICE void MCGIDI::Distributions::Distribution::sample ( double a_X,
MCGIDI::Sampling::Input & a_input,
RNG && a_rng ) const

This method samples the outgoing product data for the two outgoing particles in a two-body outgoing channel. First, is samples mu, the cosine of the product's outgoing angle, since this is for two-body interactions, mu is in the center-of-mass frame. It then calls kinetics_COMKineticEnergy2LabEnergyAndMomentum.

Parameters
a_X[in] The energy of the projectile in the lab frame.
a_input[in] Sample options requested by user.
a_rng[in] The random number generator function that returns a double in the range [0, 1.0).

Definition at line 135 of file MCGIDI_headerSource.hpp.

135 {
136
137 switch( type( ) ) {
138 case Distributions::Type::none:
139 break;
140 case Distributions::Type::unspecified:
141 static_cast<Distributions::Unspecified const *>( this )->sample( a_X, a_input, a_rng );
142 break;
143 case Distributions::Type::angularTwoBody:
144 static_cast<Distributions::AngularTwoBody const *>( this )->sample( a_X, a_input, a_rng );
145 break;
146 case Distributions::Type::KalbachMann:
147 static_cast<Distributions::KalbachMann const *>( this )->sample( a_X, a_input, a_rng );
148 break;
149 case Distributions::Type::uncorrelated:
150 static_cast<Distributions::Uncorrelated const *>( this )->sample( a_X, a_input, a_rng );
151 break;
152 case Distributions::Type::branching3d:
153 static_cast<Distributions::Branching3d const *>( this )->sample( a_X, a_input, a_rng );
154 break;
155 case Distributions::Type::energyAngularMC:
156 static_cast<Distributions::EnergyAngularMC const *>( this )->sample( a_X, a_input, a_rng );
157 break;
158 case Distributions::Type::angularEnergyMC:
159 static_cast<Distributions::AngularEnergyMC const *>( this )->sample( a_X, a_input, a_rng );
160 break;
161 case Distributions::Type::coherentPhotoAtomicScattering:
162 static_cast<Distributions::CoherentPhotoAtomicScattering const *>( this )->sample( a_X, a_input, a_rng );
163 break;
164 case Distributions::Type::incoherentPhotoAtomicScattering:
165 static_cast<Distributions::IncoherentPhotoAtomicScattering const *>( this )->sample( a_X, a_input, a_rng );
166 break;
167 case Distributions::Type::incoherentBoundToFreePhotoAtomicScattering:
168 static_cast<Distributions::IncoherentBoundToFreePhotoAtomicScattering const *>( this )->sample( a_X, a_input, a_rng );
169 break;
170 case Distributions::Type::incoherentPhotoAtomicScatteringElectron:
171 static_cast<Distributions::IncoherentPhotoAtomicScatteringElectron const *>( this )->sample( a_X, a_input, a_rng );
172 break;
173 case Distributions::Type::pairProductionGamma:
174 static_cast<Distributions::PairProductionGamma const *>( this )->sample( a_X, a_input, a_rng );
175 break;
176 case Distributions::Type::coherentElasticTNSL:
177 static_cast<Distributions::CoherentElasticTNSL const *>( this )->sample( a_X, a_input, a_rng );
178 break;
179 case Distributions::Type::incoherentElasticTNSL:
180 static_cast<Distributions::IncoherentElasticTNSL const *>( this )->sample( a_X, a_input, a_rng );
181 break;
182 }
183}
MCGIDI::Distributions::Distribution::sample
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION void sample(double a_X, Sampling::Input &a_input, RNG &&a_rng) const MCGIDI_TRUE_VIRTUAL

◆ sample() [2/2]

template<typename RNG>
LUPI_HOST_DEVICE MCGIDI_VIRTUAL_FUNCTION void MCGIDI::Distributions::Distribution::sample ( double a_X,
Sampling::Input & a_input,
RNG && a_rng ) const

Referenced by sample().

◆ serialize()

LUPI_HOST_DEVICE void MCGIDI::Distributions::Distribution::serialize ( LUPI::DataBuffer & a_buffer,
LUPI::DataBuffer::Mode a_mode )

This method serializes this for broadcasting as needed for MPI and GPUs. The method can count the number of required bytes, pack this or unpack this depending on a_mode.

Parameters
a_buffer[in] The buffer to read or write data to depending on a_mode.
a_mode[in] Specifies the action of this method.

Definition at line 95 of file MCGIDI_distributions.cc.

95 {
96
97 int distributionType = distributionTypeToInt( m_type );
98 DATA_MEMBER_INT( distributionType, a_buffer, a_mode );
99 if( a_mode == LUPI::DataBuffer::Mode::Unpack ) m_type = intToDistributionType( distributionType );
100
101 int frame = 0;
102 if( m_productFrame == GIDI::Frame::centerOfMass ) frame = 1;
103 DATA_MEMBER_INT( frame, a_buffer, a_mode );
104 m_productFrame = GIDI::Frame::lab;
105 if( frame == 1 ) m_productFrame = GIDI::Frame::centerOfMass;
106
107 DATA_MEMBER_DOUBLE( m_projectileMass, a_buffer, a_mode );
108 DATA_MEMBER_DOUBLE( m_targetMass, a_buffer, a_mode );
109 DATA_MEMBER_DOUBLE( m_productMass, a_buffer, a_mode );
110}
DATA_MEMBER_DOUBLE
#define DATA_MEMBER_DOUBLE(member, buf, mode)
Definition LUPI_dataBuffer.hpp:292
DATA_MEMBER_INT
#define DATA_MEMBER_INT( member, buf, mode)
Definition LUPI_dataBuffer.hpp:290
GIDI::Frame::centerOfMass
@ centerOfMass
Definition GIDI.hpp:146
MCGIDI::distributionTypeToInt
LUPI_HOST_DEVICE int distributionTypeToInt(Distributions::Type a_type)
Definition MCGIDI_misc.cc:238
MCGIDI::intToDistributionType
LUPI_HOST_DEVICE Distributions::Type intToDistributionType(int a_type)
Definition MCGIDI_misc.cc:301

Referenced by MCGIDI::Distributions::AngularEnergyMC::serialize(), MCGIDI::Distributions::AngularTwoBody::serialize(), MCGIDI::Distributions::Branching3d::serialize(), MCGIDI::Distributions::CoherentElasticTNSL::serialize(), MCGIDI::Distributions::CoherentPhotoAtomicScattering::serialize(), MCGIDI::Distributions::EnergyAngularMC::serialize(), MCGIDI::Distributions::IncoherentBoundToFreePhotoAtomicScattering::serialize(), MCGIDI::Distributions::IncoherentElasticTNSL::serialize(), MCGIDI::Distributions::IncoherentPhotoAtomicScattering::serialize(), MCGIDI::Distributions::IncoherentPhotoAtomicScatteringElectron::serialize(), MCGIDI::Distributions::KalbachMann::serialize(), MCGIDI::Distributions::PairProductionGamma::serialize(), MCGIDI::Distributions::Uncorrelated::serialize(), and MCGIDI::Distributions::Unspecified::serialize().

◆ setModelDBRC_data()

LUPI_HOST void MCGIDI::Distributions::Distribution::setModelDBRC_data ( Sampling::Upscatter::ModelDBRC_data * a_modelDBRC_data)

This method calls the **setModelDBRC_data2* method if the distribution is AngularTwoBody, otherwise it * executes a throw.

Parameters
a_modelDBRC_data[in] The instance storing data needed to treat the DRRC upscatter mode.

Definition at line 80 of file MCGIDI_distributions.cc.

80 {
81
82 if( type( ) != Type::angularTwoBody ) throw std::runtime_error( "Setting ModelDBRC_data for non-two body distribution is not allowed." );
83
84 static_cast<AngularTwoBody *>( this )->setModelDBRC_data2( a_modelDBRC_data );
85}

◆ targetMass()

LUPI_HOST_DEVICE double MCGIDI::Distributions::Distribution::targetMass ( ) const
inline

Returns the value of the m_targetMass.

Definition at line 47 of file MCGIDI_distributions.hpp.

Referenced by MCGIDI::Distributions::AngularTwoBody::angleBiasing(), MCGIDI::Distributions::EnergyAngularMC::angleBiasing(), MCGIDI::Distributions::KalbachMann::angleBiasing(), MCGIDI::Distributions::Uncorrelated::angleBiasing(), Distribution(), Distribution(), and MCGIDI::Distributions::AngularTwoBody::sample().

◆ type()

LUPI_HOST_DEVICE Type MCGIDI::Distributions::Distribution::type ( ) const
inline

Returns the value of the m_type.

Definition at line 43 of file MCGIDI_distributions.hpp.

Referenced by angleBiasing(), MCGIDI::Distributions::DistributionType(), sample(), MCGIDI::serializeDistribution(), and setModelDBRC_data().

The documentation for this class was generated from the following files:
