G4ToolsSGViewer< SG_SESSION, SG_VIEWER >::Messenger Class Reference

#include <G4ToolsSGViewer.hh>

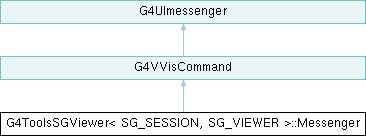

Inheritance diagram for G4ToolsSGViewer< SG_SESSION, SG_VIEWER >::Messenger:

Public Member Functions
virtual void	SetNewValue (G4UIcommand *a_cmd, G4String a_value)
Public Member Functions inherited from G4VVisCommand
	G4VVisCommand ()
virtual	~G4VVisCommand ()
Public Member Functions inherited from G4UImessenger
	G4UImessenger ()=default
	G4UImessenger (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
virtual	~G4UImessenger ()
virtual G4String	GetCurrentValue (G4UIcommand *command)
G4bool	CommandsShouldBeInMaster () const

Static Public Member Functions
static void	Create ()
Static Public Member Functions inherited from G4VVisCommand
static G4VisManager *	GetVisManager ()
static void	SetVisManager (G4VisManager *pVisManager)
static const G4Colour &	GetCurrentTextColour ()

Additional Inherited Members
Protected Member Functions inherited from G4VVisCommand
void	SetViewParameters (G4VViewer *viewer, const G4ViewParameters &viewParams)
void	RefreshIfRequired (G4VViewer *viewer)
void	InterpolateViews (G4VViewer *currentViewer, const std::vector< G4ViewParameters > &viewVector, const G4int nInterpolationPoints=50, const G4int waitTimePerPointmilliseconds=20, const G4String &exportString="")
void	InterpolateToNewView (G4VViewer *currentViewer, const G4ViewParameters &oldVP, const G4ViewParameters &newVP, const G4int nInterpolationPoints=50, const G4int waitTimePerPointmilliseconds=20, const G4String &exportString="")
void	Twinkle (G4VViewer *currentViewer, const G4ViewParameters &baseVP, const std::vector< std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > > &paths)
const G4String &	ConvertToColourGuidance ()
void	ConvertToColour (G4Colour &colour, const G4String &redOrString, G4double green, G4double blue, G4double opacity)
G4bool	ProvideValueOfUnit (const G4String &where, const G4String &unit, const G4String &category, G4double &value)
void	CopyCameraParameters (G4ViewParameters &target, const G4ViewParameters &from)
void	CheckSceneAndNotifyHandlers (G4Scene *=nullptr)
G4bool	CheckView ()
void	G4VisCommandsSceneAddUnsuccessful (G4VisManager::Verbosity verbosity)
void	CopyGuidanceFrom (const G4UIcommand *fromCmd, G4UIcommand *toCmd, G4int startLine=0)
void	CopyParametersFrom (const G4UIcommand *fromCmd, G4UIcommand *toCmd)
void	DrawExtent (const G4VisExtent &)
Protected Member Functions inherited from G4UImessenger
G4String	ItoS (G4int i)
G4String	LtoS (G4long l)
G4String	DtoS (G4double a)
G4String	BtoS (G4bool b)
G4int	StoI (const G4String &s)
G4long	StoL (const G4String &s)
G4double	StoD (const G4String &s)
G4bool	StoB (const G4String &s)
void	AddUIcommand (G4UIcommand *newCommand)
void	CreateDirectory (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
template<typename T>
T *	CreateCommand (const G4String &cname, const G4String &dsc)
Static Protected Member Functions inherited from G4VVisCommand
static G4String	ConvertToString (G4double x, G4double y, const char *unitName)
static G4bool	ConvertToDoublePair (const G4String &paramString, G4double &xval, G4double &yval)
Protected Attributes inherited from G4UImessenger
G4UIdirectory *	baseDir = nullptr
G4String	baseDirName = ""
G4bool	commandsShouldBeInMaster = false
Static Protected Attributes inherited from G4VVisCommand
static G4VisManager *	fpVisManager = nullptr
static G4int	fCurrentArrow3DLineSegmentsPerCircle = 6
static G4Colour	fCurrentColour = G4Colour::White()
static G4double	fCurrentLineWidth = 1.
static G4Colour	fCurrentTextColour = G4Colour::Blue()
static G4Text::Layout	fCurrentTextLayout = G4Text::left
static G4double	fCurrentTextSize = 12.
static G4PhysicalVolumeModel::TouchableProperties	fCurrentTouchableProperties
static G4VisExtent	fCurrentExtentForField
static std::vector< G4PhysicalVolumesSearchScene::Findings >	fCurrrentPVFindingsForField
static G4bool	fThereWasAViewer = false
static G4ViewParameters	fExistingVP
static G4SceneTreeItem	fExistingSceneTree

Detailed Description

template<class SG_SESSION, class SG_VIEWER>
class G4ToolsSGViewer< SG_SESSION, SG_VIEWER >::Messenger

Definition at line 509 of file G4ToolsSGViewer.hh.

Member Function Documentation

Create()

template<class SG_SESSION, class SG_VIEWER>

void G4ToolsSGViewer< SG_SESSION, SG_VIEWER >::Messenger::Create ( )

inlinestatic

Definition at line 511 of file G4ToolsSGViewer.hh.

{static Messenger s_messenger;}

Referenced by G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >::G4ToolsSGViewer().

SetNewValue()

template<class SG_SESSION, class SG_VIEWER>

virtual void G4ToolsSGViewer< SG_SESSION, SG_VIEWER >::Messenger::SetNewValue ( G4UIcommand * a_cmd, G4String a_value )

inlinevirtual

Reimplemented from G4UImessenger.

Definition at line 549 of file G4ToolsSGViewer.hh.

                                                                  {
      G4VisManager::Verbosity verbosity = GetVisManager()->GetVerbosity();
      G4VViewer* viewer = GetVisManager()->GetCurrentViewer();
      if (!viewer) {
        if (verbosity >= G4VisManager::errors) G4cerr << "ERROR: No current viewer." << G4endl;
        return;
      }
      G4ToolsSGViewer* tsg_viewer = dynamic_cast<G4ToolsSGViewer*>(viewer);
      if(!tsg_viewer) {
        G4cout << "G4ToolsSGViewer::Messenger::SetNewValue:"
               << " current viewer is not a G4ToolsSGViewer." << G4endl;
        return;
      }
      std::vector<std::string> args;
      tools::double_quotes_tokenize(a_value,args);
      if(args.size()!=a_cmd->GetParameterEntries()) return;
      if(a_cmd==write_scene) {
        G4bool do_transparency = G4UIcommand::ConvertToBool(args[2].c_str());
        tsg_viewer->Export(args[0],args[1],do_transparency);
      }
    }

---

The documentation for this class was generated from the following file:

• G4ToolsSGViewer.hh
