G4VMoleculeReactionCounter Class Reference

#include <G4VMoleculeReactionCounter.hh>

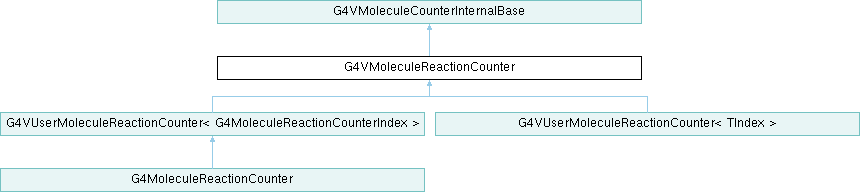

Inheritance diagram for G4VMoleculeReactionCounter:

Classes
struct	G4VMoleculeReactionCounterIndex

Public Types
enum	MoleculeReactionCounterType { Other , Basic }

Public Member Functions
	~G4VMoleculeReactionCounter () override=default
virtual std::unique_ptr< G4VMoleculeReactionCounterIndex >	BuildSimpleIndex (const G4DNAMolecularReactionData *) const =0
virtual void	RecordReaction (std::unique_ptr< G4VMoleculeReactionCounterIndex >, G4double, G4int=1)=0
virtual std::set< const G4DNAMolecularReactionData * >	GetRecordedReactions () const =0
MoleculeReactionCounterType	GetType () const
Public Member Functions inherited from G4VMoleculeCounterInternalBase
virtual	~G4VMoleculeCounterInternalBase ()=default
virtual void	Initialize ()=0
virtual void	InitializeUser ()=0
virtual void	ResetCounter ()=0
virtual void	Dump () const =0
virtual void	DumpCounterMapIndices () const =0
virtual std::set< G4double >	GetRecordedTimes () const =0
virtual void	AbsorbCounter (const G4VMoleculeCounterInternalBase *)=0
G4int	GetId () const
void	SetManagedId (G4int)
G4int	GetManagedId () const
const G4String &	GetName () const
G4int	GetVerbose () const
void	SetVerbose (G4int)
G4double	GetActiveLowerBound () const
void	SetActiveLowerBound (G4double, G4bool=true)
G4double	GetActiveUpperBound () const
void	SetActiveUpperBound (G4double, G4bool=true)
G4bool	GetActiveLowerBoundInclusive () const
G4bool	GetActiveUpperBoundInclusive () const
G4bool	IsTimeBelowLowerBound (G4double) const
G4bool	IsTimeAboveUpperBound (G4double) const
G4bool	IsActiveAtGlobalTime (G4double) const
G4bool	GetCheckTimeConsistencyWithScheduler () const
void	SetCheckTimeConsistencyWithScheduler (G4bool=true)
G4bool	GetCheckRecordedTimeConsistency () const
void	SetCheckRecordedTimeConsistency (G4bool=true)
const G4MoleculeCounterTimeComparer &	GetTimeComparer () const
void	SetTimeComparer (const G4MoleculeCounterTimeComparer &)

Protected Attributes
MoleculeReactionCounterType	fType {MoleculeReactionCounterType::Basic}
Protected Attributes inherited from G4VMoleculeCounterInternalBase
G4bool	fIsInitialized {false}
G4int	fId
G4int	fManagedId {-1}
G4String	fName {}
G4int	fVerbose {0}
G4double	fActiveLowerBound {0}
G4double	fActiveUpperBound {std::numeric_limits<G4double>::max()}
G4bool	fActiveLowerBoundInclusive {true}
G4bool	fActiveUpperBoundInclusive {true}
G4bool	fCheckTimeIsConsistentWithScheduler {true}
G4bool	fCheckRecordedTimesAreConsistent {true}
G4MoleculeCounterTimeComparer	fTimeComparer {}

Friends
template<typename>
class	G4VUserMoleculeReactionCounter

Additional Inherited Members
Static Public Member Functions inherited from G4VMoleculeCounterInternalBase
static void	SetFixedTimePrecision (G4double)

Detailed Description

Definition at line 40 of file G4VMoleculeReactionCounter.hh.

Member Enumeration Documentation

MoleculeReactionCounterType

enum G4VMoleculeReactionCounter::MoleculeReactionCounterType

Enumerator
Other
Basic

Definition at line 46 of file G4VMoleculeReactionCounter.hh.

    {
      Other,
      Basic,
    };

Constructor & Destructor Documentation

~G4VMoleculeReactionCounter()

G4VMoleculeReactionCounter::~G4VMoleculeReactionCounter ( )

overridedefault

Member Function Documentation

BuildSimpleIndex()

virtual std::unique_ptr< G4VMoleculeReactionCounterIndex > G4VMoleculeReactionCounter::BuildSimpleIndex ( const G4DNAMolecularReactionData * ) const

pure virtual

Implemented in G4MoleculeReactionCounter, G4VUserMoleculeReactionCounter< TIndex >, and G4VUserMoleculeReactionCounter< G4MoleculeReactionCounterIndex >.

GetRecordedReactions()

virtual std::set< const G4DNAMolecularReactionData * > G4VMoleculeReactionCounter::GetRecordedReactions ( ) const

pure virtual

Implemented in G4VUserMoleculeReactionCounter< TIndex >, and G4VUserMoleculeReactionCounter< G4MoleculeReactionCounterIndex >.

GetType()

G4VMoleculeReactionCounter::MoleculeReactionCounterType G4VMoleculeReactionCounter::GetType ( ) const

inline

Definition at line 87 of file G4VMoleculeReactionCounter.hh.

{
  return fType;
}

Referenced by G4VUserMoleculeReactionCounter< TIndex >::AbsorbCounter().

RecordReaction()

virtual void G4VMoleculeReactionCounter::RecordReaction ( std::unique_ptr< G4VMoleculeReactionCounterIndex > , G4double , G4int = 1 )

pure virtual

Implemented in G4VUserMoleculeReactionCounter< TIndex >, and G4VUserMoleculeReactionCounter< G4MoleculeReactionCounterIndex >.

Friends And Related Symbol Documentation

G4VUserMoleculeReactionCounter

template<typename>

friend class G4VUserMoleculeReactionCounter

friend

Definition at line 43 of file G4VMoleculeReactionCounter.hh.

Referenced by G4VUserMoleculeReactionCounter.

Member Data Documentation

fType

MoleculeReactionCounterType G4VMoleculeReactionCounter::fType {MoleculeReactionCounterType::Basic}

protected

Definition at line 79 of file G4VMoleculeReactionCounter.hh.

{MoleculeReactionCounterType::Basic};

Referenced by GetType().

---

The documentation for this class was generated from the following files:

• G4VMoleculeReactionCounter.hh
• G4VMoleculeReactionCounter.cc
