G4VAdjointReverseReaction Class Reference

#include <G4VAdjointReverseReaction.hh>

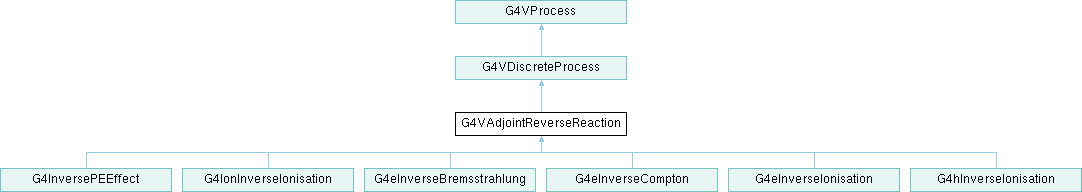

Inheritance diagram for G4VAdjointReverseReaction:

Public Member Functions
	G4VAdjointReverseReaction (const G4String &process_name, G4bool whichScatCase)
	~G4VAdjointReverseReaction () override
void	BuildPhysicsTable (const G4ParticleDefinition &) override
G4VParticleChange *	PostStepDoIt (const G4Track &, const G4Step &) override
	G4VAdjointReverseReaction (G4VAdjointReverseReaction &)=delete
G4VAdjointReverseReaction &	operator= (const G4VAdjointReverseReaction &right)=delete
Public Member Functions inherited from G4VDiscreteProcess
	G4VDiscreteProcess (const G4String &aName, G4ProcessType aType=fNotDefined)
	G4VDiscreteProcess (G4VDiscreteProcess &)
virtual	~G4VDiscreteProcess ()
G4VDiscreteProcess &	operator= (const G4VDiscreteProcess &)=delete
virtual G4double	PostStepGetPhysicalInteractionLength (const G4Track &track, G4double previousStepSize, G4ForceCondition *condition)
virtual G4double	AlongStepGetPhysicalInteractionLength (const G4Track &, G4double, G4double, G4double &, G4GPILSelection *)
virtual G4double	AtRestGetPhysicalInteractionLength (const G4Track &, G4ForceCondition *)
virtual G4VParticleChange *	AtRestDoIt (const G4Track &, const G4Step &)
virtual G4VParticleChange *	AlongStepDoIt (const G4Track &, const G4Step &)
virtual G4double	GetCrossSection (const G4double, const G4MaterialCutsCouple *)
virtual G4double	MinPrimaryEnergy (const G4ParticleDefinition *, const G4Material *)
Public Member Functions inherited from G4VProcess
	G4VProcess (const G4String &aName="NoName", G4ProcessType aType=fNotDefined)
	G4VProcess (const G4VProcess &right)
virtual	~G4VProcess ()
G4VProcess &	operator= (const G4VProcess &)=delete
G4bool	operator== (const G4VProcess &right) const
G4bool	operator!= (const G4VProcess &right) const
G4double	GetCurrentInteractionLength () const
void	SetPILfactor (G4double value)
G4double	GetPILfactor () const
G4double	AlongStepGPIL (const G4Track &track, G4double previousStepSize, G4double currentMinimumStep, G4double &proposedSafety, G4GPILSelection *selection)
G4double	AtRestGPIL (const G4Track &track, G4ForceCondition *condition)
G4double	PostStepGPIL (const G4Track &track, G4double previousStepSize, G4ForceCondition *condition)
virtual G4bool	IsApplicable (const G4ParticleDefinition &)
virtual void	PreparePhysicsTable (const G4ParticleDefinition &)
virtual G4bool	StorePhysicsTable (const G4ParticleDefinition *, const G4String &, G4bool)
virtual G4bool	RetrievePhysicsTable (const G4ParticleDefinition *, const G4String &, G4bool)
const G4String &	GetPhysicsTableFileName (const G4ParticleDefinition *, const G4String &directory, const G4String &tableName, G4bool ascii=false)
const G4String &	GetProcessName () const
G4ProcessType	GetProcessType () const
void	SetProcessType (G4ProcessType)
G4int	GetProcessSubType () const
void	SetProcessSubType (G4int)
virtual const G4VProcess *	GetCreatorProcess () const
virtual void	StartTracking (G4Track *)
virtual void	EndTracking ()
virtual void	SetProcessManager (const G4ProcessManager *)
virtual const G4ProcessManager *	GetProcessManager ()
virtual void	ResetNumberOfInteractionLengthLeft ()
G4double	GetNumberOfInteractionLengthLeft () const
G4double	GetTotalNumberOfInteractionLengthTraversed () const
G4bool	isAtRestDoItIsEnabled () const
G4bool	isAlongStepDoItIsEnabled () const
G4bool	isPostStepDoItIsEnabled () const
virtual void	DumpInfo () const
virtual void	ProcessDescription (std::ostream &outfile) const
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const
virtual void	SetMasterProcess (G4VProcess *masterP)
const G4VProcess *	GetMasterProcess () const
virtual void	BuildWorkerPhysicsTable (const G4ParticleDefinition &part)
virtual void	PrepareWorkerPhysicsTable (const G4ParticleDefinition &)

Protected Member Functions
G4double	GetMeanFreePath (const G4Track &track, G4double previousStepSize, G4ForceCondition *condition) override
Protected Member Functions inherited from G4VProcess
void	SubtractNumberOfInteractionLengthLeft (G4double prevStepSize)
void	ClearNumberOfInteractionLengthLeft ()

Protected Attributes
G4VEmAdjointModel *	fAdjointModel = nullptr
G4bool	fIsScatProjToProj
Protected Attributes inherited from G4VProcess
const G4ProcessManager *	aProcessManager = nullptr
G4VParticleChange *	pParticleChange = nullptr
G4ParticleChange	aParticleChange
G4double	theNumberOfInteractionLengthLeft = -1.0
G4double	currentInteractionLength = -1.0
G4double	theInitialNumberOfInteractionLength = -1.0
G4String	theProcessName
G4String	thePhysicsTableFileName
G4ProcessType	theProcessType = fNotDefined
G4int	theProcessSubType = -1
G4double	thePILfactor = 1.0
G4int	verboseLevel = 0
G4bool	enableAtRestDoIt = true
G4bool	enableAlongStepDoIt = true
G4bool	enablePostStepDoIt = true

Additional Inherited Members
Static Public Member Functions inherited from G4VProcess
static const G4String &	GetProcessTypeName (G4ProcessType)

Detailed Description

Definition at line 47 of file G4VAdjointReverseReaction.hh.

Constructor & Destructor Documentation

G4VAdjointReverseReaction() [1/2]

G4VAdjointReverseReaction::G4VAdjointReverseReaction ( const G4String & process_name, G4bool whichScatCase )

explicit

Definition at line 33 of file G4VAdjointReverseReaction.cc.

  : G4VDiscreteProcess(process_name)
{
  fCSManager        = G4AdjointCSManager::GetAdjointCSManager();
  fIsScatProjToProj = whichScatCase;
  fParticleChange   = new G4ParticleChange();
}

Referenced by G4eInverseBremsstrahlung::G4eInverseBremsstrahlung(), G4eInverseCompton::G4eInverseCompton(), G4eInverseIonisation::G4eInverseIonisation(), G4hInverseIonisation::G4hInverseIonisation(), G4InversePEEffect::G4InversePEEffect(), G4IonInverseIonisation::G4IonInverseIonisation(), G4VAdjointReverseReaction(), and operator=().

~G4VAdjointReverseReaction()

G4VAdjointReverseReaction::~G4VAdjointReverseReaction ( )

override

Definition at line 43 of file G4VAdjointReverseReaction.cc.

{
  if(fParticleChange)
    delete fParticleChange;
}

G4VAdjointReverseReaction() [2/2]

G4VAdjointReverseReaction::G4VAdjointReverseReaction ( G4VAdjointReverseReaction & )

delete

Member Function Documentation

BuildPhysicsTable()

void G4VAdjointReverseReaction::BuildPhysicsTable ( const G4ParticleDefinition & )

overridevirtual

Reimplemented from G4VProcess.

Definition at line 50 of file G4VAdjointReverseReaction.cc.

{
  fCSManager->BuildCrossSectionMatrices();  // it will be done just once
  fCSManager->BuildTotalSigmaTables();
}

GetMeanFreePath()

G4double G4VAdjointReverseReaction::GetMeanFreePath ( const G4Track & track, G4double previousStepSize, G4ForceCondition * condition )

overrideprotectedvirtual

Implements G4VDiscreteProcess.

Definition at line 68 of file G4VAdjointReverseReaction.cc.

{
  *condition                = NotForced;
  G4double preStepKinEnergy = track.GetKineticEnergy();

  if(track.GetTrackID() != fTrackId)
  {
    fTrackId = track.GetTrackID();
  }
  G4double sigma = fAdjointModel->AdjointCrossSection(
    track.GetMaterialCutsCouple(), preStepKinEnergy, fIsScatProjToProj);

  G4double corr = fCSManager->GetCrossSectionCorrection(
    track.GetDefinition(), preStepKinEnergy, track.GetMaterialCutsCouple(),
    fIsFwdCSUsed);

  if(std::fabs(corr) > 100.)
  {
    sigma = 0.0;
  }
  else
  {
    sigma *= corr;
  }

  G4double mean_free_path = 1.e60;
  if(sigma > 0.)
    mean_free_path = 1. / sigma;

  return mean_free_path;
}

operator=()

G4VAdjointReverseReaction & G4VAdjointReverseReaction::operator= ( const G4VAdjointReverseReaction & right )

delete

PostStepDoIt()

G4VParticleChange * G4VAdjointReverseReaction::PostStepDoIt ( const G4Track & track, const G4Step &  )

overridevirtual

Reimplemented from G4VDiscreteProcess.

Definition at line 57 of file G4VAdjointReverseReaction.cc.

{
  fParticleChange->Initialize(track);
  fAdjointModel->SampleSecondaries(track, fIsScatProjToProj, fParticleChange);

  ClearNumberOfInteractionLengthLeft();
  return fParticleChange;
}

Member Data Documentation

fAdjointModel

G4VEmAdjointModel* G4VAdjointReverseReaction::fAdjointModel = nullptr

protected

Definition at line 69 of file G4VAdjointReverseReaction.hh.

Referenced by G4eInverseBremsstrahlung::G4eInverseBremsstrahlung(), G4eInverseCompton::G4eInverseCompton(), G4eInverseIonisation::G4eInverseIonisation(), G4hInverseIonisation::G4hInverseIonisation(), G4InversePEEffect::G4InversePEEffect(), G4IonInverseIonisation::G4IonInverseIonisation(), GetMeanFreePath(), and PostStepDoIt().

fIsScatProjToProj

G4bool G4VAdjointReverseReaction::fIsScatProjToProj

protected

Definition at line 70 of file G4VAdjointReverseReaction.hh.

Referenced by G4VAdjointReverseReaction(), GetMeanFreePath(), and PostStepDoIt().

---

The documentation for this class was generated from the following files:

• G4VAdjointReverseReaction.hh
• G4VAdjointReverseReaction.cc
