G4ToolsSGQtGLESViewer Class Reference

#include <G4ToolsSGQtGLESViewer.hh>

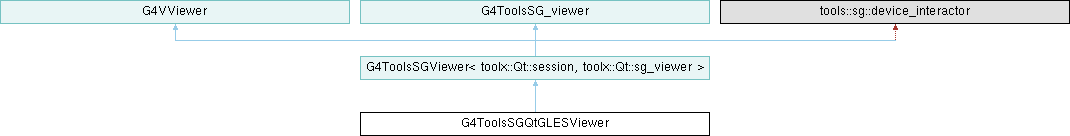

Inheritance diagram for G4ToolsSGQtGLESViewer:

Public Member Functions
	G4ToolsSGQtGLESViewer (toolx::Qt::session &a_session, G4ToolsSGSceneHandler &a_scene_handler, const G4String &a_name)
virtual	~G4ToolsSGQtGLESViewer ()
virtual void	Initialise ()
Public Member Functions inherited from G4ToolsSGViewer< toolx::Qt::session, toolx::Qt::sg_viewer >
virtual void	key_press (const tools::sg::key_down_event &)
virtual void	key_release (const tools::sg::key_up_event &)
virtual void	mouse_press (const tools::sg::mouse_down_event &a_event)
virtual void	mouse_release (const tools::sg::mouse_up_event &)
virtual void	mouse_move (const tools::sg::mouse_move_event &a_event)
virtual void	wheel_rotate (const tools::sg::wheel_rotate_event &a_event)
	G4ToolsSGViewer (toolx::Qt::session &a_session, G4ToolsSGSceneHandler &a_scene_handler, const G4String &a_name)
virtual	~G4ToolsSGViewer ()
virtual void	SetView ()
virtual void	ClearView ()
virtual void	DrawView ()
virtual void	ShowView ()
virtual void	FinishView ()
G4bool	GetWindowSize (unsigned int &a_w, unsigned int &a_h)
G4bool	GetRenderAreaSize (unsigned int &a_w, unsigned int &a_h)
virtual void	EmitWindowRender ()
Public Member Functions inherited from G4VViewer
	G4VViewer (G4VSceneHandler &, G4int id, const G4String &name="")
virtual	~G4VViewer ()
virtual void	ResetView ()
void	RefreshView ()
virtual G4bool	ReadyToDraw ()
std::vector< G4ThreeVector >	ComputeFlyThrough (G4Vector3D *)
virtual void	DoneWithMasterThread ()
virtual void	MovingToVisSubThread ()
virtual void	SwitchToVisSubThread ()
virtual void	DoneWithVisSubThread ()
virtual void	MovingToMasterThread ()
virtual void	SwitchToMasterThread ()
void	InsertModelInSceneTree (G4VModel *)
const G4SceneTreeItem &	GetSceneTree ()
G4SceneTreeItem &	AccessSceneTree ()
void	UpdateGUISceneTree ()
void	UpdateGUIControlWidgets ()
void	UpdateGUIDrawingStyle ()
void	UpdateGUIProjectionStyle ()
void	UpdateGUITransparencySlider ()
const G4String &	GetName () const
const G4String &	GetShortName () const
void	SetName (const G4String &)
G4int	GetViewId () const
G4VSceneHandler *	GetSceneHandler () const
const G4ViewParameters &	GetViewParameters () const
const G4ViewParameters &	GetDefaultViewParameters () const
G4double	GetKernelVisitElapsedTimeSeconds () const
virtual const std::vector< G4ModelingParameters::VisAttributesModifier > *	GetPrivateVisAttributesModifiers () const
void	SetViewParameters (const G4ViewParameters &vp)
void	SetDefaultViewParameters (const G4ViewParameters &vp)
const G4VisAttributes *	GetApplicableVisAttributes (const G4VisAttributes *) const
void	SetNeedKernelVisit (G4bool need)
void	NeedKernelVisit ()
void	ProcessView ()
void	ProcessTransients ()
void	ZoomFromMouseWheel (G4double delta, G4bool shift=false, G4double xPos=0, G4double yPos=0)
Public Member Functions inherited from G4ToolsSG_viewer
	G4ToolsSG_viewer ()
virtual	~G4ToolsSG_viewer ()

Protected Member Functions
	G4ToolsSGQtGLESViewer (const G4ToolsSGQtGLESViewer &a_from)
G4ToolsSGQtGLESViewer &	operator= (const G4ToolsSGQtGLESViewer &)
Protected Member Functions inherited from G4ToolsSGViewer< toolx::Qt::session, toolx::Qt::sg_viewer >
	G4ToolsSGViewer (const G4ToolsSGViewer &a_from)
G4ToolsSGViewer &	operator= (const G4ToolsSGViewer &)
void	KernelVisitDecision ()
G4bool	CompareForKernelVisit (G4ViewParameters &vp)
G4bool	CompareForTransientsRedraw (G4ViewParameters &vp)
void	CreateSG (tools::sg::base_camera *a_camera, const G4Vector3D &a_light_dir)
void	Export (const G4String &a_format, const G4String &a_file, G4bool a_do_transparency)
G4double	GetSceneNearWidth ()
Protected Member Functions inherited from G4VViewer
void	SetTouchable (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath)
void	TouchableSetVisibility (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath, G4bool visibility)
void	TouchableSetColour (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath, const G4Colour &)
Protected Member Functions inherited from G4ToolsSG_viewer
	G4ToolsSG_viewer (const G4ToolsSG_viewer &)
G4ToolsSG_viewer &	operator= (const G4ToolsSG_viewer &)

Protected Attributes
G4UIQt *	fUIQt = nullptr
QWidget *	fSGQWidget
G4ToolsSGQtDestroyCallback *	fDestroyCallback
Protected Attributes inherited from G4ToolsSGViewer< toolx::Qt::session, toolx::Qt::sg_viewer >
toolx::Qt::session &	fSGSession
G4ToolsSGSceneHandler &	fSGSceneHandler
toolx::Qt::sg_viewer *	fSGViewer
G4ViewParameters	fLastVP
G4bool	fMousePressed
G4double	fMousePressedX
G4double	fMousePressedY
tools::sg::zb_manager	f_zb_mgr
tools::sg::gl2ps_manager	f_gl2ps_mgr
Protected Attributes inherited from G4VViewer
G4VSceneHandler &	fSceneHandler
G4int	fViewId
G4String	fName
G4String	fShortName
G4ViewParameters	fVP
G4ViewParameters	fDefaultVP
G4double	fKernelVisitElapsedTimeSeconds = 999.
G4SceneTreeItem	fSceneTree
G4bool	fNeedKernelVisit
G4bool	fTransientsNeedRedrawing

Additional Inherited Members
Public Attributes inherited from G4VViewer
const G4int	fMaxAllTouchables = 10000
G4bool	fCurtailDescent = false

Detailed Description

Definition at line 58 of file G4ToolsSGQtGLESViewer.hh.

Constructor & Destructor Documentation

G4ToolsSGQtGLESViewer() [1/2]

G4ToolsSGQtGLESViewer::G4ToolsSGQtGLESViewer ( toolx::Qt::session & a_session, G4ToolsSGSceneHandler & a_scene_handler, const G4String & a_name )

inline

Definition at line 61 of file G4ToolsSGQtGLESViewer.hh.

  :parent(a_session,a_scene_handler,a_name)
  ,fSGQWidget(nullptr)
  ,fDestroyCallback(0)
  {
    fDestroyCallback = new G4ToolsSGQtDestroyCallback(this);
  }

Referenced by G4ToolsSGQtGLESViewer(), and operator=().

~G4ToolsSGQtGLESViewer()

virtual G4ToolsSGQtGLESViewer::~G4ToolsSGQtGLESViewer ( )

inlinevirtual

Definition at line 68 of file G4ToolsSGQtGLESViewer.hh.

                                   {
    delete fDestroyCallback; //it will remove the below signal/slot connection.
  }

G4ToolsSGQtGLESViewer() [2/2]

G4ToolsSGQtGLESViewer::G4ToolsSGQtGLESViewer ( const G4ToolsSGQtGLESViewer & a_from )

inlineprotected

Definition at line 72 of file G4ToolsSGQtGLESViewer.hh.

:parent(a_from){}

Member Function Documentation

Initialise()

virtual void G4ToolsSGQtGLESViewer::Initialise ( )

inlinevirtual

Reimplemented from G4ToolsSGViewer< toolx::Qt::session, toolx::Qt::sg_viewer >.

Definition at line 75 of file G4ToolsSGQtGLESViewer.hh.

                            {
    if(fSGQWidget) return; //done.
    parent::Initialise();
    if(!fSGViewer) {
      G4cerr << "G4ToolsSGQtGLESViewer::Initialise: ERROR: G4ToolsSGQtGLESViewer has no toolx::Qt::sg_viewer." << G4endl;
      return;
    }
    fSGQWidget = fSGViewer->shell();
    if (!fSGQWidget) {
      G4cerr << "G4ToolsSGQtGLESViewer::Initialise: ERROR: toolx::Qt::sg_viewer has no QWidget shell." << G4endl;
      return;
    }

   {G4UImanager* ui = G4UImanager::GetUIpointer();
    G4UIsession* session = ui->GetG4UIWindow();
     fUIQt = session? dynamic_cast<G4UIQt*>(session) :nullptr;
    if(fUIQt) {
      G4Qt* interactorManager = G4Qt::getInstance ();
      if (!interactorManager->IsExternalApp()) {
        fSGViewer->set_own_shell(false);
        fUIQt->AddTabWidget(fSGQWidget,QString(GetName()));
        QObject::connect(fSGQWidget,SIGNAL(destroyed()),fDestroyCallback,SLOT(execute()));

        QMainWindow* main_window = fUIQt->GetMainWindow();
        if(main_window) {
          main_window->show();
          interactorManager->FlushAndWaitExecution();
        }
      }
    }}

    fSGViewer->enable_keyboard_focus();
  }

operator=()

G4ToolsSGQtGLESViewer & G4ToolsSGQtGLESViewer::operator= ( const G4ToolsSGQtGLESViewer & )

inlineprotected

Definition at line 73 of file G4ToolsSGQtGLESViewer.hh.

{return *this;}

Member Data Documentation

fDestroyCallback

G4ToolsSGQtDestroyCallback* G4ToolsSGQtGLESViewer::fDestroyCallback

protected

Definition at line 112 of file G4ToolsSGQtGLESViewer.hh.

Referenced by G4ToolsSGQtGLESViewer(), Initialise(), and ~G4ToolsSGQtGLESViewer().

fSGQWidget

QWidget* G4ToolsSGQtGLESViewer::fSGQWidget

protected

Definition at line 111 of file G4ToolsSGQtGLESViewer.hh.

Referenced by G4ToolsSGQtGLESViewer(), and Initialise().

fUIQt

G4UIQt* G4ToolsSGQtGLESViewer::fUIQt = nullptr

protected

Definition at line 110 of file G4ToolsSGQtGLESViewer.hh.

Referenced by Initialise().

---

The documentation for this class was generated from the following file:

• G4ToolsSGQtGLESViewer.hh
