G4VHadronPhysics Class Reference

#include <G4VHadronPhysics.hh>

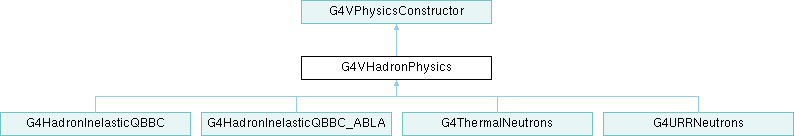

Inheritance diagram for G4VHadronPhysics:

Public Member Functions
	G4VHadronPhysics (const G4String &name="hInelastic", G4int verbose=0)
virtual	~G4VHadronPhysics ()
void	ConstructParticle () override
G4HadronicInteraction *	BuildModel (G4VHadronModelBuilder *, G4double emin, G4double emax)
G4HadronicInteraction *	NewModel (G4HadronicInteraction *, G4double emin, G4double emax)
	G4VHadronPhysics (G4VHadronPhysics &)=delete
G4VHadronPhysics &	operator= (const G4VHadronPhysics &right)=delete
Public Member Functions inherited from G4VPhysicsConstructor
	G4VPhysicsConstructor (const G4String &="")
	G4VPhysicsConstructor (const G4String &name, G4int physics_type)
virtual	~G4VPhysicsConstructor ()
virtual void	ConstructProcess ()=0
void	SetPhysicsName (const G4String &="")
const G4String &	GetPhysicsName () const
void	SetPhysicsType (G4int)
G4int	GetPhysicsType () const
G4int	GetInstanceID () const
virtual void	TerminateWorker ()
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const

Additional Inherited Members
Static Public Member Functions inherited from G4VPhysicsConstructor
static const G4VPCManager &	GetSubInstanceManager ()
Protected Types inherited from G4VPhysicsConstructor
using	PhysicsBuilder_V = G4VPCData::PhysicsBuilders_V
Protected Member Functions inherited from G4VPhysicsConstructor
G4bool	RegisterProcess (G4VProcess *process, G4ParticleDefinition *particle)
G4ParticleTable::G4PTblDicIterator *	GetParticleIterator () const
PhysicsBuilder_V	GetBuilders () const
void	AddBuilder (G4PhysicsBuilderInterface *bld)
Protected Attributes inherited from G4VPhysicsConstructor
G4int	verboseLevel = 0
G4String	namePhysics = ""
G4int	typePhysics = 0
G4ParticleTable *	theParticleTable = nullptr
G4int	g4vpcInstanceID = 0
Static Protected Attributes inherited from G4VPhysicsConstructor
static G4RUN_DLL G4VPCManager	subInstanceManager

Detailed Description

Definition at line 49 of file G4VHadronPhysics.hh.

Constructor & Destructor Documentation

G4VHadronPhysics() [1/2]

G4VHadronPhysics::G4VHadronPhysics	(	const G4String &	name = "hInelastic",
		G4int	verbose = 0 )

Definition at line 54 of file G4VHadronPhysics.cc.

  : G4VPhysicsConstructor(aName)
{
  SetVerboseLevel(verb);
  G4HadronicParameters::Instance()->SetVerboseLevel(verb);
  if (verboseLevel>1) {
    G4cout << "### G4VHadronPhysics: <" << aName << "> is created "
       << G4endl;
  }
}

Referenced by G4HadronInelasticQBBC::G4HadronInelasticQBBC(), G4HadronInelasticQBBC_ABLA::G4HadronInelasticQBBC_ABLA(), G4ThermalNeutrons::G4ThermalNeutrons(), G4URRNeutrons::G4URRNeutrons(), G4VHadronPhysics(), and operator=().

~G4VHadronPhysics()

G4VHadronPhysics::~G4VHadronPhysics ( )

virtual

Definition at line 65 of file G4VHadronPhysics.cc.

{}

G4VHadronPhysics() [2/2]

G4VHadronPhysics::G4VHadronPhysics ( G4VHadronPhysics & )

delete

Member Function Documentation

BuildModel()

G4HadronicInteraction * G4VHadronPhysics::BuildModel	(	G4VHadronModelBuilder *	mBuilder,
		G4double	emin,
		G4double	emax )

Definition at line 84 of file G4VHadronPhysics.cc.

{
  G4HadronicInteraction* model = mBuilder->GetModel();
  model->SetMinEnergy(emin);
  model->SetMaxEnergy(emax);
  if (verboseLevel>1) {
    G4cout << "### G4VHadronPhysics <"
       << model->GetModelName() << " Emin(GeV)= "
       << emin/GeV << "  Emax(GeV)= " << emax/GeV
       << G4endl;
  }

  return model;
}

ConstructParticle()

void G4VHadronPhysics::ConstructParticle ( )

overridevirtual

Implements G4VPhysicsConstructor.

Definition at line 68 of file G4VHadronPhysics.cc.

{
  G4MesonConstructor pMesonConstructor;
  pMesonConstructor.ConstructParticle();

  G4BaryonConstructor pBaryonConstructor;
  pBaryonConstructor.ConstructParticle();

  G4IonConstructor pIonConstructor;
  pIonConstructor.ConstructParticle();

  G4ShortLivedConstructor pShortLivedConstructor;
  pShortLivedConstructor.ConstructParticle();
}

NewModel()

G4HadronicInteraction * G4VHadronPhysics::NewModel	(	G4HadronicInteraction *	model,
		G4double	emin,
		G4double	emax )

Definition at line 102 of file G4VHadronPhysics.cc.

{
  if(nullptr == model) return model;
  model->SetMinEnergy(emin);
  model->SetMaxEnergy(emax);
  if (verboseLevel>1) {
    G4cout << "### G4VHadronPhysics <"
       << model->GetModelName() << " Emin(GeV)= "
       << emin/GeV << "  Emax(GeV)= " << emax/GeV
       << G4endl;
  }
  return model;
}

operator=()

G4VHadronPhysics & G4VHadronPhysics::operator= ( const G4VHadronPhysics & right )

delete

---

The documentation for this class was generated from the following files:

• G4VHadronPhysics.hh
• G4VHadronPhysics.cc
