G4EmDNAPhysics_option6 Class Reference

#include <G4EmDNAPhysics_option6.hh>

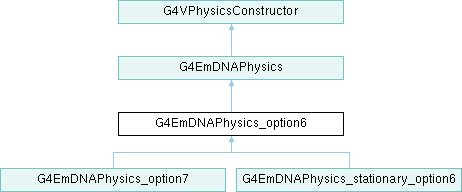

Inheritance diagram for G4EmDNAPhysics_option6:

Public Member Functions
	G4EmDNAPhysics_option6 (G4int ver=1, const G4String &name="G4EmDNAPhysics_option6")
	~G4EmDNAPhysics_option6 () override=default
void	ConstructProcess () override
Public Member Functions inherited from G4EmDNAPhysics
	G4EmDNAPhysics (G4int ver=1, const G4String &name="G4EmDNAPhysics")
	~G4EmDNAPhysics () override=default
void	ConstructParticle () override
Public Member Functions inherited from G4VPhysicsConstructor
	G4VPhysicsConstructor (const G4String &="")
	G4VPhysicsConstructor (const G4String &name, G4int physics_type)
virtual	~G4VPhysicsConstructor ()
void	SetPhysicsName (const G4String &="")
const G4String &	GetPhysicsName () const
void	SetPhysicsType (G4int)
G4int	GetPhysicsType () const
G4int	GetInstanceID () const
virtual void	TerminateWorker ()
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const

Additional Inherited Members
Static Public Member Functions inherited from G4VPhysicsConstructor
static const G4VPCManager &	GetSubInstanceManager ()
Protected Types inherited from G4VPhysicsConstructor
using	PhysicsBuilder_V = G4VPCData::PhysicsBuilders_V
Protected Member Functions inherited from G4VPhysicsConstructor
G4bool	RegisterProcess (G4VProcess *process, G4ParticleDefinition *particle)
G4ParticleTable::G4PTblDicIterator *	GetParticleIterator () const
PhysicsBuilder_V	GetBuilders () const
void	AddBuilder (G4PhysicsBuilderInterface *bld)
Protected Attributes inherited from G4VPhysicsConstructor
G4int	verboseLevel = 0
G4String	namePhysics = ""
G4int	typePhysics = 0
G4ParticleTable *	theParticleTable = nullptr
G4int	g4vpcInstanceID = 0
Static Protected Attributes inherited from G4VPhysicsConstructor
static G4RUN_DLL G4VPCManager	subInstanceManager

Detailed Description

Definition at line 47 of file G4EmDNAPhysics_option6.hh.

Constructor & Destructor Documentation

G4EmDNAPhysics_option6()

G4EmDNAPhysics_option6::G4EmDNAPhysics_option6 ( G4int ver = 1, const G4String & name = "G4EmDNAPhysics_option6" )

explicit

Definition at line 60 of file G4EmDNAPhysics_option6.cc.

  : G4EmDNAPhysics(ver, nam)
{
  G4EmParameters* param = G4EmParameters::Instance();
  param->SetDNAFast(true);
}

Referenced by G4EmDNAPhysics_option7::G4EmDNAPhysics_option7(), and G4EmDNAPhysics_stationary_option6::G4EmDNAPhysics_stationary_option6().

~G4EmDNAPhysics_option6()

G4EmDNAPhysics_option6::~G4EmDNAPhysics_option6 ( )

overridedefault

Member Function Documentation

ConstructProcess()

void G4EmDNAPhysics_option6::ConstructProcess ( )

overridevirtual

Reimplemented from G4EmDNAPhysics.

Definition at line 69 of file G4EmDNAPhysics_option6.cc.

{
  // parameters
  G4EmParameters* param = G4EmParameters::Instance();
  const G4double emaxDNA = 1.*CLHEP::MeV;
  const G4double emaxIonDNA = 300.*CLHEP::MeV;
  const G4double emaxLightIonDNA = 300.*CLHEP::MeV;
  const G4double eminBorn = 500.*CLHEP::keV;
  const G4bool fast = param->DNAFast();
  const G4bool st = param->DNAStationary();
  if(verboseLevel > 1) {
    G4cout << "### " << GetPhysicsName()
       << " Construct Processes EmaxDNA(MeV)= "
           << emaxDNA/CLHEP::MeV << "; useMSC: " << fast
           << "; stationary: " << st << G4endl;
  }
  G4DNAGenericIonsManager* genericIonsManager
    = G4DNAGenericIonsManager::Instance();

  // standard physics
  G4EmDNABuilder::ConstructStandardEmPhysics(emaxDNA, emaxIonDNA,
                                             emaxIonDNA, emaxIonDNA,
                                             dnaUrban, fast);

  // DNA physics
  G4EmDNABuilder::ConstructDNAElectronPhysics(emaxDNA, 6, fast, st);
  G4EmDNABuilder::ConstructDNAProtonPhysics(eminBorn, emaxIonDNA, 6, fast, st);
  G4EmDNABuilder::ConstructDNAIonPhysics(emaxIonDNA, 6);

  G4ParticleDefinition* part = genericIonsManager->GetIon("hydrogen");
  G4EmDNABuilder::ConstructDNALightIonPhysics(part, 0, 6, emaxIonDNA, fast, st);

  part = G4Alpha::Alpha();
  G4EmDNABuilder::ConstructDNALightIonPhysics(part, 2, 6, emaxLightIonDNA, fast, st);

  part = genericIonsManager->GetIon("alpha+");
  G4EmDNABuilder::ConstructDNALightIonPhysics(part, 1, 6, emaxLightIonDNA, fast, st);

  part = genericIonsManager->GetIon("helium");
  G4EmDNABuilder::ConstructDNALightIonPhysics(part, 0, 6, emaxLightIonDNA, fast, st);
}

---

The documentation for this class was generated from the following files:

• G4EmDNAPhysics_option6.hh
• G4EmDNAPhysics_option6.cc
