G4BaseRNtupleManager Class Reference

#include <G4BaseRNtupleManager.hh>

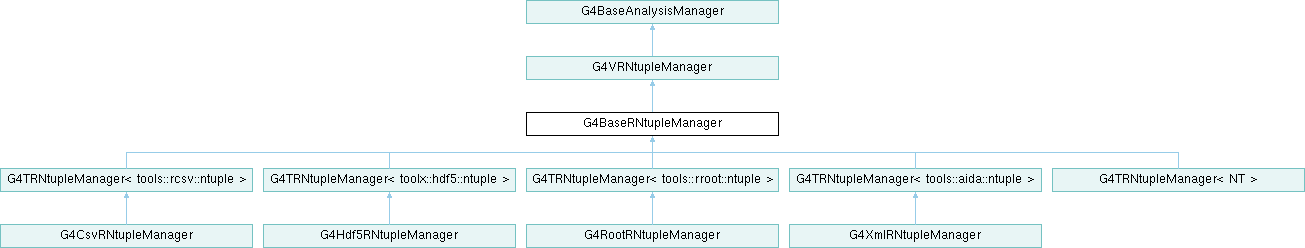

Inheritance diagram for G4BaseRNtupleManager:

Public Member Functions
	G4BaseRNtupleManager (const G4AnalysisManagerState &state)
	~G4BaseRNtupleManager () override=default
	G4BaseRNtupleManager ()=delete
	G4BaseRNtupleManager (const G4BaseRNtupleManager &rhs)=delete
G4BaseRNtupleManager &	operator= (const G4BaseRNtupleManager &rhs)=delete
Public Member Functions inherited from G4VRNtupleManager
	G4VRNtupleManager (const G4AnalysisManagerState &state)
	G4VRNtupleManager ()=delete
	~G4VRNtupleManager () override=default
	G4VRNtupleManager (const G4VRNtupleManager &rhs)=delete
G4VRNtupleManager &	operator= (const G4VRNtupleManager &rhs)=delete
Public Member Functions inherited from G4BaseAnalysisManager
	G4BaseAnalysisManager (const G4AnalysisManagerState &state)
	G4BaseAnalysisManager ()=delete
virtual	~G4BaseAnalysisManager ()=default
G4bool	SetFirstId (G4int firstId)
void	SetLockFirstId (G4bool lockFirstId)
G4int	GetFirstId () const
G4int	GetCycle () const

Protected Member Functions
G4bool	SetNtupleIColumn (const G4String &columnName, G4int &value) final
G4bool	SetNtupleFColumn (const G4String &columnName, G4float &value) final
G4bool	SetNtupleDColumn (const G4String &columnName, G4double &value) final
G4bool	SetNtupleSColumn (const G4String &columnName, G4String &value) final
G4bool	SetNtupleIColumn (G4int ntupleId, const G4String &columnName, G4int &value) override=0
G4bool	SetNtupleFColumn (G4int ntupleId, const G4String &columnName, G4float &value) override=0
G4bool	SetNtupleDColumn (G4int ntupleId, const G4String &columnName, G4double &value) override=0
G4bool	SetNtupleSColumn (G4int ntupleId, const G4String &columnName, G4String &value) override=0
G4bool	SetNtupleIColumn (const G4String &columnName, std::vector< G4int > &vector) final
G4bool	SetNtupleFColumn (const G4String &columnName, std::vector< G4float > &vector) final
G4bool	SetNtupleDColumn (const G4String &columnName, std::vector< G4double > &vector) final
G4bool	SetNtupleSColumn (const G4String &columnName, std::vector< std::string > &vector) final
G4bool	SetNtupleIColumn (G4int ntupleId, const G4String &columnName, std::vector< G4int > &vector) override=0
G4bool	SetNtupleFColumn (G4int ntupleId, const G4String &columnName, std::vector< G4float > &vector) override=0
G4bool	SetNtupleDColumn (G4int ntupleId, const G4String &columnName, std::vector< G4double > &vector) override=0
G4bool	SetNtupleSColumn (G4int ntupleId, const G4String &columnName, std::vector< std::string > &vector) override=0
G4bool	GetNtupleRow () final
G4bool	GetNtupleRow (G4int ntupleId) override=0
G4int	GetNofNtuples () const override=0
Protected Member Functions inherited from G4VRNtupleManager
virtual G4int	ReadNtupleImpl (const G4String &ntupleName, const G4String &fileName, const G4String &dirName, G4bool isUserFileName)=0
Protected Member Functions inherited from G4BaseAnalysisManager
G4bool	IsVerbose (G4int verboseLevel) const
void	Message (G4int level, const G4String &action, const G4String &objectType, const G4String &objectName="", G4bool success=true) const

Friends
class	G4VAnalysisReader

Additional Inherited Members
Protected Attributes inherited from G4BaseAnalysisManager
const G4AnalysisManagerState &	fState
G4int	fFirstId { 0 }
G4bool	fLockFirstId { false }

Detailed Description

Definition at line 40 of file G4BaseRNtupleManager.hh.

Constructor & Destructor Documentation

G4BaseRNtupleManager() [1/3]

G4BaseRNtupleManager::G4BaseRNtupleManager ( const G4AnalysisManagerState & state )

explicit

Definition at line 32 of file G4BaseRNtupleManager.cc.

  : G4VRNtupleManager(state)
{}

Referenced by G4BaseRNtupleManager(), and operator=().

~G4BaseRNtupleManager()

G4BaseRNtupleManager::~G4BaseRNtupleManager ( )

overridedefault

G4BaseRNtupleManager() [2/3]

G4BaseRNtupleManager::G4BaseRNtupleManager ( )

delete

G4BaseRNtupleManager() [3/3]

G4BaseRNtupleManager::G4BaseRNtupleManager ( const G4BaseRNtupleManager & rhs )

delete

Member Function Documentation

GetNofNtuples()

G4int G4BaseRNtupleManager::GetNofNtuples ( ) const

overrideprotectedpure virtual

Implements G4VRNtupleManager.

Implemented in G4TRNtupleManager< NT >, G4TRNtupleManager< tools::aida::ntuple >, G4TRNtupleManager< tools::rcsv::ntuple >, G4TRNtupleManager< tools::rroot::ntuple >, and G4TRNtupleManager< toolx::hdf5::ntuple >.

Referenced by GetNofNtuples().

GetNtupleRow() [1/2]

G4bool G4BaseRNtupleManager::GetNtupleRow ( )

finalprotectedvirtual

Implements G4VRNtupleManager.

Reimplemented in G4TRNtupleManager< NT >, G4TRNtupleManager< tools::aida::ntuple >, G4TRNtupleManager< tools::rcsv::ntuple >, G4TRNtupleManager< tools::rroot::ntuple >, and G4TRNtupleManager< toolx::hdf5::ntuple >.

Definition at line 101 of file G4BaseRNtupleManager.cc.

{
  return GetNtupleRow(fFirstId);
}

Referenced by GetNtupleRow(), GetNtupleRow(), and G4TRNtupleManager< NT >::SetNtupleSColumn().

GetNtupleRow() [2/2]

G4bool G4BaseRNtupleManager::GetNtupleRow ( G4int ntupleId )

overrideprotectedpure virtual

Implements G4VRNtupleManager.

Implemented in G4TRNtupleManager< NT >.

operator=()

G4BaseRNtupleManager & G4BaseRNtupleManager::operator= ( const G4BaseRNtupleManager & rhs )

delete

SetNtupleDColumn() [1/4]

G4bool G4BaseRNtupleManager::SetNtupleDColumn ( const G4String & columnName, G4double & value )

finalprotectedvirtual

Implements G4VRNtupleManager.

Reimplemented in G4TRNtupleManager< NT >, G4TRNtupleManager< tools::aida::ntuple >, G4TRNtupleManager< tools::rcsv::ntuple >, G4TRNtupleManager< tools::rroot::ntuple >, G4TRNtupleManager< toolx::hdf5::ntuple >, and G4XmlRNtupleManager.

Definition at line 59 of file G4BaseRNtupleManager.cc.

{
  return SetNtupleDColumn(GetCurrentNtupleId(), columnName, value);
}

Referenced by G4TRNtupleManager< NT >::SetNtuple(), SetNtupleDColumn(), G4TRNtupleManager< NT >::SetNtupleSColumn(), and G4XmlRNtupleManager::~G4XmlRNtupleManager().

SetNtupleDColumn() [2/4]

G4bool G4BaseRNtupleManager::SetNtupleDColumn ( const G4String & columnName, std::vector< G4double > & vector )

finalprotectedvirtual

Implements G4VRNtupleManager.

Reimplemented in G4TRNtupleManager< NT >, G4TRNtupleManager< tools::aida::ntuple >, G4TRNtupleManager< tools::rcsv::ntuple >, G4TRNtupleManager< tools::rroot::ntuple >, G4TRNtupleManager< toolx::hdf5::ntuple >, and G4XmlRNtupleManager.

Definition at line 87 of file G4BaseRNtupleManager.cc.

{
  return SetNtupleDColumn(GetCurrentNtupleId(), columnName, vector);
}

SetNtupleDColumn() [3/4]

G4bool G4BaseRNtupleManager::SetNtupleDColumn ( G4int ntupleId, const G4String & columnName, G4double & value )

overrideprotectedpure virtual

Implements G4VRNtupleManager.

Implemented in G4TRNtupleManager< NT >, and G4XmlRNtupleManager.

SetNtupleDColumn() [4/4]

G4bool G4BaseRNtupleManager::SetNtupleDColumn ( G4int ntupleId, const G4String & columnName, std::vector< G4double > & vector )

overrideprotectedpure virtual

Implements G4VRNtupleManager.

Implemented in G4TRNtupleManager< NT >, and G4XmlRNtupleManager.

SetNtupleFColumn() [1/4]

G4bool G4BaseRNtupleManager::SetNtupleFColumn ( const G4String & columnName, G4float & value )

finalprotectedvirtual

Implements G4VRNtupleManager.

Reimplemented in G4TRNtupleManager< NT >, G4TRNtupleManager< tools::aida::ntuple >, G4TRNtupleManager< tools::rcsv::ntuple >, G4TRNtupleManager< tools::rroot::ntuple >, G4TRNtupleManager< toolx::hdf5::ntuple >, and G4XmlRNtupleManager.

Definition at line 52 of file G4BaseRNtupleManager.cc.

{
  return SetNtupleFColumn(GetCurrentNtupleId(), columnName, value);
}

Referenced by G4TRNtupleManager< NT >::SetNtuple(), SetNtupleFColumn(), SetNtupleFColumn(), and G4XmlRNtupleManager::~G4XmlRNtupleManager().

SetNtupleFColumn() [2/4]

G4bool G4BaseRNtupleManager::SetNtupleFColumn ( const G4String & columnName, std::vector< G4float > & vector )

finalprotectedvirtual

Implements G4VRNtupleManager.

Reimplemented in G4TRNtupleManager< NT >, G4TRNtupleManager< tools::aida::ntuple >, G4TRNtupleManager< tools::rcsv::ntuple >, G4TRNtupleManager< tools::rroot::ntuple >, G4TRNtupleManager< toolx::hdf5::ntuple >, and G4XmlRNtupleManager.

Definition at line 80 of file G4BaseRNtupleManager.cc.

{
  return SetNtupleFColumn(GetCurrentNtupleId(), columnName, vector);
}

SetNtupleFColumn() [3/4]

G4bool G4BaseRNtupleManager::SetNtupleFColumn ( G4int ntupleId, const G4String & columnName, G4float & value )

overrideprotectedpure virtual

Implements G4VRNtupleManager.

Implemented in G4TRNtupleManager< NT >, and G4XmlRNtupleManager.

SetNtupleFColumn() [4/4]

G4bool G4BaseRNtupleManager::SetNtupleFColumn ( G4int ntupleId, const G4String & columnName, std::vector< G4float > & vector )

overrideprotectedpure virtual

Implements G4VRNtupleManager.

Implemented in G4TRNtupleManager< NT >, and G4XmlRNtupleManager.

SetNtupleIColumn() [1/4]

G4bool G4BaseRNtupleManager::SetNtupleIColumn ( const G4String & columnName, G4int & value )

finalprotectedvirtual

Implements G4VRNtupleManager.

Reimplemented in G4TRNtupleManager< NT >, G4TRNtupleManager< tools::aida::ntuple >, G4TRNtupleManager< tools::rcsv::ntuple >, G4TRNtupleManager< tools::rroot::ntuple >, G4TRNtupleManager< toolx::hdf5::ntuple >, and G4XmlRNtupleManager.

Definition at line 46 of file G4BaseRNtupleManager.cc.

{
  return SetNtupleIColumn(GetCurrentNtupleId(), columnName, value);
}

Referenced by G4TRNtupleManager< NT >::SetNtuple(), SetNtupleIColumn(), G4TRNtupleManager< NT >::SetNtupleSColumn(), and G4XmlRNtupleManager::~G4XmlRNtupleManager().

SetNtupleIColumn() [2/4]

G4bool G4BaseRNtupleManager::SetNtupleIColumn ( const G4String & columnName, std::vector< G4int > & vector )

finalprotectedvirtual

Implements G4VRNtupleManager.

Reimplemented in G4TRNtupleManager< NT >, G4TRNtupleManager< tools::aida::ntuple >, G4TRNtupleManager< tools::rcsv::ntuple >, G4TRNtupleManager< tools::rroot::ntuple >, G4TRNtupleManager< toolx::hdf5::ntuple >, and G4XmlRNtupleManager.

Definition at line 73 of file G4BaseRNtupleManager.cc.

{
  return SetNtupleIColumn(GetCurrentNtupleId(), columnName, vector);
}

SetNtupleIColumn() [3/4]

G4bool G4BaseRNtupleManager::SetNtupleIColumn ( G4int ntupleId, const G4String & columnName, G4int & value )

overrideprotectedpure virtual

Implements G4VRNtupleManager.

Implemented in G4TRNtupleManager< NT >, and G4XmlRNtupleManager.

SetNtupleIColumn() [4/4]

G4bool G4BaseRNtupleManager::SetNtupleIColumn ( G4int ntupleId, const G4String & columnName, std::vector< G4int > & vector )

overrideprotectedpure virtual

Implements G4VRNtupleManager.

Implemented in G4TRNtupleManager< NT >, and G4XmlRNtupleManager.

SetNtupleSColumn() [1/4]

G4bool G4BaseRNtupleManager::SetNtupleSColumn ( const G4String & columnName, G4String & value )

finalprotectedvirtual

Implements G4VRNtupleManager.

Reimplemented in G4TRNtupleManager< NT >, G4TRNtupleManager< tools::aida::ntuple >, G4TRNtupleManager< tools::rcsv::ntuple >, G4TRNtupleManager< tools::rroot::ntuple >, and G4TRNtupleManager< toolx::hdf5::ntuple >.

Definition at line 66 of file G4BaseRNtupleManager.cc.

{
  return SetNtupleSColumn(GetCurrentNtupleId(), columnName, value);
}

Referenced by G4TRNtupleManager< NT >::SetNtuple(), SetNtupleSColumn(), and SetNtupleSColumn().

SetNtupleSColumn() [2/4]

G4bool G4BaseRNtupleManager::SetNtupleSColumn ( const G4String & columnName, std::vector< std::string > & vector )

finalprotectedvirtual

Implements G4VRNtupleManager.

Reimplemented in G4TRNtupleManager< NT >, G4TRNtupleManager< tools::aida::ntuple >, G4TRNtupleManager< tools::rcsv::ntuple >, G4TRNtupleManager< tools::rroot::ntuple >, and G4TRNtupleManager< toolx::hdf5::ntuple >.

Definition at line 94 of file G4BaseRNtupleManager.cc.

{
  return SetNtupleSColumn(GetCurrentNtupleId(), columnName, vector);
}

SetNtupleSColumn() [3/4]

G4bool G4BaseRNtupleManager::SetNtupleSColumn ( G4int ntupleId, const G4String & columnName, G4String & value )

overrideprotectedpure virtual

Implements G4VRNtupleManager.

Implemented in G4TRNtupleManager< NT >.

SetNtupleSColumn() [4/4]

G4bool G4BaseRNtupleManager::SetNtupleSColumn ( G4int ntupleId, const G4String & columnName, std::vector< std::string > & vector )

overrideprotectedpure virtual

Implements G4VRNtupleManager.

Implemented in G4TRNtupleManager< NT >, and G4XmlRNtupleManager.

Friends And Related Symbol Documentation

G4VAnalysisReader

friend class G4VAnalysisReader

friend

Definition at line 44 of file G4BaseRNtupleManager.hh.

Referenced by G4VAnalysisReader.

---

The documentation for this class was generated from the following files:

• G4BaseRNtupleManager.hh
• G4BaseRNtupleManager.cc
