GIDI::Map::BaseEntry Class Reference

#include <GIDI.hpp>

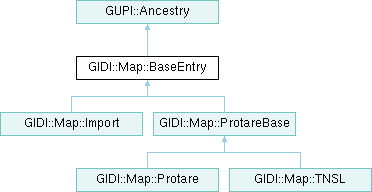

Inheritance diagram for GIDI::Map::BaseEntry:

Public Types
enum class	PathForm { entered , cumulative , real }

Public Member Functions
	BaseEntry (HAPI::Node const &a_node, std::string const &a_basePath, Map const *a_parent)
virtual	~BaseEntry ()=0
std::string const &	name () const
Map const *	parent () const
std::string	path (PathForm a_form=PathForm::real) const
virtual EntryType	entryType () const =0
void	libraries (std::vector< std::string > &a_libraries) const
virtual ProtareBase const *	findProtareEntry (std::string const &a_projectileID, std::string const &a_targetID, std::string const &a_library="", std::string const &a_evaluation="") const =0
virtual void	findProtareEntries (FindProtareEntries &a_protareEntries, std::regex const &a_projectileID, std::regex const &a_targetID, std::regex const &a_library=std::regex(".*"), std::regex const &a_evaluation=std::regex(".*")) const =0
virtual void	toXMLList (GUPI::WriteInfo &a_writeInfo, std::string const &a_indent="") const =0
Public Member Functions inherited from GUPI::Ancestry
	Ancestry (std::string const &a_moniker, std::string const &a_attribute="")
virtual	~Ancestry ()
Ancestry &	operator= (Ancestry const &a_ancestry)
std::string const &	moniker () const
void	setMoniker (std::string const &a_moniker)
Ancestry *	ancestor ()
Ancestry const *	ancestor () const
void	setAncestor (Ancestry *a_ancestor)
std::string	attribute () const
Ancestry *	root ()
Ancestry const *	root () const
bool	isChild (Ancestry *a_instance)
bool	isParent (Ancestry *a_parent)
bool	isRoot () const
Ancestry *	findInAncestry (std::string const &a_href)
Ancestry const *	findInAncestry (std::string const &a_href) const
virtual Ancestry *	findInAncestry3 (std::string const &a_item)=0
virtual Ancestry const *	findInAncestry3 (std::string const &a_item) const =0
virtual LUPI_HOST void	serialize (LUPI::DataBuffer &a_buffer, LUPI::DataBuffer::Mode a_mode)
virtual std::string	xlinkItemKey () const
std::string	toXLink () const
void	printXML () const

Additional Inherited Members
Static Public Member Functions inherited from GUPI::Ancestry
static std::string	buildXLinkItemKey (std::string const &a_name, std::string const &a_key)

Detailed Description

This is the virtual base class inherited by all map entry classes.

Definition at line 5174 of file GIDI.hpp.

Member Enumeration Documentation

PathForm

enum class GIDI::Map::BaseEntry::PathForm

strong

Enumerator
entered
cumulative
real

Definition at line 5177 of file GIDI.hpp.

{ entered, cumulative, real };

Constructor & Destructor Documentation

BaseEntry()

GIDI::Map::BaseEntry::BaseEntry	(	HAPI::Node const &	a_node,
		std::string const &	a_basePath,
		Map const *	a_parent )

Parameters

a_node	[in] The HAPI::Node to be parsed.
a_basePath	[in] A path prepended to this entry's path.
a_parent	[in] Pointer to the Map containing this.

Definition at line 110 of file GIDI_map.cc.

                                                                                               :
        GUPI::Ancestry( a_node.name( ) ),
        m_name( a_node.name( ) ),
        m_parent( a_parent ),
        m_path( a_node.attribute_as_string( GIDI_pathChars ) ),
        m_cumulativePath( GIDI_addPaths( a_basePath, m_path ) ) {

}

Referenced by GIDI::Map::Import::Import(), and GIDI::Map::ProtareBase::ProtareBase().

~BaseEntry()

GIDI::Map::BaseEntry::~BaseEntry ( )

pure virtual

Definition at line 122 of file GIDI_map.cc.

                       {

}

Member Function Documentation

entryType()

virtual EntryType GIDI::Map::BaseEntry::entryType ( ) const

pure virtual

Implemented in GIDI::Map::Import, GIDI::Map::Protare, and GIDI::Map::TNSL.

Referenced by GIDI::Map::Map::isTNSL_target(), and GIDI::Map::Map::protare().

findProtareEntries()

virtual void GIDI::Map::BaseEntry::findProtareEntries ( FindProtareEntries & a_protareEntries, std::regex const & a_projectileID, std::regex const & a_targetID, std::regex const & a_library = std::regex(".*"), std::regex const & a_evaluation = std::regex(".*") ) const

pure virtual

Implemented in GIDI::Map::Import, and GIDI::Map::ProtareBase.

findProtareEntry()

virtual ProtareBase const * GIDI::Map::BaseEntry::findProtareEntry ( std::string const & a_projectileID, std::string const & a_targetID, std::string const & a_library = "", std::string const & a_evaluation = "" ) const

pure virtual

Implemented in GIDI::Map::Import, and GIDI::Map::ProtareBase.

libraries()

void GIDI::Map::BaseEntry::libraries

(

std::vector< std::string > &

a_libraries

)

const

Fills a_libraries with the name of all the libraries this is contained in. The first library in the list is the library this is defined in and the last is the starting library.

Parameters

a_libraries

[out] The instances that is filled with the library names.

Definition at line 147 of file GIDI_map.cc.

                                                                   {

    parent( )->libraries( a_libraries );
}

Referenced by GIDI::Map::TNSL::protare(), GIDI::Map::Protare::protareSingle(), and GIDI::Map::TNSL::protareSingle().

name()

std::string const & GIDI::Map::BaseEntry::name ( ) const

inline

Returns the value of the m_name member.

Definition at line 5189 of file GIDI.hpp.

Referenced by BaseEntry(), and GIDI::Map::Map::walk().

parent()

Map const * GIDI::Map::BaseEntry::parent ( ) const

inline

Returns the value of the m_parent member.

Definition at line 5190 of file GIDI.hpp.

Referenced by GIDI::Map::ProtareBase::findProtareEntries(), GIDI::Map::ProtareBase::findProtareEntry(), libraries(), GIDI::Map::ProtareBase::library(), GIDI::Map::TNSL::protare(), and GIDI::Map::ProtareBase::resolvedLibrary().

path()

std::string GIDI::Map::BaseEntry::path

(

PathForm

a_form = PathForm::real

)

const

Returns either the entered, cumulative or realPath path for the entry.

Parameters

a_form

[in] The type of path to return.

Returns

The requested path.

Definition at line 133 of file GIDI_map.cc.

                                                 {

    if( a_form == PathForm::entered ) return( m_path );
    if( a_form == PathForm::cumulative ) return( m_cumulativePath );
    return( LUPI::FileInfo::realPath( m_cumulativePath ) );
}

Referenced by GIDI::Map::Import::Import(), GIDI::Map::TNSL::protare(), GIDI::Map::Map::protareFilename(), GIDI::Map::Protare::protareSingle(), GIDI::Map::TNSL::protareSingle(), GIDI::Map::Import::toXMLList(), GIDI::Map::Protare::toXMLList(), GIDI::Map::TNSL::toXMLList(), and GIDI::Map::Map::walk().

toXMLList()

virtual void GIDI::Map::BaseEntry::toXMLList ( GUPI::WriteInfo & a_writeInfo, std::string const & a_indent = "" ) const

pure virtual

Fills the argument a_writeInfo with the XML lines that represent this. Recursively enters each sub-node.

Parameters

a_writeInfo	[in/out] Instance containing incremental indentation and other information and stores the appended lines.
a_indent	[in] The amount to indent this node.

Reimplemented from GUPI::Ancestry.

Implemented in GIDI::Map::Import, GIDI::Map::Protare, and GIDI::Map::TNSL.

---

The documentation for this class was generated from the following files:

• GIDI.hpp
• GIDI_map.cc
