PoPI::Particle Class Reference

#include <PoPI.hpp>

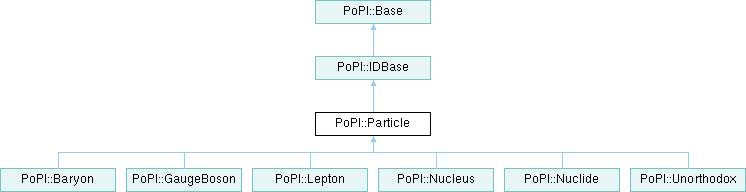

Inheritance diagram for PoPI::Particle:

Public Member Functions
	Particle (HAPI::Node const &a_node, Particle_class a_class, std::string const &a_family, int a_hasNucleus=0)
virtual	~Particle ()
std::string const &	baseId (void) const
std::string const &	family (void) const
bool	isAnti () const
int	hasNucleus (void) const
virtual PQ_suite const &	mass (void) const
virtual double	massValue (char const *a_unit) const
double	massValue (std::string const &a_unit) const
PQ_suite const &	spin () const
PQ_suite const &	parity () const
PQ_suite const &	charge () const
PQ_suite const &	halflife () const
DecayData const &	decayData () const
void	toXMLList (std::vector< std::string > &a_XMLList, std::string const &a_indent1) const
virtual std::string	toXMLListExtraAttributes (void) const
virtual void	toXMLListExtraElements (std::vector< std::string > &a_XMLList, std::string const &a_indent1) const
Public Member Functions inherited from PoPI::IDBase
	IDBase (std::string const &a_id, Particle_class a_class)
	IDBase (HAPI::Node const &a_node, Particle_class a_class)
virtual	~IDBase ()
std::size_t	addToDatabase (Database *a_DB)
double	massValue2 (Database const &a_DB, std::string const &a_unit) const
Public Member Functions inherited from PoPI::Base
	Base (std::string const &a_id, Particle_class a_class)
	Base (HAPI::Node const &a_node, std::string const &a_label, Particle_class a_class)
virtual	~Base ()
std::string const &	ID (void) const
std::size_t	index (void) const
void	setIndex (std::size_t a_index)
int	intid () const
Particle_class	Class (void) const
virtual bool	isParticle () const
bool	isAlias (void) const
bool	isMetaStableAlias (void) const
bool	isGaugeBoson () const
bool	isLepton () const
bool	isBaryon () const
bool	isUnorthodox () const
bool	isNucleus () const
bool	isNuclide () const
bool	isIsotope () const
bool	isChemicalElement () const

Friends
class	Unorthodox

Additional Inherited Members
Public Attributes inherited from PoPI::Base
friend	MetaStable
friend	Alias
friend	Baryon
friend	GaugeBoson
friend	Lepton
friend	Nucleus
friend	Nuclide
friend	Unorthodox

Detailed Description

The base class representing a particle.

Definition at line 853 of file PoPI.hpp.

Constructor & Destructor Documentation

Particle()

PoPI::Particle::Particle	(	HAPI::Node const &	a_node,
		Particle_class	a_class,
		std::string const &	a_family,
		int	a_hasNucleus = 0 )

Parameters

a_node	[in] The HAPI::Node node to be parsed.
a_class	[in] The class of the particle.
a_family	[in] The family of the particle.
a_hasNucleus	[in] Indicates if the particle is or contains a nucleus. 0 = no, -1 = yes and 1 = is nucleus.

Definition at line 25 of file PoPI_particle.cc.

                                                                                                                :
        IDBase( a_node, a_class ),
        m_baseId( "" ),
        m_family( a_family ),
        m_anti( "" ),
        m_hasNucleus( a_hasNucleus ),
        m_mass( a_node.child( PoPI_massChars ) ),
        m_spin( a_node.child( PoPI_spinChars ) ),
        m_parity( a_node.child( PoPI_parityChars ) ),
        m_charge( a_node.child( PoPI_chargeChars ) ),
        m_halflife( a_node.child( PoPI_halflifeChars ) ),
        m_decayData( a_node.child( PoPI_decayDataChars ) ) {

    m_baseId = baseAntiQualifierFromID( ID( ), m_anti );
}

Referenced by PoPI::Baryon::Baryon(), PoPI::GaugeBoson::GaugeBoson(), PoPI::Lepton::Lepton(), PoPI::Nucleus::Nucleus(), PoPI::Nuclide::Nuclide(), and PoPI::Unorthodox::Unorthodox().

~Particle()

PoPI::Particle::~Particle ( )

virtual

Definition at line 44 of file PoPI_particle.cc.

                     {

}

Member Function Documentation

baseId()

std::string const & PoPI::Particle::baseId ( void ) const

inline

Returns a const reference to the m_baseId member.

Definition at line 873 of file PoPI.hpp.

Referenced by PoPI::Baryon::Baryon().

charge()

PQ_suite const & PoPI::Particle::charge ( ) const

inline

Returns a const reference to the m_charge member.

Definition at line 885 of file PoPI.hpp.

decayData()

DecayData const & PoPI::Particle::decayData ( ) const

inline

Returns a const reference to the m_decayData member.

Definition at line 887 of file PoPI.hpp.

Referenced by PoPI::Nuclide::calculateNuclideGammaBranchStateInfos().

family()

std::string const & PoPI::Particle::family ( void ) const

inline

Returns a const reference to the m_family member.

Definition at line 874 of file PoPI.hpp.

Referenced by toXMLList().

halflife()

PQ_suite const & PoPI::Particle::halflife ( ) const

inline

Returns a const reference to the m_halflife member.

Definition at line 886 of file PoPI.hpp.

hasNucleus()

int PoPI::Particle::hasNucleus ( void ) const

inline

Returns the value of the m_hasNucleus member.

Definition at line 876 of file PoPI.hpp.

Referenced by GIDI::Map::Map::replacementTarget().

isAnti()

bool PoPI::Particle::isAnti ( ) const

inline

Returns the value of the m_anti member.

Definition at line 875 of file PoPI.hpp.

Referenced by PoPI::Baryon::Baryon(), PoPI::GaugeBoson::GaugeBoson(), PoPI::Lepton::Lepton(), PoPI::Nucleus::Nucleus(), PoPI::Nuclide::Nuclide(), and PoPI::Unorthodox::Unorthodox().

mass()

virtual PQ_suite const & PoPI::Particle::mass ( void ) const

inlinevirtual

Returns a const reference to the m_mass member.

Definition at line 878 of file PoPI.hpp.

Referenced by PoPI::Nucleus::massValue(), PoPI::Nuclide::massValue(), and massValue().

massValue() [1/2]

double PoPI::Particle::massValue ( char const * a_unit ) const

virtual

Returns the mass of the particle in units of a_unit. Currently not fully implement and does not support a_unit.

Parameters

a_unit

[in] The unit to return the mass in.

Returns

The mass in unit of a_unit.

Reimplemented in PoPI::Nucleus, and PoPI::Nuclide.

Definition at line 56 of file PoPI_particle.cc.

                                                     {

    if( m_mass.size( ) == 0 ) throw Exception( "Particle '" + ID( ) + "' does not have any mass data." );

    PQ_double const *pq_mass = dynamic_cast<PQ_double const *>( mass( )[0] );

    if( pq_mass == nullptr ) throw Exception( "Particle '" + ID( ) + "' does not have a PoPI::PQ_double mass." );
    return( pq_mass->value( a_unit ) );
}

Referenced by PoPI::DecayMode::calculateNuclideGammaBranchStateInfo(), PoPI::GammaDecayData::calculateNuclideGammaBranchStateInfo(), PoPI::Database::massValue(), and GIDI::ParticleInfo::ParticleInfo().

massValue() [2/2]

double PoPI::Particle::massValue ( std::string const & a_unit ) const

inline

Returns the value of massValue( a_unit.c_str( ) ).

Definition at line 880 of file PoPI.hpp.

Referenced by massValue().

parity()

PQ_suite const & PoPI::Particle::parity ( ) const

inline

Returns a const reference to the m_parity member.

Definition at line 884 of file PoPI.hpp.

spin()

PQ_suite const & PoPI::Particle::spin ( ) const

inline

Returns a const reference to the m_spin member.

Definition at line 883 of file PoPI.hpp.

toXMLList()

void PoPI::Particle::toXMLList	(	std::vector< std::string > &	a_XMLList,
		std::string const &	a_indent1 ) const

Adds the contents of this to a_XMLList where each item in a_XMLList is one line (without linefeeds) to output as an XML representation of this.

Parameters

a_XMLList	[in] The list to add an XML output representation of this to.
a_indent1	[in] The amount of indentation to added to each line added to a_XMLList.

Definition at line 73 of file PoPI_particle.cc.

                                                                                            {

    std::string indent2 = a_indent1 + "  ";

    std::string header = a_indent1 + "<" + family( ) + " id=\"" + ID( ) + "\"" + toXMLListExtraAttributes( ) + ">";
    a_XMLList.push_back( std::move( header ) );

    m_mass.toXMLList( a_XMLList, indent2 );
    m_spin.toXMLList( a_XMLList, indent2 );
    m_parity.toXMLList( a_XMLList, indent2 );
    m_charge.toXMLList( a_XMLList, indent2 );
    m_halflife.toXMLList( a_XMLList, indent2 );
    toXMLListExtraElements( a_XMLList, indent2 );
    m_decayData.toXMLList( a_XMLList, indent2 );

    appendXMLEnd( a_XMLList, family( ) );
}

toXMLListExtraAttributes()

std::string PoPI::Particle::toXMLListExtraAttributes ( void ) const

virtual

Currently there are no extra attributes to add. Ergo, returns an empty string.

Reimplemented in PoPI::Lepton, and PoPI::Nucleus.

Definition at line 95 of file PoPI_particle.cc.

                                                         {

    return( "" );
}

Referenced by toXMLList().

toXMLListExtraElements()

void PoPI::Particle::toXMLListExtraElements ( std::vector< std::string > & a_XMLList, std::string const & a_indent1 ) const

virtual

Currently there are no extra child nodes to add.

Parameters

a_XMLList	[in] The list to add an XML output representation of this to.
a_indent1	[in] The amount of indentation to added to each line added to a_XMLList.

Reimplemented in PoPI::Nucleus, and PoPI::Nuclide.

Definition at line 107 of file PoPI_particle.cc.

                                                                                                                                           {

    return;
}

Referenced by toXMLList().

Friends And Related Symbol Documentation

Unorthodox

friend class Unorthodox

friend

Definition at line 893 of file PoPI.hpp.

Referenced by Unorthodox.

---

The documentation for this class was generated from the following files:

• PoPI.hpp
• PoPI_particle.cc
