G4VRFileManager Class Reference

#include <G4VRFileManager.hh>

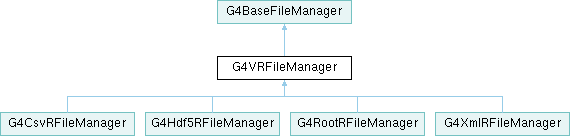

Inheritance diagram for G4VRFileManager:

Public Member Functions
	G4VRFileManager (const G4AnalysisManagerState &state)
	G4VRFileManager ()=delete
	~G4VRFileManager () override=default
virtual void	CloseFiles ()=0
template<typename HT>
std::shared_ptr< G4VTHnRFileManager< HT > >	GetHnRFileManager () const
Public Member Functions inherited from G4BaseFileManager
	G4BaseFileManager (const G4AnalysisManagerState &state)
	G4BaseFileManager ()=delete
virtual	~G4BaseFileManager ()=default
virtual void	SetCompressionLevel (G4int level)
virtual G4bool	SetFileName (const G4String &fileName)
virtual G4String	GetFileType () const
virtual G4bool	HasCycles () const
void	AddFileName (const G4String &fileName)
G4int	GetCompressionLevel () const
G4String	GetFileName () const
G4String	GetFullFileName (const G4String &baseFileName="", G4bool isPerThread=true) const
const std::vector< G4String > &	GetFileNames () const
G4String	GetHnFileName (const G4String &hnType, const G4String &hnName) const
G4String	GetHnFileName (const G4String &fileName, G4int cycle=0) const
G4String	GetNtupleFileName (const G4String &ntupleName, G4int cycle=0) const
G4String	GetNtupleFileName (G4int ntupleFileNumber, G4int cycle=0) const
G4String	GetPlotFileName () const

Protected Attributes
std::shared_ptr< G4VTHnRFileManager< tools::histo::h1d > >	fH1RFileManager { nullptr }
std::shared_ptr< G4VTHnRFileManager< tools::histo::h2d > >	fH2RFileManager { nullptr }
std::shared_ptr< G4VTHnRFileManager< tools::histo::h3d > >	fH3RFileManager { nullptr }
std::shared_ptr< G4VTHnRFileManager< tools::histo::p1d > >	fP1RFileManager { nullptr }
std::shared_ptr< G4VTHnRFileManager< tools::histo::p2d > >	fP2RFileManager { nullptr }
Protected Attributes inherited from G4BaseFileManager
const G4AnalysisManagerState &	fState
G4int	fCompressionLevel { 1 }
G4String	fFileName
std::vector< G4String >	fFileNames

Static Protected Attributes
static constexpr std::string_view	fkClass { "G4VRFileManager" }

Additional Inherited Members
Protected Member Functions inherited from G4BaseFileManager
void	Message (G4int level, const G4String &action, const G4String &objectType, const G4String &objectName="", G4bool success=true) const
void	ClearData ()

Detailed Description

Definition at line 50 of file G4VRFileManager.hh.

Constructor & Destructor Documentation

G4VRFileManager() [1/2]

G4VRFileManager::G4VRFileManager ( const G4AnalysisManagerState & state )

inlineexplicit

Definition at line 53 of file G4VRFileManager.hh.

      : G4BaseFileManager(state) {}

Referenced by G4CsvRFileManager::G4CsvRFileManager(), G4Hdf5RFileManager::G4Hdf5RFileManager(), G4RootRFileManager::G4RootRFileManager(), and G4XmlRFileManager::G4XmlRFileManager().

G4VRFileManager() [2/2]

G4VRFileManager::G4VRFileManager ( )

delete

~G4VRFileManager()

G4VRFileManager::~G4VRFileManager ( )

overridedefault

Member Function Documentation

CloseFiles()

virtual void G4VRFileManager::CloseFiles ( )

pure virtual

Implemented in G4CsvRFileManager, G4Hdf5RFileManager, G4RootRFileManager, and G4XmlRFileManager.

GetHnRFileManager()

template<typename HT>

std::shared_ptr< G4VTHnRFileManager< HT > > G4VRFileManager::GetHnRFileManager

(

)

const

Member Data Documentation

fH1RFileManager

std::shared_ptr<G4VTHnRFileManager<tools::histo::h1d> > G4VRFileManager::fH1RFileManager { nullptr }

protected

Definition at line 71 of file G4VRFileManager.hh.

{ nullptr };

Referenced by G4CsvRFileManager::G4CsvRFileManager(), G4Hdf5RFileManager::G4Hdf5RFileManager(), G4RootRFileManager::G4RootRFileManager(), and G4XmlRFileManager::G4XmlRFileManager().

fH2RFileManager

std::shared_ptr<G4VTHnRFileManager<tools::histo::h2d> > G4VRFileManager::fH2RFileManager { nullptr }

protected

Definition at line 72 of file G4VRFileManager.hh.

{ nullptr };

Referenced by G4CsvRFileManager::G4CsvRFileManager(), G4Hdf5RFileManager::G4Hdf5RFileManager(), G4RootRFileManager::G4RootRFileManager(), and G4XmlRFileManager::G4XmlRFileManager().

fH3RFileManager

std::shared_ptr<G4VTHnRFileManager<tools::histo::h3d> > G4VRFileManager::fH3RFileManager { nullptr }

protected

Definition at line 73 of file G4VRFileManager.hh.

{ nullptr };

Referenced by G4CsvRFileManager::G4CsvRFileManager(), G4Hdf5RFileManager::G4Hdf5RFileManager(), G4RootRFileManager::G4RootRFileManager(), and G4XmlRFileManager::G4XmlRFileManager().

fkClass

std::string_view G4VRFileManager::fkClass { "G4VRFileManager" }

staticconstexprprotected

Definition at line 67 of file G4VRFileManager.hh.

{ "G4VRFileManager" };

fP1RFileManager

std::shared_ptr<G4VTHnRFileManager<tools::histo::p1d> > G4VRFileManager::fP1RFileManager { nullptr }

protected

Definition at line 74 of file G4VRFileManager.hh.

{ nullptr };

Referenced by G4CsvRFileManager::G4CsvRFileManager(), G4Hdf5RFileManager::G4Hdf5RFileManager(), G4RootRFileManager::G4RootRFileManager(), and G4XmlRFileManager::G4XmlRFileManager().

fP2RFileManager

std::shared_ptr<G4VTHnRFileManager<tools::histo::p2d> > G4VRFileManager::fP2RFileManager { nullptr }

protected

Definition at line 75 of file G4VRFileManager.hh.

{ nullptr };

Referenced by G4CsvRFileManager::G4CsvRFileManager(), G4Hdf5RFileManager::G4Hdf5RFileManager(), G4RootRFileManager::G4RootRFileManager(), and G4XmlRFileManager::G4XmlRFileManager().

---

The documentation for this class was generated from the following file:

• G4VRFileManager.hh
