G4LENDCrossSection Class Reference

#include <G4LENDCrossSection.hh>

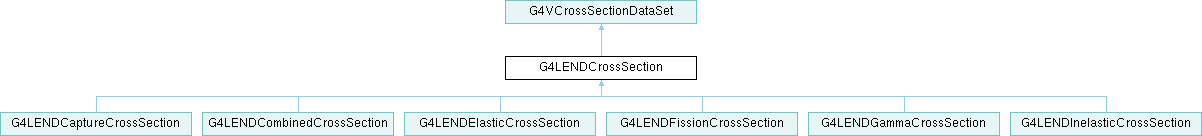

Inheritance diagram for G4LENDCrossSection:

Public Member Functions
	G4LENDCrossSection (const G4String name="")
	~G4LENDCrossSection ()
G4bool	IsIsoApplicable (const G4DynamicParticle *, G4int, G4int, const G4Element *, const G4Material *)
G4double	GetIsoCrossSection (const G4DynamicParticle *, G4int, G4int, const G4Isotope *, const G4Element *, const G4Material *)
void	BuildPhysicsTable (const G4ParticleDefinition &)
void	DumpPhysicsTable (const G4ParticleDefinition &)
void	DumpLENDTargetInfo (G4bool force=false)
void	ChangeDefaultEvaluation (G4String name_tmp)
void	AllowNaturalAbundanceTarget ()
void	AllowAnyCandidateTarget ()
Public Member Functions inherited from G4VCrossSectionDataSet
	G4VCrossSectionDataSet (const G4String &nam="")
virtual	~G4VCrossSectionDataSet ()
virtual G4bool	IsElementApplicable (const G4DynamicParticle *, G4int Z, const G4Material *mat=nullptr)
G4double	GetCrossSection (const G4DynamicParticle *, const G4Element *, const G4Material *mat=nullptr)
G4double	ComputeCrossSection (const G4DynamicParticle *, const G4Element *, const G4Material *mat=nullptr)
virtual G4double	ComputeCrossSectionPerElement (G4double kinEnergy, G4double loge, const G4ParticleDefinition *, const G4Element *, const G4Material *mat=nullptr)
virtual G4double	GetElementCrossSection (const G4DynamicParticle *, G4int Z, const G4Material *mat=nullptr)
virtual G4double	ComputeIsoCrossSection (G4double kinEnergy, G4double loge, const G4ParticleDefinition *, G4int Z, G4int A, const G4Isotope *iso=nullptr, const G4Element *elm=nullptr, const G4Material *mat=nullptr)
virtual const G4Isotope *	SelectIsotope (const G4Element *, G4double kinEnergy, G4double logE)
virtual void	CrossSectionDescription (std::ostream &) const
virtual void	SetVerboseLevel (G4int value)
G4double	GetMinKinEnergy () const
void	SetMinKinEnergy (G4double value)
G4double	GetMaxKinEnergy () const
void	SetMaxKinEnergy (G4double value)
bool	ForAllAtomsAndEnergies () const
void	SetForAllAtomsAndEnergies (G4bool val)
const G4String &	GetName () const
void	SetName (const G4String &nam)
G4VCrossSectionDataSet &	operator= (const G4VCrossSectionDataSet &right)=delete
	G4VCrossSectionDataSet (const G4VCrossSectionDataSet &)=delete

Protected Member Functions
void	create_used_target_map ()
G4GIDI_target *	get_target_from_map (G4int nuclear_code)
virtual G4double	getLENDCrossSection (G4GIDI_target *, G4double, G4double)
G4double	GetUltraLowEnergyExtrapolatedXS (G4double, G4double, G4double, G4double, G4double)

Protected Attributes
G4ParticleDefinition *	proj
Protected Attributes inherited from G4VCrossSectionDataSet
G4int	verboseLevel {0}
G4String	name

Detailed Description

Definition at line 57 of file G4LENDCrossSection.hh.

Constructor & Destructor Documentation

G4LENDCrossSection()

G4LENDCrossSection::G4LENDCrossSection

(

const G4String

name = ""

)

Definition at line 123 of file G4LENDCrossSection.cc.

:G4VCrossSectionDataSet( nam )
{

   proj = NULL; //will be set in an inherited class
   //default_evaluation = "endl99";
   //default_evaluation = "ENDF.B-VII.0";
   //default_evaluation = "ENDF/BVII.1";
   //default_evaluation = "ENDF/B-8.0";
   //default_evaluation = "ENDF/B-7.1";
   default_evaluation = "";

   allow_nat = false;
   allow_any = false;

   SetMinKinEnergy(  0*MeV );
   SetMaxKinEnergy( 20*MeV );

   lend_manager = G4LENDManager::GetInstance();

}

Referenced by G4LENDCaptureCrossSection::G4LENDCaptureCrossSection(), G4LENDCombinedCrossSection::G4LENDCombinedCrossSection(), G4LENDElasticCrossSection::G4LENDElasticCrossSection(), G4LENDFissionCrossSection::G4LENDFissionCrossSection(), G4LENDGammaCrossSection::G4LENDGammaCrossSection(), and G4LENDInelasticCrossSection::G4LENDInelasticCrossSection().

~G4LENDCrossSection()

G4LENDCrossSection::~G4LENDCrossSection

(

)

Definition at line 145 of file G4LENDCrossSection.cc.

{

   for ( std::map< G4int , G4LENDUsedTarget* >::iterator
         it = usedTarget_map.begin() ; it != usedTarget_map.end() ; it ++ )
   {
      delete it->second;
   }

}

Member Function Documentation

AllowAnyCandidateTarget()

void G4LENDCrossSection::AllowAnyCandidateTarget ( )

inline

Definition at line 96 of file G4LENDCrossSection.hh.

{ allow_any = true; };

AllowNaturalAbundanceTarget()

void G4LENDCrossSection::AllowNaturalAbundanceTarget ( )

inline

Definition at line 95 of file G4LENDCrossSection.hh.

{ allow_nat = true; };

Referenced by G4HadronElasticPhysicsLEND::ConstructProcess().

BuildPhysicsTable()

void G4LENDCrossSection::BuildPhysicsTable ( const G4ParticleDefinition & )

virtual

Reimplemented from G4VCrossSectionDataSet.

Reimplemented in G4LENDGammaCrossSection.

Definition at line 156 of file G4LENDCrossSection.cc.

{
   create_used_target_map();
}

ChangeDefaultEvaluation()

void G4LENDCrossSection::ChangeDefaultEvaluation ( G4String name_tmp )

inline

Definition at line 94 of file G4LENDCrossSection.hh.

{ default_evaluation = name_tmp; };

Referenced by G4HadronElasticPhysicsLEND::ConstructProcess().

create_used_target_map()

void G4LENDCrossSection::create_used_target_map ( )

protected

Definition at line 318 of file G4LENDCrossSection.cc.

{

   lend_manager->RequestChangeOfVerboseLevel( verboseLevel );

   std::size_t numberOfElements = G4Element::GetNumberOfElements();
   static const G4ElementTable* theElementTable = G4Element::GetElementTable();

   for ( std::size_t i = 0 ; i < numberOfElements ; ++i )
   {

      const G4Element* anElement = (*theElementTable)[i];
      G4int numberOfIsotope = (G4int)anElement->GetNumberOfIsotopes();

      if ( numberOfIsotope > 0 )
      {
      // User Defined Abundances
         for ( G4int i_iso = 0 ; i_iso < numberOfIsotope ; i_iso++ )
         {
            G4int iZ = anElement->GetIsotope( i_iso )->GetZ();
            G4int iA = anElement->GetIsotope( i_iso )->GetN();
            G4int iIsomer = anElement->GetIsotope( i_iso )->Getm();

            //G4LENDUsedTarget* aTarget = new G4LENDUsedTarget ( G4Neutron::Neutron() , default_evaluation , iZ , iA );
            G4LENDUsedTarget* aTarget = new G4LENDUsedTarget ( proj , default_evaluation , iZ , iA , iIsomer );
            if ( allow_nat == true ) aTarget->AllowNat();
            if ( allow_any == true ) aTarget->AllowAny();
            usedTarget_map.insert( std::pair< G4int , G4LENDUsedTarget* > ( lend_manager->GetNucleusEncoding( iZ , iA , iIsomer ) , aTarget ) );
         }
      }
      else
      {
      // Natural Abundances
         G4NistElementBuilder* nistElementBuild = lend_manager->GetNistElementBuilder();
         G4int iZ = int ( anElement->GetZ() );
         //G4cout << nistElementBuild->GetNumberOfNistIsotopes( int ( anElement->GetZ() ) ) << G4endl;
         G4int numberOfNistIso = nistElementBuild->GetNumberOfNistIsotopes( int ( anElement->GetZ() ) );

         for ( G4int ii = 0 ; ii < numberOfNistIso ; ii++ )
         {
            //G4cout << nistElementBuild->GetIsotopeAbundance( iZ , nistElementBuild->GetNistFirstIsotopeN( iZ ) + i ) << G4endl;
            if ( nistElementBuild->GetIsotopeAbundance( iZ , nistElementBuild->GetNistFirstIsotopeN( iZ ) + ii ) > 0 )
            {
               G4int iMass = nistElementBuild->GetNistFirstIsotopeN( iZ ) + ii;
               //G4cout << iZ << " " << nistElementBuild->GetNistFirstIsotopeN( iZ ) + i << " " << nistElementBuild->GetIsotopeAbundance ( iZ , iMass ) << G4endl;
               G4int iIsomer = 0;

               G4LENDUsedTarget* aTarget = new G4LENDUsedTarget ( proj , default_evaluation , iZ , iMass );
               if ( allow_nat == true ) aTarget->AllowNat();
               if ( allow_any == true ) aTarget->AllowAny();
               usedTarget_map.insert( std::pair< G4int , G4LENDUsedTarget* > ( lend_manager->GetNucleusEncoding( iZ , iMass , iIsomer ) , aTarget ) );

            }

         }
      }
   }
   DumpLENDTargetInfo();
}

Referenced by G4LENDCombinedCrossSection::BuildPhysicsTable(), BuildPhysicsTable(), G4LENDGammaCrossSection::BuildPhysicsTable(), and DumpLENDTargetInfo().

DumpLENDTargetInfo()

void G4LENDCrossSection::DumpLENDTargetInfo

(

G4bool

force = false

)

Definition at line 397 of file G4LENDCrossSection.cc.

                                                          {

   if ( lend_manager->GetVerboseLevel() >= 1 || force ) {
      if ( usedTarget_map.size() == 0 ) create_used_target_map();
      G4cout << "Dumping UsedTarget of " << GetName() << " for " << proj->GetParticleName() << G4endl;
      G4cout << "Requested Evaluation, Z , A -> Actual Evaluation, Z , A(0=Nat) " << G4endl;
      for ( std::map< G4int , G4LENDUsedTarget* >::iterator
         it = usedTarget_map.begin() ; it != usedTarget_map.end() ; it ++ ) {
         G4cout
         << " " << it->second->GetWantedEvaluation()
         << ", " << it->second->GetWantedZ()
         << ", " << it->second->GetWantedA()
         << " -> " << it->second->GetActualEvaluation()
         << ", " << it->second->GetActualZ()
         << ", " << it->second->GetActualA()
         << G4endl;
      }
   }
}

Referenced by create_used_target_map().

DumpPhysicsTable()

void G4LENDCrossSection::DumpPhysicsTable ( const G4ParticleDefinition & aP )

virtual

Reimplemented from G4VCrossSectionDataSet.

Definition at line 161 of file G4LENDCrossSection.cc.

{

  if ( &aP != proj )
     throw G4HadronicException(__FILE__, __LINE__, "Attempt to use LEND data for particles other than neutrons!!!");

   G4cout << G4endl;
   G4cout << "Dump Cross Sections of " << GetName() << G4endl;
   G4cout << "(Pointwise cross-section at 300 Kelvin.)" << G4endl;
   G4cout << G4endl;

   G4cout << "Target informaiton " << G4endl;

   for ( std::map< G4int , G4LENDUsedTarget* >::iterator
         it = usedTarget_map.begin() ; it != usedTarget_map.end() ; it ++ )
   {
      G4cout
         << "Wanted " << it->second->GetWantedEvaluation()
         << ", Z= " << it->second->GetWantedZ()
         << ", A= " << it->second->GetWantedA()
         << "; Actual " << it->second->GetActualEvaluation()
         << ", Z= " << it->second->GetActualZ()
         << ", A= " << it->second->GetActualA()
         << ", " << it->second->GetTarget()
         << G4endl;

      G4int ie = 0;

      G4GIDI_target* aTarget = it->second->GetTarget();
      G4double aT = 300;
      for ( ie = 0 ; ie < 130 ; ie++ )
      {
         G4double ke = 1.0e-5 * G4Pow::GetInstance()->powA ( 10.0 , ie/10.0 ) *eV;

         if ( ke < 20*MeV )
         {
            G4cout << "  " << GetName() << ", cross section at " << ke/eV << " [eV] = " << getLENDCrossSection ( aTarget , ke , aT )/barn << " [barn] " << G4endl;
         }
      }
      G4cout << G4endl;

   }

}

get_target_from_map()

G4GIDI_target * G4LENDCrossSection::get_target_from_map ( G4int nuclear_code )

protected

Definition at line 389 of file G4LENDCrossSection.cc.

                                                                           {
   G4GIDI_target* target = NULL;
   if ( usedTarget_map.find( nuclear_code ) != usedTarget_map.end() ) {
      target = usedTarget_map.find( nuclear_code )->second->GetTarget();
   }
   return target;
}

Referenced by GetIsoCrossSection(), and IsIsoApplicable().

GetIsoCrossSection()

G4double G4LENDCrossSection::GetIsoCrossSection ( const G4DynamicParticle * dp, G4int iZ, G4int iA, const G4Isotope * isotope, const G4Element * , const G4Material * material )

virtual

Reimplemented from G4VCrossSectionDataSet.

Reimplemented in G4LENDGammaCrossSection.

Definition at line 83 of file G4LENDCrossSection.cc.

{

   G4double xs = 0.0;
   G4double ke = dp->GetKineticEnergy();
   G4double temp = material->GetTemperature();
   G4int iM = 0;
   if ( isotope != NULL ) iM = isotope->Getm();

   G4GIDI_target* aTarget = get_target_from_map( lend_manager->GetNucleusEncoding( iZ , iA , iM ) );
   if ( aTarget != NULL ) {
      xs = getLENDCrossSection ( aTarget , ke , temp );
   }
   else {
      ;
      /*
      G4String message;
      message = this->GetName();
      message += " is unexpectedly called.";
      //G4Exception( "G4LEND::GetIsoCrossSection(,)" , "LENDCrossSection-01" , JustWarning ,
      G4Exception( "G4LEND::GetIsoCrossSection(,)" , "LENDCrossSection-01" , FatalException ,
                  message );
      */
   }

   return xs;
}

getLENDCrossSection()

virtual G4double G4LENDCrossSection::getLENDCrossSection ( G4GIDI_target * , G4double , G4double  )

inlineprotectedvirtual

Definition at line 130 of file G4LENDCrossSection.hh.

{ return 0.0; };

Referenced by DumpPhysicsTable(), and GetIsoCrossSection().

GetUltraLowEnergyExtrapolatedXS()

G4double G4LENDCrossSection::GetUltraLowEnergyExtrapolatedXS ( G4double x1, G4double x2, G4double y1, G4double y2, G4double ke )

protected

Definition at line 379 of file G4LENDCrossSection.cc.

{
   //XS propotinal to 1/v at low energy -> 1/root(E)
   //XS = a * 1/root(E) + b
   G4double a = ( y2 - y1 ) / ( 1/std::sqrt(x2) - 1/std::sqrt(x1) );
   G4double b = y1 - a * 1/std::sqrt(x1);
   G4double result = a * 1/std::sqrt(ke) + b;
   return result;
}

IsIsoApplicable()

G4bool G4LENDCrossSection::IsIsoApplicable ( const G4DynamicParticle * dp, G4int iZ, G4int iA, const G4Element * element, const G4Material *  )

virtual

Reimplemented from G4VCrossSectionDataSet.

Definition at line 46 of file G4LENDCrossSection.cc.

{
   G4double eKin = dp->GetKineticEnergy();
   if ( dp->GetDefinition() != proj ) return false;
   if ( eKin > GetMaxKinEnergy() || eKin < GetMinKinEnergy() ) return false;

   //G4cout << "G4LENDCrossSection::GetIsoIsIsoApplicable this->GetName() = " << this->GetName() << ", iZ = " << iZ << ", iA = " << iA << ", allow_nat = " << allow_nat << G4endl;
   //Check existence of target data
   if ( element != NULL ) {
      if ( element->GetNumberOfIsotopes() != 0 ) {
         std::vector< const G4Isotope*> vIsotope;
         for ( G4int i = 0 ; i != (G4int)element->GetNumberOfIsotopes() ; ++i ) {
            if ( element->GetIsotope( i )->GetN() == iA ) vIsotope.push_back( element->GetIsotope( i ) );
         }
         for ( std::size_t i = 0 ; i != vIsotope.size() ; ++i ) {
            G4int iM = vIsotope[i]->Getm();
            if ( get_target_from_map( lend_manager->GetNucleusEncoding( iZ , iA , iM ) ) != NULL ) return true;
         }
         //No isomer has data
         //Check natural aboundance data for the element
         if ( get_target_from_map( lend_manager->GetNucleusEncoding( iZ , 0 , 0 ) ) != NULL ) return true;
      } else {
         //Check for iZ and iA under assuming iM = 0
         if ( get_target_from_map( lend_manager->GetNucleusEncoding( iZ , iA , 0 ) ) != NULL ) return true;
         //Check natural aboundance data for the element
         if ( get_target_from_map( lend_manager->GetNucleusEncoding( iZ , 0 , 0 ) ) != NULL ) return true;
      }
   } else {
      //Check for iZ and iA under assuming iM = 0
      if ( get_target_from_map( lend_manager->GetNucleusEncoding( iZ , iA , 0 ) ) != NULL ) return true;
      //Check natural aboundance data for iZ
      if ( get_target_from_map( lend_manager->GetNucleusEncoding( iZ , 0 , 0 ) ) != NULL ) return true;
   }
   return false;
}

Member Data Documentation

proj

G4ParticleDefinition* G4LENDCrossSection::proj

protected

Definition at line 127 of file G4LENDCrossSection.hh.

Referenced by create_used_target_map(), DumpLENDTargetInfo(), DumpPhysicsTable(), G4LENDCaptureCrossSection::G4LENDCaptureCrossSection(), G4LENDCombinedCrossSection::G4LENDCombinedCrossSection(), G4LENDCrossSection(), G4LENDElasticCrossSection::G4LENDElasticCrossSection(), G4LENDFissionCrossSection::G4LENDFissionCrossSection(), G4LENDGammaCrossSection::G4LENDGammaCrossSection(), G4LENDInelasticCrossSection::G4LENDInelasticCrossSection(), and IsIsoApplicable().

---

The documentation for this class was generated from the following files:

• G4LENDCrossSection.hh
• G4LENDCrossSection.cc
