G4ToolsSGOffscreenViewer Class Reference

#include <G4ToolsSGOffscreenViewer.hh>

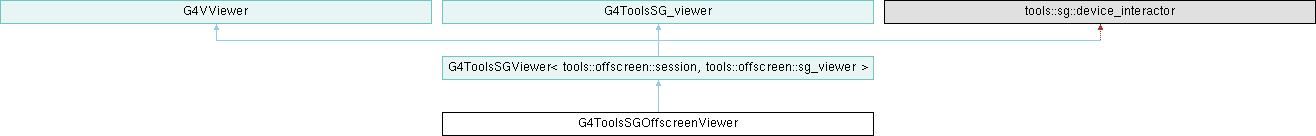

Inheritance diagram for G4ToolsSGOffscreenViewer:

Classes

class  Messenger

Public Member Functions

 G4ToolsSGOffscreenViewer (tools::offscreen::session &a_session, G4ToolsSGSceneHandler &a_scene_handler, const G4String &a_name)
virtual ~G4ToolsSGOffscreenViewer ()=default
virtual void Initialise ()
virtual void DrawView ()
virtual void ClearView ()
virtual void ShowView ()
virtual void FinishView ()
Public Member Functions inherited from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >
virtual void key_press (const tools::sg::key_down_event &)
virtual void key_release (const tools::sg::key_up_event &)
virtual void mouse_press (const tools::sg::mouse_down_event &a_event)
virtual void mouse_release (const tools::sg::mouse_up_event &)
virtual void mouse_move (const tools::sg::mouse_move_event &a_event)
virtual void wheel_rotate (const tools::sg::wheel_rotate_event &a_event)
 G4ToolsSGViewer (tools::offscreen::session &a_session, G4ToolsSGSceneHandler &a_scene_handler, const G4String &a_name)
virtual ~G4ToolsSGViewer ()
virtual void SetView ()
G4bool GetWindowSize (unsigned int &a_w, unsigned int &a_h)
G4bool GetRenderAreaSize (unsigned int &a_w, unsigned int &a_h)
virtual void EmitWindowRender ()
Public Member Functions inherited from G4VViewer
 G4VViewer (G4VSceneHandler &, G4int id, const G4String &name="")
virtual ~G4VViewer ()
virtual void ResetView ()
void RefreshView ()
virtual G4bool ReadyToDraw ()
std::vector< G4ThreeVector > ComputeFlyThrough (G4Vector3D *)
virtual void DoneWithMasterThread ()
virtual void MovingToVisSubThread ()
virtual void SwitchToVisSubThread ()
virtual void DoneWithVisSubThread ()
virtual void MovingToMasterThread ()
virtual void SwitchToMasterThread ()
void InsertModelInSceneTree (G4VModel *)
const G4SceneTreeItem & GetSceneTree ()
G4SceneTreeItem & AccessSceneTree ()
void UpdateGUISceneTree ()
void UpdateGUIControlWidgets ()
void UpdateGUIDrawingStyle ()
void UpdateGUIProjectionStyle ()
void UpdateGUITransparencySlider ()
const G4String & GetName () const
const G4String & GetShortName () const
void SetName (const G4String &)
G4int GetViewId () const
G4VSceneHandler * GetSceneHandler () const
const G4ViewParameters & GetViewParameters () const
const G4ViewParameters & GetDefaultViewParameters () const
G4double GetKernelVisitElapsedTimeSeconds () const
virtual const std::vector< G4ModelingParameters::VisAttributesModifier > * GetPrivateVisAttributesModifiers () const
void SetViewParameters (const G4ViewParameters &vp)
void SetDefaultViewParameters (const G4ViewParameters &vp)
const G4VisAttributes * GetApplicableVisAttributes (const G4VisAttributes *) const
void SetNeedKernelVisit (G4bool need)
void NeedKernelVisit ()
void ProcessView ()
void ProcessTransients ()
void ZoomFromMouseWheel (G4double delta, G4bool shift=false, G4double xPos=0, G4double yPos=0)
Public Member Functions inherited from G4ToolsSG_viewer
 G4ToolsSG_viewer ()
virtual ~G4ToolsSG_viewer ()

Protected Member Functions

 G4ToolsSGOffscreenViewer (const G4ToolsSGOffscreenViewer &a_from)
G4ToolsSGOffscreenViewer & operator= (const G4ToolsSGOffscreenViewer &)
void SetSize (unsigned int a_w, unsigned int a_h)
void SetFileFormat (const G4String &a_format)
void SetDoTransparency (bool a_value)
void SetFileName (const G4String &a_file, const G4String &a_prefix, bool a_reset_index)
void SetGL2PSSort (const G4String &a_sort)
void SetGL2PSOptions (const G4String &a_opts)
unsigned int GetFileIndex ()
Protected Member Functions inherited from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >
 G4ToolsSGViewer (const G4ToolsSGViewer &a_from)
G4ToolsSGViewer & operator= (const G4ToolsSGViewer &)
void KernelVisitDecision ()
G4bool CompareForKernelVisit (G4ViewParameters &vp)
G4bool CompareForTransientsRedraw (G4ViewParameters &vp)
void CreateSG (tools::sg::base_camera *a_camera, const G4Vector3D &a_light_dir)
void Export (const G4String &a_format, const G4String &a_file, G4bool a_do_transparency)
G4double GetSceneNearWidth ()
Protected Member Functions inherited from G4VViewer
void SetTouchable (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath)
void TouchableSetVisibility (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath, G4bool visibility)
void TouchableSetColour (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath, const G4Colour &)
Protected Member Functions inherited from G4ToolsSG_viewer
 G4ToolsSG_viewer (const G4ToolsSG_viewer &)
G4ToolsSG_viewer & operator= (const G4ToolsSG_viewer &)

Static Protected Member Functions

static bool IsKnownFormat (const std::string &a_format)
static bool GetFormatExtension (const std::string &a_format, std::string &a_ext)

Protected Attributes

std::string fFileName
std::string fFilePrefix
unsigned int fFileIndex
bool fResetFileIndex
Protected Attributes inherited from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >
tools::offscreen::session & fSGSession
G4ToolsSGSceneHandler & fSGSceneHandler
tools::offscreen::sg_viewer * fSGViewer
G4ViewParameters fLastVP
G4bool fMousePressed
G4double fMousePressedX
G4double fMousePressedY
tools::sg::zb_manager f_zb_mgr
tools::sg::gl2ps_manager f_gl2ps_mgr
Protected Attributes inherited from G4VViewer
G4VSceneHandler & fSceneHandler
G4int fViewId
G4String fName
G4String fShortName
G4ViewParameters fVP
G4ViewParameters fDefaultVP
G4double fKernelVisitElapsedTimeSeconds = 999.
G4SceneTreeItem fSceneTree
G4bool fNeedKernelVisit
G4bool fTransientsNeedRedrawing

Additional Inherited Members

Public Attributes inherited from G4VViewer
const G4int fMaxAllTouchables = 10000
G4bool fCurtailDescent = false

Detailed Description

Definition at line 42 of file G4ToolsSGOffscreenViewer.hh.

Constructor & Destructor Documentation

◆ G4ToolsSGOffscreenViewer() [1/2]

G4ToolsSGOffscreenViewer::G4ToolsSGOffscreenViewer ( tools::offscreen::session & a_session,
G4ToolsSGSceneHandler & a_scene_handler,
const G4String & a_name )
inline

Definition at line 45 of file G4ToolsSGOffscreenViewer.hh.

46 :parent(a_session,a_scene_handler,a_name)
47 ,fFileName("auto")
48 ,fFilePrefix("auto")
49 ,fFileIndex(0)
50 ,fResetFileIndex(false)
51 {
52 Messenger::Create();
53 }

Referenced by G4ToolsSGOffscreenViewer(), operator=(), and G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ ~G4ToolsSGOffscreenViewer()

virtual G4ToolsSGOffscreenViewer::~G4ToolsSGOffscreenViewer ( )
virtualdefault

◆ G4ToolsSGOffscreenViewer() [2/2]

G4ToolsSGOffscreenViewer::G4ToolsSGOffscreenViewer ( const G4ToolsSGOffscreenViewer & a_from)
inlineprotected

Definition at line 56 of file G4ToolsSGOffscreenViewer.hh.

56:parent(a_from){}

Member Function Documentation

◆ ClearView()

virtual void G4ToolsSGOffscreenViewer::ClearView ( void )
inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 109 of file G4ToolsSGOffscreenViewer.hh.

109 {
110 //::printf("debug : G4ToolsSGOffscreenViewer::ClearView %s\n",fName.c_str());
111 }

◆ DrawView()

virtual void G4ToolsSGOffscreenViewer::DrawView ( )
inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 79 of file G4ToolsSGOffscreenViewer.hh.

79 {
80 if (!fNeedKernelVisit) KernelVisitDecision();
81 fLastVP = fVP;
82 ProcessView(); // Clears store and processes scene only if necessary.
83 //::printf("debug : G4ToolsSGOffscreenViewer::DrawView %s\n",fName.c_str());
84 if(fSGViewer) {
85 fSGSceneHandler.TouchPlotters(fSGViewer->sg());
86 if(fFileName=="auto") {
87 std::string prefix;
88 if(fFilePrefix=="auto") {
89 prefix = "g4tsg_offscreen_"+fSGViewer->file_format()+"_";
90 } else {
91 prefix = fFilePrefix;
92 }
93 std::string suffix;
94 if(G4ToolsSGOffscreenViewer::GetFormatExtension(fSGViewer->file_format(),suffix)) {
95 std::string file_name = prefix+tools::tos(GetFileIndex())+"."+suffix;
96 fSGViewer->set_file_name(file_name);
97 }
98 } else {
99 fSGViewer->set_file_name(fFileName);
100 }
101 if(fSGViewer->write_paper()) {
102 if (G4VisManager::GetVerbosity() >= G4VisManager::confirmations) {
103 G4cout << "File " << fSGViewer->file_name() << " produced." << G4endl;
104 }
105 }
106 }
107 }
G4endl
#define G4endl
Definition G4ios.hh:67
G4cout
G4GLOB_DLL std::ostream G4cout
G4ToolsSGOffscreenViewer::GetFormatExtension
static bool GetFormatExtension(const std::string &a_format, std::string &a_ext)
Definition G4ToolsSGOffscreenViewer.hh:378
G4VViewer::fNeedKernelVisit
G4bool fNeedKernelVisit
Definition G4VViewer.hh:280
G4VViewer::ProcessView
void ProcessView()
Definition G4VViewer.cc:112
G4VViewer::fVP
G4ViewParameters fVP
Definition G4VViewer.hh:272
G4VisManager::GetVerbosity
static Verbosity GetVerbosity()
Definition G4VisManager.cc:2561

◆ FinishView()

virtual void G4ToolsSGOffscreenViewer::FinishView ( void )
inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 115 of file G4ToolsSGOffscreenViewer.hh.

115 {
116 //::printf("debug : G4ToolsSGOffscreenViewer::FinishView %s\n",fName.c_str());
117 if(fSGViewer) {
118 fSGSceneHandler.TouchPlotters(fSGViewer->sg());
119 }
120 }

◆ GetFileIndex()

unsigned int G4ToolsSGOffscreenViewer::GetFileIndex ( )
inlineprotected

Definition at line 359 of file G4ToolsSGOffscreenViewer.hh.

359 {
360 if(fResetFileIndex) {fFileIndex = 0;fResetFileIndex = false;}
361 fFileIndex++;
362 return fFileIndex;
363 }

Referenced by DrawView().

◆ GetFormatExtension()

bool G4ToolsSGOffscreenViewer::GetFormatExtension ( const std::string & a_format,
std::string & a_ext )
inlinestaticprotected

Definition at line 378 of file G4ToolsSGOffscreenViewer.hh.

378 {
379 if(a_format=="gl2ps_eps") {a_ext = "eps";return true;}
380 if(a_format=="gl2ps_ps") {a_ext = "ps";return true;}
381 if(a_format=="gl2ps_pdf") {a_ext = "pdf";return true;}
382 if(a_format=="gl2ps_svg") {a_ext = "svg";return true;}
383 if(a_format=="gl2ps_tex") {a_ext = "tex";return true;}
384 if(a_format=="gl2ps_pgf") {a_ext = "pgf";return true;}
385 if(a_format=="zb_ps") {a_ext = "ps";return true;}
386 if(a_format=="zb_png") {a_ext = "png";return true;}
387 if(a_format=="zb_jpeg") {a_ext = "jpeg";return true;}
388 a_ext.clear();
389 return false;
390 }

Referenced by DrawView().

◆ Initialise()

virtual void G4ToolsSGOffscreenViewer::Initialise ( )
inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 59 of file G4ToolsSGOffscreenViewer.hh.

59 {
60 if(fSGViewer) return; //done.
61 //::printf("debug : G4ToolsSGOffscreenViewer::Initialize\n");
62 // auto refresh true produces too much files.
63 fVP.SetAutoRefresh(false);
64 fDefaultVP.SetAutoRefresh(false);
65 fSGViewer = new tools::offscreen::sg_viewer(fSGSession
66 ,fVP.GetWindowAbsoluteLocationHintX(1440)
67 ,fVP.GetWindowAbsoluteLocationHintY(900)
68 ,fVP.GetWindowSizeHintX()
69 ,fVP.GetWindowSizeHintY()
70 ,fName);
71 fSGViewer->set_file_format("zb_png");
72 fSGViewer->set_file_name("out.png");
73 fSGViewer->set_png_writer(tools::fpng::write);
74 fSGViewer->set_jpeg_writer(tools::toojpeg::write);
75 fSGViewer->set_do_transparency(true);
76 fSGViewer->set_top_to_bottom(false); //if using tools::fpng, tools::toojpeg.
77 }
G4VViewer::fName
G4String fName
Definition G4VViewer.hh:270
G4VViewer::fDefaultVP
G4ViewParameters fDefaultVP
Definition G4VViewer.hh:273

◆ IsKnownFormat()

bool G4ToolsSGOffscreenViewer::IsKnownFormat ( const std::string & a_format)
inlinestaticprotected

Definition at line 365 of file G4ToolsSGOffscreenViewer.hh.

365 {
366 if(a_format=="gl2ps_eps") return true;
367 if(a_format=="gl2ps_ps") return true;
368 if(a_format=="gl2ps_pdf") return true;
369 if(a_format=="gl2ps_svg") return true;
370 if(a_format=="gl2ps_tex") return true;
371 if(a_format=="gl2ps_pgf") return true;
372 if(a_format=="zb_ps") return true;
373 if(a_format=="zb_png") return true;
374 if(a_format=="zb_jpeg") return true;
375 return false;
376 }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ operator=()

G4ToolsSGOffscreenViewer & G4ToolsSGOffscreenViewer::operator= ( const G4ToolsSGOffscreenViewer & )
inlineprotected

Definition at line 57 of file G4ToolsSGOffscreenViewer.hh.

57{return *this;}

◆ SetDoTransparency()

void G4ToolsSGOffscreenViewer::SetDoTransparency ( bool a_value)
inlineprotected

Definition at line 137 of file G4ToolsSGOffscreenViewer.hh.

137 {
138 if(!fSGViewer) return;
139 fSGViewer->set_do_transparency(a_value);
140 }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetFileFormat()

void G4ToolsSGOffscreenViewer::SetFileFormat ( const G4String & a_format)
inlineprotected

Definition at line 132 of file G4ToolsSGOffscreenViewer.hh.

132 {
133 if(!fSGViewer) return;
134 fSGViewer->set_file_format(a_format);
135 }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetFileName()

void G4ToolsSGOffscreenViewer::SetFileName ( const G4String & a_file,
const G4String & a_prefix,
bool a_reset_index )
inlineprotected

Definition at line 142 of file G4ToolsSGOffscreenViewer.hh.

142 {
143 fFileName = a_file;
144 fFilePrefix = a_prefix;
145 fResetFileIndex = a_reset_index;
146 }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetGL2PSOptions()

void G4ToolsSGOffscreenViewer::SetGL2PSOptions ( const G4String & a_opts)
inlineprotected

Definition at line 153 of file G4ToolsSGOffscreenViewer.hh.

153 {
154 if(!fSGViewer) return;
155 fSGViewer->set_opts_2(a_opts);
156 }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetGL2PSSort()

void G4ToolsSGOffscreenViewer::SetGL2PSSort ( const G4String & a_sort)
inlineprotected

Definition at line 148 of file G4ToolsSGOffscreenViewer.hh.

148 {
149 if(!fSGViewer) return;
150 fSGViewer->set_opts_1(a_sort);
151 }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetSize()

void G4ToolsSGOffscreenViewer::SetSize ( unsigned int a_w,
unsigned int a_h )
inlineprotected

Definition at line 123 of file G4ToolsSGOffscreenViewer.hh.

123 {
124 if(!fSGViewer) return;
125 if(!a_w || !a_h) {
126 fSGViewer->set_size(fVP.GetWindowSizeHintX(),fVP.GetWindowSizeHintY());
127 } else {
128 fSGViewer->set_size(a_w,a_h);
129 }
130 }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ ShowView()

virtual void G4ToolsSGOffscreenViewer::ShowView ( void )
inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 112 of file G4ToolsSGOffscreenViewer.hh.

112 {
113 //::printf("debug : G4ToolsSGOffscreenViewer::ShowView %s\n",fName.c_str());
114 }

Member Data Documentation

◆ fFileIndex

unsigned int G4ToolsSGOffscreenViewer::fFileIndex
protected

Definition at line 395 of file G4ToolsSGOffscreenViewer.hh.

Referenced by G4ToolsSGOffscreenViewer(), and GetFileIndex().

◆ fFileName

std::string G4ToolsSGOffscreenViewer::fFileName
protected

Definition at line 393 of file G4ToolsSGOffscreenViewer.hh.

Referenced by DrawView(), G4ToolsSGOffscreenViewer(), and SetFileName().

◆ fFilePrefix

std::string G4ToolsSGOffscreenViewer::fFilePrefix
protected

Definition at line 394 of file G4ToolsSGOffscreenViewer.hh.

Referenced by DrawView(), G4ToolsSGOffscreenViewer(), and SetFileName().

◆ fResetFileIndex

bool G4ToolsSGOffscreenViewer::fResetFileIndex
protected

Definition at line 396 of file G4ToolsSGOffscreenViewer.hh.

Referenced by G4ToolsSGOffscreenViewer(), GetFileIndex(), and SetFileName().

The documentation for this class was generated from the following file:
