G4TrackState< G4ITPathFinder > Class Reference

#include <G4ITPathFinder.hh>

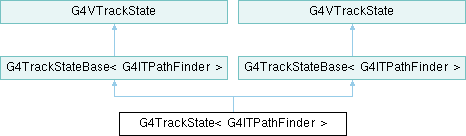

+ Inheritance diagram for G4TrackState< G4ITPathFinder >:

Public Member Functions

 ~G4TrackState () override=default

 G4TrackState ()

virtual ~G4TrackState ()=default

 G4TrackState ()

- Public Member Functions inherited from G4TrackStateBase< G4ITPathFinder >
 ~G4TrackStateBase () override=default

int GetID () override

- Public Member Functions inherited from G4VTrackState
 G4VTrackState ()=default

virtual ~G4VTrackState ()=default


Static Public Member Functions

static int ID ()

- Static Public Member Functions inherited from G4TrackStateBase< G4ITPathFinder >
static int ID ()


Protected Attributes

G4bool fNewTrack

ELimited fLimitedStep [G4ITNavigator::fMaxNav]

G4bool fLimitTruth [G4ITNavigator::fMaxNav]

G4double fCurrentStepSize [G4ITNavigator::fMaxNav]

G4int fNoGeometriesLimiting

G4ThreeVector fPreSafetyLocation

G4double fPreSafetyMinValue

G4double fPreSafetyValues [G4ITNavigator::fMaxNav]

G4ThreeVector fPreStepLocation

G4double fMinSafety_PreStepPt

G4double fCurrentPreStepSafety [G4ITNavigator::fMaxNav]

G4bool fPreStepCenterRenewed

G4double fMinStep

G4double fTrueMinStep

G4VPhysicalVolume * fLocatedVolume [G4ITNavigator::fMaxNav]

G4ThreeVector fLastLocatedPosition

G4FieldTrack fEndState

G4bool fFieldExertedForce {false}

G4bool fRelocatedPoint {true}

G4ThreeVector fSafetyLocation

G4double fMinSafety_atSafLocation

G4double fNewSafetyComputed [G4ITNavigator::fMaxNav]

G4int fLastStepNo {-1}

G4int fCurrentStepNo {-1}


Friends

class G4ITPathFinder

class G4TrackStateDependent< T >


Additional Inherited Members

- Protected Member Functions inherited from G4TrackStateBase< G4ITPathFinder >
 G4TrackStateBase ()


Detailed Description

Definition at line 67 of file G4ITPathFinder.hh.

Constructor & Destructor Documentation

◆ ~G4TrackState() [1/2]

G4TrackState< G4ITPathFinder >::~G4TrackState ( )
overridedefault

◆ G4TrackState() [1/2]

G4TrackState< G4ITPathFinder >::G4TrackState ( )
inline

Definition at line 120 of file G4ITPathFinder.hh.

120 :
121
122 fEndState( G4ThreeVector(), G4ThreeVector(), 0., 0., 0., 0., 0.)
123 {
124
125 G4ThreeVector Big3Vector( kInfinity, kInfinity, kInfinity );
126 fLastLocatedPosition= Big3Vector;
127 fSafetyLocation= Big3Vector;
128 fPreSafetyLocation= Big3Vector;
129 fPreStepLocation= Big3Vector;
130
131 fPreSafetyMinValue= -1.0;
132 fMinSafety_PreStepPt= -1.0;
133 fMinSafety_atSafLocation= -1.0;
134 fMinStep= -1.0;
135 fTrueMinStep= -1.0;
136 fPreStepCenterRenewed= false;
137 fNewTrack= false;
138 fNoGeometriesLimiting= 0;
139
140 for( G4int num=0; num< G4ITNavigator::fMaxNav; ++num )
141 {
142 fLimitTruth[num] = false;
143 fLimitedStep[num] = kUndefLimited;
144 fCurrentStepSize[num] = -1.0;
145 fLocatedVolume[num] = nullptr;
146 fPreSafetyValues[num]= -1.0;
147 fCurrentPreStepSafety[num] = -1.0;
148 fNewSafetyComputed[num]= -1.0;
149 }
150 }
G4ThreeVector
CLHEP::Hep3Vector G4ThreeVector
Definition G4ThreeVector.hh:36
G4TrackState< G4ITPathFinder >::fCurrentPreStepSafety
G4double fCurrentPreStepSafety[G4ITNavigator::fMaxNav]
Definition G4ITPathFinder.hh:86
G4TrackState< G4ITPathFinder >::fLimitTruth
G4bool fLimitTruth[G4ITNavigator::fMaxNav]
Definition G4ITPathFinder.hh:75
G4TrackState< G4ITPathFinder >::fLocatedVolume
G4VPhysicalVolume * fLocatedVolume[G4ITNavigator::fMaxNav]
Definition G4ITPathFinder.hh:97
G4TrackState< G4ITPathFinder >::fCurrentStepSize
G4double fCurrentStepSize[G4ITNavigator::fMaxNav]
Definition G4ITPathFinder.hh:76
G4TrackState< G4ITPathFinder >::fLimitedStep
ELimited fLimitedStep[G4ITNavigator::fMaxNav]
Definition G4ITPathFinder.hh:74
G4TrackState< G4ITPathFinder >::fPreSafetyValues
G4double fPreSafetyValues[G4ITNavigator::fMaxNav]
Definition G4ITPathFinder.hh:81
G4TrackState< G4ITPathFinder >::fNewSafetyComputed
G4double fNewSafetyComputed[G4ITNavigator::fMaxNav]
Definition G4ITPathFinder.hh:112

◆ ~G4TrackState() [2/2]

virtual G4TrackState< G4ITPathFinder >::~G4TrackState ( )
virtualdefault

◆ G4TrackState() [2/2]

G4TrackState< G4ITPathFinder >::G4TrackState ( )
inline

Definition at line 135 of file G4TrackState.hh.

135: G4TrackStateBase<T>() {}

Member Function Documentation

◆ ID()

static int G4TrackState< G4ITPathFinder >::ID ( )
inlinestatic

Definition at line 131 of file G4TrackState.hh.

131 {
132 return G4TrackStateID<T>::GetID();
133 }
G4TrackStateID::GetID
static int GetID()
Definition G4TrackState.hh:69

Friends And Related Symbol Documentation

◆ G4ITPathFinder

friend class G4ITPathFinder
friend

Definition at line 69 of file G4ITPathFinder.hh.

Referenced by G4ITPathFinder.

◆ G4TrackStateDependent< T >

friend class G4TrackStateDependent< G4ITPathFinder >
friend

Definition at line 115 of file G4TrackState.hh.

Member Data Documentation

◆ fCurrentPreStepSafety

G4double G4TrackState< G4ITPathFinder >::fCurrentPreStepSafety[G4ITNavigator::fMaxNav]
protected

Definition at line 86 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fCurrentStepNo

G4int G4TrackState< G4ITPathFinder >::fCurrentStepNo {-1}
protected

Definition at line 115 of file G4ITPathFinder.hh.

115{-1}, fCurrentStepNo{-1};

◆ fCurrentStepSize

G4double G4TrackState< G4ITPathFinder >::fCurrentStepSize[G4ITNavigator::fMaxNav]
protected

Definition at line 76 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fEndState

G4FieldTrack G4TrackState< G4ITPathFinder >::fEndState
protected

Definition at line 101 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fFieldExertedForce

G4bool G4TrackState< G4ITPathFinder >::fFieldExertedForce {false}
protected

Definition at line 102 of file G4ITPathFinder.hh.

102{false}; // In current proposed step

◆ fLastLocatedPosition

G4ThreeVector G4TrackState< G4ITPathFinder >::fLastLocatedPosition
protected

Definition at line 98 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fLastStepNo

G4int G4TrackState< G4ITPathFinder >::fLastStepNo {-1}
protected

Definition at line 115 of file G4ITPathFinder.hh.

115{-1}, fCurrentStepNo{-1};

◆ fLimitedStep

ELimited G4TrackState< G4ITPathFinder >::fLimitedStep[G4ITNavigator::fMaxNav]
protected

Definition at line 74 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fLimitTruth

G4bool G4TrackState< G4ITPathFinder >::fLimitTruth[G4ITNavigator::fMaxNav]
protected

Definition at line 75 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fLocatedVolume

G4VPhysicalVolume* G4TrackState< G4ITPathFinder >::fLocatedVolume[G4ITNavigator::fMaxNav]
protected

Definition at line 97 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fMinSafety_atSafLocation

G4double G4TrackState< G4ITPathFinder >::fMinSafety_atSafLocation
protected

Definition at line 111 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fMinSafety_PreStepPt

G4double G4TrackState< G4ITPathFinder >::fMinSafety_PreStepPt
protected

Definition at line 85 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fMinStep

G4double G4TrackState< G4ITPathFinder >::fMinStep
protected

Definition at line 92 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fNewSafetyComputed

G4double G4TrackState< G4ITPathFinder >::fNewSafetyComputed[G4ITNavigator::fMaxNav]
protected

Definition at line 112 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fNewTrack

G4bool G4TrackState< G4ITPathFinder >::fNewTrack
protected

Definition at line 72 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fNoGeometriesLimiting

G4int G4TrackState< G4ITPathFinder >::fNoGeometriesLimiting
protected

Definition at line 77 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fPreSafetyLocation

G4ThreeVector G4TrackState< G4ITPathFinder >::fPreSafetyLocation
protected

Definition at line 79 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fPreSafetyMinValue

G4double G4TrackState< G4ITPathFinder >::fPreSafetyMinValue
protected

Definition at line 80 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fPreSafetyValues

G4double G4TrackState< G4ITPathFinder >::fPreSafetyValues[G4ITNavigator::fMaxNav]
protected

Definition at line 81 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fPreStepCenterRenewed

G4bool G4TrackState< G4ITPathFinder >::fPreStepCenterRenewed
protected

Definition at line 90 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fPreStepLocation

G4ThreeVector G4TrackState< G4ITPathFinder >::fPreStepLocation
protected

Definition at line 84 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fRelocatedPoint

G4bool G4TrackState< G4ITPathFinder >::fRelocatedPoint {true}
protected

Definition at line 104 of file G4ITPathFinder.hh.

104{true}; // Signals that point was or is being moved

◆ fSafetyLocation

G4ThreeVector G4TrackState< G4ITPathFinder >::fSafetyLocation
protected

Definition at line 110 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

◆ fTrueMinStep

G4double G4TrackState< G4ITPathFinder >::fTrueMinStep
protected

Definition at line 93 of file G4ITPathFinder.hh.

Referenced by G4TrackState().

The documentation for this class was generated from the following file:
