G4TClassicalRK4< T_Equation, N > Class Template Reference

#include <G4TClassicalRK4.hh>

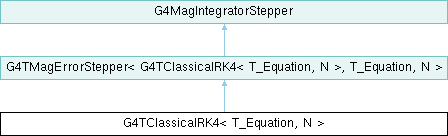

Inheritance diagram for G4TClassicalRK4< T_Equation, N >:

Public Member Functions
	G4TClassicalRK4 (T_Equation *EqRhs, G4int numberOfVariables=8)
virtual	~G4TClassicalRK4 ()
void	RightHandSideInl (G4double y[], G4double dydx[])
void	DumbStepper (const G4double yIn[], const G4double dydx[], G4double h, G4double yOut[])
G4int	IntegratorOrder () const
	G4TClassicalRK4 (const G4TClassicalRK4 &)=delete
G4TClassicalRK4 &	operator= (const G4TClassicalRK4 &)=delete
Public Member Functions inherited from G4TMagErrorStepper< G4TClassicalRK4< T_Equation, N >, T_Equation, N >
	G4TMagErrorStepper (T_Equation *EqRhs, G4int numberOfVariables, G4int numStateVariables=12)
virtual	~G4TMagErrorStepper ()
void	RightHandSide (G4double y[], G4double dydx[])
void	Stepper (const G4double yInput[], const G4double dydx[], G4double hstep, G4double yOutput[], G4double yError[]) override final
G4double	DistChord () const override final
Public Member Functions inherited from G4MagIntegratorStepper
	G4MagIntegratorStepper (G4EquationOfMotion *Equation, G4int numIntegrationVariables, G4int numStateVariables=12, G4bool isFSAL=false)
virtual	~G4MagIntegratorStepper ()=default
	G4MagIntegratorStepper (const G4MagIntegratorStepper &)=delete
G4MagIntegratorStepper &	operator= (const G4MagIntegratorStepper &)=delete
void	NormaliseTangentVector (G4double vec[6])
void	NormalisePolarizationVector (G4double vec[12])
void	RightHandSide (const G4double y[], G4double dydx[]) const
void	RightHandSide (const G4double y[], G4double dydx[], G4double field[]) const
G4int	GetNumberOfVariables () const
G4int	GetNumberOfStateVariables () const
G4int	IntegrationOrder ()
G4EquationOfMotion *	GetEquationOfMotion ()
const G4EquationOfMotion *	GetEquationOfMotion () const
void	SetEquationOfMotion (G4EquationOfMotion *newEquation)
unsigned long	GetfNoRHSCalls ()
void	ResetfNORHSCalls ()
G4bool	IsFSAL () const
G4bool	isQSS () const
void	SetIsQSS (G4bool val)

Static Public Attributes
static constexpr G4double	IntegratorCorrection = 1. / ((1 << 4) - 1)

Additional Inherited Members
Protected Member Functions inherited from G4MagIntegratorStepper
void	SetIntegrationOrder (G4int order)
void	SetFSAL (G4bool flag=true)

Detailed Description

template<class T_Equation, unsigned int N>
class G4TClassicalRK4< T_Equation, N >

Definition at line 42 of file G4TClassicalRK4.hh.

Constructor & Destructor Documentation

G4TClassicalRK4() [1/2]

template<class T_Equation, unsigned int N>

G4TClassicalRK4< T_Equation, N >::G4TClassicalRK4	(	T_Equation *	EqRhs,
		G4int	numberOfVariables = 8 )

Definition at line 85 of file G4TClassicalRK4.hh.

   : G4TMagErrorStepper<G4TClassicalRK4<T_Equation, N>, T_Equation, N>(
      EqRhs, numberOfVariables > 8 ? numberOfVariables : 8 )
   , fEquation_Rhs(EqRhs)
{
  // unsigned int noVariables = std::max(numberOfVariables, 8);  // For Time .. 7+1
  if( dynamic_cast<G4EquationOfMotion*>(EqRhs) == nullptr )
  {
    G4Exception("G4TClassicalRK4: constructor", "GeomField0001",
                FatalException, "Equation is not an G4EquationOfMotion.");
  }
}

Referenced by G4TClassicalRK4(), G4TClassicalRK4(), and operator=().

~G4TClassicalRK4()

template<class T_Equation, unsigned int N>

virtual G4TClassicalRK4< T_Equation, N >::~G4TClassicalRK4 ( )

inlinevirtual

Definition at line 50 of file G4TClassicalRK4.hh.

{ ; }

G4TClassicalRK4() [2/2]

template<class T_Equation, unsigned int N>

G4TClassicalRK4< T_Equation, N >::G4TClassicalRK4 ( const G4TClassicalRK4< T_Equation, N > & )

delete

Member Function Documentation

DumbStepper()

template<class T_Equation, unsigned int N>

void G4TClassicalRK4< T_Equation, N >::DumbStepper ( const G4double yIn[], const G4double dydx[], G4double h, G4double yOut[] )

inline

Definition at line 101 of file G4TClassicalRK4.hh.

{
  G4double hh = h * 0.5, h6 = h / 6.0;

  // Initialise time to t0, needed when it is not updated by the integration.
  //        [ Note: Only for time dependent fields (usually electric)
  //                  is it neccessary to integrate the time.]
  yt[7]   = yIn[7];
  yOut[7] = yIn[7];

  for(unsigned int i = 0; i < N; ++i)
  {
     yt[i] = yIn[i] + hh * dydx[i];  // 1st Step K1=h*dydx
  }
  this->RightHandSideInl(yt, dydxt);  // 2nd Step K2=h*dydxt

  for(unsigned int i = 0; i < N; ++i)
  {
     yt[i] = yIn[i] + hh * dydxt[i];
  }
  this->RightHandSideInl(yt, dydxm);  // 3rd Step K3=h*dydxm

  for(unsigned int i = 0; i < N; ++i)
  {
     yt[i] = yIn[i] + h * dydxm[i];
     dydxm[i] += dydxt[i];  // now dydxm=(K2+K3)/h
  }
  this->RightHandSideInl(yt, dydxt);  // 4th Step K4=h*dydxt

  for(unsigned int i = 0; i < N; ++i)  // Final RK4 output
  {
     yOut[i] = yIn[i] + h6 * (dydx[i] + dydxt[i] +
                              2.0 * dydxm[i]);  //+K1/6+K4/6+(K2+K3)/3
  }
  if(N == 12)
  {
     this->NormalisePolarizationVector(yOut);
  }

}  // end of DumbStepper ....................................................

IntegratorOrder()

template<class T_Equation, unsigned int N>

G4int G4TClassicalRK4< T_Equation, N >::IntegratorOrder ( ) const

inlinevirtual

Implements G4MagIntegratorStepper.

Definition at line 68 of file G4TClassicalRK4.hh.

{ return 4; }

operator=()

template<class T_Equation, unsigned int N>

G4TClassicalRK4 & G4TClassicalRK4< T_Equation, N >::operator= ( const G4TClassicalRK4< T_Equation, N > & )

delete

RightHandSideInl()

template<class T_Equation, unsigned int N>

void G4TClassicalRK4< T_Equation, N >::RightHandSideInl ( G4double y[], G4double dydx[] )

inline

Definition at line 52 of file G4TClassicalRK4.hh.

  {
    fEquation_Rhs->T_Equation::RightHandSide(y, dydx);
  }

Referenced by DumbStepper().

Member Data Documentation

IntegratorCorrection

template<class T_Equation, unsigned int N>

G4double G4TClassicalRK4< T_Equation, N >::IntegratorCorrection = 1. / ((1 << 4) - 1)

staticconstexpr

Definition at line 46 of file G4TClassicalRK4.hh.

---

The documentation for this class was generated from the following file:

• G4TClassicalRK4.hh
