G4MagneticField Class Reference

#include <G4MagneticField.hh>

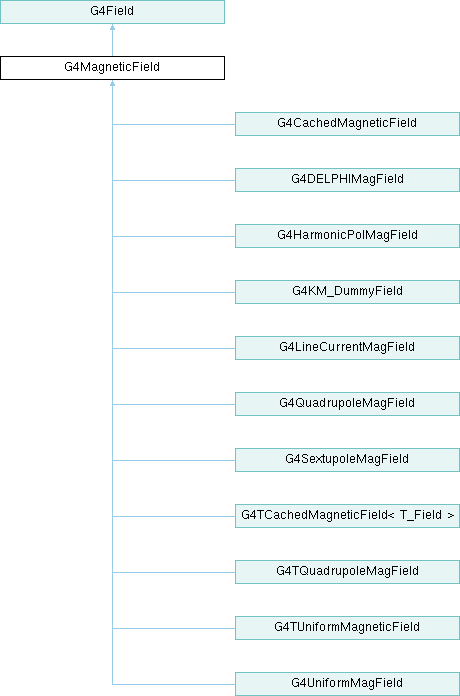

Inheritance diagram for G4MagneticField:

Public Member Functions
	G4MagneticField ()
	~G4MagneticField () override
	G4MagneticField (const G4MagneticField &r)
G4MagneticField &	operator= (const G4MagneticField &p)
G4bool	DoesFieldChangeEnergy () const override
void	GetFieldValue (const G4double Point[4], G4double *Bfield) const override=0
Public Member Functions inherited from G4Field
	G4Field (G4bool gravityOn=false)
	G4Field (const G4Field &)
virtual	~G4Field ()
G4Field &	operator= (const G4Field &p)
G4bool	IsGravityActive () const
void	SetGravityActive (G4bool OnOffFlag)
virtual G4Field *	Clone () const

Additional Inherited Members
Static Public Attributes inherited from G4Field
static constexpr G4int	MAX_NUMBER_OF_COMPONENTS = 24

Detailed Description

Definition at line 40 of file G4MagneticField.hh.

Constructor & Destructor Documentation

G4MagneticField() [1/2]

G4MagneticField::G4MagneticField

(

)

Definition at line 33 of file G4MagneticField.cc.

  : G4Field( false ) // No gravitational field (default)
{
}

Referenced by G4CachedMagneticField::Clone(), G4CachedMagneticField::G4CachedMagneticField(), G4CachedMagneticField::G4CachedMagneticField(), G4MagneticField(), G4TCachedMagneticField< T_Field >::G4TCachedMagneticField(), G4TUniformMagneticField::G4TUniformMagneticField(), G4UniformMagField::G4UniformMagField(), operator=(), and ~G4MagneticField().

~G4MagneticField()

G4MagneticField::~G4MagneticField ( )

overridedefault

G4MagneticField() [2/2]

G4MagneticField::G4MagneticField

(

const G4MagneticField &

r

)

Definition at line 40 of file G4MagneticField.cc.

  : G4Field( false )
{
}

Member Function Documentation

DoesFieldChangeEnergy()

G4bool G4MagneticField::DoesFieldChangeEnergy ( ) const

inlineoverridevirtual

Implements G4Field.

Definition at line 52 of file G4MagneticField.hh.

{ return false; }

GetFieldValue()

void G4MagneticField::GetFieldValue ( const G4double Point[4], G4double * Bfield ) const

overridepure virtual

Implements G4Field.

Implemented in G4CachedMagneticField, G4TCachedMagneticField< T_Field >, G4TUniformMagneticField, and G4UniformMagField.

operator=()

G4MagneticField & G4MagneticField::operator=

(

const G4MagneticField &

p

)

Definition at line 45 of file G4MagneticField.cc.

{
  if (&p == this) { return *this; }
  G4Field::operator=(p);
  return *this;
}

Referenced by G4CachedMagneticField::operator=(), and G4UniformMagField::operator=().

---

The documentation for this class was generated from the following files:

• G4MagneticField.hh
• G4MagneticField.cc
