#include <G4VisCommandsGeometrySet.hh>

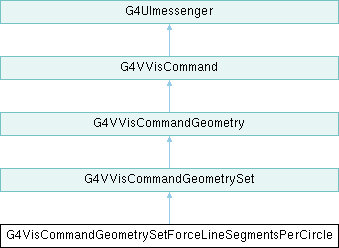

Inheritance diagram for G4VisCommandGeometrySetForceLineSegmentsPerCircle:

Public Member Functions
	G4VisCommandGeometrySetForceLineSegmentsPerCircle ()

virtual	~G4VisCommandGeometrySetForceLineSegmentsPerCircle ()

G4String	GetCurrentValue (G4UIcommand *command)

void	SetNewValue (G4UIcommand *command, G4String newValue)

Public Member Functions inherited from G4VVisCommandGeometry
virtual	~G4VVisCommandGeometry ()

Public Member Functions inherited from G4VVisCommand
	G4VVisCommand ()

virtual	~G4VVisCommand ()

Public Member Functions inherited from G4UImessenger
	G4UImessenger ()=default

	G4UImessenger (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)

virtual	~G4UImessenger ()

G4bool	CommandsShouldBeInMaster () const

Additional Inherited Members
Static Public Member Functions inherited from G4VVisCommand
static G4VisManager *	GetVisManager ()

static void	SetVisManager (G4VisManager *pVisManager)

static const G4Colour &	GetCurrentTextColour ()

Protected Types inherited from G4VVisCommandGeometry
typedef std::map< G4LogicalVolume , constG4VisAttributes >::const_iterator	VisAttsMapIterator

Protected Member Functions inherited from G4VVisCommandGeometrySet
void	Set (const G4String &logVolName, const G4VVisCommandGeometrySetFunction &, G4int requestedDepth)

void	SetLVVisAtts (G4LogicalVolume *, const G4VVisCommandGeometrySetFunction &, G4int depth, G4int requestedDepth)

Protected Member Functions inherited from G4VVisCommand
void	SetViewParameters (G4VViewer *viewer, const G4ViewParameters &viewParams)

void	RefreshIfRequired (G4VViewer *viewer)

void	InterpolateViews (G4VViewer *currentViewer, const std::vector< G4ViewParameters > &viewVector, const G4int nInterpolationPoints=50, const G4int waitTimePerPointmilliseconds=20, const G4String &exportString="")

void	InterpolateToNewView (G4VViewer *currentViewer, const G4ViewParameters &oldVP, const G4ViewParameters &newVP, const G4int nInterpolationPoints=50, const G4int waitTimePerPointmilliseconds=20, const G4String &exportString="")

void	Twinkle (G4VViewer *currentViewer, const G4ViewParameters &baseVP, const std::vector< std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > > &paths)

const G4String &	ConvertToColourGuidance ()

void	ConvertToColour (G4Colour &colour, const G4String &redOrString, G4double green, G4double blue, G4double opacity)

G4bool	ProvideValueOfUnit (const G4String &where, const G4String &unit, const G4String &category, G4double &value)

void	CopyCameraParameters (G4ViewParameters &target, const G4ViewParameters &from)

void	CheckSceneAndNotifyHandlers (G4Scene *=nullptr)

G4bool	CheckView ()

void	G4VisCommandsSceneAddUnsuccessful (G4VisManager::Verbosity verbosity)

void	CopyGuidanceFrom (const G4UIcommand fromCmd, G4UIcommand toCmd, G4int startLine=0)

void	CopyParametersFrom (const G4UIcommand fromCmd, G4UIcommand toCmd)

void	DrawExtent (const G4VisExtent &)

Protected Member Functions inherited from G4UImessenger
G4String	ItoS (G4int i)

G4String	LtoS (G4long l)

G4String	DtoS (G4double a)

G4String	BtoS (G4bool b)

G4int	StoI (const G4String &s)

G4long	StoL (const G4String &s)

G4double	StoD (const G4String &s)

G4bool	StoB (const G4String &s)

void	AddUIcommand (G4UIcommand *newCommand)

void	CreateDirectory (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)

template<typename T>
T *	CreateCommand (const G4String &cname, const G4String &dsc)

Static Protected Member Functions inherited from G4VVisCommand
static G4String	ConvertToString (G4double x, G4double y, const char *unitName)

static G4bool	ConvertToDoublePair (const G4String &paramString, G4double &xval, G4double &yval)

Protected Attributes inherited from G4UImessenger
G4UIdirectory *	baseDir = nullptr

G4String	baseDirName = ""

G4bool	commandsShouldBeInMaster = false

Static Protected Attributes inherited from G4VVisCommandGeometry
static std::map< G4LogicalVolume , const G4VisAttributes >	fVisAttsMap

Static Protected Attributes inherited from G4VVisCommand
static G4VisManager *	fpVisManager = nullptr

static G4int	fCurrentArrow3DLineSegmentsPerCircle = 6

static G4Colour	fCurrentColour = G4Colour::White()

static G4double	fCurrentLineWidth = 1.

static G4Colour	fCurrentTextColour = G4Colour::Blue()

static G4Text::Layout	fCurrentTextLayout = G4Text::left

static G4double	fCurrentTextSize = 12.

static G4PhysicalVolumeModel::TouchableProperties	fCurrentTouchableProperties

static G4VisExtent	fCurrentExtentForField

static std::vector< G4PhysicalVolumesSearchScene::Findings >	fCurrrentPVFindingsForField

static G4bool	fThereWasAViewer = false

static G4ViewParameters	fExistingVP

static G4SceneTreeItem	fExistingSceneTree

Detailed Description

Definition at line 267 of file G4VisCommandsGeometrySet.hh.

Constructor & Destructor Documentation

◆ G4VisCommandGeometrySetForceLineSegmentsPerCircle()

G4VisCommandGeometrySetForceLineSegmentsPerCircle::G4VisCommandGeometrySetForceLineSegmentsPerCircle ( )

Definition at line 355 of file G4VisCommandsGeometrySet.cc.

{
  G4bool omitable;
  fpCommand = new G4UIcommand("/vis/geometry/set/forceLineSegmentsPerCircle", this);
  fpCommand->SetGuidance
    ("Forces number of line segments per circle, the precision with which a"
     "\ncurved line or surface is represented by a polygon or polyhedron,"
     "\nregardless of the view parameters.");
  fpCommand->SetGuidance("\"all\" sets all logical volumes.");
  fpCommand->SetGuidance
    ("Optionally propagates down hierarchy to given depth.");
  G4UIparameter* parameter;
  parameter = new G4UIparameter ("logical-volume-name", 's', omitable = true);
  parameter->SetDefaultValue("all");
  fpCommand->SetParameter(parameter);
  parameter = new G4UIparameter("depth", 'd', omitable = true);
  parameter->SetDefaultValue(0);
  parameter->SetGuidance
    ("Depth of propagation (-1 means unlimited depth).");
  fpCommand->SetParameter(parameter);
  parameter = new G4UIparameter("lineSegmentsPerCircle", 'd', omitable = true);
  parameter->SetGuidance
    ("<= 0 means not forced, i.e., under control of viewer.");
  parameter->SetDefaultValue(0);
  fpCommand->SetParameter(parameter);
}

◆ ~G4VisCommandGeometrySetForceLineSegmentsPerCircle()

G4VisCommandGeometrySetForceLineSegmentsPerCircle::~G4VisCommandGeometrySetForceLineSegmentsPerCircle ( )

virtual

Definition at line 382 of file G4VisCommandsGeometrySet.cc.

{
  delete fpCommand;
}

Member Function Documentation

◆ GetCurrentValue()

G4String G4VisCommandGeometrySetForceLineSegmentsPerCircle::GetCurrentValue ( G4UIcommand * command )

virtual

Reimplemented from G4UImessenger.

Definition at line 388 of file G4VisCommandsGeometrySet.cc.

{
  return "";
}

◆ SetNewValue()

void G4VisCommandGeometrySetForceLineSegmentsPerCircle::SetNewValue	(	G4UIcommand *	command,
		G4String	newValue )

virtual

Reimplemented from G4UImessenger.

Definition at line 393 of file G4VisCommandsGeometrySet.cc.

{
  G4String name;
  G4int requestedDepth;
  G4int lineSegmentsPerCircle;
  std::istringstream iss(newValue);
  iss >> name >> requestedDepth >> lineSegmentsPerCircle;

  G4VisCommandGeometrySetForceLineSegmentsPerCircleFunction
  setForceLineSegmentsPerCircle(lineSegmentsPerCircle);
  Set(name, setForceLineSegmentsPerCircle, requestedDepth);
}

The documentation for this class was generated from the following files:
