#include <G4ParameterisationPolycone.hh>

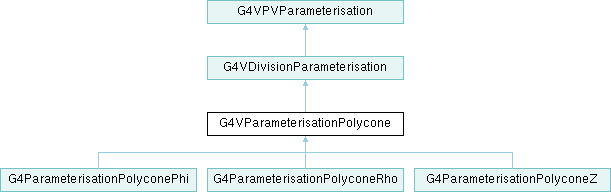

Inheritance diagram for G4VParameterisationPolycone:

Public Member Functions
	G4VParameterisationPolycone (EAxis axis, G4int nCopies, G4double offset, G4double step, G4VSolid *msolid, DivisionType divType)

	~G4VParameterisationPolycone () override

Public Member Functions inherited from G4VDivisionParameterisation
	G4VDivisionParameterisation (EAxis axis, G4int nDiv, G4double width, G4double offset, DivisionType divType, G4VSolid *motherSolid=nullptr)

	~G4VDivisionParameterisation () override

G4VSolid *	ComputeSolid (const G4int, G4VPhysicalVolume *) override

void	ComputeTransformation (const G4int copyNo, G4VPhysicalVolume *physVol) const override=0

const G4String &	GetType () const

EAxis	GetAxis () const

G4int	GetNoDiv () const

G4double	GetWidth () const

G4double	GetOffset () const

G4VSolid *	GetMotherSolid () const

void	SetType (const G4String &type)

G4int	VolumeFirstCopyNo () const

void	SetHalfGap (G4double hg)

G4double	GetHalfGap () const

Public Member Functions inherited from G4VPVParameterisation
	G4VPVParameterisation ()=default

virtual	~G4VPVParameterisation ()=default

virtual G4Material *	ComputeMaterial (const G4int repNo, G4VPhysicalVolume currentVol, const G4VTouchable parentTouch=nullptr)

virtual G4bool	IsNested () const

virtual G4VVolumeMaterialScanner *	GetMaterialScanner ()

virtual void	ComputeDimensions (G4Box &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Tubs &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Trd &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Trap &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Cons &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Sphere &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Orb &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Ellipsoid &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Torus &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Para &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Polycone &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Polyhedra &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Hype &, const G4int, const G4VPhysicalVolume *) const

Additional Inherited Members
Protected Member Functions inherited from G4VDivisionParameterisation
void	ChangeRotMatrix (G4VPhysicalVolume *physVol, G4double rotZ=0.0) const

G4int	CalculateNDiv (G4double motherDim, G4double width, G4double offset) const

G4double	CalculateWidth (G4double motherDim, G4int nDiv, G4double offset) const

virtual void	CheckParametersValidity ()

void	CheckOffset (G4double maxPar)

void	CheckNDivAndWidth (G4double maxPar)

virtual G4double	GetMaxParameter () const =0

G4double	OffsetZ () const

Protected Attributes inherited from G4VDivisionParameterisation
G4String	ftype

EAxis	faxis

G4int	fnDiv = 0

G4double	fwidth = 0.0

G4double	foffset = 0.0

DivisionType	fDivisionType

G4VSolid *	fmotherSolid = nullptr

G4bool	fReflectedSolid = false

G4bool	fDeleteSolid = false

G4int	theVoluFirstCopyNo = 1

G4double	kCarTolerance

G4double	fhgap = 0.0

Static Protected Attributes inherited from G4VDivisionParameterisation
static G4ThreadLocal G4RotationMatrix *	fRot = nullptr

static const G4int	verbose = 5

Detailed Description

Definition at line 58 of file G4ParameterisationPolycone.hh.

Constructor & Destructor Documentation

◆ G4VParameterisationPolycone()

G4VParameterisationPolycone::G4VParameterisationPolycone	(	EAxis	axis,
		G4int	nCopies,
		G4double	offset,
		G4double	step,
		G4VSolid *	msolid,
		DivisionType	divType )

Definition at line 42 of file G4ParameterisationPolycone.cc.

  :  G4VDivisionParameterisation( axis, nDiv, width, offset, divType, msolid )
{
  /*#ifdef G4MULTITHREADED
   std::ostringstream message;
   message << "Divisions for G4Polycone currently NOT supported in MT-mode."
           << G4endl
           << "Sorry! Solid: " << msolid->GetName();
   G4Exception("G4VParameterisationPolycone::G4VParameterisationPolycone()",
               "GeomDiv0001", FatalException, message);
           #endif */
  auto msol = (G4Polycone*)(msolid);
  if (msolid->GetEntityType() == "G4ReflectedSolid")
  {
    // Get constituent solid
    //
    G4VSolid* mConstituentSolid
       = ((G4ReflectedSolid*)msolid)->GetConstituentMovedSolid();
    msol = (G4Polycone*)(mConstituentSolid);

    // Get parameters
    //
    G4int   nofZplanes = msol->GetOriginalParameters()->Num_z_planes;
    G4double* zValues  = msol->GetOriginalParameters()->Z_values;
    G4double* rminValues  = msol->GetOriginalParameters()->Rmin;
    G4double* rmaxValues  = msol->GetOriginalParameters()->Rmax;

    // Invert z values
    //
    auto zValuesRefl = new G4double[nofZplanes];
    for (G4int i=0; i<nofZplanes; ++i)  { zValuesRefl[i] = - zValues[i]; }

    auto newSolid
      = new G4Polycone(msol->GetName(),
                       msol->GetStartPhi(),
                       msol->GetEndPhi() - msol->GetStartPhi(),
                       nofZplanes, zValuesRefl, rminValues, rmaxValues);

    delete [] zValuesRefl;

    msol = newSolid;
    fmotherSolid = newSolid;
    fReflectedSolid = true;
    fDeleteSolid = true;
  }
}

Referenced by G4ParameterisationPolyconePhi::G4ParameterisationPolyconePhi(), G4ParameterisationPolyconeRho::G4ParameterisationPolyconeRho(), and G4ParameterisationPolyconeZ::G4ParameterisationPolyconeZ().

◆ ~G4VParameterisationPolycone()

G4VParameterisationPolycone::~G4VParameterisationPolycone ( )

overridedefault

The documentation for this class was generated from the following files:
