G4GDMLReadSolids Class Reference

#include <G4GDMLReadSolids.hh>

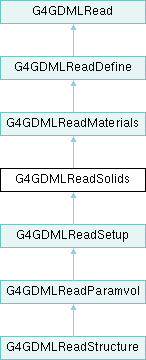

Inheritance diagram for G4GDMLReadSolids:

Classes
struct	zplaneType

Public Member Functions
G4VSolid *	GetSolid (const G4String &) const
G4SurfaceProperty *	GetSurfaceProperty (const G4String &) const
virtual void	SolidsRead (const xercesc::DOMElement *const)
Public Member Functions inherited from G4GDMLReadMaterials
G4Element *	GetElement (const G4String &, G4bool verbose=true) const
G4Isotope *	GetIsotope (const G4String &, G4bool verbose=true) const
G4Material *	GetMaterial (const G4String &, G4bool verbose=true) const
virtual void	MaterialsRead (const xercesc::DOMElement *const)
Public Member Functions inherited from G4GDMLReadDefine
G4bool	IsValidID (const G4String &) const
G4double	GetConstant (const G4String &)
G4double	GetVariable (const G4String &)
G4double	GetQuantity (const G4String &)
G4ThreeVector	GetPosition (const G4String &)
G4ThreeVector	GetRotation (const G4String &)
G4ThreeVector	GetScale (const G4String &)
G4GDMLMatrix	GetMatrix (const G4String &)
virtual void	DefineRead (const xercesc::DOMElement *const)
void	SetReverseSearch (G4bool flag)
Public Member Functions inherited from G4GDMLRead
virtual void	SetupRead (const xercesc::DOMElement *const)=0
virtual void	Paramvol_contentRead (const xercesc::DOMElement *const)=0
virtual void	Volume_contentRead (const xercesc::DOMElement *const)=0
virtual void	StructureRead (const xercesc::DOMElement *const)=0
virtual void	ExtensionRead (const xercesc::DOMElement *const)
virtual void	UserinfoRead (const xercesc::DOMElement *const)
virtual G4LogicalVolume *	GetVolume (const G4String &) const =0
virtual G4String	GetSetup (const G4String &)=0
void	Read (const G4String &, G4bool validation, G4bool isModule, G4bool strip=true)
void	StripNames () const
void	StripName (G4String &) const
const G4String &	GetSchemaFile () const
void	SetSchemaFile (const G4String &schemaFile)
void	OverlapCheck (G4bool)
const G4GDMLAuxListType *	GetAuxList () const

Protected Member Functions
	G4GDMLReadSolids ()
virtual	~G4GDMLReadSolids ()
void	BooleanRead (const xercesc::DOMElement *const, const BooleanOp)
void	BoxRead (const xercesc::DOMElement *const)
void	ConeRead (const xercesc::DOMElement *const)
void	ElconeRead (const xercesc::DOMElement *const)
void	EllipsoidRead (const xercesc::DOMElement *const)
void	EltubeRead (const xercesc::DOMElement *const)
void	XtruRead (const xercesc::DOMElement *const)
void	HypeRead (const xercesc::DOMElement *const)
void	MultiUnionNodeRead (const xercesc::DOMElement *const, G4MultiUnion *const)
void	MultiUnionRead (const xercesc::DOMElement *const)
void	OrbRead (const xercesc::DOMElement *const)
void	ParaRead (const xercesc::DOMElement *const)
void	ParaboloidRead (const xercesc::DOMElement *const)
void	PolyconeRead (const xercesc::DOMElement *const)
void	GenericPolyconeRead (const xercesc::DOMElement *const)
void	PolyhedraRead (const xercesc::DOMElement *const)
void	GenericPolyhedraRead (const xercesc::DOMElement *const)
G4QuadrangularFacet *	QuadrangularRead (const xercesc::DOMElement *const)
void	ReflectedSolidRead (const xercesc::DOMElement *const)
void	ScaledSolidRead (const xercesc::DOMElement *const)
G4ExtrudedSolid::ZSection	SectionRead (const xercesc::DOMElement *const, G4double)
void	SphereRead (const xercesc::DOMElement *const)
void	TessellatedRead (const xercesc::DOMElement *const)
void	TetRead (const xercesc::DOMElement *const)
void	TorusRead (const xercesc::DOMElement *const)
void	GenTrapRead (const xercesc::DOMElement *const)
void	TrapRead (const xercesc::DOMElement *const)
void	TrdRead (const xercesc::DOMElement *const)
void	TubeRead (const xercesc::DOMElement *const)
void	CutTubeRead (const xercesc::DOMElement *const)
void	TwistedboxRead (const xercesc::DOMElement *const)
void	TwistedtrapRead (const xercesc::DOMElement *const)
void	TwistedtrdRead (const xercesc::DOMElement *const)
void	TwistedtubsRead (const xercesc::DOMElement *const)
G4TriangularFacet *	TriangularRead (const xercesc::DOMElement *const)
G4TwoVector	TwoDimVertexRead (const xercesc::DOMElement *const, G4double)
zplaneType	ZplaneRead (const xercesc::DOMElement *const)
rzPointType	RZPointRead (const xercesc::DOMElement *const)
void	OpticalSurfaceRead (const xercesc::DOMElement *const)
void	PropertyRead (const xercesc::DOMElement *const, G4OpticalSurface *)
Protected Member Functions inherited from G4GDMLReadMaterials
	G4GDMLReadMaterials ()
virtual	~G4GDMLReadMaterials ()
G4double	AtomRead (const xercesc::DOMElement *const)
G4int	CompositeRead (const xercesc::DOMElement *const, G4String &)
G4double	DRead (const xercesc::DOMElement *const)
G4double	PRead (const xercesc::DOMElement *const)
G4double	TRead (const xercesc::DOMElement *const)
G4double	MEERead (const xercesc::DOMElement *const)
void	ElementRead (const xercesc::DOMElement *const)
G4double	FractionRead (const xercesc::DOMElement *const, G4String &)
void	IsotopeRead (const xercesc::DOMElement *const)
void	MaterialRead (const xercesc::DOMElement *const)
void	MixtureRead (const xercesc::DOMElement *const, G4Element *)
void	MixtureRead (const xercesc::DOMElement *const, G4Material *)
void	PropertyRead (const xercesc::DOMElement *const, G4Material *)
Protected Member Functions inherited from G4GDMLReadDefine
	G4GDMLReadDefine ()
virtual	~G4GDMLReadDefine ()
G4RotationMatrix	GetRotationMatrix (const G4ThreeVector &)
void	VectorRead (const xercesc::DOMElement *const, G4ThreeVector &)
G4String	RefRead (const xercesc::DOMElement *const)
void	ConstantRead (const xercesc::DOMElement *const)
void	MatrixRead (const xercesc::DOMElement *const)
void	PositionRead (const xercesc::DOMElement *const)
void	RotationRead (const xercesc::DOMElement *const)
void	ScaleRead (const xercesc::DOMElement *const)
void	VariableRead (const xercesc::DOMElement *const)
void	QuantityRead (const xercesc::DOMElement *const)
void	ExpressionRead (const xercesc::DOMElement *const)
Protected Member Functions inherited from G4GDMLRead
	G4GDMLRead ()
virtual	~G4GDMLRead ()
G4String	Transcode (const XMLCh *const)
G4String	GenerateName (const G4String &name, G4bool strip=false)
G4String	Strip (const G4String &) const
void	GeneratePhysvolName (const G4String &, G4VPhysicalVolume *)
void	LoopRead (const xercesc::DOMElement *const, void(G4GDMLRead::*)(const xercesc::DOMElement *const))
G4GDMLAuxStructType	AuxiliaryRead (const xercesc::DOMElement *const auxElem)

Additional Inherited Members
Protected Attributes inherited from G4GDMLReadDefine
G4bool	reverseSearch = false
std::map< G4String, G4double >	quantityMap
std::map< G4String, G4ThreeVector >	positionMap
std::map< G4String, G4ThreeVector >	rotationMap
std::map< G4String, G4ThreeVector >	scaleMap
std::map< G4String, G4GDMLMatrix >	matrixMap
Protected Attributes inherited from G4GDMLRead
G4GDMLEvaluator	eval
G4bool	validate = true
G4bool	check = false
G4bool	dostrip = true
G4String	schema = ""

Detailed Description

Definition at line 49 of file G4GDMLReadSolids.hh.

Constructor & Destructor Documentation

G4GDMLReadSolids()

G4GDMLReadSolids::G4GDMLReadSolids ( )

protected

Definition at line 71 of file G4GDMLReadSolids.cc.

  : G4GDMLReadMaterials()
{
}

Referenced by G4GDMLReadSetup::G4GDMLReadSetup().

~G4GDMLReadSolids()

G4GDMLReadSolids::~G4GDMLReadSolids ( )

protectedvirtual

Definition at line 77 of file G4GDMLReadSolids.cc.

{
}

Member Function Documentation

BooleanRead()

void G4GDMLReadSolids::BooleanRead ( const xercesc::DOMElement * const booleanElement, const BooleanOp op )

protected

Definition at line 82 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4String first;
  G4String scnd;
  G4ThreeVector position(0.0, 0.0, 0.0);
  G4ThreeVector rotation(0.0, 0.0, 0.0);
  G4ThreeVector firstposition(0.0, 0.0, 0.0);
  G4ThreeVector firstrotation(0.0, 0.0, 0.0);

  const xercesc::DOMNamedNodeMap* const attributes =
    booleanElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::BooleanRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
  }

  for(xercesc::DOMNode* iter = booleanElement->getFirstChild(); iter != nullptr;
      iter                   = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::BooleanRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "first")
    {
      first = RefRead(child);
    }
    else if(tag == "second")
    {
      scnd = RefRead(child);
    }
    else if(tag == "position")
    {
      VectorRead(child, position);
    }
    else if(tag == "rotation")
    {
      VectorRead(child, rotation);
    }
    else if(tag == "positionref")
    {
      position = GetPosition(GenerateName(RefRead(child)));
    }
    else if(tag == "rotationref")
    {
      rotation = GetRotation(GenerateName(RefRead(child)));
    }
    else if(tag == "firstposition")
    {
      VectorRead(child, firstposition);
    }
    else if(tag == "firstrotation")
    {
      VectorRead(child, firstrotation);
    }
    else if(tag == "firstpositionref")
    {
      firstposition = GetPosition(GenerateName(RefRead(child)));
    }
    else if(tag == "firstrotationref")
    {
      firstrotation = GetRotation(GenerateName(RefRead(child)));
    }
    else
    {
      G4String error_msg = "Unknown tag in boolean solid: " + tag;
      G4Exception("G4GDMLReadSolids::BooleanRead()", "ReadError",
                  FatalException, error_msg);
    }
  }

  G4VSolid* firstSolid  = GetSolid(GenerateName(first));
  G4VSolid* secondSolid = GetSolid(GenerateName(scnd));

  G4Transform3D transform(GetRotationMatrix(rotation), position);

  if(((firstrotation.x() != 0.0) || (firstrotation.y() != 0.0) ||
      (firstrotation.z() != 0.0)) ||
     ((firstposition.x() != 0.0) || (firstposition.y() != 0.0) ||
      (firstposition.z() != 0.0)))
  {
    G4Transform3D firsttransform(GetRotationMatrix(firstrotation),
                                 firstposition);
    firstSolid = new G4DisplacedSolid(GenerateName("displaced_" + first),
                                      firstSolid, firsttransform);
  }

  if(op == UNION)
  {
    new G4UnionSolid(name, firstSolid, secondSolid, transform);
  }
  else if(op == SUBTRACTION)
  {
    new G4SubtractionSolid(name, firstSolid, secondSolid, transform);
  }
  else if(op == INTERSECTION)
  {
    new G4IntersectionSolid(name, firstSolid, secondSolid, transform);
  }
}

Referenced by SolidsRead().

BoxRead()

void G4GDMLReadSolids::BoxRead ( const xercesc::DOMElement * const boxElement )

protected

Definition at line 221 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double x     = 0.0;
  G4double y     = 0.0;
  G4double z     = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    boxElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::BoxRead()", "InvalidRead", FatalException,
                  "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::BoxRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "x")
    {
      x = eval.Evaluate(attValue);
    }
    else if(attName == "y")
    {
      y = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
  }

  x *= 0.5 * lunit;
  y *= 0.5 * lunit;
  z *= 0.5 * lunit;

  new G4Box(name, x, y, z);
}

Referenced by SolidsRead().

ConeRead()

void G4GDMLReadSolids::ConeRead ( const xercesc::DOMElement * const coneElement )

protected

Definition at line 289 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double rmin1    = 0.0;
  G4double rmax1    = 0.0;
  G4double rmin2    = 0.0;
  G4double rmax2    = 0.0;
  G4double z        = 0.0;
  G4double startphi = 0.0;
  G4double deltaphi = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    coneElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::ConeRead()", "InvalidRead", FatalException,
                  "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::ConeRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::ConeRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "rmin1")
    {
      rmin1 = eval.Evaluate(attValue);
    }
    else if(attName == "rmax1")
    {
      rmax1 = eval.Evaluate(attValue);
    }
    else if(attName == "rmin2")
    {
      rmin2 = eval.Evaluate(attValue);
    }
    else if(attName == "rmax2")
    {
      rmax2 = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
    else if(attName == "startphi")
    {
      startphi = eval.Evaluate(attValue);
    }
    else if(attName == "deltaphi")
    {
      deltaphi = eval.Evaluate(attValue);
    }
  }

  rmin1 *= lunit;
  rmax1 *= lunit;
  rmin2 *= lunit;
  rmax2 *= lunit;
  z *= 0.5 * lunit;
  startphi *= aunit;
  deltaphi *= aunit;

  new G4Cons(name, rmin1, rmax1, rmin2, rmax2, z, startphi, deltaphi);
}

Referenced by SolidsRead().

CutTubeRead()

void G4GDMLReadSolids::CutTubeRead ( const xercesc::DOMElement * const cuttubeElement )

protected

Definition at line 2782 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double rmin     = 0.0;
  G4double rmax     = 0.0;
  G4double z        = 0.0;
  G4double startphi = 0.0;
  G4double deltaphi = 0.0;
  G4ThreeVector lowNorm(0);
  G4ThreeVector highNorm(0);

  const xercesc::DOMNamedNodeMap* const attributes =
    cuttubeElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::CutTubeRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::CutTubeRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::CutTubeRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "rmin")
    {
      rmin = eval.Evaluate(attValue);
    }
    else if(attName == "rmax")
    {
      rmax = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
    else if(attName == "startphi")
    {
      startphi = eval.Evaluate(attValue);
    }
    else if(attName == "deltaphi")
    {
      deltaphi = eval.Evaluate(attValue);
    }
    else if(attName == "lowX")
    {
      lowNorm.setX(eval.Evaluate(attValue));
    }
    else if(attName == "lowY")
    {
      lowNorm.setY(eval.Evaluate(attValue));
    }
    else if(attName == "lowZ")
    {
      lowNorm.setZ(eval.Evaluate(attValue));
    }
    else if(attName == "highX")
    {
      highNorm.setX(eval.Evaluate(attValue));
    }
    else if(attName == "highY")
    {
      highNorm.setY(eval.Evaluate(attValue));
    }
    else if(attName == "highZ")
    {
      highNorm.setZ(eval.Evaluate(attValue));
    }
  }

  rmin *= lunit;
  rmax *= lunit;
  z *= 0.5 * lunit;
  startphi *= aunit;
  deltaphi *= aunit;

  new G4CutTubs(name, rmin, rmax, z, startphi, deltaphi, lowNorm, highNorm);
}

Referenced by SolidsRead().

ElconeRead()

void G4GDMLReadSolids::ElconeRead ( const xercesc::DOMElement * const elconeElement )

protected

Definition at line 391 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double dx    = 0.0;
  G4double dy    = 0.0;
  G4double zmax  = 0.0;
  G4double zcut  = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    elconeElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::ElconeRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::ElconeRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "dx")
    {
      dx = eval.Evaluate(attValue);
    }
    else if(attName == "dy")
    {
      dy = eval.Evaluate(attValue);
    }
    else if(attName == "zmax")
    {
      zmax = eval.Evaluate(attValue);
    }
    else if(attName == "zcut")
    {
      zcut = eval.Evaluate(attValue);
    }
  }

  zmax *= lunit;
  zcut *= lunit;

  new G4EllipticalCone(name, dx, dy, zmax, zcut);
}

Referenced by SolidsRead().

EllipsoidRead()

void G4GDMLReadSolids::EllipsoidRead ( const xercesc::DOMElement * const ellipsoidElement )

protected

Definition at line 464 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double ax    = 0.0;
  G4double by    = 0.0;
  G4double cz    = 0.0;
  G4double zcut1 = 0.0;
  G4double zcut2 = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    ellipsoidElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::EllipsoidRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::EllipsoidRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "ax")
    {
      ax = eval.Evaluate(attValue);
    }
    else if(attName == "by")
    {
      by = eval.Evaluate(attValue);
    }
    else if(attName == "cz")
    {
      cz = eval.Evaluate(attValue);
    }
    else if(attName == "zcut1")
    {
      zcut1 = eval.Evaluate(attValue);
    }
    else if(attName == "zcut2")
    {
      zcut2 = eval.Evaluate(attValue);
    }
  }

  ax *= lunit;
  by *= lunit;
  cz *= lunit;
  zcut1 *= lunit;
  zcut2 *= lunit;

  new G4Ellipsoid(name, ax, by, cz, zcut1, zcut2);
}

Referenced by SolidsRead().

EltubeRead()

void G4GDMLReadSolids::EltubeRead ( const xercesc::DOMElement * const eltubeElement )

protected

Definition at line 545 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double dx    = 0.0;
  G4double dy    = 0.0;
  G4double dz    = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    eltubeElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::EltubeRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::EltubeRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "dx")
    {
      dx = eval.Evaluate(attValue);
    }
    else if(attName == "dy")
    {
      dy = eval.Evaluate(attValue);
    }
    else if(attName == "dz")
    {
      dz = eval.Evaluate(attValue);
    }
  }

  dx *= lunit;
  dy *= lunit;
  dz *= lunit;

  new G4EllipticalTube(name, dx, dy, dz);
}

Referenced by SolidsRead().

GenericPolyconeRead()

void G4GDMLReadSolids::GenericPolyconeRead ( const xercesc::DOMElement * const polyconeElement )

protected

Definition at line 1284 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double startphi = 0.0;
  G4double deltaphi = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    polyconeElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::GenericPolyconeRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::GenericPolyconeRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::GenericPolyconeRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "startphi")
    {
      startphi = eval.Evaluate(attValue);
    }
    else if(attName == "deltaphi")
    {
      deltaphi = eval.Evaluate(attValue);
    }
  }

  startphi *= aunit;
  deltaphi *= aunit;

  std::vector<rzPointType> rzPointList;

  for(xercesc::DOMNode* iter = polyconeElement->getFirstChild();
                        iter != nullptr; iter = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::GenericPolyconeRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "rzpoint")
    {
      rzPointList.push_back(RZPointRead(child));
    }
  }

  std::size_t numRZPoints = rzPointList.size();

  G4double* r_array = new G4double[numRZPoints];
  G4double* z_array = new G4double[numRZPoints];

  for(std::size_t i = 0; i < numRZPoints; ++i)
  {
    r_array[i] = rzPointList[i].r * lunit;
    z_array[i] = rzPointList[i].z * lunit;
  }
  new G4GenericPolycone(name, startphi, deltaphi, (G4int)numRZPoints,
                        r_array, z_array);
  delete[] r_array;
  delete[] z_array;
}

Referenced by SolidsRead().

GenericPolyhedraRead()

void G4GDMLReadSolids::GenericPolyhedraRead ( const xercesc::DOMElement * const polyhedraElement )

protected

Definition at line 1518 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double startphi = 0.0;
  G4double deltaphi = 0.0;
  G4int numsides    = 0;

  const xercesc::DOMNamedNodeMap* const attributes =
    polyhedraElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::GenericPolyhedraRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::GenericPolyhedraRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::GenericPolyhedraRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "startphi")
    {
      startphi = eval.Evaluate(attValue);
    }
    else if(attName == "deltaphi")
    {
      deltaphi = eval.Evaluate(attValue);
    }
    else if(attName == "numsides")
    {
      numsides = eval.EvaluateInteger(attValue);
    }
  }

  startphi *= aunit;
  deltaphi *= aunit;

  std::vector<rzPointType> rzpointList;

  for(xercesc::DOMNode* iter = polyhedraElement->getFirstChild();
                        iter != nullptr; iter = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::GenericPolyhedraRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "rzpoint")
    {
      rzpointList.push_back(RZPointRead(child));
    }
  }

  std::size_t numRZPoints = rzpointList.size();

  G4double* r_array = new G4double[numRZPoints];
  G4double* z_array = new G4double[numRZPoints];

  for(std::size_t i = 0; i < numRZPoints; ++i)
  {
    r_array[i] = rzpointList[i].r * lunit;
    z_array[i] = rzpointList[i].z * lunit;
  }

  new G4Polyhedra(name, startphi, deltaphi, numsides, (G4int)numRZPoints,
                  r_array, z_array);

  delete[] r_array;
  delete[] z_array;
}

Referenced by SolidsRead().

GenTrapRead()

void G4GDMLReadSolids::GenTrapRead ( const xercesc::DOMElement * const gtrapElement )

protected

Definition at line 2285 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double dz    = 0.0;
  G4double v1x = 0.0, v1y = 0.0, v2x = 0.0, v2y = 0.0, v3x = 0.0, v3y = 0.0,
           v4x = 0.0, v4y = 0.0, v5x = 0.0, v5y = 0.0, v6x = 0.0, v6y = 0.0,
           v7x = 0.0, v7y = 0.0, v8x = 0.0, v8y = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    gtrapElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::GenTrapRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::GenTrapRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "dz")
    {
      dz = eval.Evaluate(attValue);
    }
    else if(attName == "v1x")
    {
      v1x = eval.Evaluate(attValue);
    }
    else if(attName == "v1y")
    {
      v1y = eval.Evaluate(attValue);
    }
    else if(attName == "v2x")
    {
      v2x = eval.Evaluate(attValue);
    }
    else if(attName == "v2y")
    {
      v2y = eval.Evaluate(attValue);
    }
    else if(attName == "v3x")
    {
      v3x = eval.Evaluate(attValue);
    }
    else if(attName == "v3y")
    {
      v3y = eval.Evaluate(attValue);
    }
    else if(attName == "v4x")
    {
      v4x = eval.Evaluate(attValue);
    }
    else if(attName == "v4y")
    {
      v4y = eval.Evaluate(attValue);
    }
    else if(attName == "v5x")
    {
      v5x = eval.Evaluate(attValue);
    }
    else if(attName == "v5y")
    {
      v5y = eval.Evaluate(attValue);
    }
    else if(attName == "v6x")
    {
      v6x = eval.Evaluate(attValue);
    }
    else if(attName == "v6y")
    {
      v6y = eval.Evaluate(attValue);
    }
    else if(attName == "v7x")
    {
      v7x = eval.Evaluate(attValue);
    }
    else if(attName == "v7y")
    {
      v7y = eval.Evaluate(attValue);
    }
    else if(attName == "v8x")
    {
      v8x = eval.Evaluate(attValue);
    }
    else if(attName == "v8y")
    {
      v8y = eval.Evaluate(attValue);
    }
  }

  dz *= lunit;
  std::vector<G4TwoVector> vertices;
  vertices.push_back(G4TwoVector(v1x * lunit, v1y * lunit));
  vertices.push_back(G4TwoVector(v2x * lunit, v2y * lunit));
  vertices.push_back(G4TwoVector(v3x * lunit, v3y * lunit));
  vertices.push_back(G4TwoVector(v4x * lunit, v4y * lunit));
  vertices.push_back(G4TwoVector(v5x * lunit, v5y * lunit));
  vertices.push_back(G4TwoVector(v6x * lunit, v6y * lunit));
  vertices.push_back(G4TwoVector(v7x * lunit, v7y * lunit));
  vertices.push_back(G4TwoVector(v8x * lunit, v8y * lunit));
  new G4GenericTrap(name, dz, vertices);
}

Referenced by SolidsRead().

GetSolid()

G4VSolid * G4GDMLReadSolids::GetSolid

(

const G4String &

ref

)

const

Definition at line 4057 of file G4GDMLReadSolids.cc.

{
  G4VSolid* solidPtr = G4SolidStore::GetInstance()
                                    ->GetSolid(ref,false,reverseSearch);

  if(solidPtr == nullptr)
  {
    G4String error_msg = "Referenced solid '" + ref + "' was not found!";
    G4Exception("G4GDMLReadSolids::GetSolid()", "ReadError", FatalException,
                error_msg);
  }

  return solidPtr;
}

Referenced by BooleanRead(), MultiUnionNodeRead(), ReflectedSolidRead(), ScaledSolidRead(), and G4GDMLReadStructure::VolumeRead().

GetSurfaceProperty()

G4SurfaceProperty * G4GDMLReadSolids::GetSurfaceProperty

(

const G4String &

ref

)

const

Definition at line 4073 of file G4GDMLReadSolids.cc.

{
  const G4SurfacePropertyTable* surfaceList =
    G4SurfaceProperty::GetSurfacePropertyTable();
  const std::size_t surfaceCount = surfaceList->size();

  for(std::size_t i = 0; i < surfaceCount; ++i)
  {
    if((*surfaceList)[i]->GetName() == ref)
    {
      return (*surfaceList)[i];
    }
  }

  G4String error_msg =
    "Referenced optical surface '" + ref + "' was not found!";
  G4Exception("G4GDMLReadSolids::GetSurfaceProperty()", "ReadError",
              FatalException, error_msg);

  return nullptr;
}

Referenced by G4GDMLReadStructure::BorderSurfaceRead(), and G4GDMLReadStructure::SkinSurfaceRead().

HypeRead()

void G4GDMLReadSolids::HypeRead ( const xercesc::DOMElement * const hypeElement )

protected

Definition at line 694 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double aunit = 1.0;
  G4double rmin  = 0.0;
  G4double rmax  = 0.0;
  G4double inst  = 0.0;
  G4double outst = 0.0;
  G4double z     = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    hypeElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::HypeRead()", "InvalidRead", FatalException,
                  "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::HypeRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::HypeRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "rmin")
    {
      rmin = eval.Evaluate(attValue);
    }
    else if(attName == "rmax")
    {
      rmax = eval.Evaluate(attValue);
    }
    else if(attName == "inst")
    {
      inst = eval.Evaluate(attValue);
    }
    else if(attName == "outst")
    {
      outst = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
  }

  rmin *= lunit;
  rmax *= lunit;
  inst *= aunit;
  outst *= aunit;
  z *= 0.5 * lunit;

  new G4Hype(name, rmin, rmax, inst, outst, z);
}

Referenced by SolidsRead().

MultiUnionNodeRead()

void G4GDMLReadSolids::MultiUnionNodeRead ( const xercesc::DOMElement * const unionNodeElement, G4MultiUnion * const multiUnionSolid )

protected

Definition at line 784 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4String solid;
  G4ThreeVector position(0.0, 0.0, 0.0);
  G4ThreeVector rotation(0.0, 0.0, 0.0);

  const xercesc::DOMNamedNodeMap* const attributes =
    unionNodeElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::MultiUnionNodeRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
  }

  for(xercesc::DOMNode* iter = unionNodeElement->getFirstChild();
                        iter != nullptr; iter = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::MultiUnionNodeRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "position")
    {
      VectorRead(child, position);
    }
    else if(tag == "rotation")
    {
      VectorRead(child, rotation);
    }
    else if(tag == "positionref")
    {
      position = GetPosition(GenerateName(RefRead(child)));
    }
    else if(tag == "rotationref")
    {
      rotation = GetRotation(GenerateName(RefRead(child)));
    }
    else if(tag == "solid")
    {
      solid = RefRead(child);
    }
    else
    {
      G4String error_msg = "Unknown tag in MultiUnion structure: " + tag;
      G4Exception("G4GDMLReadSolids::MultiUnionNodeRead()", "ReadError",
                  FatalException, error_msg);
    }
  }
  G4VSolid* solidNode = GetSolid(GenerateName(solid));
  G4Transform3D transform(GetRotationMatrix(rotation), position);
  multiUnionSolid->AddNode(*solidNode, transform);
}

Referenced by MultiUnionRead().

MultiUnionRead()

void G4GDMLReadSolids::MultiUnionRead ( const xercesc::DOMElement * const unionElement )

protected

Definition at line 875 of file G4GDMLReadSolids.cc.

{
  G4String name;

  const xercesc::DOMNamedNodeMap* const attributes =
    unionElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::MultiUnionRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
  }

  G4MultiUnion* multiUnion = new G4MultiUnion(name);

  for(xercesc::DOMNode* iter = unionElement->getFirstChild(); iter != nullptr;
      iter                   = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::MultiUnionRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "multiUnionNode")
    {
      MultiUnionNodeRead(child, multiUnion);
    }
    else
    {
      G4String error_msg = "Unknown tag in MultiUnion structure: " + tag;
      G4Exception("G4GDMLReadSolids::MultiUnionRead()", "ReadError",
                  FatalException, error_msg);
    }
  }
  multiUnion->Voxelize();
}

Referenced by SolidsRead().

OpticalSurfaceRead()

void G4GDMLReadSolids::OpticalSurfaceRead ( const xercesc::DOMElement * const opticalsurfaceElement )

protected

Definition at line 3584 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4String smodel;
  G4String sfinish;
  G4String stype;
  G4double value = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    opticalsurfaceElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::OpticalSurfaceRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "model")
    {
      smodel = attValue;
    }
    else if(attName == "finish")
    {
      sfinish = attValue;
    }
    else if(attName == "type")
    {
      stype = attValue;
    }
    else if(attName == "value")
    {
      value = eval.Evaluate(attValue);
    }
  }

  G4OpticalSurfaceModel model;
  G4OpticalSurfaceFinish finish;
  G4SurfaceType type;

  if((smodel == "glisur") || (smodel == "0"))
  {
    model = glisur;
  }
  else if((smodel == "unified") || (smodel == "1"))
  {
    model = unified;
  }
  else if((smodel == "LUT") || (smodel == "2"))
  {
    model = LUT;
  }
  else if((smodel == "DAVIS") || (smodel == "3"))
  {
    model = DAVIS;
  }
  else
  {
    model = dichroic;
  }

  if((sfinish == "polished") || (sfinish == "0"))
  {
    finish = polished;
  }
  else if((sfinish == "polishedfrontpainted") || (sfinish == "1"))
  {
    finish = polishedfrontpainted;
  }
  else if((sfinish == "polishedbackpainted") || (sfinish == "2"))
  {
    finish = polishedbackpainted;
  }
  else if((sfinish == "ground") || (sfinish == "3"))
  {
    finish = ground;
  }
  else if((sfinish == "groundfrontpainted") || (sfinish == "4"))
  {
    finish = groundfrontpainted;
  }
  else if((sfinish == "groundbackpainted") || (sfinish == "5"))
  {
    finish = groundbackpainted;
  }
  else if((sfinish == "polishedlumirrorair") || (sfinish == "6"))
  {
    finish = polishedlumirrorair;
  }
  else if((sfinish == "polishedlumirrorglue") || (sfinish == "7"))
  {
    finish = polishedlumirrorglue;
  }
  else if((sfinish == "polishedair") || (sfinish == "8"))
  {
    finish = polishedair;
  }
  else if((sfinish == "polishedteflonair") || (sfinish == "9"))
  {
    finish = polishedteflonair;
  }
  else if((sfinish == "polishedtioair") || (sfinish == "10"))
  {
    finish = polishedtioair;
  }
  else if((sfinish == "polishedtyvekair") || (sfinish == "11"))
  {
    finish = polishedtyvekair;
  }
  else if((sfinish == "polishedvm2000air") || (sfinish == "12"))
  {
    finish = polishedvm2000air;
  }
  else if((sfinish == "polishedvm2000glue") || (sfinish == "13"))
  {
    finish = polishedvm2000glue;
  }
  else if((sfinish == "etchedlumirrorair") || (sfinish == "14"))
  {
    finish = etchedlumirrorair;
  }
  else if((sfinish == "etchedlumirrorglue") || (sfinish == "15"))
  {
    finish = etchedlumirrorglue;
  }
  else if((sfinish == "etchedair") || (sfinish == "16"))
  {
    finish = etchedair;
  }
  else if((sfinish == "etchedteflonair") || (sfinish == "17"))
  {
    finish = etchedteflonair;
  }
  else if((sfinish == "etchedtioair") || (sfinish == "18"))
  {
    finish = etchedtioair;
  }
  else if((sfinish == "etchedtyvekair") || (sfinish == "19"))
  {
    finish = etchedtyvekair;
  }
  else if((sfinish == "etchedvm2000air") || (sfinish == "20"))
  {
    finish = etchedvm2000air;
  }
  else if((sfinish == "etchedvm2000glue") || (sfinish == "21"))
  {
    finish = etchedvm2000glue;
  }
  else if((sfinish == "groundlumirrorair") || (sfinish == "22"))
  {
    finish = groundlumirrorair;
  }
  else if((sfinish == "groundlumirrorglue") || (sfinish == "23"))
  {
    finish = groundlumirrorglue;
  }
  else if((sfinish == "groundair") || (sfinish == "24"))
  {
    finish = groundair;
  }
  else if((sfinish == "groundteflonair") || (sfinish == "25"))
  {
    finish = groundteflonair;
  }
  else if((sfinish == "groundtioair") || (sfinish == "26"))
  {
    finish = groundtioair;
  }
  else if((sfinish == "groundtyvekair") || (sfinish == "27"))
  {
    finish = groundtyvekair;
  }
  else if((sfinish == "groundvm2000air") || (sfinish == "28"))
  {
    finish = groundvm2000air;
  }
  else if((sfinish == "groundvm2000glue") || (sfinish == "29"))
  {
    finish = groundvm2000glue;
  }
  else if((sfinish == "Rough_LUT") || (sfinish == "30"))
  {
    finish = Rough_LUT;
  }
  else if((sfinish == "RoughTeflon_LUT") || (sfinish == "31"))
  {
    finish = RoughTeflon_LUT;
  }
  else if((sfinish == "RoughESR_LUT") || (sfinish == "32"))
  {
    finish = RoughESR_LUT;
  }
  else if((sfinish == "RoughESRGrease_LUT") || (sfinish == "33"))
  {
    finish = RoughESRGrease_LUT;
  }
  else if((sfinish == "Polished_LUT") || (sfinish == "34"))
  {
    finish = Polished_LUT;
  }
  else if((sfinish == "PolishedTeflon_LUT") || (sfinish == "35"))
  {
    finish = PolishedTeflon_LUT;
  }
  else if((sfinish == "PolishedESR_LUT") || (sfinish == "36"))
  {
    finish = PolishedESR_LUT;
  }
  else if((sfinish == "PolishedESRGrease_LUT") || (sfinish == "37"))
  {
    finish = PolishedESRGrease_LUT;
  }
  else
  {
    finish = Detector_LUT;
  }

  if((stype == "dielectric_metal") || (stype == "0"))
  {
    type = dielectric_metal;
  }
  else if((stype == "dielectric_dielectric") || (stype == "1"))
  {
    type = dielectric_dielectric;
  }
  else if((stype == "dielectric_LUT") || (stype == "2"))
  {
    type = dielectric_LUT;
  }
  else if((stype == "dielectric_LUTDAVIS") || (stype == "3"))
  {
    type = dielectric_LUTDAVIS;
  }
  else if((stype == "dielectric_dichroic") || (stype == "4"))
  {
    type = dielectric_dichroic;
  }
  else if((stype == "firsov") || (stype == "5"))
  {
    type = firsov;
  }
  else
  {
    type = x_ray;
  }

  G4OpticalSurface* opticalsurface =
    new G4OpticalSurface(name, model, finish, type, value);

  for(xercesc::DOMNode* iter = opticalsurfaceElement->getFirstChild();
      iter != nullptr; iter = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::OpticalSurfaceRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "property")
    {
      PropertyRead(child, opticalsurface);
    }
  }
}

Referenced by SolidsRead().

OrbRead()

void G4GDMLReadSolids::OrbRead ( const xercesc::DOMElement * const orbElement )

protected

Definition at line 946 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double r     = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    orbElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::OrbRead()", "InvalidRead", FatalException,
                  "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::OrbRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "r")
    {
      r = eval.Evaluate(attValue);
    }
  }

  r *= lunit;

  new G4Orb(name, r);
}

Referenced by SolidsRead().

ParaboloidRead()

void G4GDMLReadSolids::ParaboloidRead ( const xercesc::DOMElement * const paraElement )

protected

Definition at line 1098 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double rlo   = 0.0;
  G4double rhi   = 0.0;
  G4double dz    = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    paraElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::ParaboloidRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::ParaboloidRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "rlo")
    {
      rlo = eval.Evaluate(attValue);
    }
    else if(attName == "rhi")
    {
      rhi = eval.Evaluate(attValue);
    }
    else if(attName == "dz")
    {
      dz = eval.Evaluate(attValue);
    }
  }

  rlo *= 1. * lunit;
  rhi *= 1. * lunit;
  dz *= 1. * lunit;

  new G4Paraboloid(name, dz, rlo, rhi);
}

Referenced by SolidsRead().

ParaRead()

void G4GDMLReadSolids::ParaRead ( const xercesc::DOMElement * const paraElement )

protected

Definition at line 1002 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double aunit = 1.0;
  G4double x     = 0.0;
  G4double y     = 0.0;
  G4double z     = 0.0;
  G4double alpha = 0.0;
  G4double theta = 0.0;
  G4double phi   = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    paraElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::ParaRead()", "InvalidRead", FatalException,
                  "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::ParaRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::ParaRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "x")
    {
      x = eval.Evaluate(attValue);
    }
    else if(attName == "y")
    {
      y = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
    else if(attName == "alpha")
    {
      alpha = eval.Evaluate(attValue);
    }
    else if(attName == "theta")
    {
      theta = eval.Evaluate(attValue);
    }
    else if(attName == "phi")
    {
      phi = eval.Evaluate(attValue);
    }
  }

  x *= 0.5 * lunit;
  y *= 0.5 * lunit;
  z *= 0.5 * lunit;
  alpha *= aunit;
  theta *= aunit;
  phi *= aunit;

  new G4Para(name, x, y, z, alpha, theta, phi);
}

Referenced by SolidsRead().

PolyconeRead()

void G4GDMLReadSolids::PolyconeRead ( const xercesc::DOMElement * const polyconeElement )

protected

Definition at line 1167 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double startphi = 0.0;
  G4double deltaphi = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    polyconeElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::PolyconeRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::PolyconeRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::PolyconeRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "startphi")
    {
      startphi = eval.Evaluate(attValue);
    }
    else if(attName == "deltaphi")
    {
      deltaphi = eval.Evaluate(attValue);
    }
  }

  startphi *= aunit;
  deltaphi *= aunit;

  std::vector<zplaneType> zplaneList;

  for(xercesc::DOMNode* iter = polyconeElement->getFirstChild(); iter!= nullptr;
      iter                   = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::PolyconeRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "zplane")
    {
      zplaneList.push_back(ZplaneRead(child));
    }
  }

  std::size_t numZPlanes = zplaneList.size();

  G4double* rmin_array = new G4double[numZPlanes];
  G4double* rmax_array = new G4double[numZPlanes];
  G4double* z_array    = new G4double[numZPlanes];

  for(std::size_t i = 0; i < numZPlanes; ++i)
  {
    rmin_array[i] = zplaneList[i].rmin * lunit;
    rmax_array[i] = zplaneList[i].rmax * lunit;
    z_array[i]    = zplaneList[i].z * lunit;
  }

  new G4Polycone(name, startphi, deltaphi, (G4int)numZPlanes, z_array,
                 rmin_array, rmax_array);

  delete[] rmin_array;
  delete[] rmax_array;
  delete[] z_array;
}

Referenced by SolidsRead().

PolyhedraRead()

void G4GDMLReadSolids::PolyhedraRead ( const xercesc::DOMElement * const polyhedraElement )

protected

Definition at line 1396 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double startphi = 0.0;
  G4double deltaphi = 0.0;
  G4int numsides    = 0;

  const xercesc::DOMNamedNodeMap* const attributes =
    polyhedraElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::PolyhedraRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::PolyhedraRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::PolyhedraRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "startphi")
    {
      startphi = eval.Evaluate(attValue);
    }
    else if(attName == "deltaphi")
    {
      deltaphi = eval.Evaluate(attValue);
    }
    else if(attName == "numsides")
    {
      numsides = eval.EvaluateInteger(attValue);
    }
  }

  startphi *= aunit;
  deltaphi *= aunit;

  std::vector<zplaneType> zplaneList;

  for(xercesc::DOMNode* iter = polyhedraElement->getFirstChild();
                        iter != nullptr; iter = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::PolyhedraRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "zplane")
    {
      zplaneList.push_back(ZplaneRead(child));
    }
  }

  std::size_t numZPlanes = zplaneList.size();

  G4double* rmin_array = new G4double[numZPlanes];
  G4double* rmax_array = new G4double[numZPlanes];
  G4double* z_array    = new G4double[numZPlanes];

  for(std::size_t i = 0; i < numZPlanes; ++i)
  {
    rmin_array[i] = zplaneList[i].rmin * lunit;
    rmax_array[i] = zplaneList[i].rmax * lunit;
    z_array[i]    = zplaneList[i].z * lunit;
  }

  new G4Polyhedra(name, startphi, deltaphi, numsides, (G4int)numZPlanes,
                  z_array, rmin_array, rmax_array);

  delete[] rmin_array;
  delete[] rmax_array;
  delete[] z_array;
}

Referenced by SolidsRead().

PropertyRead()

void G4GDMLReadSolids::PropertyRead ( const xercesc::DOMElement * const propertyElement, G4OpticalSurface * opticalsurface )

protected

Definition at line 3487 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4String ref;
  G4GDMLMatrix matrix;

  const xercesc::DOMNamedNodeMap* const attributes =
    propertyElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::PropertyRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "ref")
    {
      matrix = GetMatrix(ref = attValue);
    }
  }

  /*
  if (matrix.GetCols() != 2)
  {
    G4String error_msg = "Referenced matrix '" + ref
           + "' should have \n two columns as a property table for
  opticalsurface: "
           + opticalsurface->GetName();
    G4Exception("G4GDMLReadSolids::PropertyRead()", "InvalidRead",
                FatalException, error_msg);
  }
  */

  if(matrix.GetRows() == 0)
  {
    return;
  }

  G4MaterialPropertiesTable* matprop =
    opticalsurface->GetMaterialPropertiesTable();
  if(matprop == nullptr)
  {
    matprop = new G4MaterialPropertiesTable();
    opticalsurface->SetMaterialPropertiesTable(matprop);
  }
  if(matrix.GetCols() == 1)  // constant property assumed
  {
    matprop->AddConstProperty(Strip(name), matrix.Get(0, 0), true);
  }
  else  // build the material properties vector
  {
    G4MaterialPropertyVector* propvect;
    G4String temp = name + ref;
    // first check if it was already built
    if(mapOfMatPropVects.find(temp) == mapOfMatPropVects.end())
    {
      // if not create a new one
      propvect = new G4MaterialPropertyVector();
      for(size_t i = 0; i < matrix.GetRows(); i++)
      {
        propvect->InsertValues(matrix.Get(i, 0), matrix.Get(i, 1));
      }
      // and add it to the list for potential future reuse
      mapOfMatPropVects[temp] = propvect;
    }
    else
    {
      propvect = mapOfMatPropVects[temp];
    }

    matprop->AddProperty(Strip(name), propvect, true);
  }
}

Referenced by OpticalSurfaceRead().

QuadrangularRead()

G4QuadrangularFacet * G4GDMLReadSolids::QuadrangularRead ( const xercesc::DOMElement * const quadrangularElement )

protected

Definition at line 1637 of file G4GDMLReadSolids.cc.

{
  G4ThreeVector vertex1;
  G4ThreeVector vertex2;
  G4ThreeVector vertex3;
  G4ThreeVector vertex4;
  G4FacetVertexType type = ABSOLUTE;
  G4double lunit         = 1.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    quadrangularElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::QuadrangularRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return nullptr;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "vertex1")
    {
      vertex1 = GetPosition(GenerateName(attValue));
    }
    else if(attName == "vertex2")
    {
      vertex2 = GetPosition(GenerateName(attValue));
    }
    else if(attName == "vertex3")
    {
      vertex3 = GetPosition(GenerateName(attValue));
    }
    else if(attName == "vertex4")
    {
      vertex4 = GetPosition(GenerateName(attValue));
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::QuadrangularRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "type")
    {
      if(attValue == "RELATIVE")
      {
        type = RELATIVE;
      }
    }
  }

  return new G4QuadrangularFacet(vertex1 * lunit, vertex2 * lunit,
                                 vertex3 * lunit, vertex4 * lunit, type);
}

Referenced by TessellatedRead().

ReflectedSolidRead()

void G4GDMLReadSolids::ReflectedSolidRead ( const xercesc::DOMElement * const reflectedSolidElement )

protected

Definition at line 1711 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double aunit = 1.0;
  G4String solid;
  G4ThreeVector scale(1.0, 1.0, 1.0);
  G4ThreeVector rotation;
  G4ThreeVector position;

  const xercesc::DOMNamedNodeMap* const attributes =
    reflectedSolidElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::ReflectedSolidRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::ReflectedSolidRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::ReflectedSolidRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "solid")
    {
      solid = GenerateName(attValue);
    }
    else if(attName == "sx")
    {
      scale.setX(eval.Evaluate(attValue));
    }
    else if(attName == "sy")
    {
      scale.setY(eval.Evaluate(attValue));
    }
    else if(attName == "sz")
    {
      scale.setZ(eval.Evaluate(attValue));
    }
    else if(attName == "rx")
    {
      rotation.setX(eval.Evaluate(attValue));
    }
    else if(attName == "ry")
    {
      rotation.setY(eval.Evaluate(attValue));
    }
    else if(attName == "rz")
    {
      rotation.setZ(eval.Evaluate(attValue));
    }
    else if(attName == "dx")
    {
      position.setX(eval.Evaluate(attValue));
    }
    else if(attName == "dy")
    {
      position.setY(eval.Evaluate(attValue));
    }
    else if(attName == "dz")
    {
      position.setZ(eval.Evaluate(attValue));
    }
  }

  rotation *= aunit;
  position *= lunit;

  G4Transform3D transform(GetRotationMatrix(rotation), position);
  transform = transform * G4Scale3D(scale.x(), scale.y(), scale.z());

  new G4ReflectedSolid(name, GetSolid(solid), transform);
}

Referenced by SolidsRead().

RZPointRead()

G4GDMLReadSolids::rzPointType G4GDMLReadSolids::RZPointRead ( const xercesc::DOMElement * const zplaneElement )

protected

Definition at line 3443 of file G4GDMLReadSolids.cc.

{
  rzPointType rzpoint = { 0., 0. };

  const xercesc::DOMNamedNodeMap* const attributes =
    zplaneElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* node = attributes->item(attribute_index);

    if(node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::RZPointRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return rzpoint;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "r")
    {
      rzpoint.r = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      rzpoint.z = eval.Evaluate(attValue);
    }
  }

  return rzpoint;
}

Referenced by GenericPolyconeRead(), and GenericPolyhedraRead().

ScaledSolidRead()

void G4GDMLReadSolids::ScaledSolidRead ( const xercesc::DOMElement * const scaledSolidElement )

protected

Definition at line 1821 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4VSolid* solid = nullptr;
  G4ThreeVector scale(1.0, 1.0, 1.0);

  const xercesc::DOMNamedNodeMap* const attributes =
    scaledSolidElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::ScaledSolidRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
  }

  for(xercesc::DOMNode* iter = scaledSolidElement->getFirstChild();
                        iter != nullptr; iter = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::ScaledSolidRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "solidref")
    {
      solid = GetSolid(GenerateName(RefRead(child)));
    }
    else if(tag == "scale")
    {
      VectorRead(child, scale);
    }
    else if(tag == "scaleref")
    {
      scale = GetScale(GenerateName(RefRead(child)));
    }
    else
    {
      G4String error_msg = "Unknown tag in scaled solid: " + tag;
      G4Exception("G4GDMLReadSolids::ScaledSolidRead()", "ReadError",
                  FatalException, error_msg);
      return;
    }
  }

  G4Scale3D transform = G4Scale3D(scale.x(), scale.y(), scale.z());

  new G4ScaledSolid(name, solid, transform);
}

Referenced by SolidsRead().

SectionRead()

G4ExtrudedSolid::ZSection G4GDMLReadSolids::SectionRead ( const xercesc::DOMElement * const sectionElement, G4double lunit )

protected

Definition at line 1904 of file G4GDMLReadSolids.cc.

{
  G4double zPosition = 0.0;
  G4TwoVector Offset;
  G4double scalingFactor = 1.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    sectionElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::SectionRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return G4ExtrudedSolid::ZSection(zPosition, Offset, scalingFactor);
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "zPosition")
    {
      zPosition = eval.Evaluate(attValue) * lunit;
    }
    else if(attName == "xOffset")
    {
      Offset.setX(eval.Evaluate(attValue) * lunit);
    }
    else if(attName == "yOffset")
    {
      Offset.setY(eval.Evaluate(attValue) * lunit);
    }
    else if(attName == "scalingFactor")
    {
      scalingFactor = eval.Evaluate(attValue);
    }
  }

  return G4ExtrudedSolid::ZSection(zPosition, Offset, scalingFactor);
}

Referenced by XtruRead().

SolidsRead()

void G4GDMLReadSolids::SolidsRead ( const xercesc::DOMElement * const solidsElement )

virtual

Implements G4GDMLRead.

Definition at line 3880 of file G4GDMLReadSolids.cc.

{
#ifdef G4VERBOSE
  G4cout << "G4GDML: Reading solids..." << G4endl;
#endif
  for(xercesc::DOMNode* iter = solidsElement->getFirstChild(); iter != nullptr;
      iter                   = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::SolidsRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());
    if(tag == "define")
    {
      DefineRead(child);
    }
    else if(tag == "box")
    {
      BoxRead(child);
    }
    else if(tag == "cone")
    {
      ConeRead(child);
    }
    else if(tag == "elcone")
    {
      ElconeRead(child);
    }
    else if(tag == "ellipsoid")
    {
      EllipsoidRead(child);
    }
    else if(tag == "eltube")
    {
      EltubeRead(child);
    }
    else if(tag == "xtru")
    {
      XtruRead(child);
    }
    else if(tag == "hype")
    {
      HypeRead(child);
    }
    else if(tag == "intersection")
    {
      BooleanRead(child, INTERSECTION);
    }
    else if(tag == "multiUnion")
    {
      MultiUnionRead(child);
    }
    else if(tag == "orb")
    {
      OrbRead(child);
    }
    else if(tag == "para")
    {
      ParaRead(child);
    }
    else if(tag == "paraboloid")
    {
      ParaboloidRead(child);
    }
    else if(tag == "polycone")
    {
      PolyconeRead(child);
    }
    else if(tag == "genericPolycone")
    {
      GenericPolyconeRead(child);
    }
    else if(tag == "polyhedra")
    {
      PolyhedraRead(child);
    }
    else if(tag == "genericPolyhedra")
    {
      GenericPolyhedraRead(child);
    }
    else if(tag == "reflectedSolid")
    {
      ReflectedSolidRead(child);
    }
    else if(tag == "scaledSolid")
    {
      ScaledSolidRead(child);
    }
    else if(tag == "sphere")
    {
      SphereRead(child);
    }
    else if(tag == "subtraction")
    {
      BooleanRead(child, SUBTRACTION);
    }
    else if(tag == "tessellated")
    {
      TessellatedRead(child);
    }
    else if(tag == "tet")
    {
      TetRead(child);
    }
    else if(tag == "torus")
    {
      TorusRead(child);
    }
    else if(tag == "arb8")
    {
      GenTrapRead(child);
    }
    else if(tag == "trap")
    {
      TrapRead(child);
    }
    else if(tag == "trd")
    {
      TrdRead(child);
    }
    else if(tag == "tube")
    {
      TubeRead(child);
    }
    else if(tag == "cutTube")
    {
      CutTubeRead(child);
    }
    else if(tag == "twistedbox")
    {
      TwistedboxRead(child);
    }
    else if(tag == "twistedtrap")
    {
      TwistedtrapRead(child);
    }
    else if(tag == "twistedtrd")
    {
      TwistedtrdRead(child);
    }
    else if(tag == "twistedtubs")
    {
      TwistedtubsRead(child);
    }
    else if(tag == "union")
    {
      BooleanRead(child, UNION);
    }
    else if(tag == "opticalsurface")
    {
      OpticalSurfaceRead(child);
    }
    else if(tag == "loop")
    {
      LoopRead(child, &G4GDMLRead::SolidsRead);
    }
    else
    {
      G4String error_msg = "Unknown tag in solids: " + tag;
      G4Exception("G4GDMLReadSolids::SolidsRead()", "ReadError", FatalException,
                  error_msg);
    }
  }
}

SphereRead()

void G4GDMLReadSolids::SphereRead ( const xercesc::DOMElement * const sphereElement )

protected

Definition at line 1958 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit      = 1.0;
  G4double aunit      = 1.0;
  G4double rmin       = 0.0;
  G4double rmax       = 0.0;
  G4double startphi   = 0.0;
  G4double deltaphi   = 0.0;
  G4double starttheta = 0.0;
  G4double deltatheta = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    sphereElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::SphereRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::SphereRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::SphereRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "rmin")
    {
      rmin = eval.Evaluate(attValue);
    }
    else if(attName == "rmax")
    {
      rmax = eval.Evaluate(attValue);
    }
    else if(attName == "startphi")
    {
      startphi = eval.Evaluate(attValue);
    }
    else if(attName == "deltaphi")
    {
      deltaphi = eval.Evaluate(attValue);
    }
    else if(attName == "starttheta")
    {
      starttheta = eval.Evaluate(attValue);
    }
    else if(attName == "deltatheta")
    {
      deltatheta = eval.Evaluate(attValue);
    }
  }

  rmin *= lunit;
  rmax *= lunit;
  startphi *= aunit;
  deltaphi *= aunit;
  starttheta *= aunit;
  deltatheta *= aunit;

  new G4Sphere(name, rmin, rmax, startphi, deltaphi, starttheta, deltatheta);
}

Referenced by SolidsRead().

TessellatedRead()

void G4GDMLReadSolids::TessellatedRead ( const xercesc::DOMElement * const tessellatedElement )

protected

Definition at line 2055 of file G4GDMLReadSolids.cc.

{
  G4String name;

  const xercesc::DOMNamedNodeMap* const attributes =
    tessellatedElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TessellatedRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
  }

  G4TessellatedSolid* tessellated = new G4TessellatedSolid(name);

  for(xercesc::DOMNode* iter = tessellatedElement->getFirstChild();
                        iter != nullptr; iter = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TessellatedRead()", "InvalidRead",
                  FatalException, "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "triangular")
    {
      tessellated->AddFacet(TriangularRead(child));
    }
    else if(tag == "quadrangular")
    {
      tessellated->AddFacet(QuadrangularRead(child));
    }
  }

  tessellated->SetSolidClosed(true);
}

Referenced by SolidsRead().

TetRead()

void G4GDMLReadSolids::TetRead ( const xercesc::DOMElement * const tetElement )

protected

Definition at line 2125 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4ThreeVector vertex1;
  G4ThreeVector vertex2;
  G4ThreeVector vertex3;
  G4ThreeVector vertex4;
  G4double lunit = 1.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    tetElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TetRead()", "InvalidRead", FatalException,
                  "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::TetRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "vertex1")
    {
      vertex1 = GetPosition(GenerateName(attValue));
    }
    else if(attName == "vertex2")
    {
      vertex2 = GetPosition(GenerateName(attValue));
    }
    else if(attName == "vertex3")
    {
      vertex3 = GetPosition(GenerateName(attValue));
    }
    else if(attName == "vertex4")
    {
      vertex4 = GetPosition(GenerateName(attValue));
    }
  }

  new G4Tet(name, vertex1 * lunit, vertex2 * lunit, vertex3 * lunit,
            vertex4 * lunit);
}

Referenced by SolidsRead().

TorusRead()

void G4GDMLReadSolids::TorusRead ( const xercesc::DOMElement * const torusElement )

protected

Definition at line 2195 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double rmin     = 0.0;
  G4double rmax     = 0.0;
  G4double rtor     = 0.0;
  G4double startphi = 0.0;
  G4double deltaphi = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    torusElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TorusRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::TorusRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::TorusRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "rmin")
    {
      rmin = eval.Evaluate(attValue);
    }
    else if(attName == "rmax")
    {
      rmax = eval.Evaluate(attValue);
    }
    else if(attName == "rtor")
    {
      rtor = eval.Evaluate(attValue);
    }
    else if(attName == "startphi")
    {
      startphi = eval.Evaluate(attValue);
    }
    else if(attName == "deltaphi")
    {
      deltaphi = eval.Evaluate(attValue);
    }
  }

  rmin *= lunit;
  rmax *= lunit;
  rtor *= lunit;
  startphi *= aunit;
  deltaphi *= aunit;

  new G4Torus(name, rmin, rmax, rtor, startphi, deltaphi);
}

Referenced by SolidsRead().

TrapRead()

void G4GDMLReadSolids::TrapRead ( const xercesc::DOMElement * const trapElement )

protected

Definition at line 2417 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit  = 1.0;
  G4double aunit  = 1.0;
  G4double z      = 0.0;
  G4double theta  = 0.0;
  G4double phi    = 0.0;
  G4double y1     = 0.0;
  G4double x1     = 0.0;
  G4double x2     = 0.0;
  G4double alpha1 = 0.0;
  G4double y2     = 0.0;
  G4double x3     = 0.0;
  G4double x4     = 0.0;
  G4double alpha2 = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    trapElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TrapRead()", "InvalidRead", FatalException,
                  "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::TrapRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::TrapRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
    else if(attName == "theta")
    {
      theta = eval.Evaluate(attValue);
    }
    else if(attName == "phi")
    {
      phi = eval.Evaluate(attValue);
    }
    else if(attName == "y1")
    {
      y1 = eval.Evaluate(attValue);
    }
    else if(attName == "x1")
    {
      x1 = eval.Evaluate(attValue);
    }
    else if(attName == "x2")
    {
      x2 = eval.Evaluate(attValue);
    }
    else if(attName == "alpha1")
    {
      alpha1 = eval.Evaluate(attValue);
    }
    else if(attName == "y2")
    {
      y2 = eval.Evaluate(attValue);
    }
    else if(attName == "x3")
    {
      x3 = eval.Evaluate(attValue);
    }
    else if(attName == "x4")
    {
      x4 = eval.Evaluate(attValue);
    }
    else if(attName == "alpha2")
    {
      alpha2 = eval.Evaluate(attValue);
    }
  }

  z *= 0.5 * lunit;
  theta *= aunit;
  phi *= aunit;
  y1 *= 0.5 * lunit;
  x1 *= 0.5 * lunit;
  x2 *= 0.5 * lunit;
  alpha1 *= aunit;
  y2 *= 0.5 * lunit;
  x3 *= 0.5 * lunit;
  x4 *= 0.5 * lunit;
  alpha2 *= aunit;

  new G4Trap(name, z, theta, phi, y1, x1, x2, alpha1, y2, x3, x4, alpha2);
}

Referenced by SolidsRead().

TrdRead()

void G4GDMLReadSolids::TrdRead ( const xercesc::DOMElement * const trdElement )

protected

Definition at line 2543 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;
  G4double x1    = 0.0;
  G4double x2    = 0.0;
  G4double y1    = 0.0;
  G4double y2    = 0.0;
  G4double z     = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    trdElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TrdRead()", "InvalidRead", FatalException,
                  "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::TrdRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "x1")
    {
      x1 = eval.Evaluate(attValue);
    }
    else if(attName == "x2")
    {
      x2 = eval.Evaluate(attValue);
    }
    else if(attName == "y1")
    {
      y1 = eval.Evaluate(attValue);
    }
    else if(attName == "y2")
    {
      y2 = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
  }

  x1 *= 0.5 * lunit;
  x2 *= 0.5 * lunit;
  y1 *= 0.5 * lunit;
  y2 *= 0.5 * lunit;
  z *= 0.5 * lunit;

  new G4Trd(name, x1, x2, y1, y2, z);
}

Referenced by SolidsRead().

TriangularRead()

G4TriangularFacet * G4GDMLReadSolids::TriangularRead ( const xercesc::DOMElement * const triangularElement )

protected

Definition at line 2623 of file G4GDMLReadSolids.cc.

{
  G4ThreeVector vertex1;
  G4ThreeVector vertex2;
  G4ThreeVector vertex3;
  G4FacetVertexType type = ABSOLUTE;
  G4double lunit         = 1.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    triangularElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TriangularRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return nullptr;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "vertex1")
    {
      vertex1 = GetPosition(GenerateName(attValue));
    }
    else if(attName == "vertex2")
    {
      vertex2 = GetPosition(GenerateName(attValue));
    }
    else if(attName == "vertex3")
    {
      vertex3 = GetPosition(GenerateName(attValue));
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::TriangularRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "type")
    {
      if(attValue == "RELATIVE")
      {
        type = RELATIVE;
      }
    }
  }

  return new G4TriangularFacet(vertex1 * lunit, vertex2 * lunit,
                               vertex3 * lunit, type);
}

Referenced by TessellatedRead().

TubeRead()

void G4GDMLReadSolids::TubeRead ( const xercesc::DOMElement * const tubeElement )

protected

Definition at line 2692 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double rmin     = 0.0;
  G4double rmax     = 0.0;
  G4double z        = 0.0;
  G4double startphi = 0.0;
  G4double deltaphi = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    tubeElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TubeRead()", "InvalidRead", FatalException,
                  "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::TubeRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::TubeRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "rmin")
    {
      rmin = eval.Evaluate(attValue);
    }
    else if(attName == "rmax")
    {
      rmax = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
    else if(attName == "startphi")
    {
      startphi = eval.Evaluate(attValue);
    }
    else if(attName == "deltaphi")
    {
      deltaphi = eval.Evaluate(attValue);
    }
  }

  rmin *= lunit;
  rmax *= lunit;
  z *= 0.5 * lunit;
  startphi *= aunit;
  deltaphi *= aunit;

  new G4Tubs(name, rmin, rmax, z, startphi, deltaphi);
}

Referenced by SolidsRead().

TwistedboxRead()

void G4GDMLReadSolids::TwistedboxRead ( const xercesc::DOMElement * const twistedboxElement )

protected

Definition at line 2899 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double PhiTwist = 0.0;
  G4double x        = 0.0;
  G4double y        = 0.0;
  G4double z        = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    twistedboxElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TwistedboxRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::TwistedBoxRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::TwistedboxRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "PhiTwist")
    {
      PhiTwist = eval.Evaluate(attValue);
    }
    else if(attName == "x")
    {
      x = eval.Evaluate(attValue);
    }
    else if(attName == "y")
    {
      y = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
  }

  PhiTwist *= aunit;
  x *= 0.5 * lunit;
  y *= 0.5 * lunit;
  z *= 0.5 * lunit;

  new G4TwistedBox(name, PhiTwist, x, y, z);
}

Referenced by SolidsRead().

TwistedtrapRead()

void G4GDMLReadSolids::TwistedtrapRead ( const xercesc::DOMElement * const twistedtrapElement )

protected

Definition at line 2984 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double PhiTwist = 0.0;
  G4double z        = 0.0;
  G4double Theta    = 0.0;
  G4double Phi      = 0.0;
  G4double y1       = 0.0;
  G4double x1       = 0.0;
  G4double x2       = 0.0;
  G4double y2       = 0.0;
  G4double x3       = 0.0;
  G4double x4       = 0.0;
  G4double Alph     = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    twistedtrapElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TwistedtrapRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::TwistedtrapRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::TwistedtrapRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "PhiTwist")
    {
      PhiTwist = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
    else if(attName == "Theta")
    {
      Theta = eval.Evaluate(attValue);
    }
    else if(attName == "Phi")
    {
      Phi = eval.Evaluate(attValue);
    }
    else if(attName == "y1")
    {
      y1 = eval.Evaluate(attValue);
    }
    else if(attName == "x1")
    {
      x1 = eval.Evaluate(attValue);
    }
    else if(attName == "x2")
    {
      x2 = eval.Evaluate(attValue);
    }
    else if(attName == "y2")
    {
      y2 = eval.Evaluate(attValue);
    }
    else if(attName == "x3")
    {
      x3 = eval.Evaluate(attValue);
    }
    else if(attName == "x4")
    {
      x4 = eval.Evaluate(attValue);
    }
    else if(attName == "Alph")
    {
      Alph = eval.Evaluate(attValue);
    }
  }

  PhiTwist *= aunit;
  z *= 0.5 * lunit;
  Theta *= aunit;
  Phi *= aunit;
  Alph *= aunit;
  y1 *= 0.5 * lunit;
  x1 *= 0.5 * lunit;
  x2 *= 0.5 * lunit;
  y2 *= 0.5 * lunit;
  x3 *= 0.5 * lunit;
  x4 *= 0.5 * lunit;

  new G4TwistedTrap(name, PhiTwist, z, Theta, Phi, y1, x1, x2, y2, x3, x4,
                    Alph);
}

Referenced by SolidsRead().

TwistedtrdRead()

void G4GDMLReadSolids::TwistedtrdRead ( const xercesc::DOMElement * const twistedtrdElement )

protected

Definition at line 3112 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit    = 1.0;
  G4double aunit    = 1.0;
  G4double x1       = 0.0;
  G4double x2       = 0.0;
  G4double y1       = 0.0;
  G4double y2       = 0.0;
  G4double z        = 0.0;
  G4double PhiTwist = 0.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    twistedtrdElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TwistedtrdRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::TwistedtrdRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::TwistedtrdRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "x1")
    {
      x1 = eval.Evaluate(attValue);
    }
    else if(attName == "x2")
    {
      x2 = eval.Evaluate(attValue);
    }
    else if(attName == "y1")
    {
      y1 = eval.Evaluate(attValue);
    }
    else if(attName == "y2")
    {
      y2 = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      z = eval.Evaluate(attValue);
    }
    else if(attName == "PhiTwist")
    {
      PhiTwist = eval.Evaluate(attValue);
    }
  }

  x1 *= 0.5 * lunit;
  x2 *= 0.5 * lunit;
  y1 *= 0.5 * lunit;
  y2 *= 0.5 * lunit;
  z *= 0.5 * lunit;
  PhiTwist *= aunit;

  new G4TwistedTrd(name, x1, x2, y1, y2, z, PhiTwist);
}

Referenced by SolidsRead().

TwistedtubsRead()

void G4GDMLReadSolids::TwistedtubsRead ( const xercesc::DOMElement * const twistedtubsElement )

protected

Definition at line 3209 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit        = 1.0;
  G4double aunit        = 1.0;
  G4double twistedangle = 0.0;
  G4double endinnerrad  = 0.0;
  G4double endouterrad  = 0.0;
  G4double zlen         = 0.0;
  G4double phi          = 0.0;
  G4double totphi       = 0.0;
  G4double midinnerrad  = 0.0;
  G4double midouterrad  = 0.0;
  G4double positiveEndz = 0.0;
  G4double negativeEndz = 0.0;
  G4int nseg            = 0;

  const xercesc::DOMNamedNodeMap* const attributes =
    twistedtubsElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TwistedtubsRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::TwistedtubsRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
    else if(attName == "aunit")
    {
      aunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Angle")
      {
        G4Exception("G4GDMLReadSolids::TwistedtubsRead()", "InvalidRead",
                    FatalException, "Invalid unit for angle!");
      }
    }
    else if(attName == "twistedangle")
    {
      twistedangle = eval.Evaluate(attValue);
    }
    else if(attName == "endinnerrad")
    {
      endinnerrad = eval.Evaluate(attValue);
    }
    else if(attName == "endouterrad")
    {
      endouterrad = eval.Evaluate(attValue);
    }
    else if(attName == "zlen")
    {
      zlen = eval.Evaluate(attValue);
    }
    else if(attName == "midinnerrad")
    {
      midinnerrad = eval.Evaluate(attValue);
    }
    else if(attName == "midouterrad")
    {
      midouterrad = eval.Evaluate(attValue);
    }
    else if(attName == "negativeEndz")
    {
      negativeEndz = eval.Evaluate(attValue);
    }
    else if(attName == "positiveEndz")
    {
      positiveEndz = eval.Evaluate(attValue);
    }
    else if(attName == "nseg")
    {
      nseg = eval.Evaluate(attValue);
    }
    else if(attName == "totphi")
    {
      totphi = eval.Evaluate(attValue);
    }
    else if(attName == "phi")
    {
      phi = eval.Evaluate(attValue);
    }
  }

  twistedangle *= aunit;
  endinnerrad *= lunit;
  endouterrad *= lunit;
  zlen *= 0.5 * lunit;
  midinnerrad *= lunit;
  midouterrad *= lunit;
  positiveEndz *= lunit;
  negativeEndz *= lunit;
  phi *= aunit;
  totphi *= aunit;

  if(zlen != 0.0)
  {
    if(nseg != 0)
      new G4TwistedTubs(name, twistedangle, endinnerrad, endouterrad, zlen,
                        nseg, totphi);
    else
      new G4TwistedTubs(name, twistedangle, endinnerrad, endouterrad, zlen,
                        phi);
  }
  else
  {
    if(nseg != 0)
      new G4TwistedTubs(name, twistedangle, midinnerrad, midouterrad,
                        negativeEndz, positiveEndz, nseg, totphi);
    else
      new G4TwistedTubs(name, twistedangle, midinnerrad, midouterrad,
                        negativeEndz, positiveEndz, phi);
  }
}

Referenced by SolidsRead().

TwoDimVertexRead()

G4TwoVector G4GDMLReadSolids::TwoDimVertexRead ( const xercesc::DOMElement * const element, G4double lunit )

protected

Definition at line 3352 of file G4GDMLReadSolids.cc.

{
  G4TwoVector vec;

  const xercesc::DOMNamedNodeMap* const attributes = element->getAttributes();
  XMLSize_t attributeCount                         = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::TwoDimVertexRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return vec;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "x")
    {
      vec.setX(eval.Evaluate(attValue) * lunit);
    }
    else if(attName == "y")
    {
      vec.setY(eval.Evaluate(attValue) * lunit);
    }
  }

  return vec;
}

Referenced by XtruRead().

XtruRead()

void G4GDMLReadSolids::XtruRead ( const xercesc::DOMElement * const xtruElement )

protected

Definition at line 614 of file G4GDMLReadSolids.cc.

{
  G4String name;
  G4double lunit = 1.0;

  const xercesc::DOMNamedNodeMap* const attributes =
    xtruElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* attribute_node = attributes->item(attribute_index);

    if(attribute_node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(attribute_node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::XtruRead()", "InvalidRead", FatalException,
                  "No attribute found!");
      return;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "name")
    {
      name = GenerateName(attValue);
    }
    else if(attName == "lunit")
    {
      lunit = G4UnitDefinition::GetValueOf(attValue);
      if(G4UnitDefinition::GetCategory(attValue) != "Length")
      {
        G4Exception("G4GDMLReadSolids::XtruRead()", "InvalidRead",
                    FatalException, "Invalid unit for length!");
      }
    }
  }

  std::vector<G4TwoVector> twoDimVertexList;
  std::vector<G4ExtrudedSolid::ZSection> sectionList;

  for(xercesc::DOMNode* iter = xtruElement->getFirstChild(); iter != nullptr;
      iter                   = iter->getNextSibling())
  {
    if(iter->getNodeType() != xercesc::DOMNode::ELEMENT_NODE)
    {
      continue;
    }

    const xercesc::DOMElement* const child =
      dynamic_cast<xercesc::DOMElement*>(iter);
    if(child == nullptr)
    {
      G4Exception("G4GDMLReadSolids::XtruRead()", "InvalidRead", FatalException,
                  "No child found!");
      return;
    }
    const G4String tag = Transcode(child->getTagName());

    if(tag == "twoDimVertex")
    {
      twoDimVertexList.push_back(TwoDimVertexRead(child, lunit));
    }
    else if(tag == "section")
    {
      sectionList.push_back(SectionRead(child, lunit));
    }
  }

  new G4ExtrudedSolid(name, twoDimVertexList, sectionList);
}

Referenced by SolidsRead().

ZplaneRead()

G4GDMLReadSolids::zplaneType G4GDMLReadSolids::ZplaneRead ( const xercesc::DOMElement * const zplaneElement )

protected

Definition at line 3395 of file G4GDMLReadSolids.cc.

{
  zplaneType zplane = { 0., 0., 0. };

  const xercesc::DOMNamedNodeMap* const attributes =
    zplaneElement->getAttributes();
  XMLSize_t attributeCount = attributes->getLength();

  for(XMLSize_t attribute_index = 0; attribute_index < attributeCount;
      ++attribute_index)
  {
    xercesc::DOMNode* node = attributes->item(attribute_index);

    if(node->getNodeType() != xercesc::DOMNode::ATTRIBUTE_NODE)
    {
      continue;
    }

    const xercesc::DOMAttr* const attribute =
      dynamic_cast<xercesc::DOMAttr*>(node);
    if(attribute == nullptr)
    {
      G4Exception("G4GDMLReadSolids::ZplaneRead()", "InvalidRead",
                  FatalException, "No attribute found!");
      return zplane;
    }
    const G4String attName  = Transcode(attribute->getName());
    const G4String attValue = Transcode(attribute->getValue());

    if(attName == "rmin")
    {
      zplane.rmin = eval.Evaluate(attValue);
    }
    else if(attName == "rmax")
    {
      zplane.rmax = eval.Evaluate(attValue);
    }
    else if(attName == "z")
    {
      zplane.z = eval.Evaluate(attValue);
    }
  }

  return zplane;
}

Referenced by G4GDMLReadParamvol::Polycone_dimensionsRead(), PolyconeRead(), G4GDMLReadParamvol::Polyhedra_dimensionsRead(), and PolyhedraRead().

---

The documentation for this class was generated from the following files:

• G4GDMLReadSolids.hh
• G4GDMLReadSolids.cc
