G4VTFileManager< FT > Class Template Reference

#include <G4VTFileManager.hh>

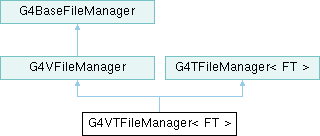

Inheritance diagram for G4VTFileManager< FT >:

Public Member Functions
	G4VTFileManager (const G4AnalysisManagerState &state)
	~G4VTFileManager () override=default
G4bool	CreateFile (const G4String &fileName) final
G4bool	WriteFile (const G4String &fileName) final
G4bool	CloseFile (const G4String &fileName) final
G4bool	SetIsEmpty (const G4String &fileName, G4bool isEmpty) final
G4bool	OpenFiles () final
G4bool	WriteFiles () final
G4bool	CloseFiles () final
G4bool	DeleteEmptyFiles () final
void	Clear () final
std::shared_ptr< FT >	GetFile () const
Public Member Functions inherited from G4VFileManager
	G4VFileManager (const G4AnalysisManagerState &state)
	G4VFileManager ()=delete
	~G4VFileManager () override=default
virtual G4bool	OpenFile (const G4String &fileName)=0
G4bool	SetFileName (const G4String &fileName) final
virtual G4bool	SetHistoDirectoryName (const G4String &dirName)
virtual G4bool	SetNtupleDirectoryName (const G4String &dirName)
void	LockDirectoryNames ()
void	UnlockDirectoryNames ()
G4bool	IsOpenFile () const
G4String	GetHistoDirectoryName () const
G4String	GetNtupleDirectoryName () const
G4int	GetCycle () const
template<typename HT>
std::shared_ptr< G4VTHnFileManager< HT > >	GetHnFileManager () const
Public Member Functions inherited from G4BaseFileManager
	G4BaseFileManager (const G4AnalysisManagerState &state)
	G4BaseFileManager ()=delete
virtual	~G4BaseFileManager ()=default
virtual void	SetCompressionLevel (G4int level)
virtual G4String	GetFileType () const
virtual G4bool	HasCycles () const
void	AddFileName (const G4String &fileName)
G4int	GetCompressionLevel () const
G4String	GetFileName () const
G4String	GetFullFileName (const G4String &baseFileName="", G4bool isPerThread=true) const
const std::vector< G4String > &	GetFileNames () const
G4String	GetHnFileName (const G4String &hnType, const G4String &hnName) const
G4String	GetHnFileName (const G4String &fileName, G4int cycle=0) const
G4String	GetNtupleFileName (const G4String &ntupleName, G4int cycle=0) const
G4String	GetNtupleFileName (G4int ntupleFileNumber, G4int cycle=0) const
G4String	GetPlotFileName () const
Public Member Functions inherited from G4TFileManager< FT >
	G4TFileManager (const G4AnalysisManagerState &state)
	G4TFileManager ()=delete
virtual	~G4TFileManager ()
std::shared_ptr< FT >	CreateTFile (const G4String &fileName)
G4bool	WriteTFile (const G4String &fileName)
G4bool	CloseTFile (const G4String &fileName)
G4bool	SetIsEmpty (const G4String &fileName, G4bool isEmpty)
std::shared_ptr< FT >	GetTFile (const G4String &fileName, G4bool warn=true) const
G4bool	OpenFiles ()
G4bool	WriteFiles ()
G4bool	CloseFiles ()
G4bool	DeleteEmptyFiles ()
void	ClearData ()

Protected Attributes
std::shared_ptr< FT >	fFile { nullptr }
Protected Attributes inherited from G4VFileManager
G4String	fHistoDirectoryName
G4String	fNtupleDirectoryName
G4bool	fIsOpenFile { false }
G4bool	fLockDirectoryNames { false }
std::shared_ptr< G4VTHnFileManager< tools::histo::h1d > >	fH1FileManager { nullptr }
std::shared_ptr< G4VTHnFileManager< tools::histo::h2d > >	fH2FileManager { nullptr }
std::shared_ptr< G4VTHnFileManager< tools::histo::h3d > >	fH3FileManager { nullptr }
std::shared_ptr< G4VTHnFileManager< tools::histo::p1d > >	fP1FileManager { nullptr }
std::shared_ptr< G4VTHnFileManager< tools::histo::p2d > >	fP2FileManager { nullptr }
Protected Attributes inherited from G4BaseFileManager
const G4AnalysisManagerState &	fState
G4int	fCompressionLevel { 1 }
G4String	fFileName
std::vector< G4String >	fFileNames

Additional Inherited Members
Protected Member Functions inherited from G4BaseFileManager
void	Message (G4int level, const G4String &action, const G4String &objectType, const G4String &objectName="", G4bool success=true) const
void	ClearData ()
Protected Member Functions inherited from G4TFileManager< FT >
virtual std::shared_ptr< FT >	CreateFileImpl (const G4String &fileName)=0
virtual G4bool	WriteFileImpl (std::shared_ptr< FT > file)=0
virtual G4bool	CloseFileImpl (std::shared_ptr< FT > file)=0
Static Protected Attributes inherited from G4VFileManager
static constexpr std::string_view	fkClass { "G4VFileManager" }

Detailed Description

template<typename FT>
class G4VTFileManager< FT >

Definition at line 42 of file G4VTFileManager.hh.

Constructor & Destructor Documentation

G4VTFileManager()

template<typename FT>

G4VTFileManager< FT >::G4VTFileManager ( const G4AnalysisManagerState & state )

inlineexplicit

Definition at line 46 of file G4VTFileManager.hh.

      : G4VFileManager(state), G4TFileManager<FT>(state) {}

~G4VTFileManager()

template<typename FT>

G4VTFileManager< FT >::~G4VTFileManager ( )

overridedefault

Member Function Documentation

Clear()

template<typename FT>

void G4VTFileManager< FT >::Clear ( )

inlinefinalvirtual

Implements G4VFileManager.

Definition at line 154 of file G4VTFileManager.hh.

{
  G4TFileManager<FT>::ClearData();
  G4BaseFileManager::ClearData();
  UnlockDirectoryNames();
}

Referenced by DeleteEmptyFiles().

CloseFile()

template<typename FT>

G4bool G4VTFileManager< FT >::CloseFile ( const G4String & fileName )

inlinefinalvirtual

Implements G4VFileManager.

Definition at line 96 of file G4VTFileManager.hh.

{
  return G4TFileManager<FT>::CloseTFile(fileName);
}

CloseFiles()

template<typename FT>

G4bool G4VTFileManager< FT >::CloseFiles ( )

inlinefinalvirtual

Implements G4VFileManager.

Definition at line 128 of file G4VTFileManager.hh.

{
  auto result = G4TFileManager<FT>::CloseFiles();

  fIsOpenFile = false;
  fFile.reset();

  return result;
}

CreateFile()

template<typename FT>

G4bool G4VTFileManager< FT >::CreateFile ( const G4String & fileName )

inlinefinalvirtual

Implements G4VFileManager.

Definition at line 80 of file G4VTFileManager.hh.

{
  return (G4TFileManager<FT>::CreateTFile(fileName) != nullptr);
}

DeleteEmptyFiles()

template<typename FT>

G4bool G4VTFileManager< FT >::DeleteEmptyFiles ( )

inlinefinalvirtual

Implements G4VFileManager.

Definition at line 141 of file G4VTFileManager.hh.

{
  auto result = G4TFileManager<FT>::DeleteEmptyFiles();

  // clean-up also all stored information about file names
  Clear();

  return result;
}

GetFile()

template<typename FT>

std::shared_ptr< FT > G4VTFileManager< FT >::GetFile ( ) const

inline

Definition at line 163 of file G4VTFileManager.hh.

{
  return fFile;
}

OpenFiles()

template<typename FT>

G4bool G4VTFileManager< FT >::OpenFiles ( )

inlinefinalvirtual

Implements G4VFileManager.

Definition at line 112 of file G4VTFileManager.hh.

{
  return G4TFileManager<FT>::OpenFiles();
}

SetIsEmpty()

template<typename FT>

G4bool G4VTFileManager< FT >::SetIsEmpty ( const G4String & fileName, G4bool isEmpty )

inlinefinalvirtual

Implements G4VFileManager.

Definition at line 104 of file G4VTFileManager.hh.

{
  return G4TFileManager<FT>::SetIsEmpty(fileName, isEmpty);
}

WriteFile()

template<typename FT>

G4bool G4VTFileManager< FT >::WriteFile ( const G4String & fileName )

inlinefinalvirtual

Implements G4VFileManager.

Definition at line 88 of file G4VTFileManager.hh.

{
  return G4TFileManager<FT>::WriteTFile(fileName);
}

WriteFiles()

template<typename FT>

G4bool G4VTFileManager< FT >::WriteFiles ( )

inlinefinalvirtual

Implements G4VFileManager.

Definition at line 120 of file G4VTFileManager.hh.

{
  return G4TFileManager<FT>::WriteFiles();
}

Member Data Documentation

fFile

template<typename FT>

std::shared_ptr<FT> G4VTFileManager< FT >::fFile { nullptr }

protected

Definition at line 74 of file G4VTFileManager.hh.

{ nullptr };

Referenced by CloseFiles(), and GetFile().

---

The documentation for this class was generated from the following file:

• G4VTFileManager.hh
