G4ModelCmdApplyColour< M > Class Template Reference

#include <G4ModelApplyCommandsT.hh>

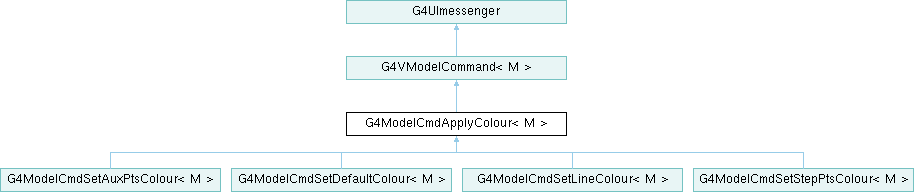

Inheritance diagram for G4ModelCmdApplyColour< M >:

Public Member Functions
	G4ModelCmdApplyColour (M *model, const G4String &placement, const G4String &cmdName)
virtual	~G4ModelCmdApplyColour ()
void	SetNewValue (G4UIcommand *command, G4String newValue)
Public Member Functions inherited from G4VModelCommand< M >
	G4VModelCommand (M *model, const G4String &placement="")
virtual	~G4VModelCommand ()
G4String	GetCurrentValue (G4UIcommand *command)
G4String	Placement ()
Public Member Functions inherited from G4UImessenger
	G4UImessenger ()=default
	G4UImessenger (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
virtual	~G4UImessenger ()
G4bool	CommandsShouldBeInMaster () const

Protected Member Functions
virtual void	Apply (const G4Colour &)=0
G4UIcommand *	StringCommand ()
G4UIcommand *	ComponentCommand ()
Protected Member Functions inherited from G4VModelCommand< M >
M *	Model ()
Protected Member Functions inherited from G4UImessenger
G4String	ItoS (G4int i)
G4String	LtoS (G4long l)
G4String	DtoS (G4double a)
G4String	BtoS (G4bool b)
G4int	StoI (const G4String &s)
G4long	StoL (const G4String &s)
G4double	StoD (const G4String &s)
G4bool	StoB (const G4String &s)
void	AddUIcommand (G4UIcommand *newCommand)
void	CreateDirectory (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
template<typename T>
T *	CreateCommand (const G4String &cname, const G4String &dsc)

Additional Inherited Members
Protected Attributes inherited from G4UImessenger
G4UIdirectory *	baseDir = nullptr
G4String	baseDirName = ""
G4bool	commandsShouldBeInMaster = false

Detailed Description

template<typename M>
class G4ModelCmdApplyColour< M >

Definition at line 159 of file G4ModelApplyCommandsT.hh.

Constructor & Destructor Documentation

G4ModelCmdApplyColour()

template<typename M>

G4ModelCmdApplyColour< M >::G4ModelCmdApplyColour	(	M *	model,
		const G4String &	placement,
		const G4String &	cmdName )

Definition at line 185 of file G4ModelApplyCommandsT.hh.

  :G4VModelCommand<M>(model, placement)
{
  //Set colour through a string
  G4String dir = placement+"/"+model->Name()+"/"+cmdName;
  G4UIparameter* param(0);

  fpStringCmd = new G4UIcommand(dir, this);
  fpStringCmd->SetGuidance("Set colour through a string");

  param = new G4UIparameter("Variable", 's', false);
  fpStringCmd->SetParameter(param);

  //Set colour through RGBA components
  G4String componentDir = dir+"RGBA";

  fpComponentCmd = new G4UIcommand(componentDir, this);
  fpComponentCmd->SetGuidance("Set colour through red, green, blue and alpha components");
  fpComponentCmd->SetGuidance("Four inputs are expected.");

  param = new G4UIparameter("Red component", 'd', false);
  fpComponentCmd->SetParameter(param);

  param = new G4UIparameter("Green component", 'd', false);
  fpComponentCmd->SetParameter(param);

  param = new G4UIparameter("Blue component", 'd', false);
  fpComponentCmd->SetParameter(param);

  param = new G4UIparameter("Alpha component", 'd', false);
  fpComponentCmd->SetParameter(param);
}

Referenced by G4ModelCmdSetAuxPtsColour< M >::G4ModelCmdSetAuxPtsColour(), G4ModelCmdSetDefaultColour< M >::G4ModelCmdSetDefaultColour(), G4ModelCmdSetLineColour< M >::G4ModelCmdSetLineColour(), and G4ModelCmdSetStepPtsColour< M >::G4ModelCmdSetStepPtsColour().

~G4ModelCmdApplyColour()

template<typename M>

G4ModelCmdApplyColour< M >::~G4ModelCmdApplyColour ( )

virtual

Definition at line 219 of file G4ModelApplyCommandsT.hh.

{
  delete fpStringCmd;
  delete fpComponentCmd;
}

Member Function Documentation

Apply()

template<typename M>

virtual void G4ModelCmdApplyColour< M >::Apply ( const G4Colour & )

protectedpure virtual

Implemented in G4ModelCmdSetAuxPtsColour< M >, G4ModelCmdSetDefaultColour< M >, G4ModelCmdSetLineColour< M >, and G4ModelCmdSetStepPtsColour< M >.

Referenced by SetNewValue().

ComponentCommand()

template<typename M>

G4UIcommand * G4ModelCmdApplyColour< M >::ComponentCommand ( )

inlineprotected

Definition at line 175 of file G4ModelApplyCommandsT.hh.

{return fpComponentCmd;}

SetNewValue()

template<typename M>

void G4ModelCmdApplyColour< M >::SetNewValue ( G4UIcommand * command, G4String newValue )

virtual

Reimplemented from G4UImessenger.

Definition at line 226 of file G4ModelApplyCommandsT.hh.

{
  G4Colour myColour;

  if (cmd == fpStringCmd) {
    G4String colour;
    std::istringstream is (newValue);
    is >> colour;

    // Colour key should exist
    if (!G4Colour::GetColour(colour, myColour)) {
      G4ExceptionDescription ed;
      ed << "G4Colour with key "<<colour<<" does not exist ";
      G4Exception
    ("G4ModelCmdApplyColour<M>::SetNewValue",
     "modeling0107", JustWarning, ed);
      return;
    }
  }

  if (cmd == fpComponentCmd) {
    G4double red(0), green(0), blue(0), alpha(0);
    std::istringstream is (newValue);
    is >> red >> green >> blue >> alpha;

    G4Colour colour(red, green, blue, alpha);
    myColour = colour;
  }

  Apply(myColour);
  G4VVisManager* visManager = G4VVisManager::GetConcreteInstance();
  if (visManager) visManager->NotifyHandlers();
}

StringCommand()

template<typename M>

G4UIcommand * G4ModelCmdApplyColour< M >::StringCommand ( )

inlineprotected

Definition at line 174 of file G4ModelApplyCommandsT.hh.

{return fpStringCmd;}

---

The documentation for this class was generated from the following file:

• G4ModelApplyCommandsT.hh
